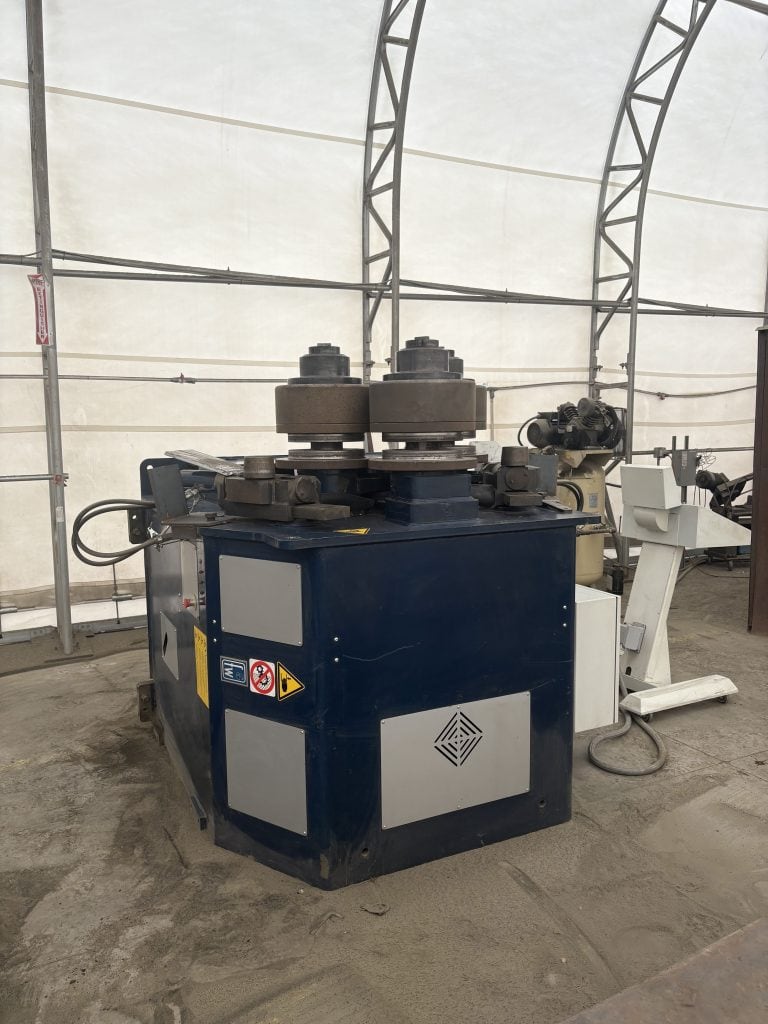

5″ x 1/2″ Faccin RCMI 130 CNC Angle Roll, 2019 – Low Hours

Shaft & Roll:
Shaft diameter: 130 mm ((5.1) in)
Roll diameter: 410 mm ((16.14) in)
Motor: 25 HP ((18.4) kW)
Section modulus: (6.1) cubic inches ((100cm^{3}))
Bending speed: Up to (30) FPM ((6) m/min)
Bending capacities:
Angle toe out: (5.1) in x (5.1) in x (0.59) in
Angle toe in: (4.9) in x (4.9) in x (0.47) in
Flat on edge: (4.7) in x (1.18) in x (47.2) in
Square pipe: (3.9) in x (0.31) inPipe: (5.5) in x (0.19) in x (59.05) in
Machine dimensions & weight:
Length: 1,900 mm
Width: 2,200 mm
Height: 1,900 mm
Weight: 5,720 kg

*** New Replacement Value – $175,000***
