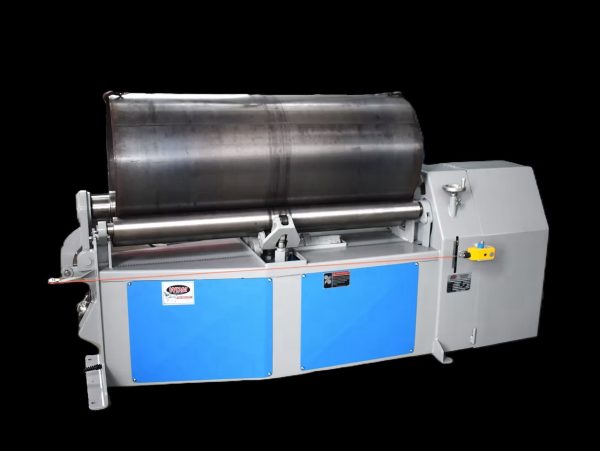

1/4″ x 5′ WDM 430-6-5 Plate Roll, 2025

Passive Crown System: Automatically compensates for roll deflection—from thin sheets up to 1/4″ plate—without crowning or shimming

Roll Material: Flame‑hardened and polished 1045 carbon steel rolls

Drive System: Hydraulic motors (LSHT type), instant start/stop/reverse, synchronized top and bottom rolls

Speed: Variable up to 22 ft/min

Controls: Beta 4.2 console with 3 digital readouts for lower roll positions

Electrical Package: NEMA 12 cabinet, 230/460 V 3‑phase, PLC-compliant, variable‑frequency drive

Bearings & Construction: SKF spherical roller bearings; fabricated steel frame designed to sit on a level floor

Pre‑bend Capacity: 1/4″ (0.250″) × 5′, meaning it can prebend plate up to 1/4″ thick across the full 5′ width
