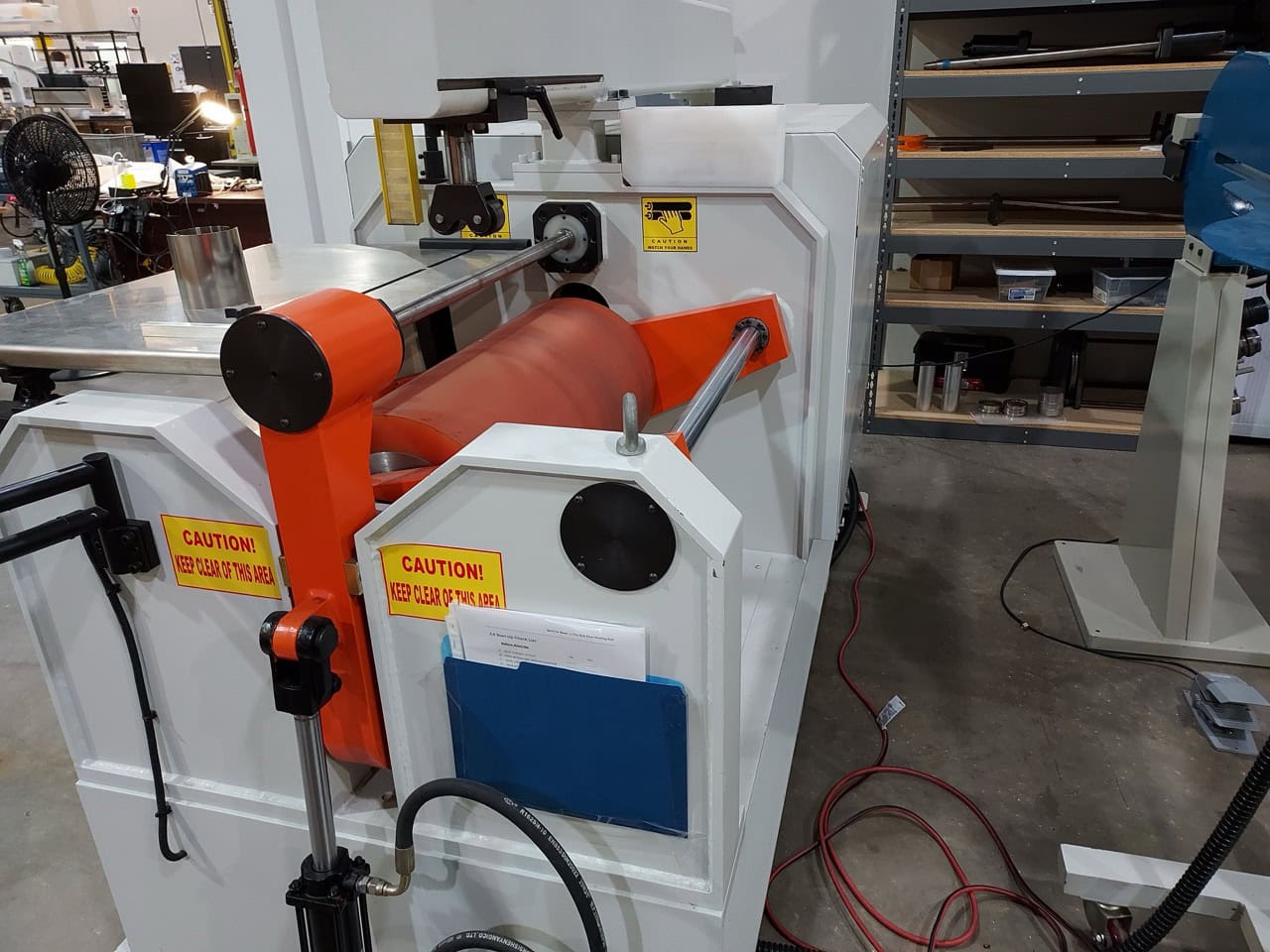

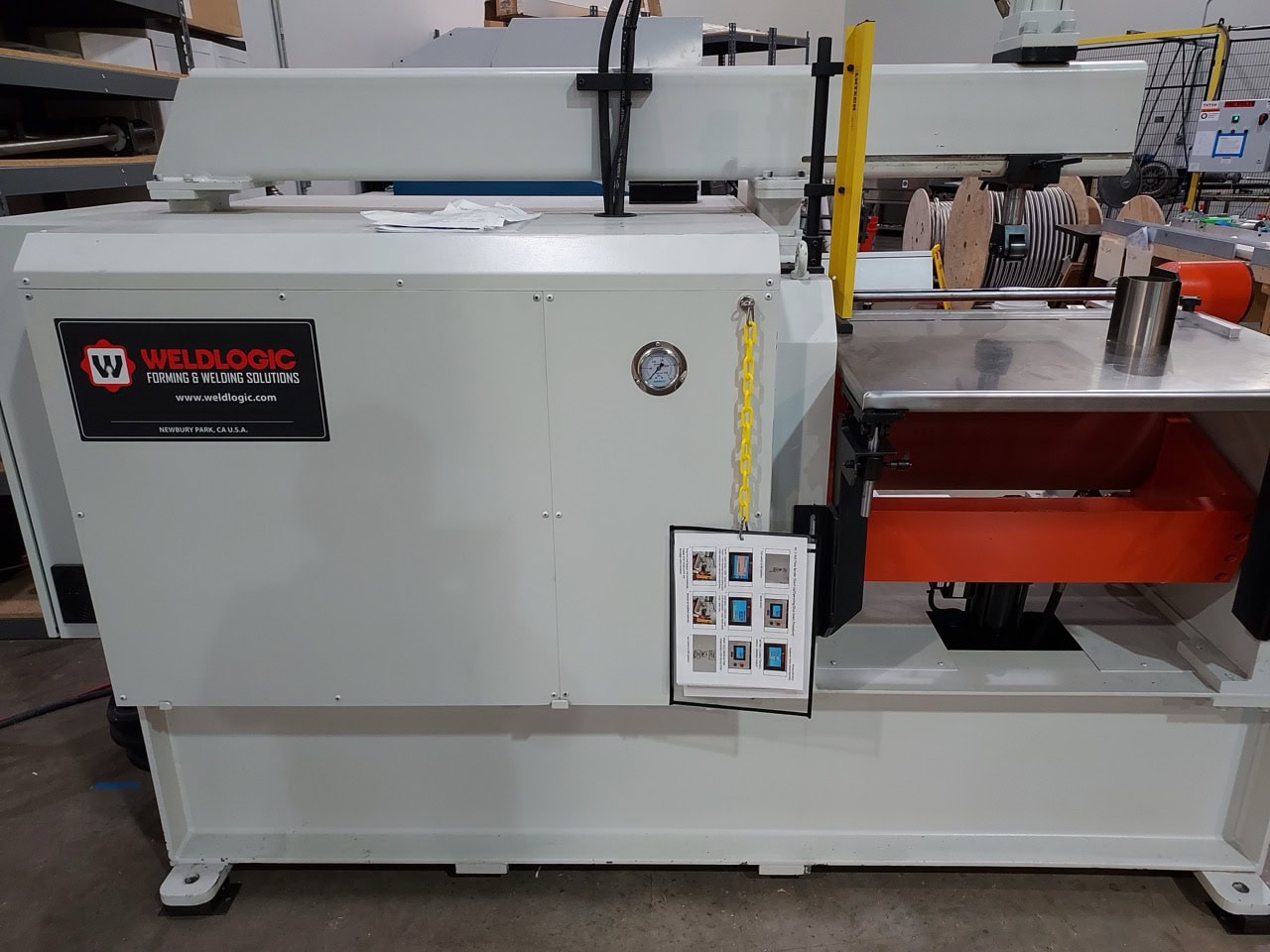

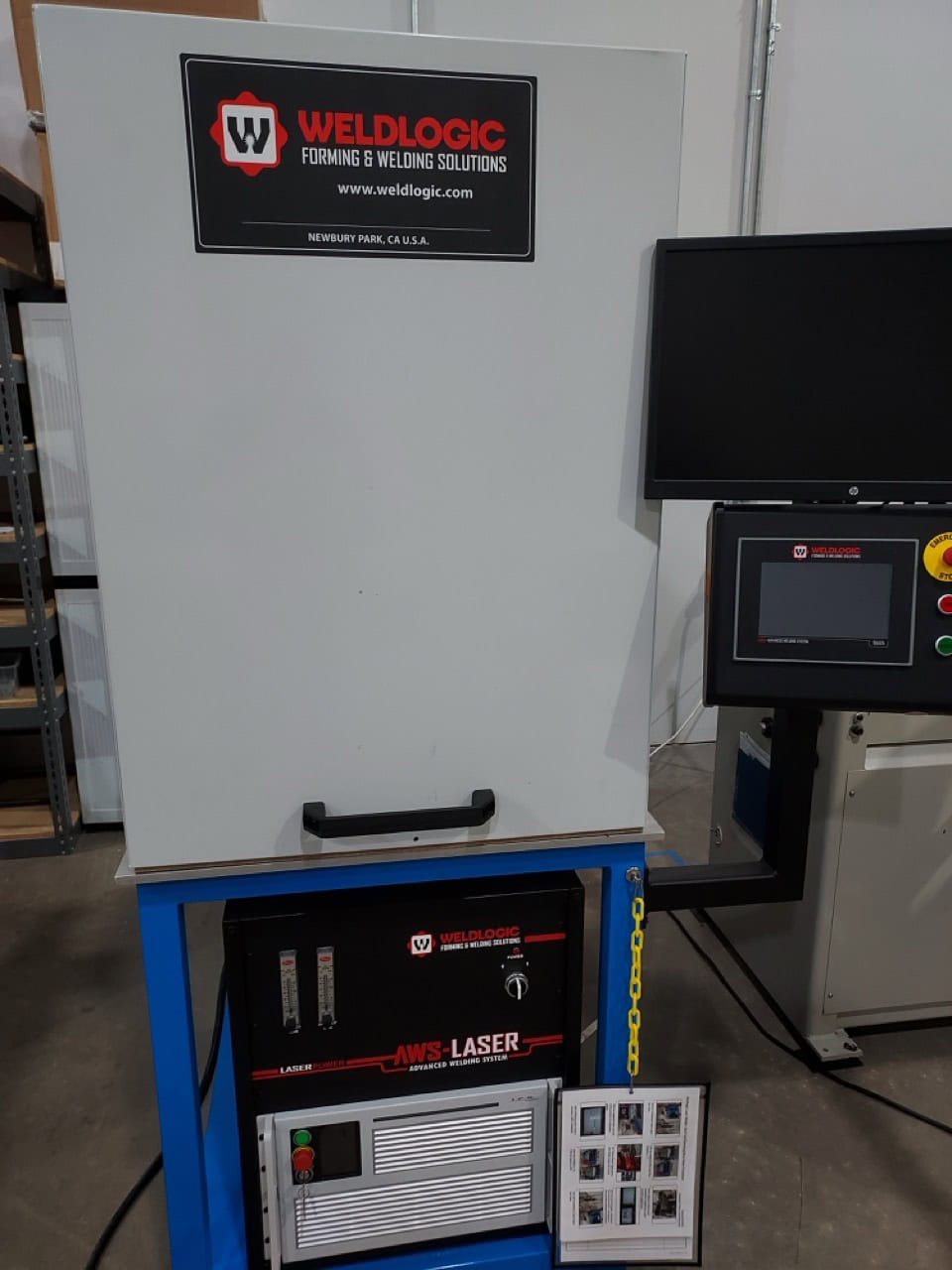

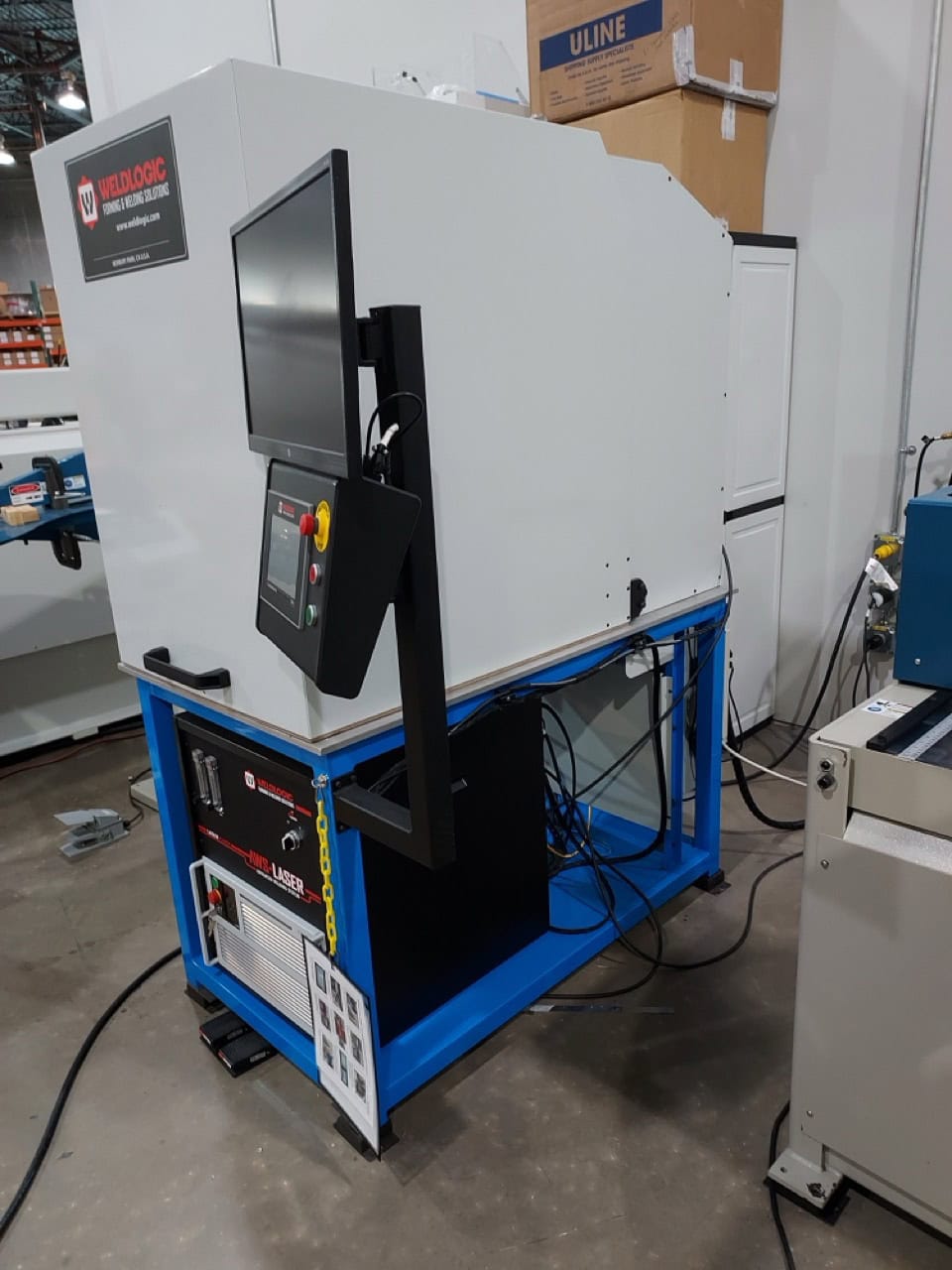

Weldlogic Two Roll Plate Bending Roll Model 2R-2435-20-1.2-10 & UPS-24 Seam Welder, 2018

A1 Machine Capacity:
Materials: SS304
Thickness: 0.020″
Diameter: 1.2″-2.2″
Length: <24″(D1.2″/L10″)

A2 Machine Specifications:
Polyurethane Roll Diameter: 12.6″
Roll Face: 26″
Approx. Floor Space: 70″ x 36″
Total Power: 5 hp

B1 Standard Features Include:
Polyurethane Roll Driven by Hydraulic Motor Gearbox
Operator Control Panel E-Stop, Fwd, Rev, Form Roll Up/Form Roll Down Drop Arm Open and Close
Spherical Roller Bearings
Electrical Disconnect with Lockout
Welded Steel Construction
Forged 1040/1045 Solid Steel Rolls
Precision Polyurethane Forming Roll Positioning by Hydraulic Cylinder with Cable Encoder

B2 Optional Equipment Included
Automatic Part Cycle System via PLC (100 part program storage included)
Quick Change Forming Mandrels w/ Bearing Cartridge X6
Overhead Mandrel Support System on Beam
Adjustable Manual In-Feed Table
One Side Light
