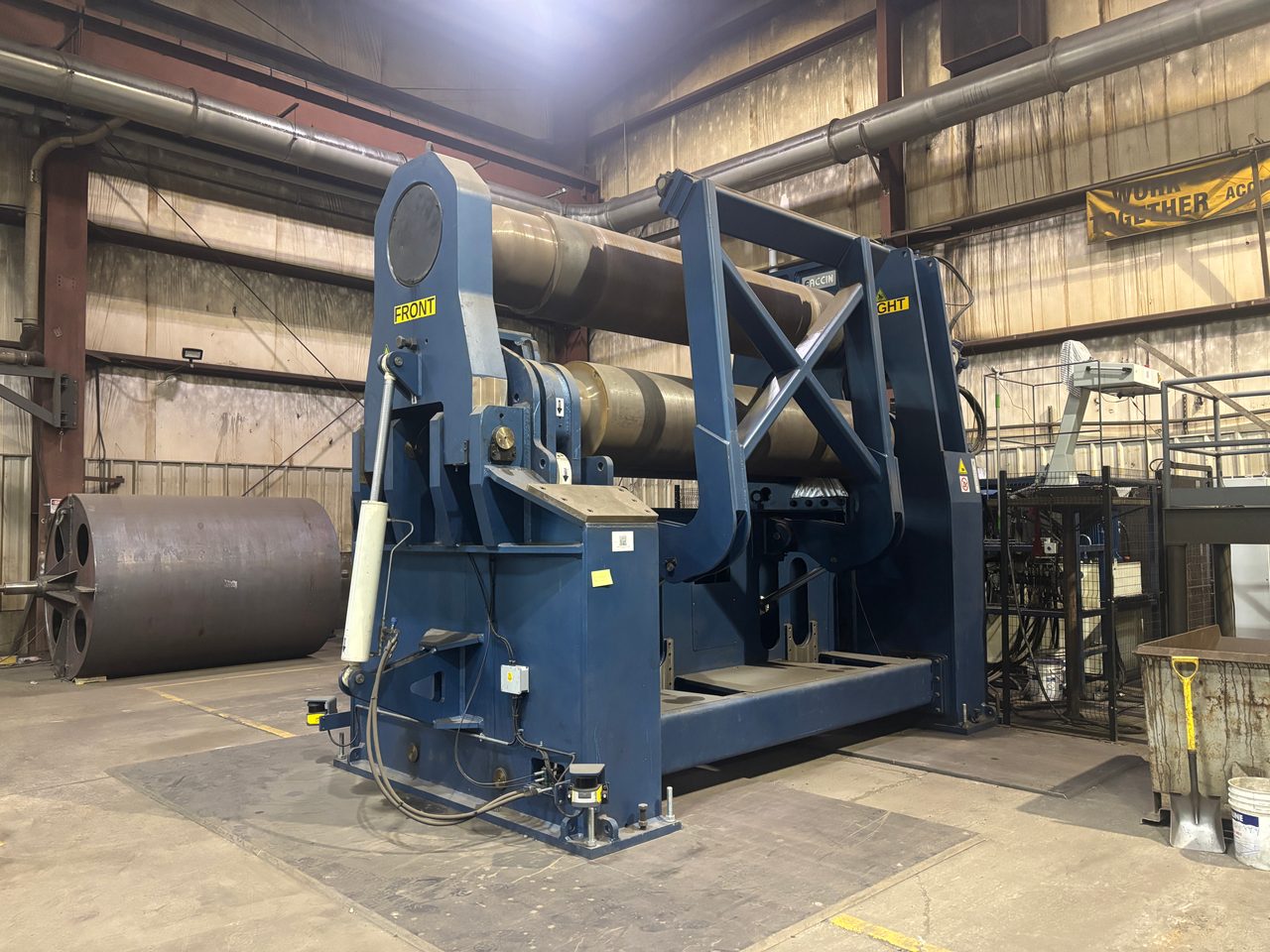

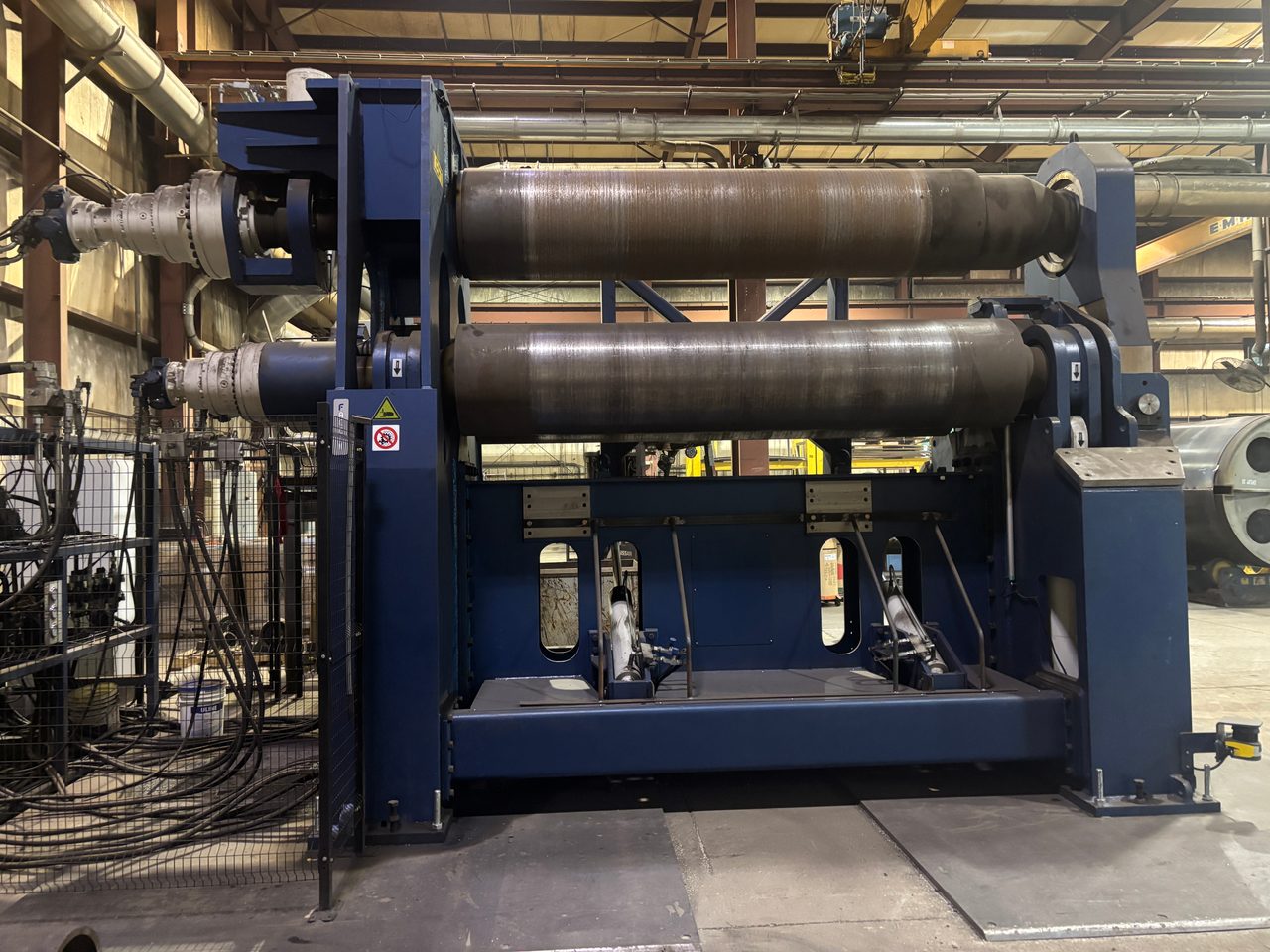

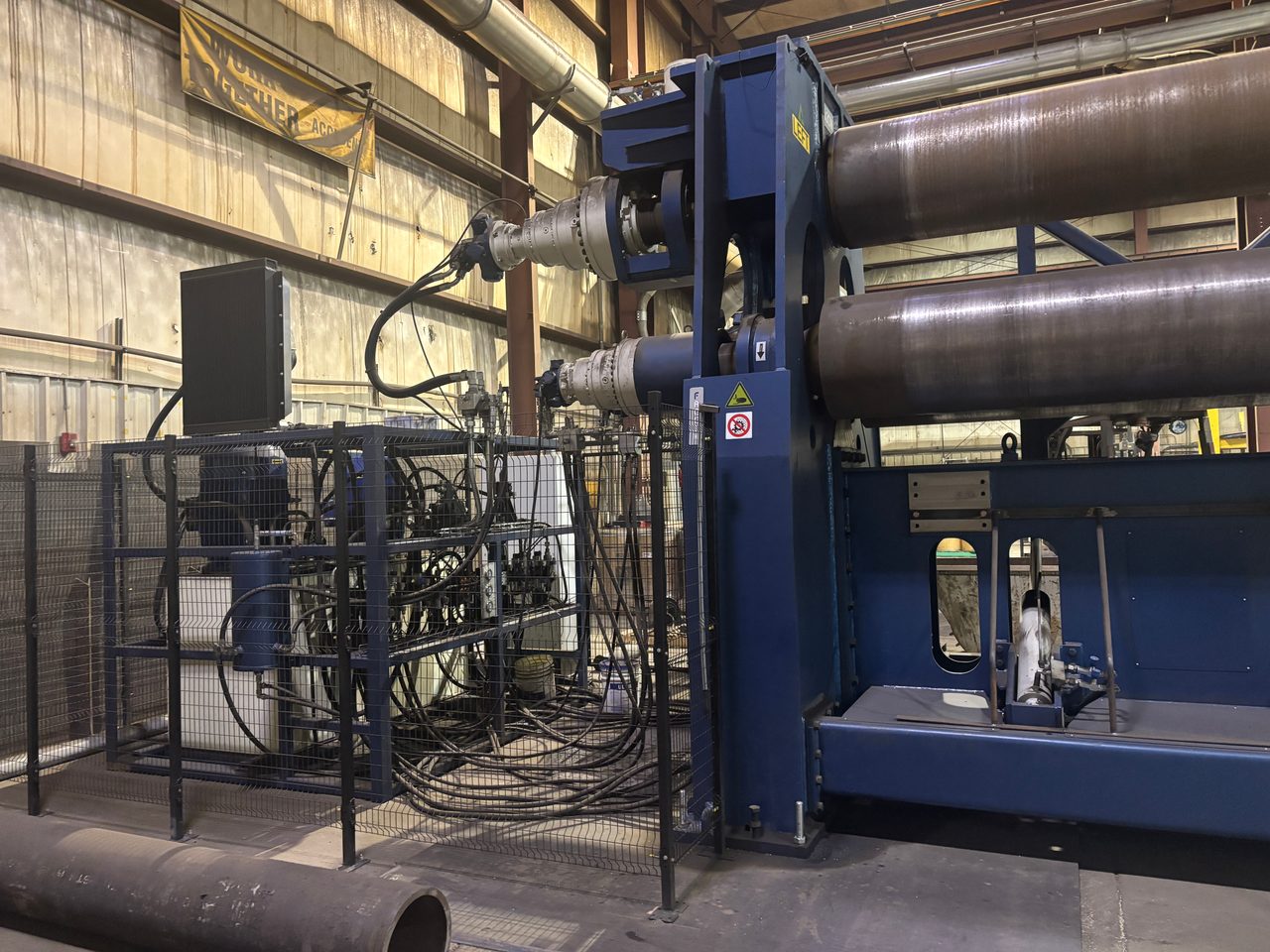

3.5″ x 10′ Faccin 3HEP-SX210 3-Roll Plate Roll, 2025 – Planetary Roll Drive System

Maximum Plate Width: 120″
Maximum Bending Capacity: 3″ x 120″ at 130″ Diameter
Maximum Pre-Bending Capacity: 2.5″ x 120″ at 130″ Diameter
Bending Capacity At 34″ Diameter: 2.5″ x 120″
Pre-Bending Capacity At 34″ Diameter: 2″ x 120″
Maximum Half-Length Bending Capacity: 3.75″ x 60″
Maximum Half-Length Pre-Bending Capacity: 3.13″ x 60″
Number Of Rolls: 3
Top Roll Diameter: 26″
Side Roll Diameter: 24.8″
Rolling Power: 175 HP
Maximum Rolling Speed: 20 Ft/Min
Dimensions: 276″ x 79″ x 158″

Equipped With:
– Siemens PGS-Classic SIMATIC HMI Touch Control
– Hardened Alloy Steel Rolls

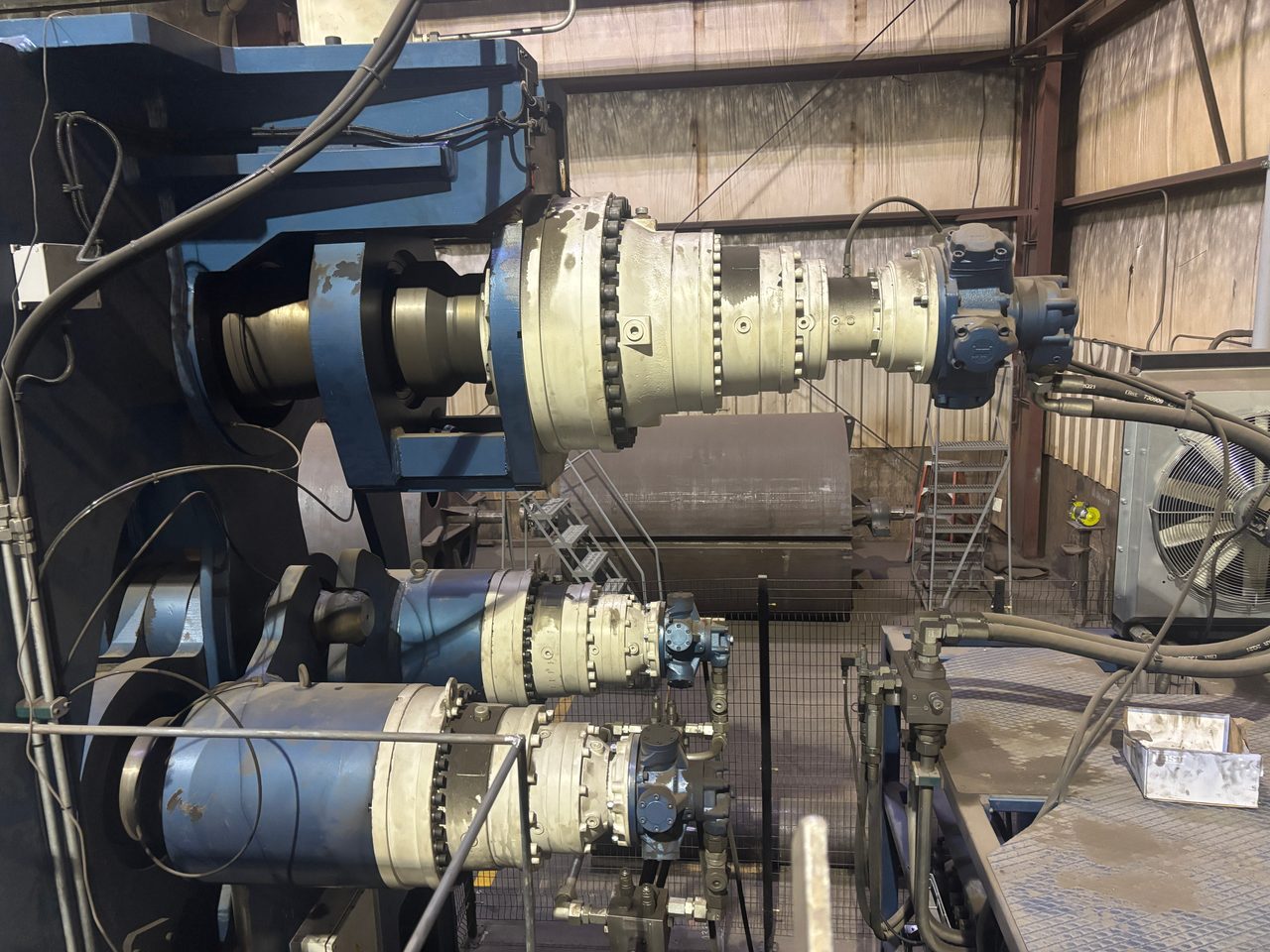

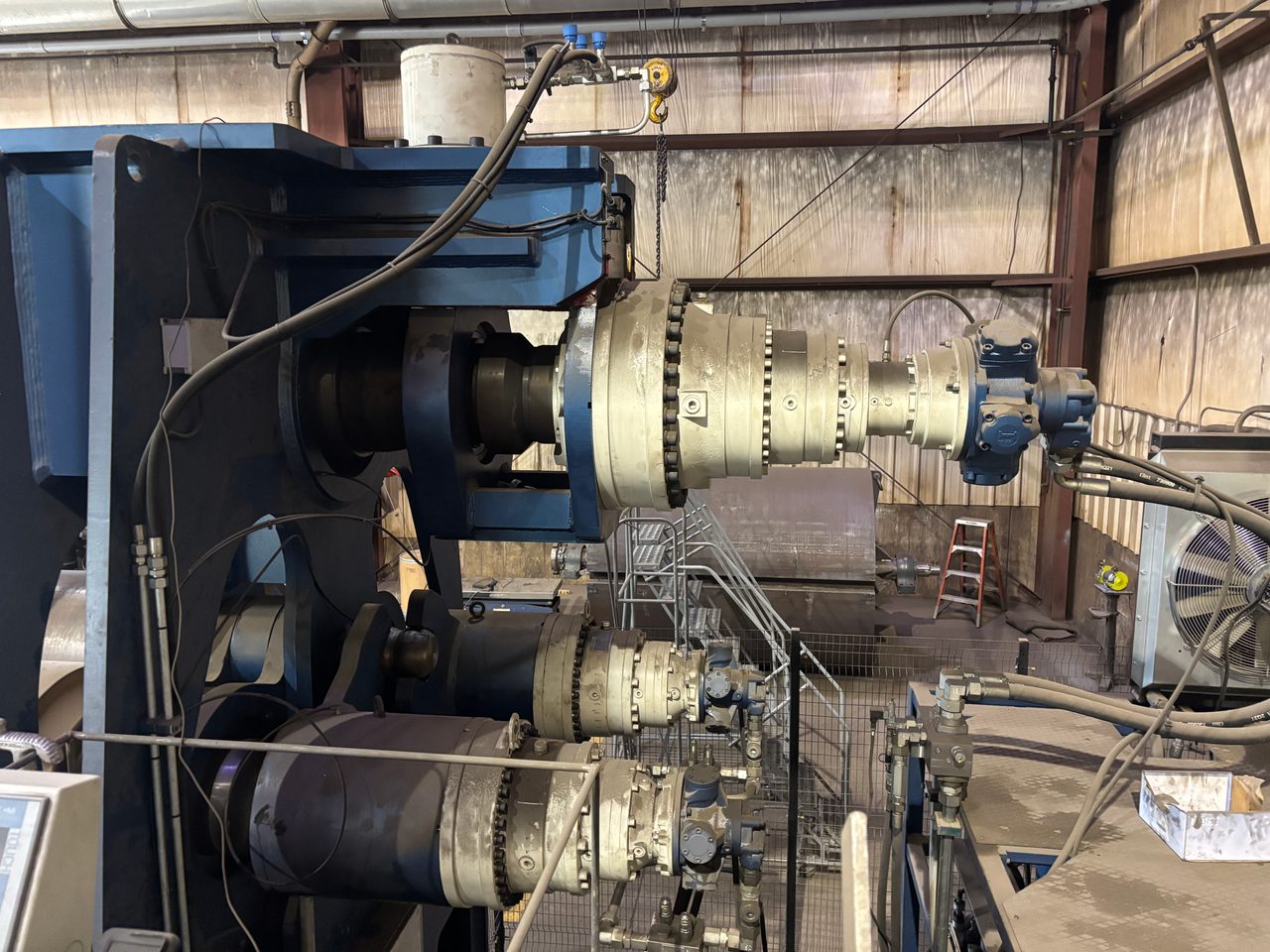

– Planetary Roll Drive System
– Three Independently Motorized Rolls
– Electronic Roll Synchronization
– Digital Roll Position Readouts
– Mobile Operator Console
– Hydraulic Oil Temperature Control
– Side Support
– Double Shaft Drop End
– Automatic Lubrication System
– Emergency Stop Cable System
