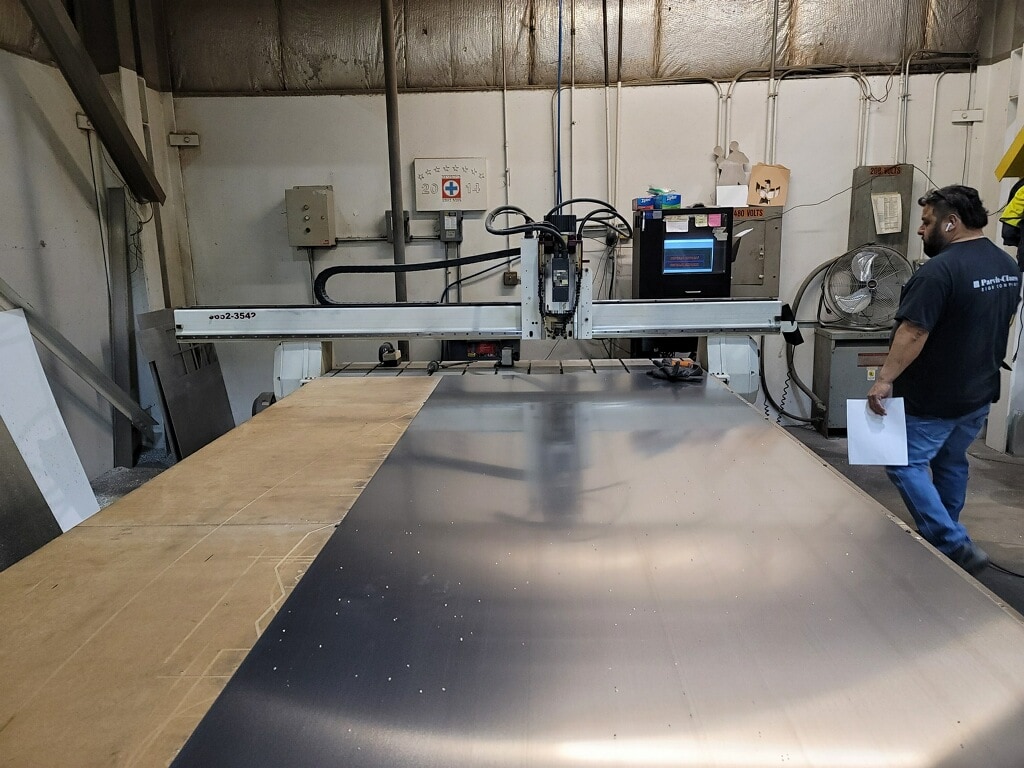

5′ x 10′ AXYZ 5010 CNC Router, 2008 – Vacuum Pump, Available Immediately
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Specifications:
Table Size: 5′ x 10′
Vacuum Table: (5) Zones
Vacuum Pump: (10) Horsepower – Included
Table Height: 32″
Gantry Clearance 6.0″
Z Axis Stroke: 7.5 inches
10 Hp Spindle: 6,000 to 24,000 RPM with
“quick release spindle”
Digital A/C inverter for spindle RPM control
S-Mouse Rapid Tool Tip Sensor for surface
and tool height control
Automatic Misting System for non ferrous
metal-working
Adjustable Pressure Foot for chip
containment & extract.
High-Torque Microstepper Drives & Motors
in all 3 axes
Interface software – Window Verson 2.9
Visual Interface Software
Electrics: 208v – 230v / 3 ph
Overall dimensions 88″ x 144″
Equipped with:
AMC Smart Control complete with Hand
held Operator console
Vacuum Pump Included
