5′ x 10′ Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller

$29,900.00

5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 2
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 3
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 4
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 5
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 6
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 7
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 8
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 9
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 10
5' x 10' Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller - Image 11

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Routers
Make: Laguna
Model: Smart Shop II
Year: 2021
Machine Location: New York
Stock #: 056543

Laguna Tools SmartShop II SS2-2
Year: 2021
Controller: Syntec FC60-CA
Cutting Area: 5 ft. x 10 ft.

Spindle
Manufacturer: HSD
Spindle Power: 12 HP
Spindle Type: ISO-30 Automatic Tool Change (ATC)
Bearings: Ceramic
Maximum Spindle Speed: 24,000 RPM
Voltage: 208-230V, 3 Phase

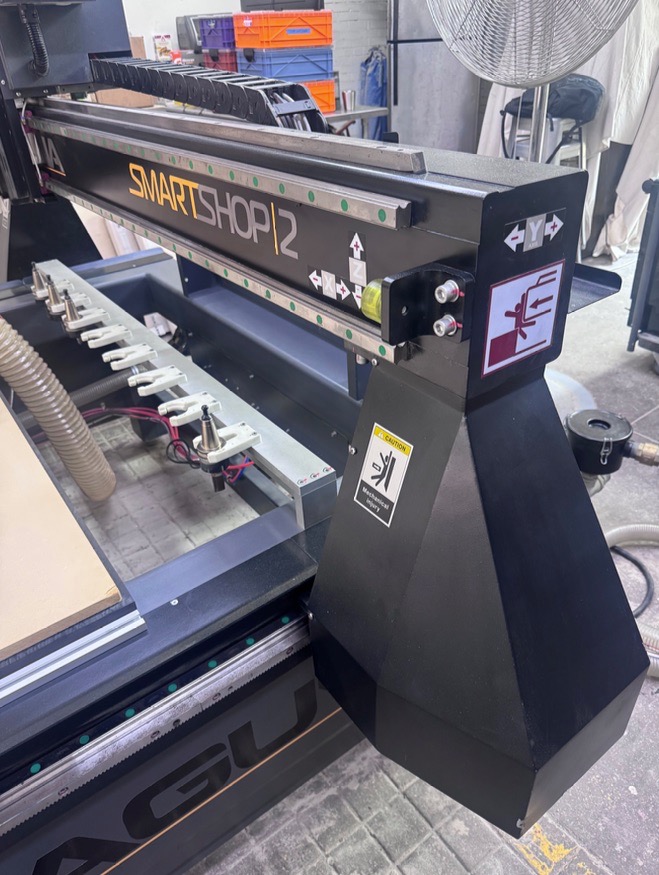

Tool Changer
Automatic Tool Changer: 8 Position
Tool Holders Included: 4
Tool Cone Holder for Quick Bit Changes
Table

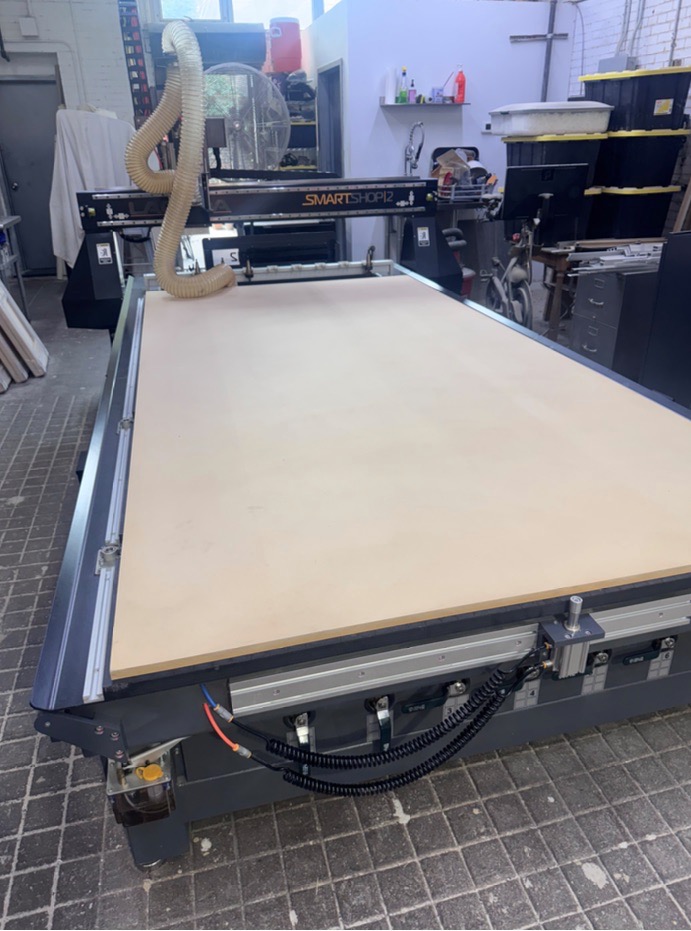

Table Size: 5′ x 10′
Vacuum Table: Universal Grid Phenolic Vacuum

Table
T-Slot Workholding
Vacuum Zones: 6 Independently Controlled Zones

Motion System

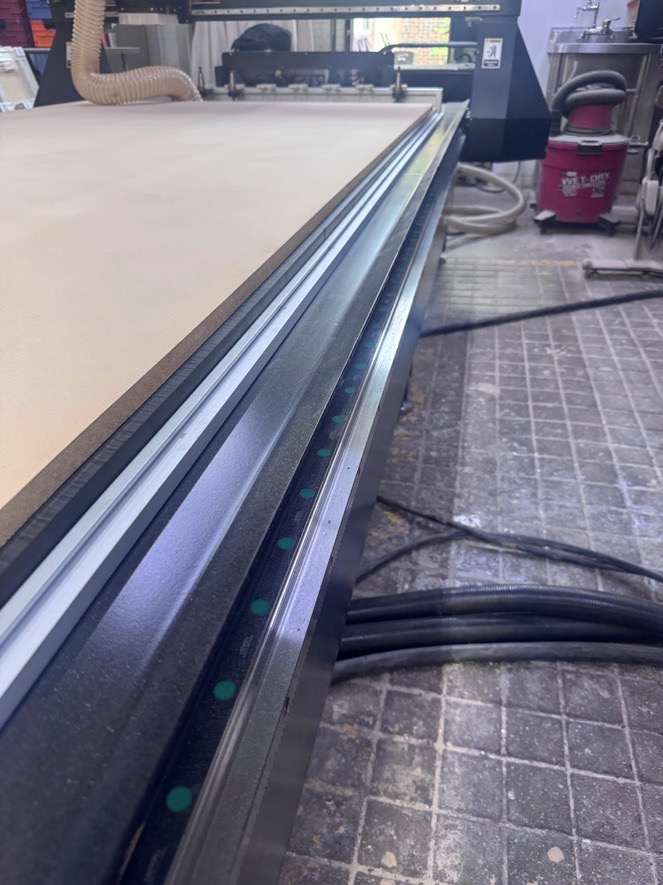

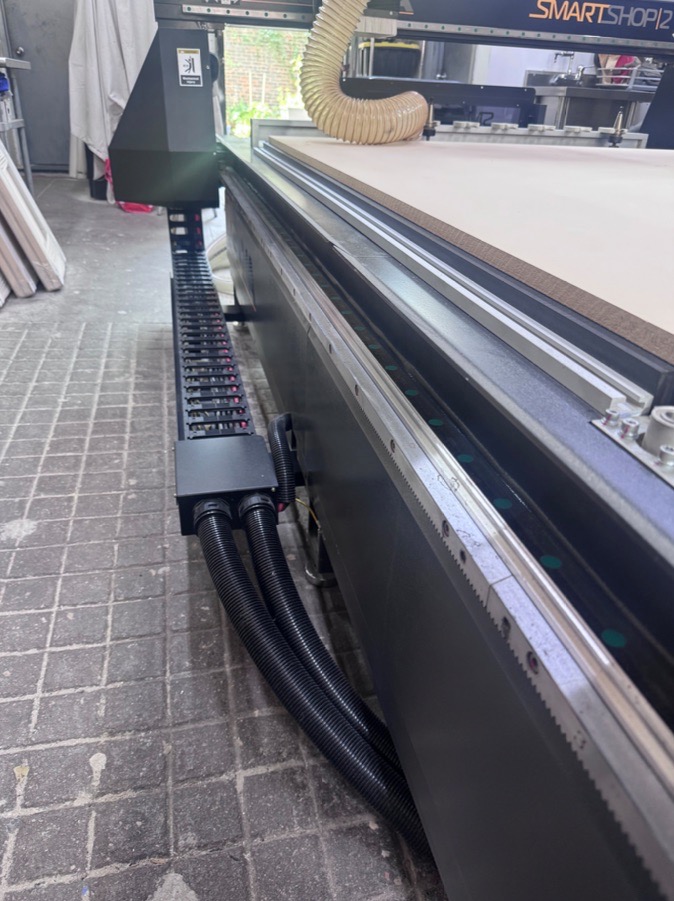

X-Axis: Helical Rack & Pinion
Y-Axis: Dual Helical Rack & Pinion
Z-Axis: Precision Ground Ball Screw

Machine Features
Programmable Dust Hood with M-Code Driven Retraction

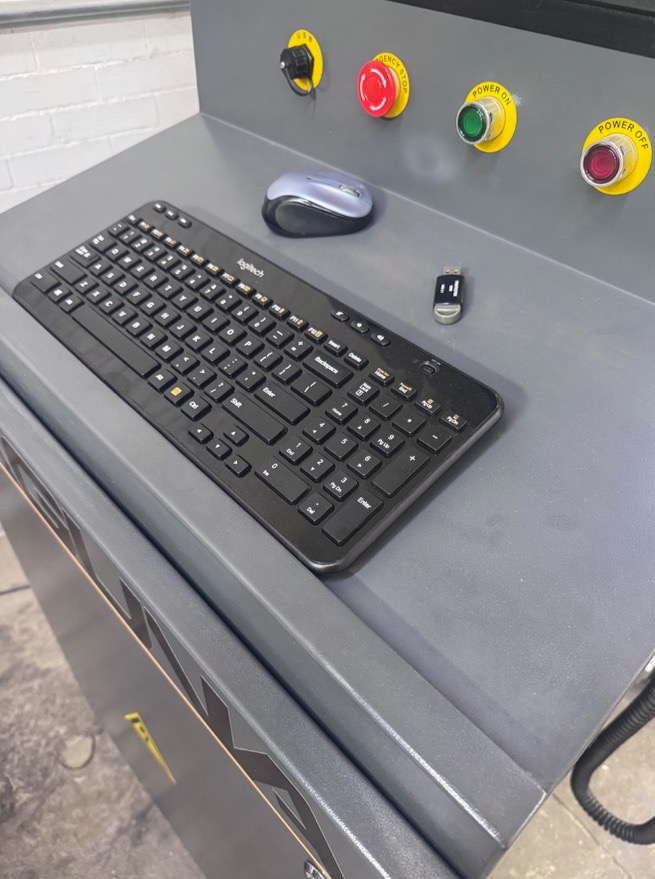

Emergency Stop
Soft Limits with Limit Switches on All Axes
Heavy-Duty All-Welded Structural Steel Frame
Approximate Machine Weight: 3,500 lbs.

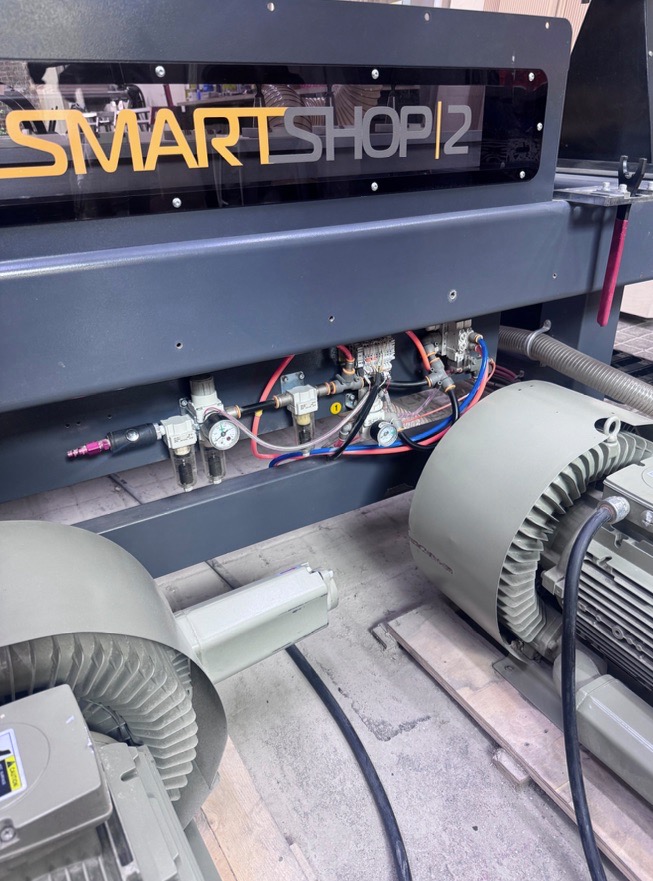

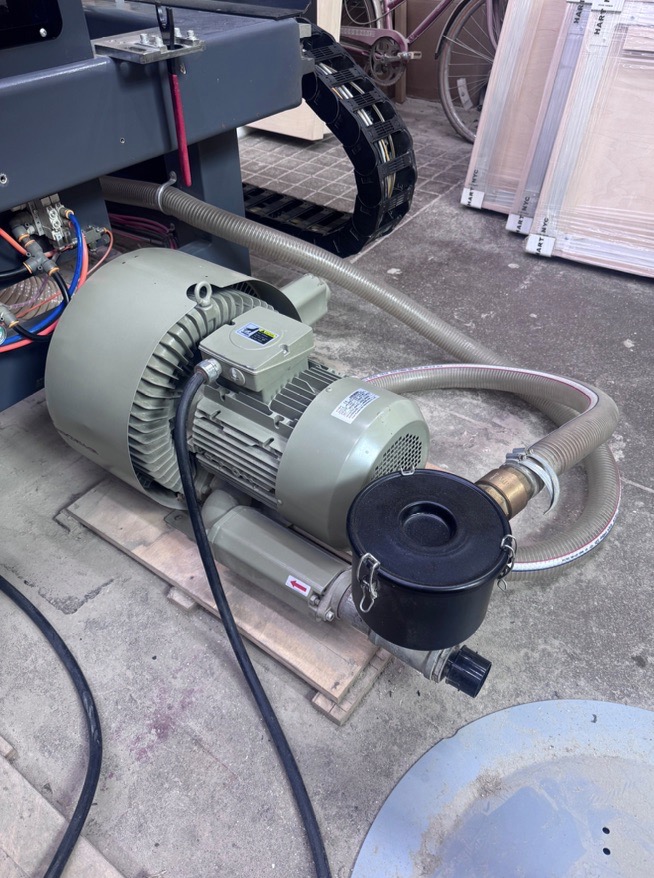

Vacuum System

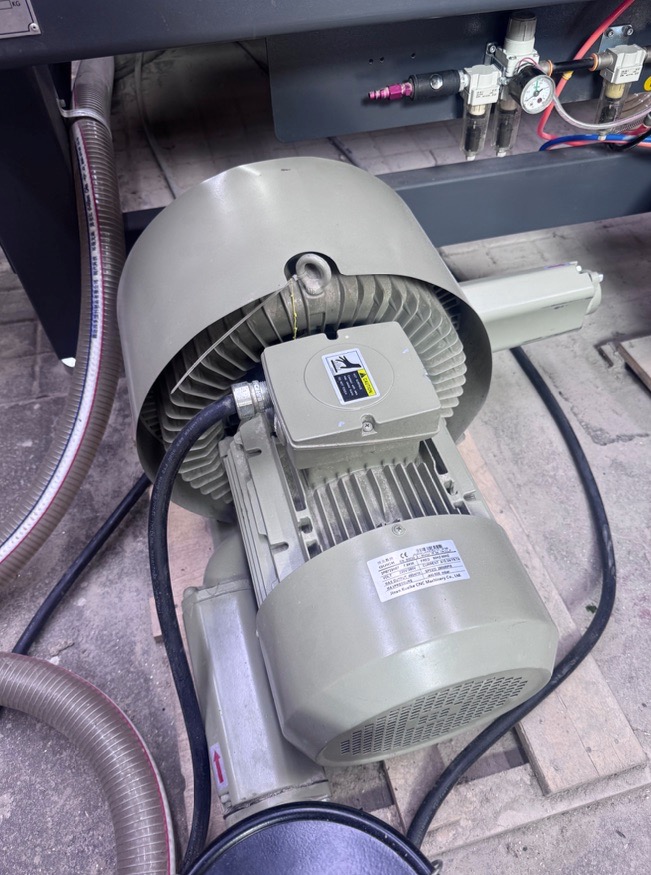

(2) 10 HP Regenerative Blower Vacuum Pumps
285 CFM Each
220V, 3 Phase
Includes Filter Housing & Filter Fittings

Software

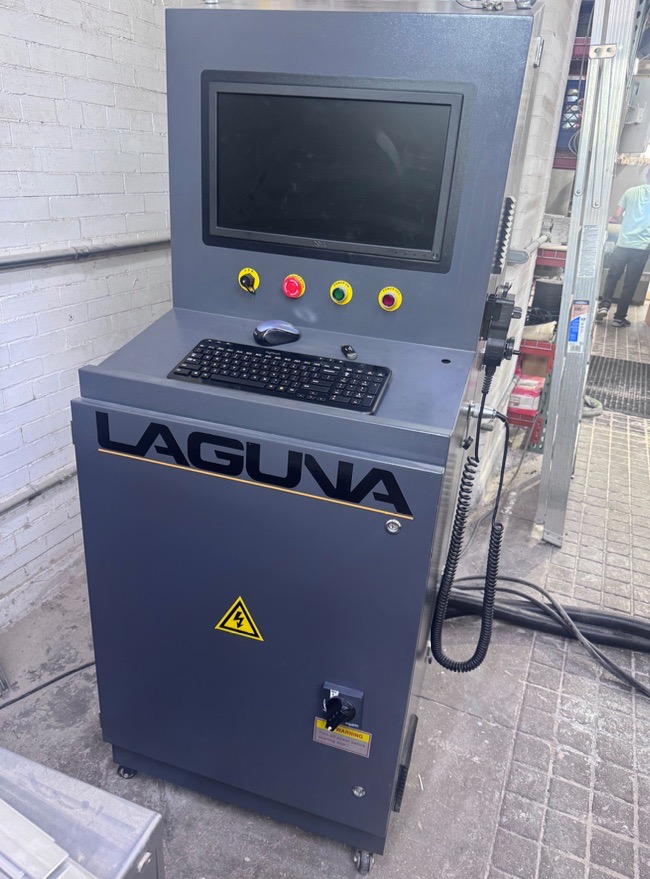

Syntec FC60-CA Controller
VCarve Pro Software Included (Original Purchase)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
