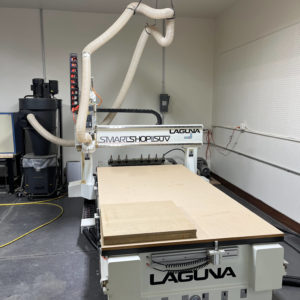

5′ x 10′ Laguna Swift CNC Router, 2017 – Liquid Cooled Spindle, Tooling Included


Request a Quote to Instantly See Pricing

Machine Type: Routers
Make: Laguna
Model: Swift 5x10
Year: 2017
Machine Location:
Stock #:

Cutting Area: 5 ‘x 10’
X Axis Travel: 60″
Y Axis Travel: 120″
Voltage: 208-230V
Spindle Speed: 24,000 RPM
Spindle Motor: 3HP
Spindle Taper: ER-20 Collet

Equipped with:

Laguna Swift Drive System
X Axis Precision Helical Rack and Pinion
Y Axis Precision Helical Rack and Pinion
Z Axis Precision Ground Ball Screw
Dust Hood
VCarve Pro Software
1/2″ Flycutting Bit
er20 1/4″ Collect
er20, 3/8″ Collect
Collect er20 1/2″
Tooling Kit- Aluminum Includes
1/4″ Shank-O Flute
1/2″ Up-Cut- O Flute
5/8″ Down-Cut-O Flute
5/8″ Up-Cut-O Flute
3/4″ Up-Cut-O Flute
1-1/4″ Up-Cut-O Flute
1/2″ Down-Cut-O Flute
1/2″ Up-Cut- O Flute
1/4″ Up-Cut- O Flute
10HP Stock Regenerative Blower Vacuum Pump
220 VAC, 1 Phase 5-6″-285cfm
Add: 3HP Liquid Cooled Slave Spindle and Expanded Z Plate with Adjustable 12″ Spacing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
