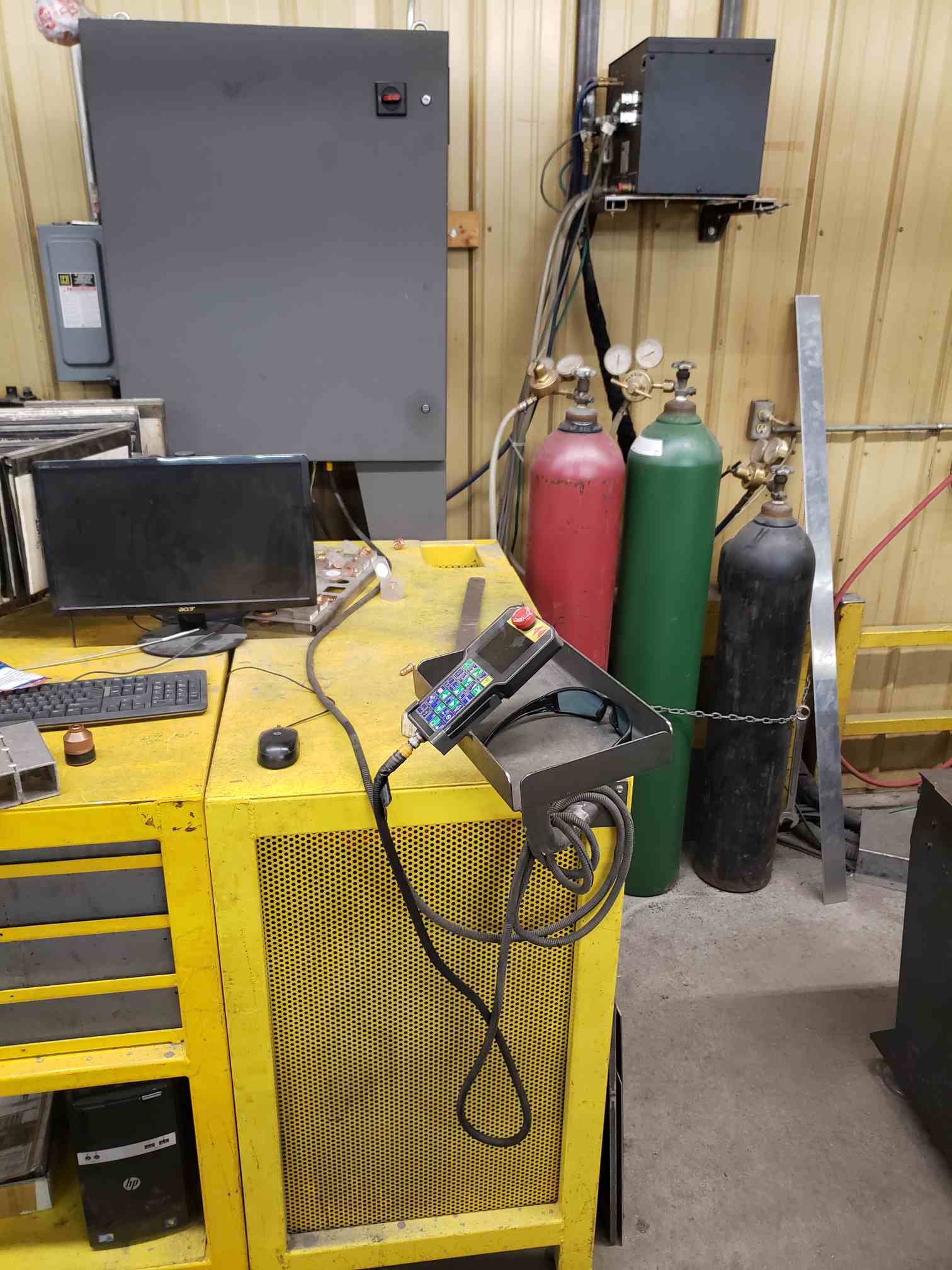

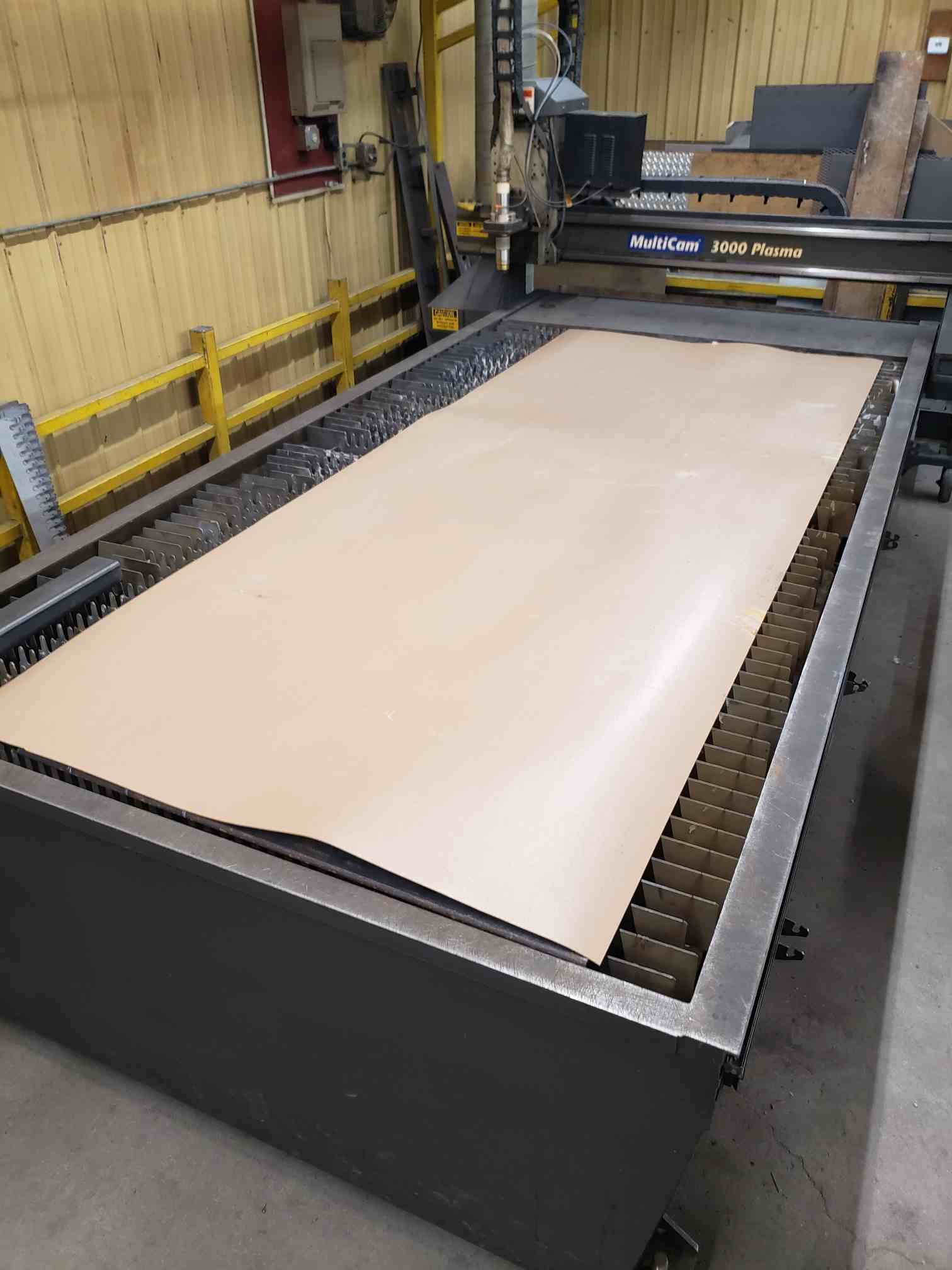

5′ X 10′ Multicam 3000 3-205 CNC Plasma, 2011 – HPR 130 XD, Downdraft Table, Crash Protection, Multicam Software, Gas Console/mixer.

$39,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Working area: 5′ x 10′
Rapid traverse: 2,300 IPM (58,5 m / min)
Repeatability: +/-0.001” (0,025 mm)
Weight: 1,900 – 11,800 lbs. (860 – 5,350 kg)
Work surface: steel slat downdraft table

25mm linear ball bearing profile rails for maximum stiffness
Z-axis clearance: 4” (10 cm)
Z-axis travel: 6” (15 cm)
Cut speed: 1,000 IPM (25,5 m / min)
Rapid traverse: 2,300 IPM (58,5 m / min)
Repeatability: +/-0.001” (0,025 mm)
Drive system X and Y axis: rack and pinion
Drive system Z axis: lead screw

MultiCam EZ Control
All-steel stress-relieved heavy-duty construction
High-speed contouring
Fully programmable retract between parts
Automatic initial pierce height
Material database
Brushless AC servo drives
Adaptive Automatic Torch Height Control (ATHC)
