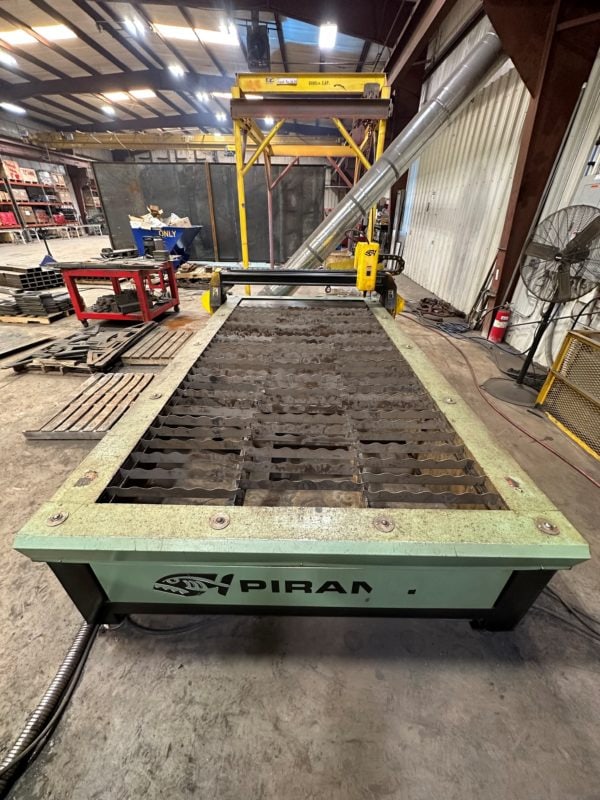

5′ x 10′ Piranha C510 CNC Plasma Table, 2020- Hypertherm Powermax 125
$29,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Rapid Speed: 393 IPM
CNC Control: Starfire
Frame and Bridge Construction: Welded Tubular Steel
Drive Motors: X-Axis Two Servo Motors Y-Axis Servo Motor
Torch Height Control Stepper Motor
Drive System:
X-Axis: Rack and Pinion Each Side
Y-Axis: Rack and Pinion
Z-Axis: Ball Screw
Torch Control: Arc Voltage with Initial Height Sensing
Torch Protection: Pneumatic Breakaway
Exhaust Fan: 6500 cfm @ 3โ H2O
Powermax 125: 3/4โ (20mm) Production / 1โ (25mm) Maximum (mild steel)
Equipped With:
Rugged Construction โ All-Welded Steel Frame (Not Bolt-Together) with High Accuracy Linear Guides and Bearings. Machine is Assembled Complete at the Factory
Dual Side Drive โ Gantry Driven on Both Sides for Maximum Stability
CNC Control with 10.4โ High Resolution Color LCD Monitor, Shape Library with 20 Configurable Shapes, 8MB Memory & USB Interface
Panasonic Servo Motors and Drives โ Powerful 400 Watt Servo Motors (Not Stepper Motors) on Both X-Axis and Y-Axis with a Maximum Traverse Speed of 8000mm/min.
Down Draft Exhaust System โ Pre-Vented Duct Work with Exhaust Fan for Plasma Dust Extraction โ No Messy Sludge to Clean Out and Dispose of.
MicroStep Programmable Torch Height Control โ Controls Torch Height Automatically
Breakaway Torch Mounting โ Protects the Torch from Inadvertent Part Tip-ups
ProNESTยฎ 2019 LT Smart Start Programming System โ 2D CAD drawing, DXF Importing, Integrated Shape Library, Drag and Drop Nesting.
Dimensions: 158โณL x 102โณW x 60โณH
Machine Weight: 2,500 lbs.
