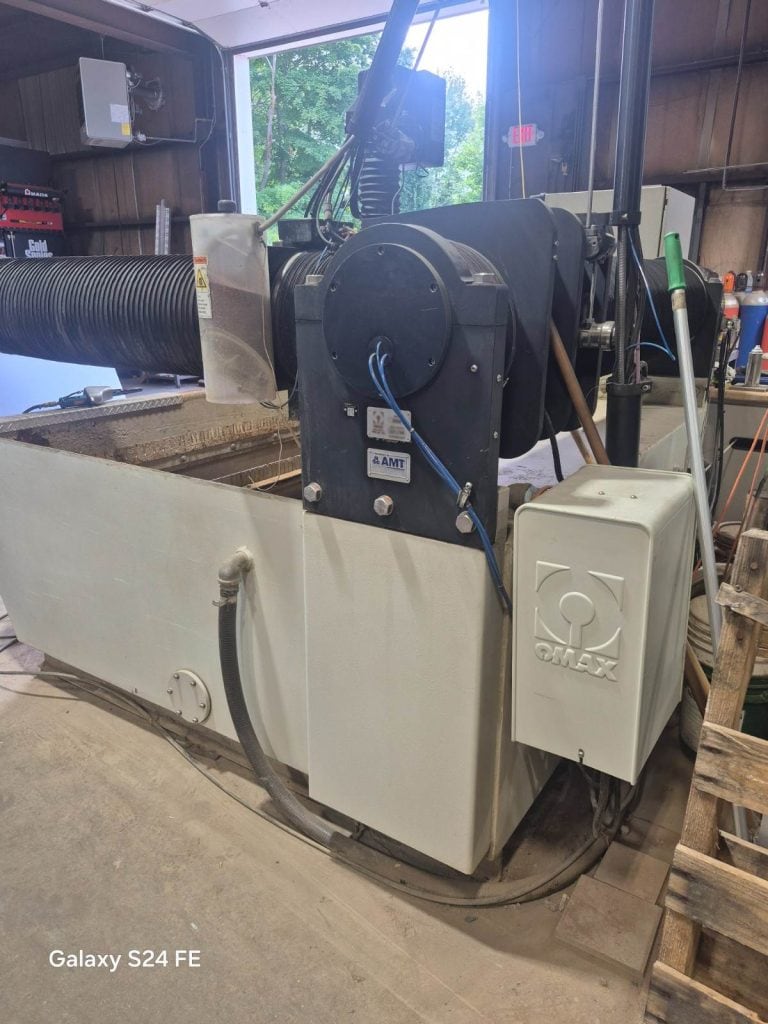

55″ x 55″ Omax 5555 Waterjet Cutting System, 2018

– 4’ 7” x 4’ 7” (1,397 mm x 1,397 mm) X-Y cutting area
– OMAX MAXJET® 5i Nozzle for more accurate and consistent jet
– 40 hp Enduromax 60kpsi Pump

Equipped with the following Options:
1) Drill Head
2) Terrain follower
3) 600lbs hopper
4) High cycle kit

– Footprint – (L x W) 10’ 11” x 7’ 11”
– Height 9’ 10”
– Z-Axis Travel 8”

Performance & Specifications
– Linear Positional Accuracy: ±0.001″ (±0.025 mm)
– Repeatability: ±0.001″ (±0.025 mm)
– Ballbar Circularity: ±0.0025″ to ±0.003″
– Speed: Up to 180 in/min (4,572 mm/min)
– Electrical Requirements: 3-Phase, 380–480 VAC ±10%, 50–60 Hz
– Noise Level: Below 80 dBA at one meter (for submerged cutting)

2018 Configuration Features
– Nozzle: OMAX MAXJET 5i nozzle

Pump Options: Frequently paired with a 40 hp EnduroMAX 60,000 PSI direct-drive pump
Software: IntelliMAX CNC software suite
