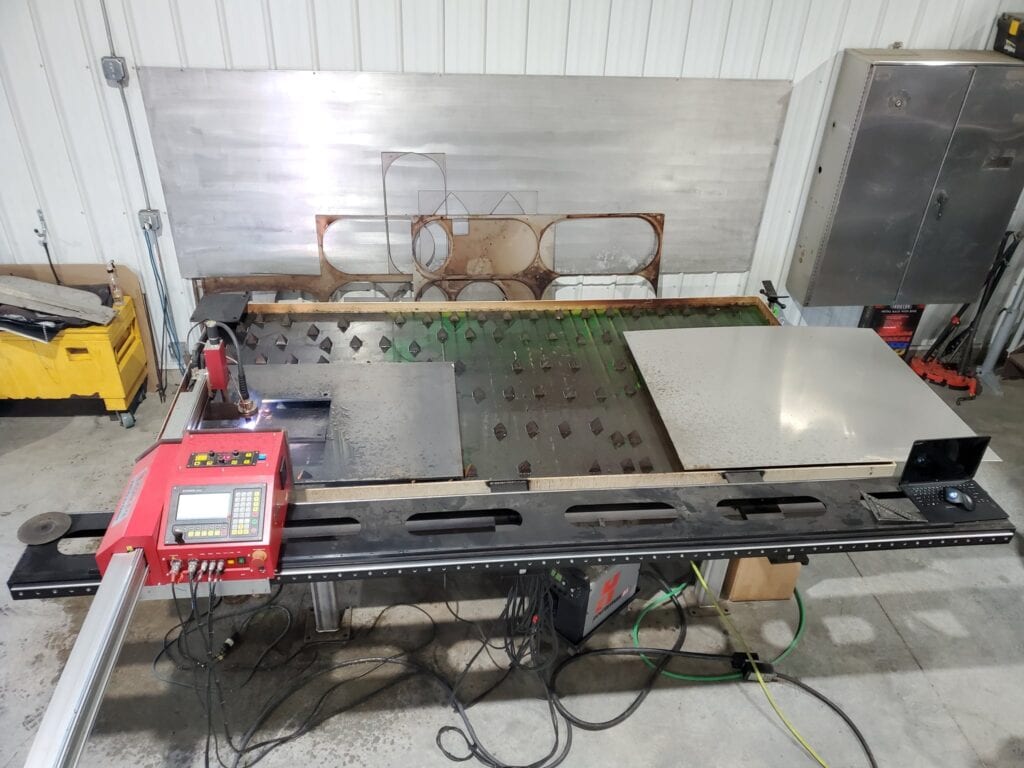

5’x10′ Koike PNC-12 Extreme CNC Plasma Powermax 85, 2020
$16,000.00
This product is no longer available. For additional information, please fill out the form below.
MACHINE BODY
Effective Cutting Width: 48 or 60” (1,250 or 1500 mm)
Effective Cutting Length: 48, 96 or 118” (1,250 or 2,500 3,000 mm)
Rapid Speed: 190 in/mi (4,825 mm/min)
Cutting Speed: 3-190 in/min (100-4,826 mm/min)
Supply Voltage: Single phase, 110 V or 230 V
Heat Shield Plate: Provided at side of the machine and torch holder
Electric Clutch: Quick release of X and Y drive
GAS CUTTING
Gas Cutting Torch: 1 set with motorized torch riser
Cutting Tip: 3 seat KOIKE 100 Series Tip
Cutting Thickness: Max. 4 in (5 – 100 mm)
PLASMA CUTTING
Torch Holder: 1 set with motorized torch riser/ diameter 1-3/8 in (35 mm) Optional 1-3/4” (44mm) available
Available Plasma System: Air plasma system (Non high frequency)
Plasma Cable Holder: Internal type plasma cable holder
Height Control: Digital Arc Voltage Control
CNC
Operation Panel: 7 in Color LCD
Language: English, Spanish, Portuguese, and more
Program Input: Manual Data Input or by USB stick (up to 8 GB)
Drive: X and Y, 2 axes control
Coordinate Range: Max. 99,999.999 mm
Program Format: EIA Format
Shape Library: 45 patterns
Operation Function: Trial run, Reverse, Plate Alignment, Mirror, Array, Border Outline
Equipped with:
Hypertherm PowerMax 85 Power Source P/N: 087104
Custom Stainless Steel Table 5′ x 10′
