5’x10′ Weeke Optimat NBP084 Vantech480 CNC Router, 2016

Name: 5'x10' Weeke Optimat NBP084 Vantech480 CNC Router, 2016
SKU: 32309175879
Availability: InStock

$29,900.00

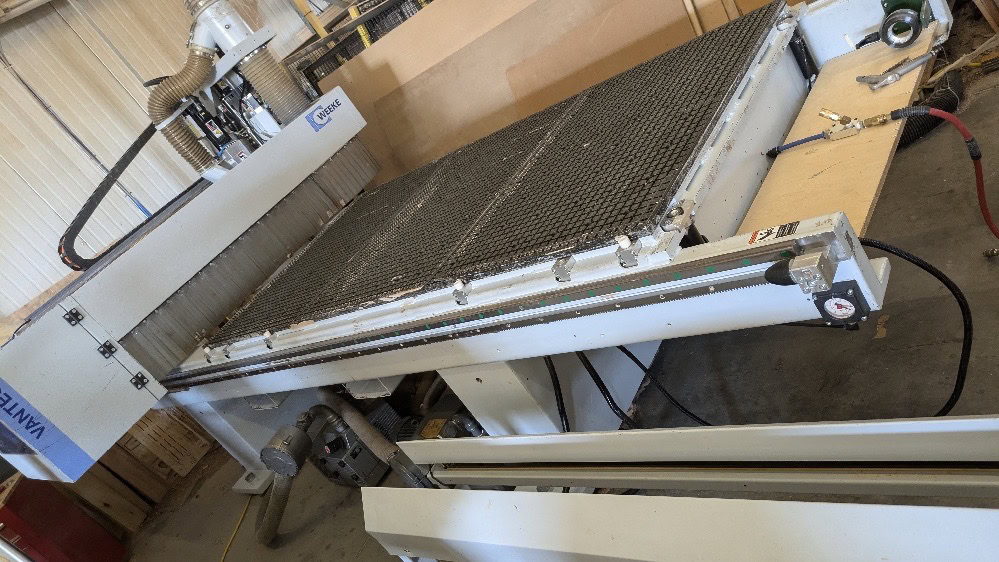

5'x10' Weeke Optimat NBP084 Vantech480 CNC Router, 2016 - Image 2

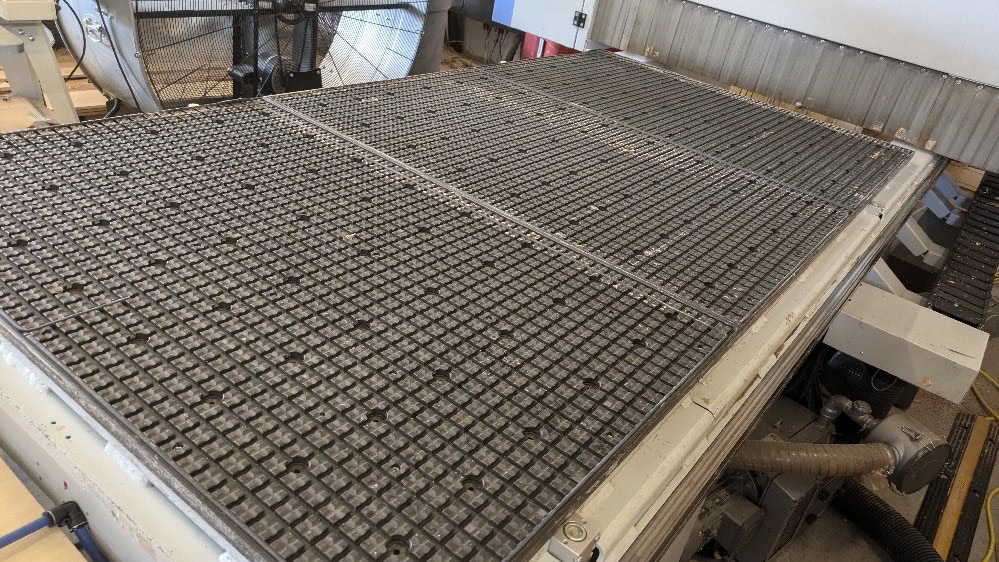

5'x10' Weeke Optimat NBP084 Vantech480 CNC Router, 2016 - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Routers
Make: Weeke
Model: Optimat NBP084
Year: 2016
Machine Location: Florida
Stock #: 175879

Table Size: 5 feet by 10 feet
X-Axis Travel: 169.3 inches
Y-Axis Travel: 77.4 inches
Z-Axis Travel: 9.6 inches
Spindle Motor: 13 horsepower
Spindle Speed: Up to 24,000 RPM
Spindle Taper: HSK 63
Maximum Vector Speed:
X and Y Axes: 3,779.5 inches per minute
Z Axis: 984 inches per minute
Approximate Power Usage: 27.5 kW
Pneumatic Pressure Requirement: 100 PSI
Floor Space Footprint: Approximately 278.7 inches (length) by 192.1 inches (width)

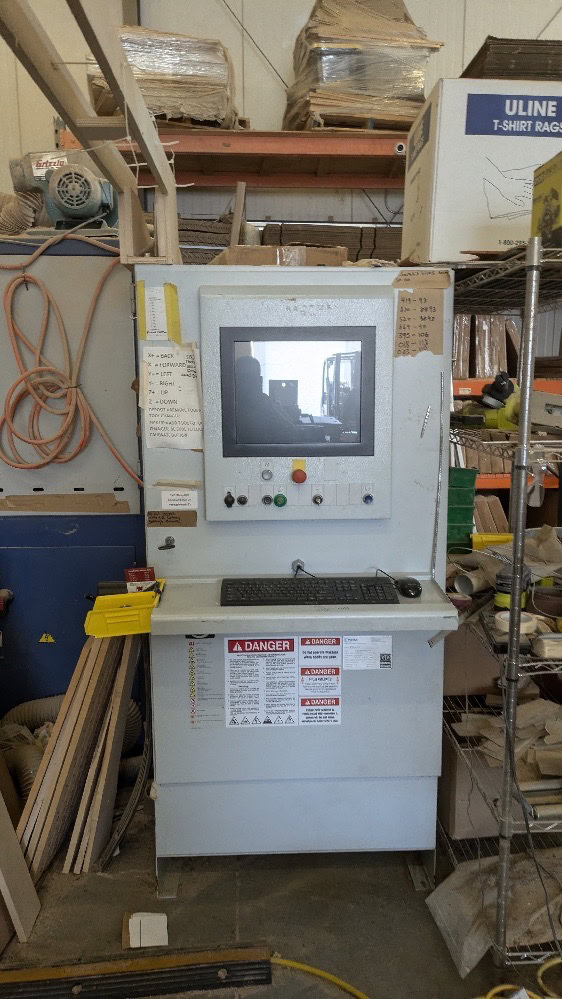

Control: Stand Alone Weeke Control Cabinet W/ Cooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
