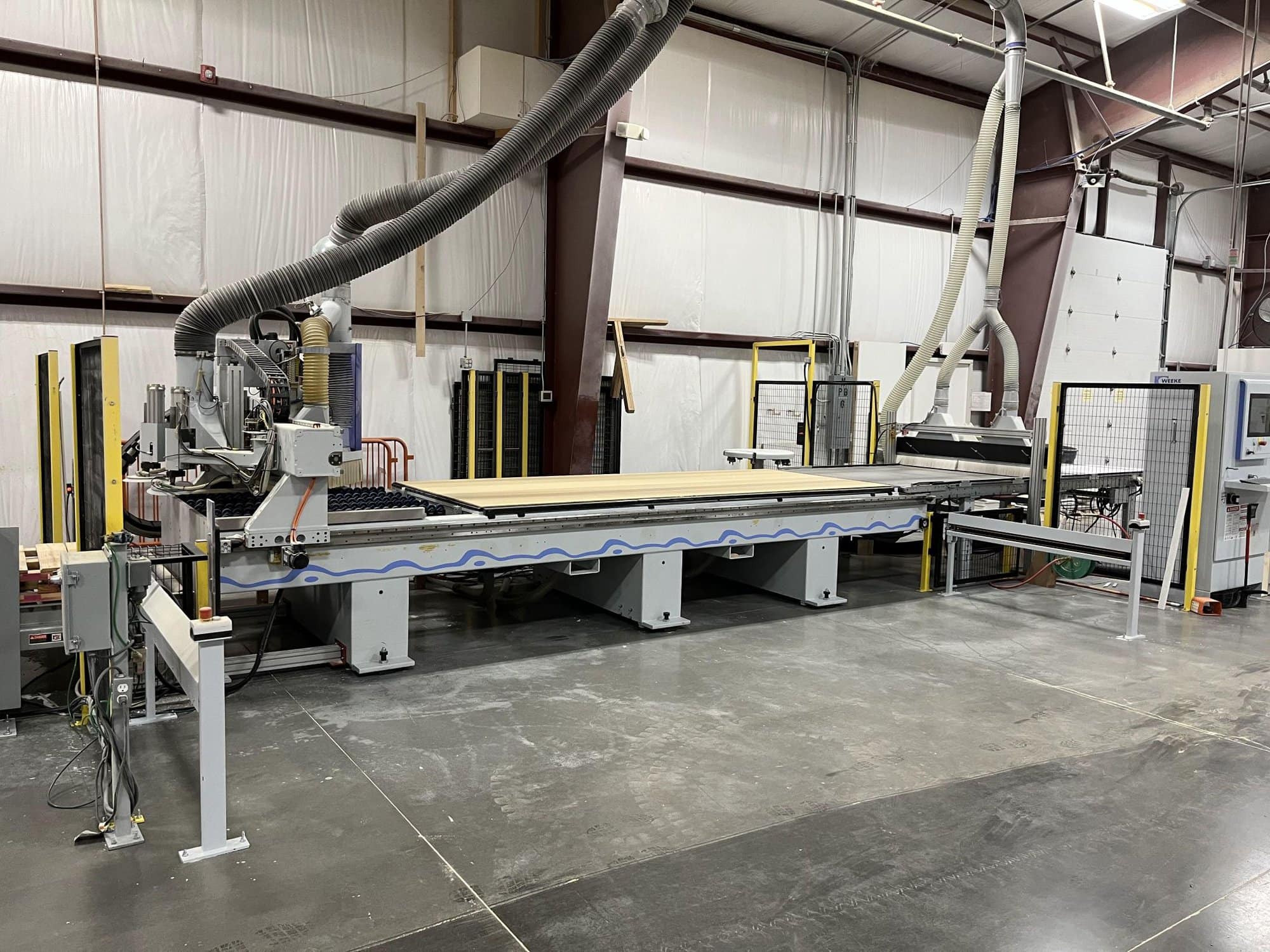

5’x12′ Weeke Optimat BHP008 Vantech512 CNC Router, 2014 – Available Immediately, Load/Unload, Vacuum Pump

$69,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Table Size: 145″x61″
Maximum Workpiece Thickness: 100 mm
Positioning Speeds: 72 m/min (x), 62 m/min (y), 25 m/min (z)
X/Y Vector Speed: 96 m/min
Spindle HP: 12 KW (16 HP)
Number of Pneumatic Pop Up Pins: 3
Router Spindle Speed: 1,250 – 24,000 RPM
Air Volume Requirements: 1900 CFM
Consumption Volume: 600/700 NL/min
Electrical: 480 V/ 3PH/ 60 Hz
Total Connected Load: 27.5 kW

Equipped With:
12 KW (16 HP) HSD Air Cooled Spindle w/ HSK63 Taper (24,000 RPM)

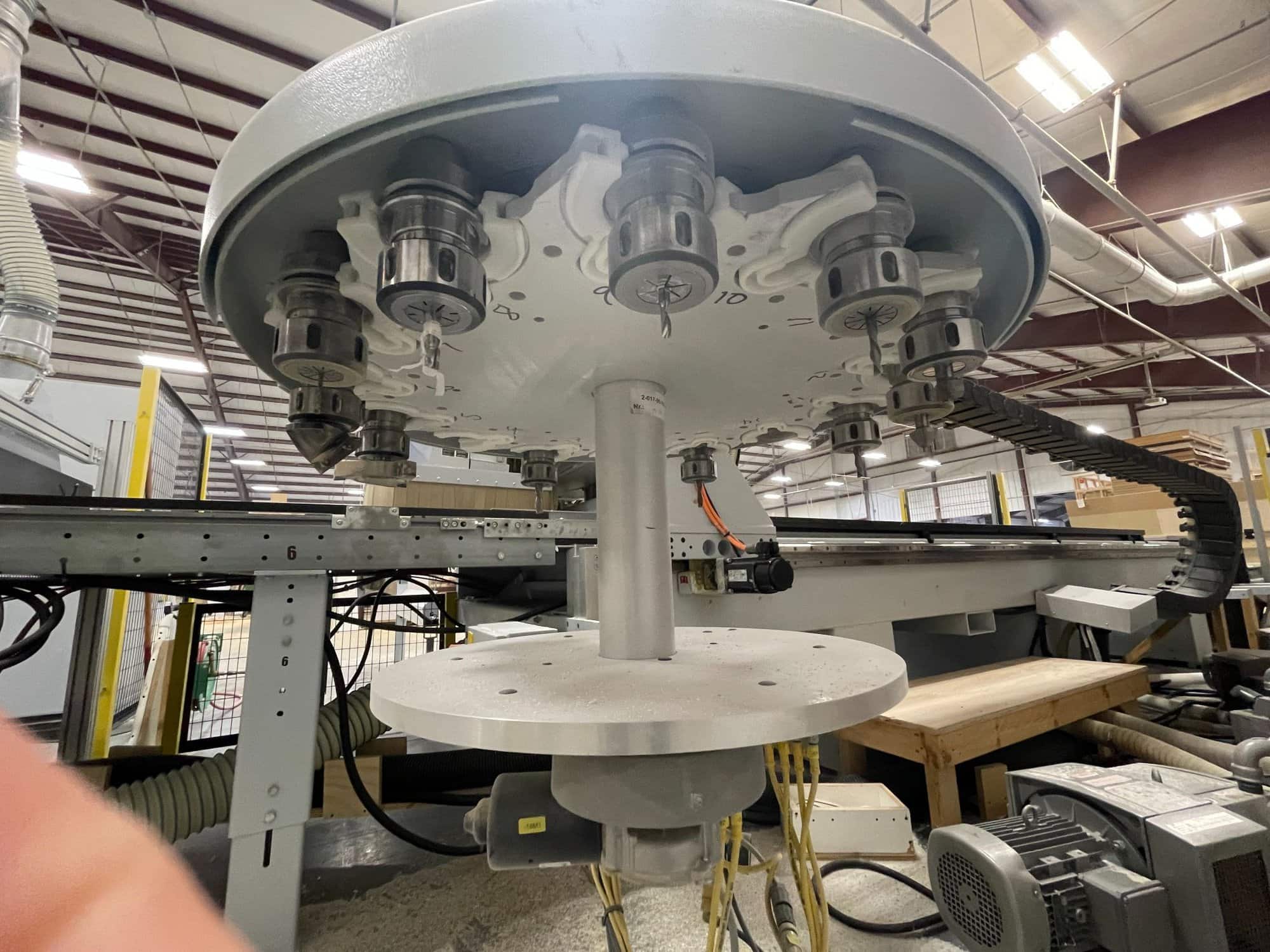

8 Position Tool Bar
Automatic Tool Length Sensor
7 Position Drill Bank

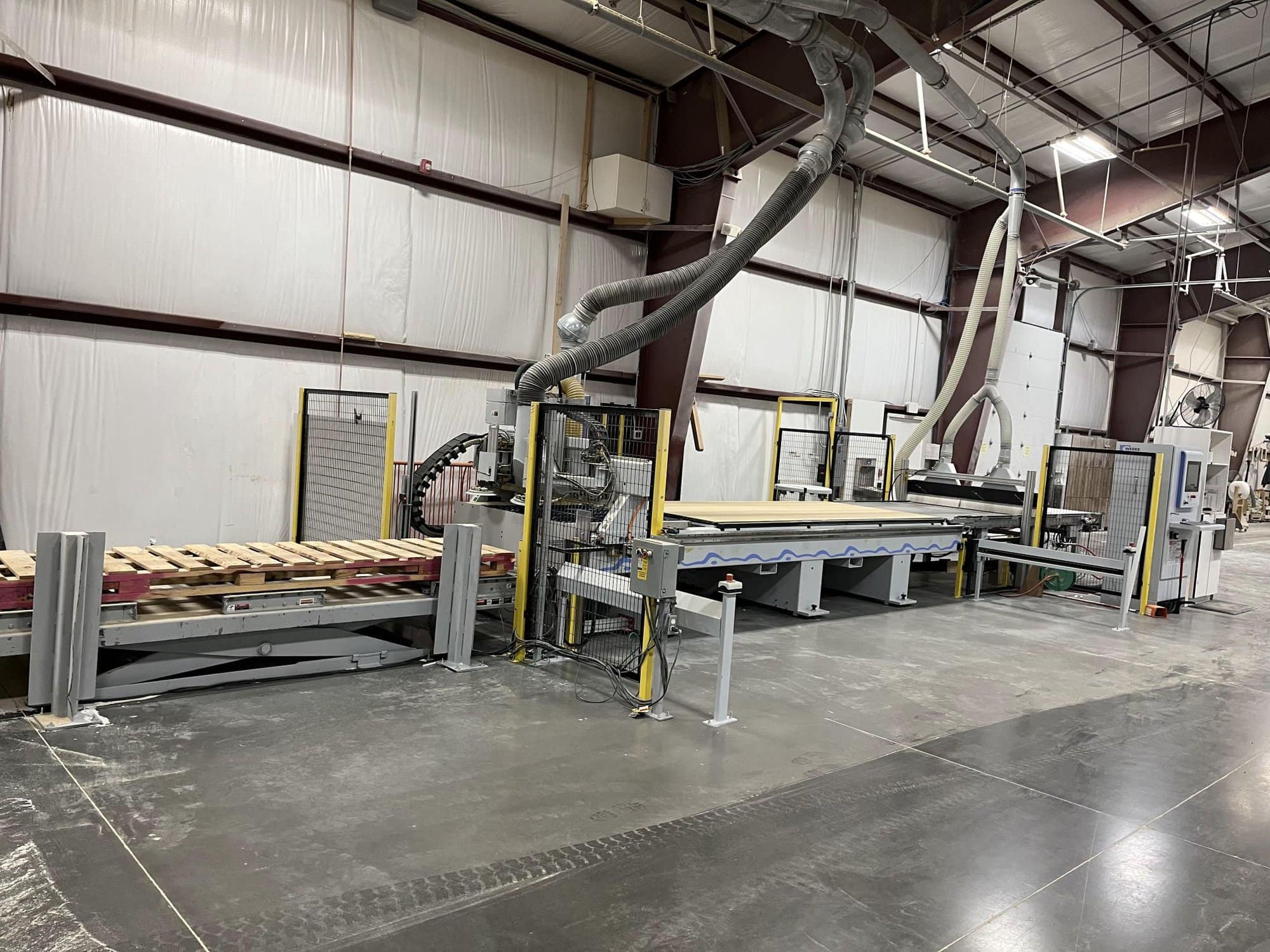

Unload Rake and Outfeed Conveyor Table
Safety Light Curtains
7719.2 hours

Approx. Shipping Weight: 7,716 Lbs
