6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil
6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil - Image 2
6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil - Image 3
6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil - Image 4
NM
58295683146

6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil

$79,900.00

6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil
6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil - Image 2
6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil - Image 3
6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil - Image 4

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Stainless Steel Tanks
Make: Roben Manufacturing Co.
Model: 6,000 Gallon Reactor
Year: 2015
Machine Location: Upon Request
Stock #: 683146

Manufacturer: Roben
Material: 304 Stainless Steel
Vessel Dimensions: Approx. 102″ diameter × 144″ straight side height; dished heads for added strength and pressure integrity
Pressure & Temperature Ratings:

Internal vessel: 100 PSI / Full Vacuum, -25°F to 450°F
Half-pipe coiled jacket: 150 PSI / Full Vacuum, up to 375°F (compatible with steam, glycol, or hot oil for efficient thermal transfer)

Top Fittings & Nozzles:

24″ manway with sight glass
12″ agitator nozzle (agitator and drive not included)
Multiple process nozzles ranging from 1.5″ to 8″ for flexible instrumentation and product flow

Additional Features:

6″ center bottom outlet
1″ offset bottom head thermocouple port

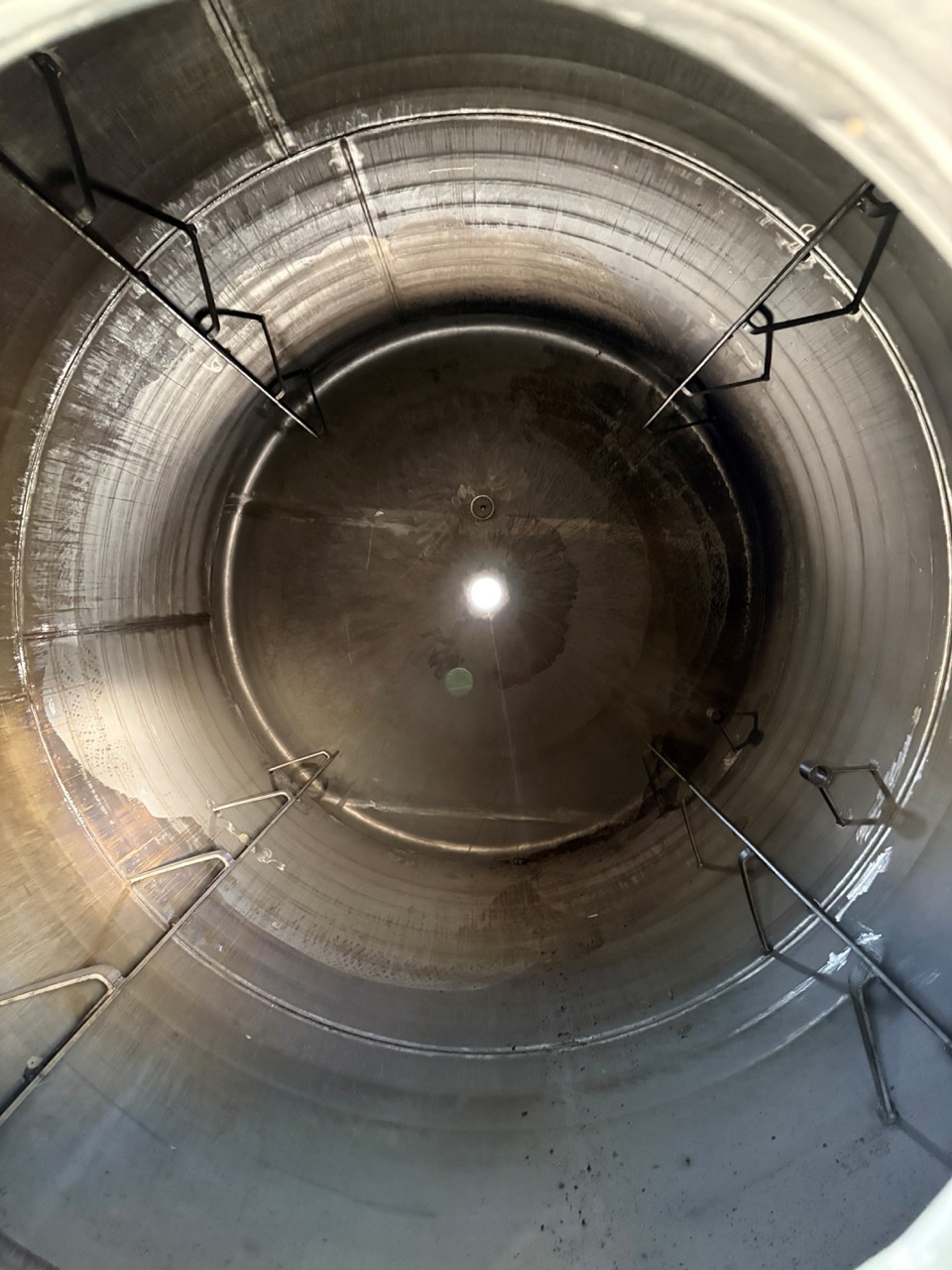

(4) internal baffles for improved mixing
Dip tube support stands
Mounted on (4) stainless steel legs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
