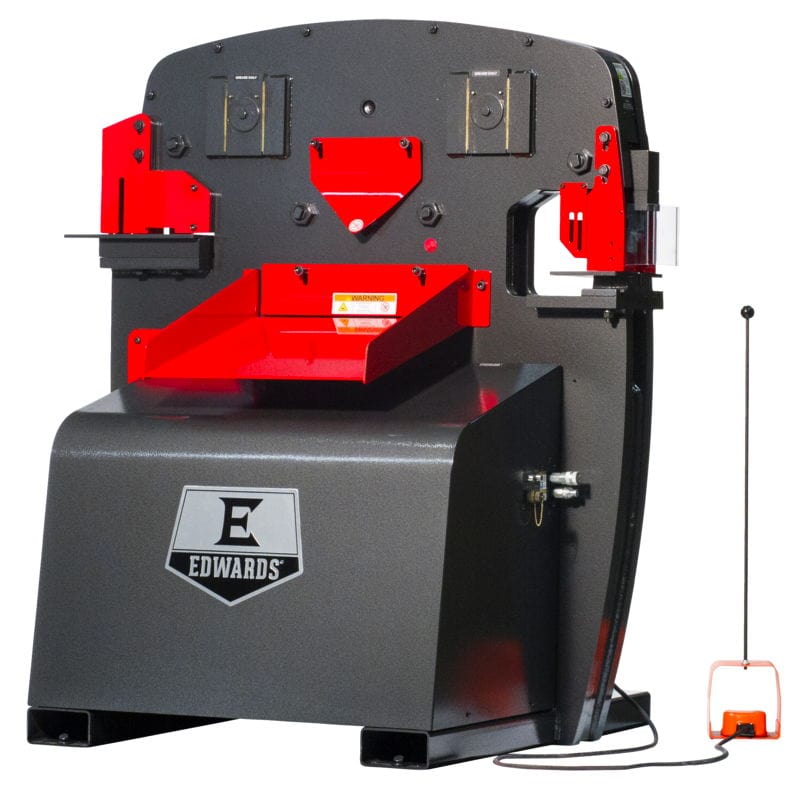

75 Ton New Edwards Ironworker, 2023 – W/ Powerlink System
$28,109.00
Request a Quote to Instantly See Pricing
Machine Type: Ironworkers
Model: 75 Ton
Make: Edwards
Year: 2023
Capacity: 75 Ton
Tonnage: 75
Max Capacity: 1-1/16″ Dia. in 7/8″ A36
(65,000 PSI Tensile)
Stroke: 1-13/16″
Throat Depth: 10″.
Open Height: 8-3/4″
Shut Height: 6-15/16″
Work Height: 39-1/16″
Standard Motor: 7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Four Available Workstations
Punch Assembly Designed for Optional Tooling
Dedicated Coper Notcher Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls
Dims –
Height: 60-1/4″
Width: 50″
Depth: 45″
Weight: 4100 LBS
Full Specs Available Upon Request
***1 Year Warranty through Edwards***
The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
