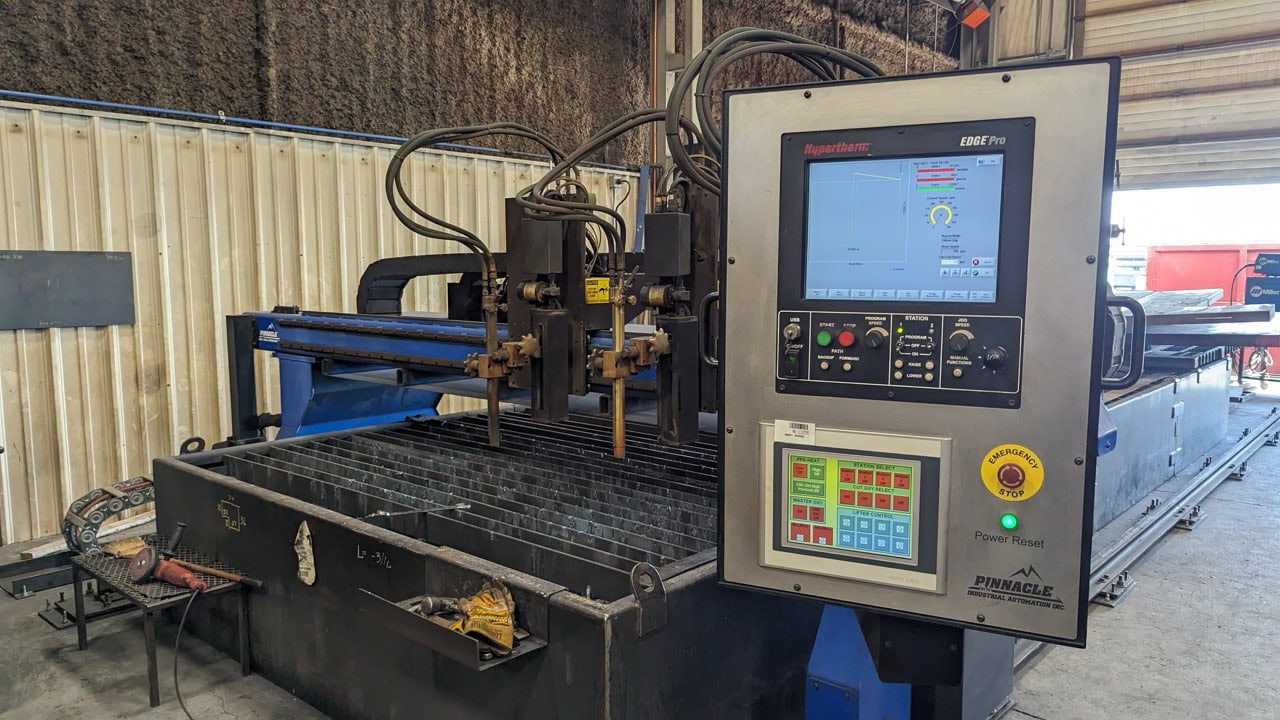

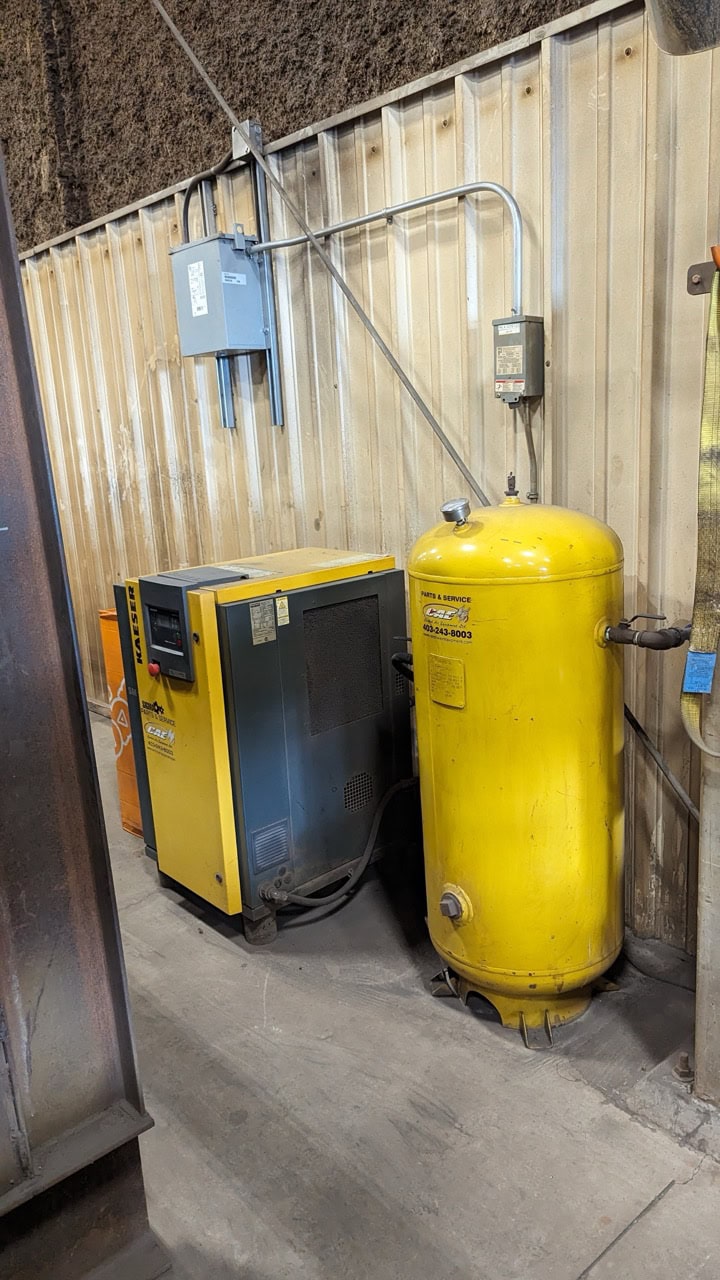

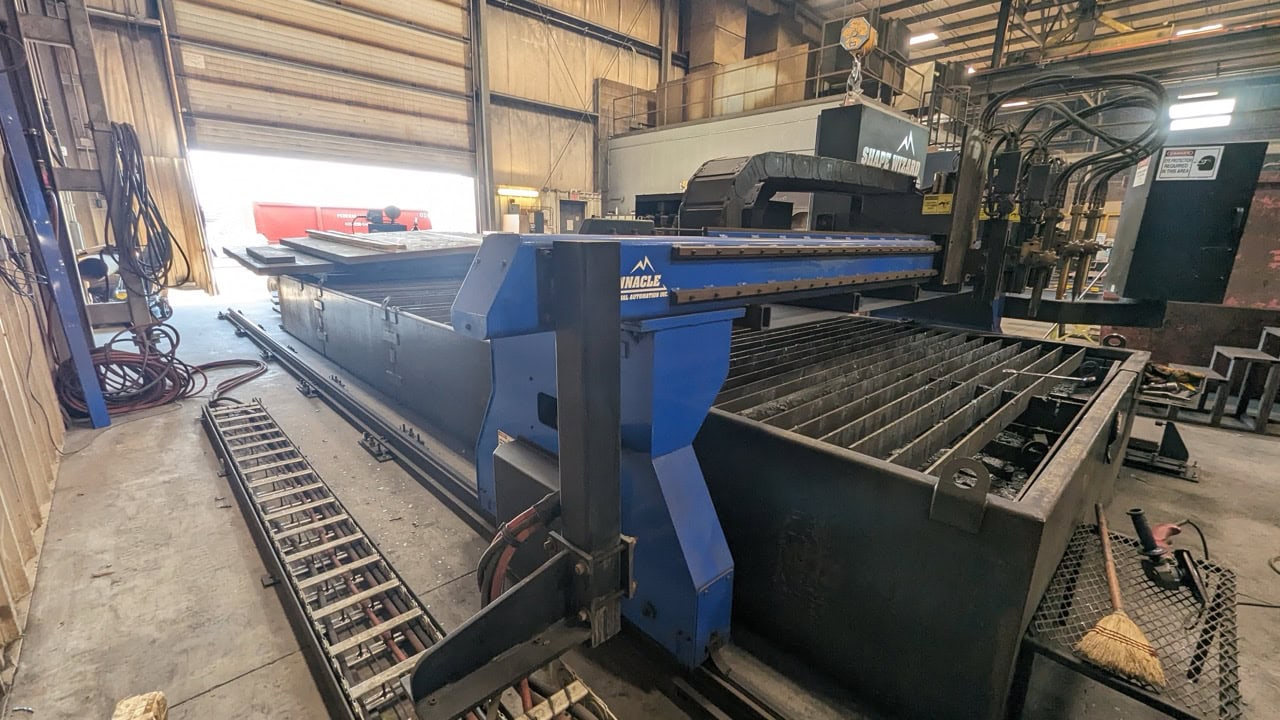

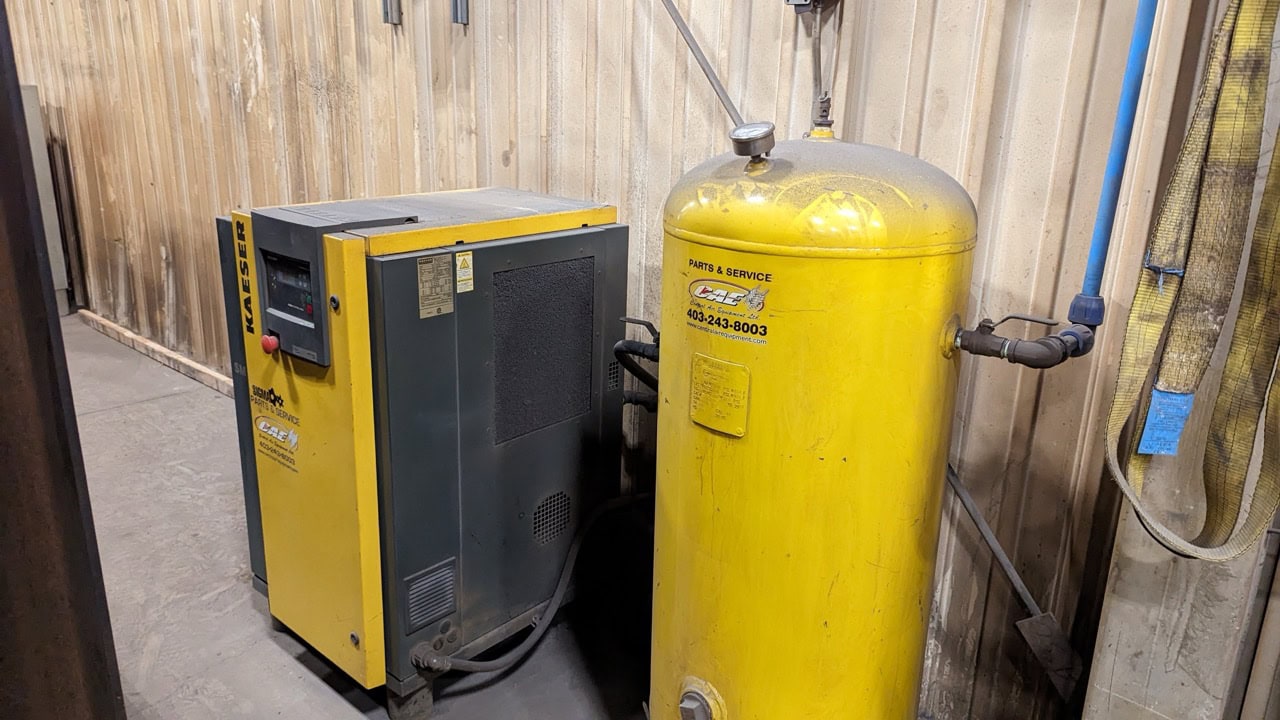

8′ x 24′ Pinnacle DSG ShapeWizard Oxyfuel – Plasma Cutting System, 2015

Key Features:

Cutting Area: 8′ W × 24′ L

Accuracy: ±0.005″ positional, ±0.007″ repeatability, ±0.015″ cut tolerance

Max Speed: 700 IPM

Drive System: Helical rack and pinion on all axes

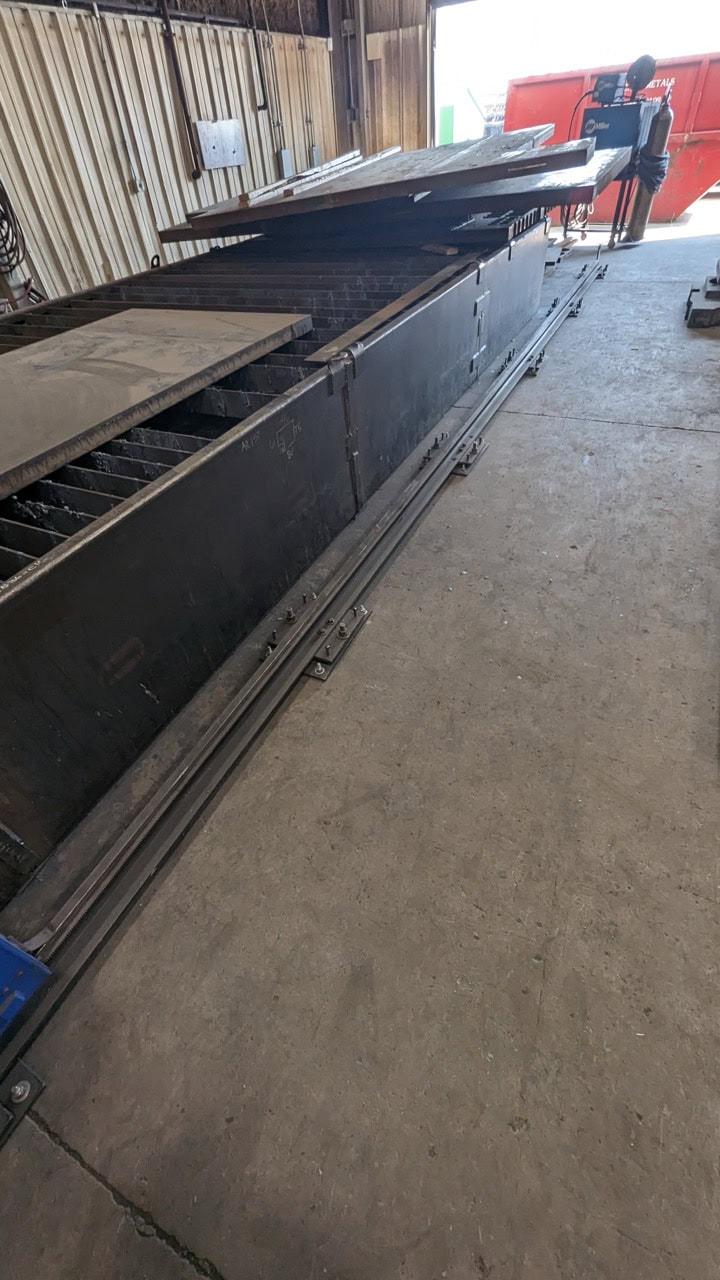

Rail System: Machined DSG rails with dual-sided drive rack

Construction: V-rails with V-wheels; all wiring labeled and UL/CUL/CSA approved

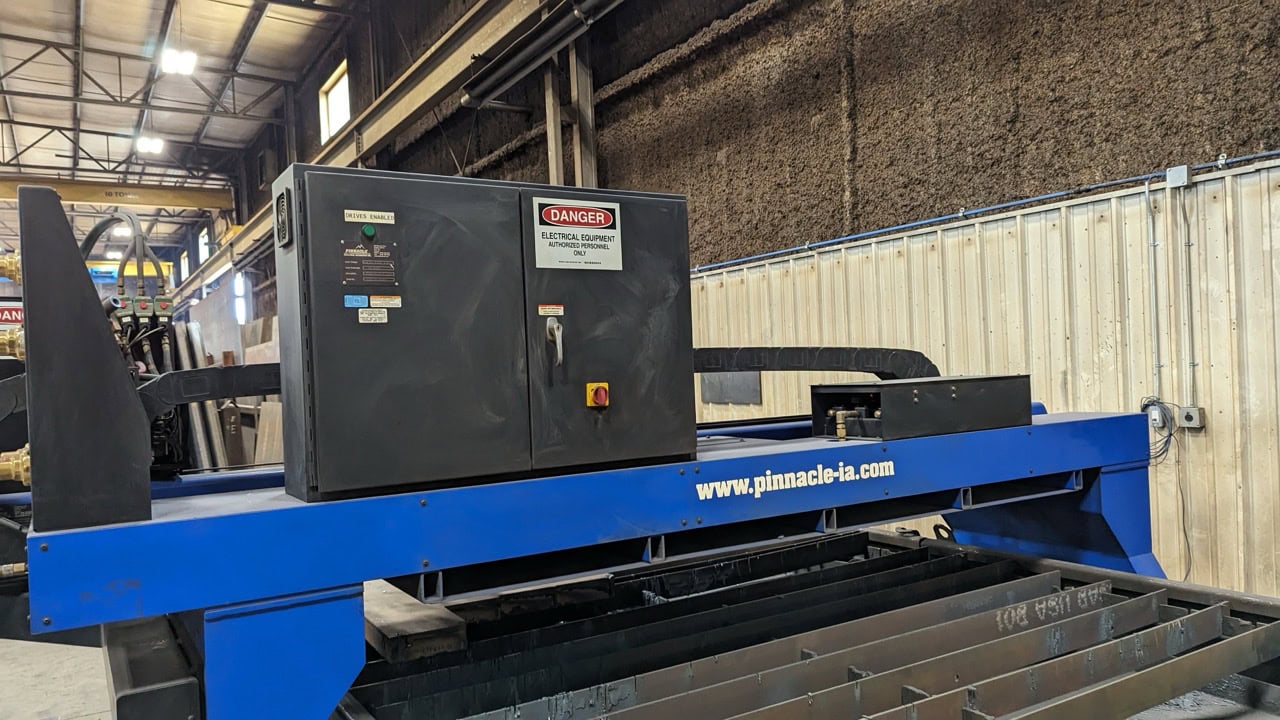

Safety: Category II/III E-stop circuit, safety contactor, and monitoring relay

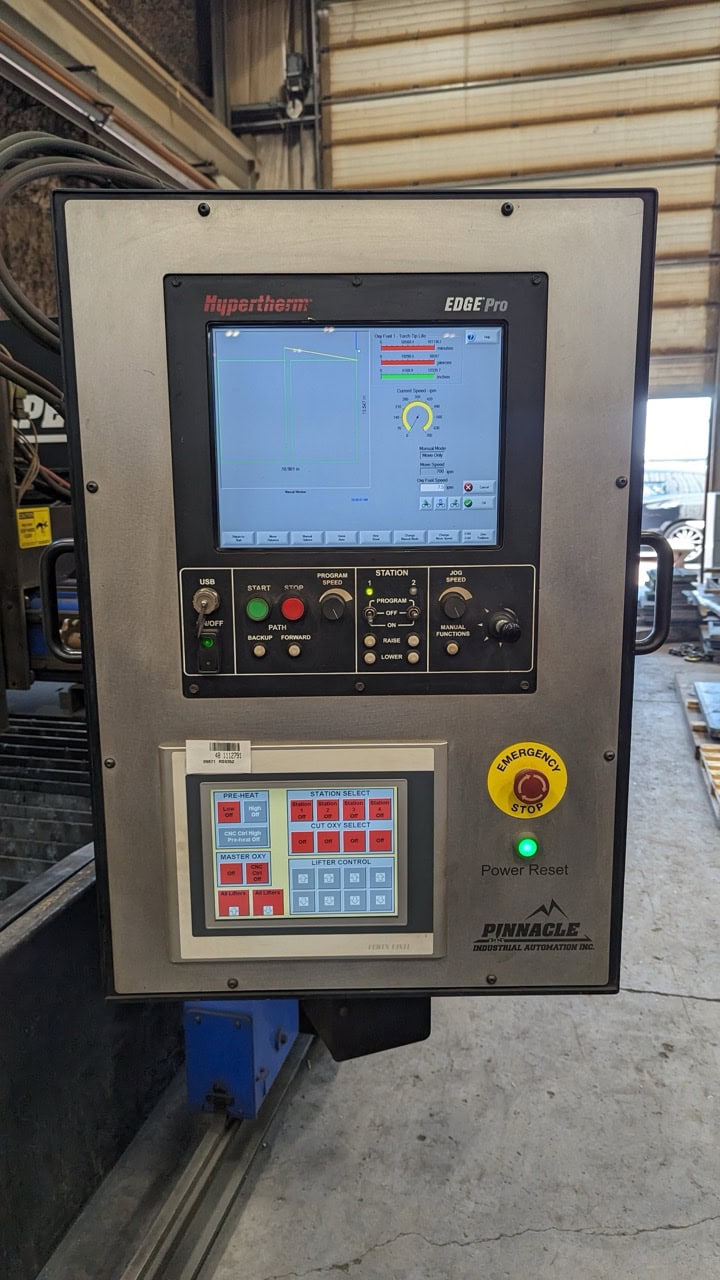

Operator Cabinet: Swivel-mounted with 15″ touchscreen, joystick, and auxiliary switches

Control System – Hypertherm EDGE Pro:

Graphical Windows XP-based CNC with 3-axis control

True Hole® and HPR auto gas ready

Full power-loss recovery with rush job resume

HyperNet interface for future THC upgrades

Includes 50-shape library and Windows Link software

Motion & Power:

Kollmorgen 3-axis brushless servo drive system

AKM servo motors, AKD amplifiers, 1 kW per axis

Precision gearboxes, SERCOS III CNC interface

240V single or 3-phase power input

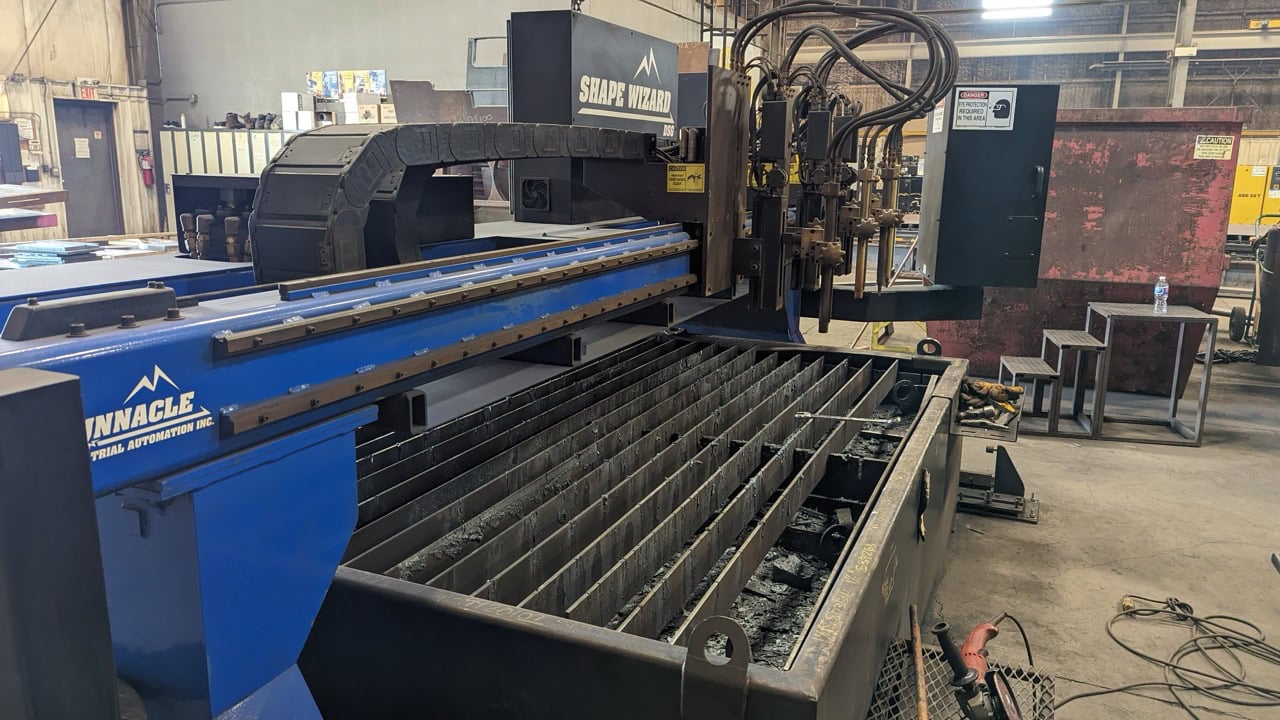

Oxy-Fuel Cutting Package (4 Stations):

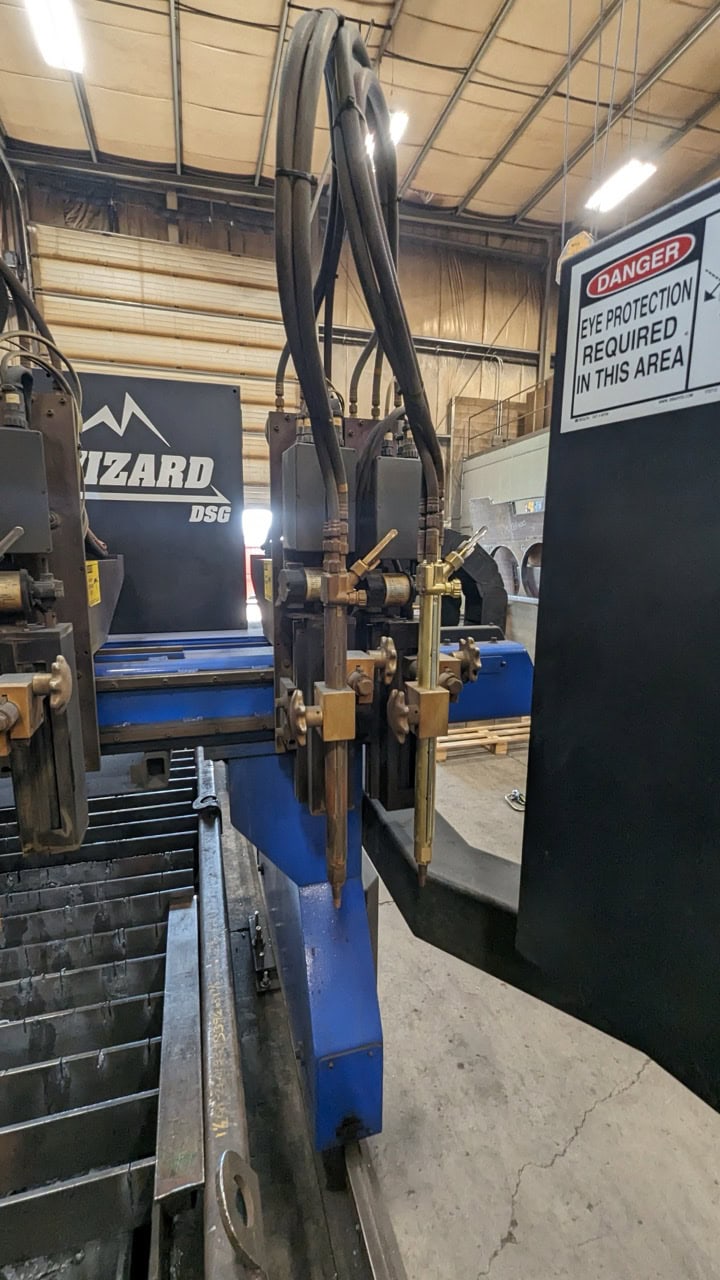

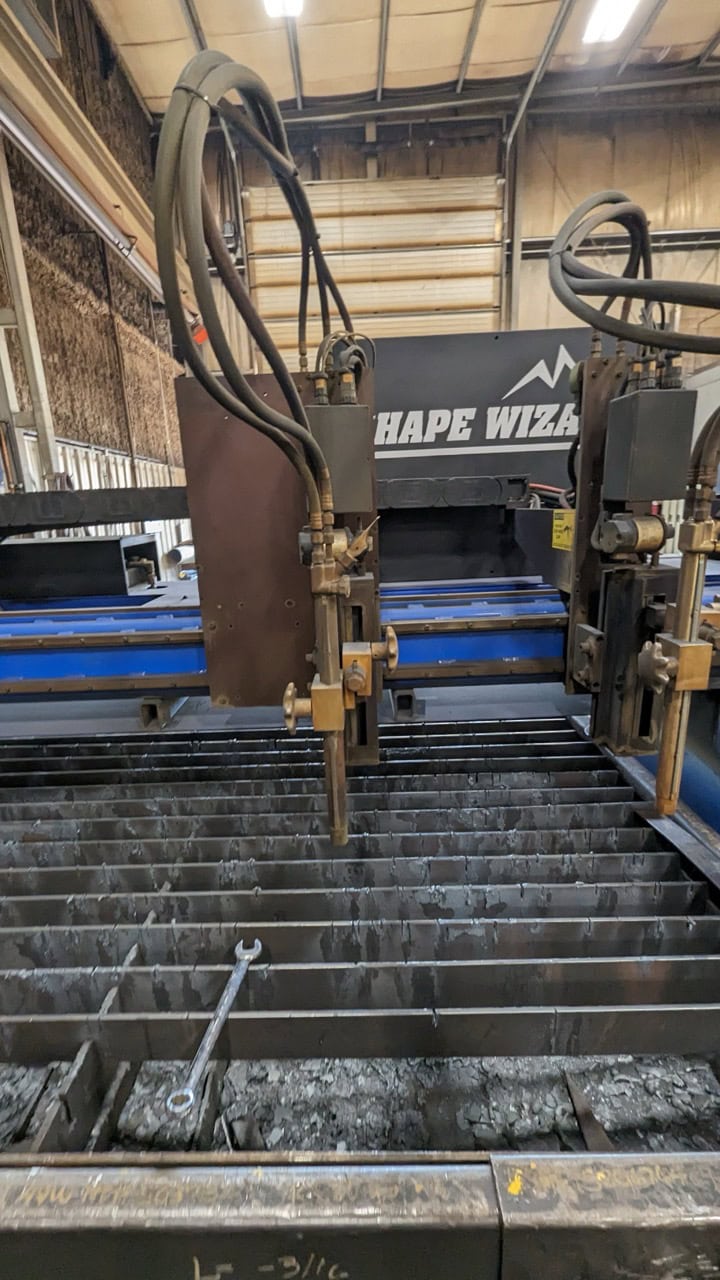

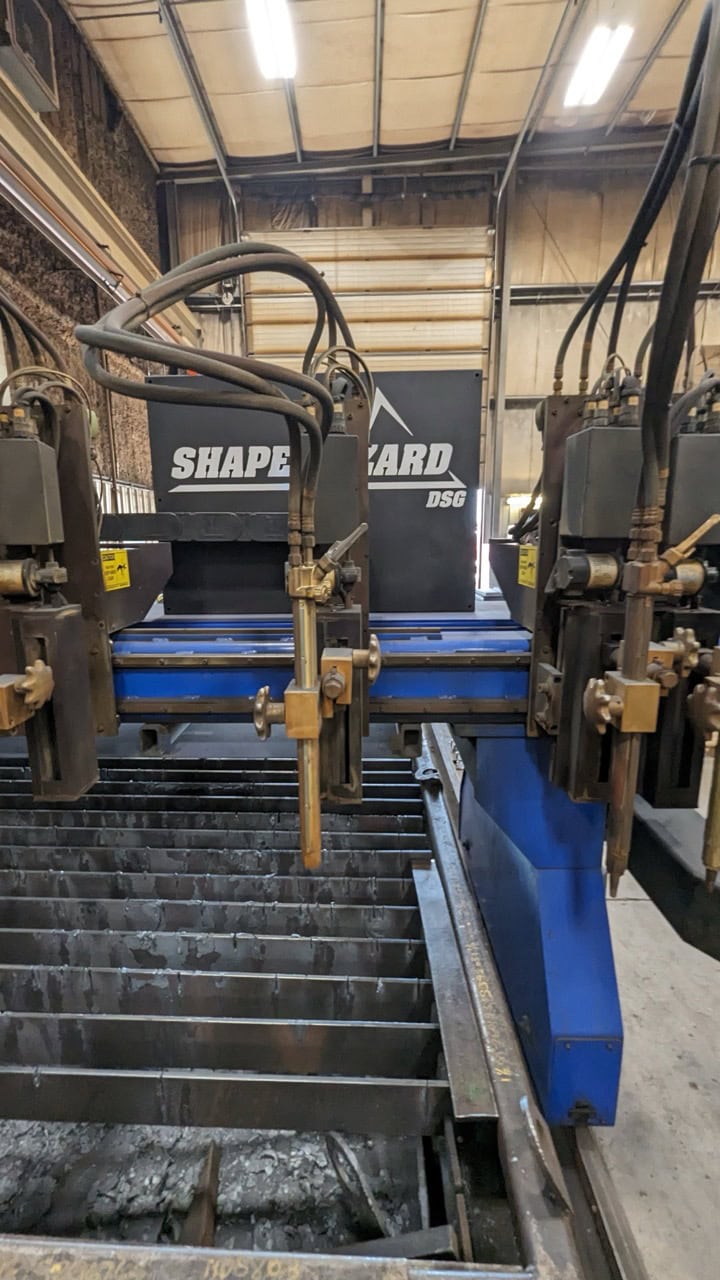

– Oxweld C67 machine torches

– Motorized lifters (manual toggle control)

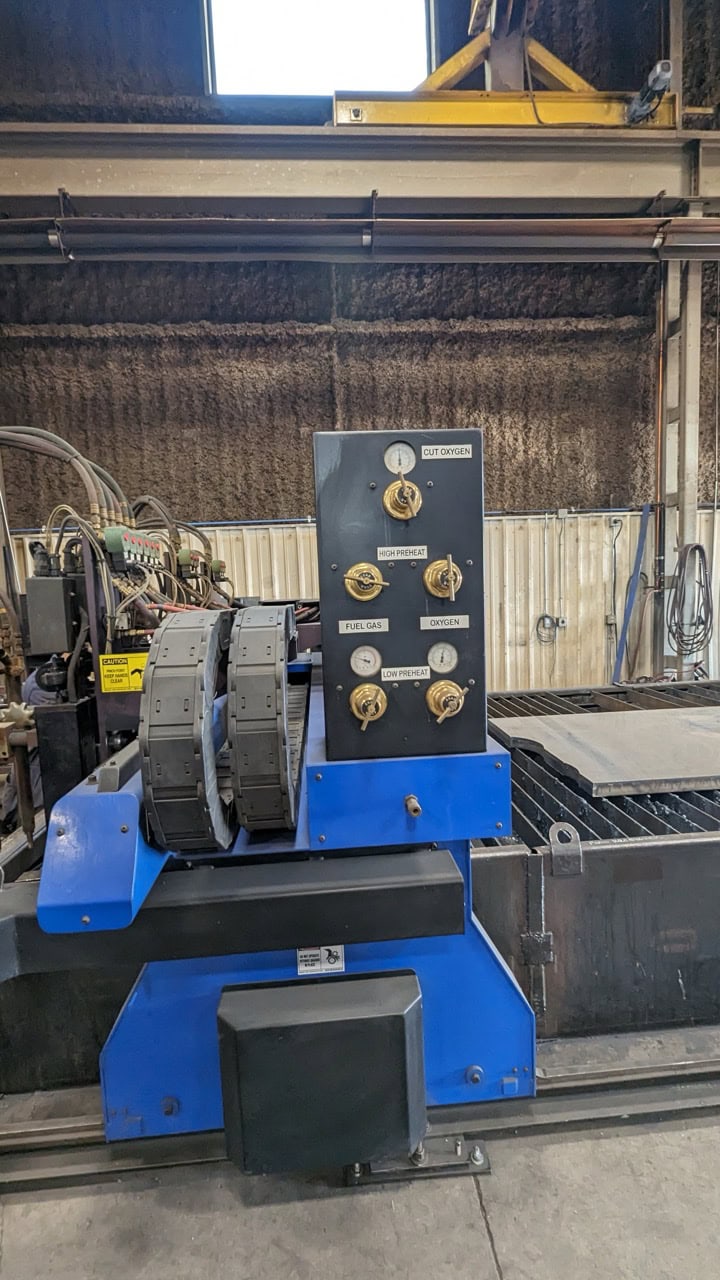

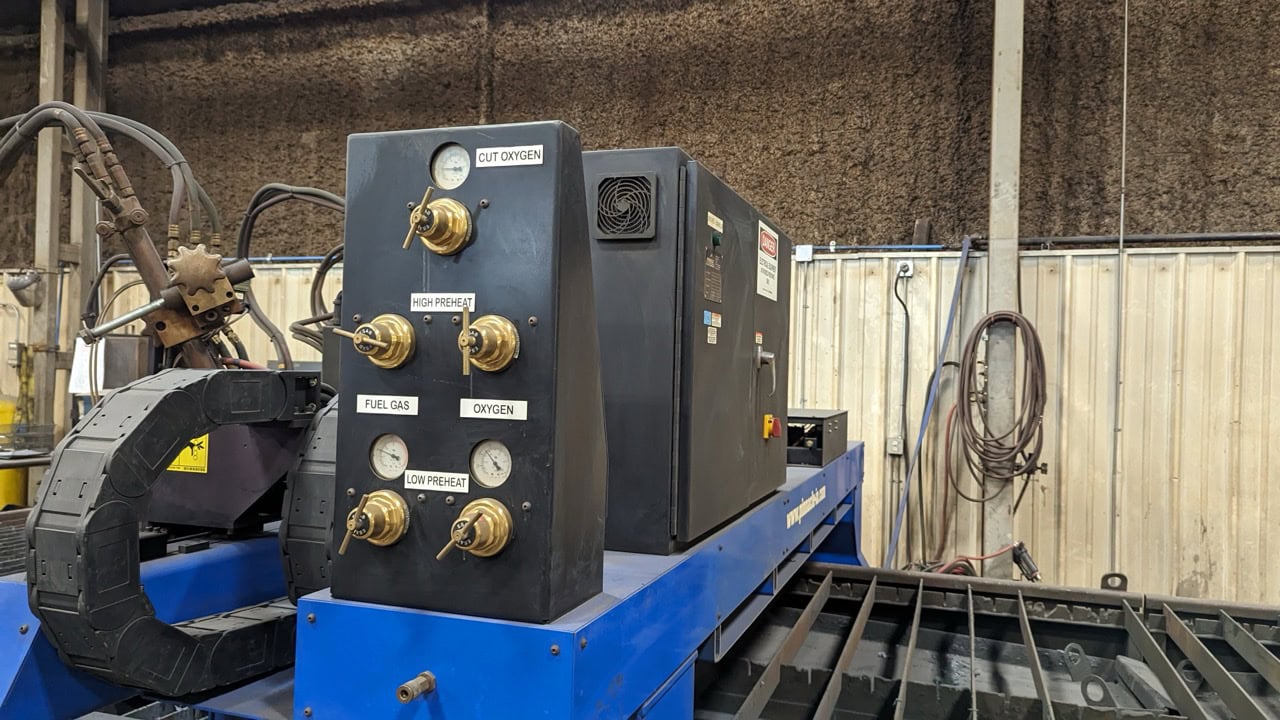

– Hi/Lo preheat regulators, cutting O2 regulator

– Master solenoids and T-grade fuel gas hoses

Cable Management:

– PT35E steel cable track system (for long-travel applications)

– Floor or overhead mountable; protects hoses and lines
