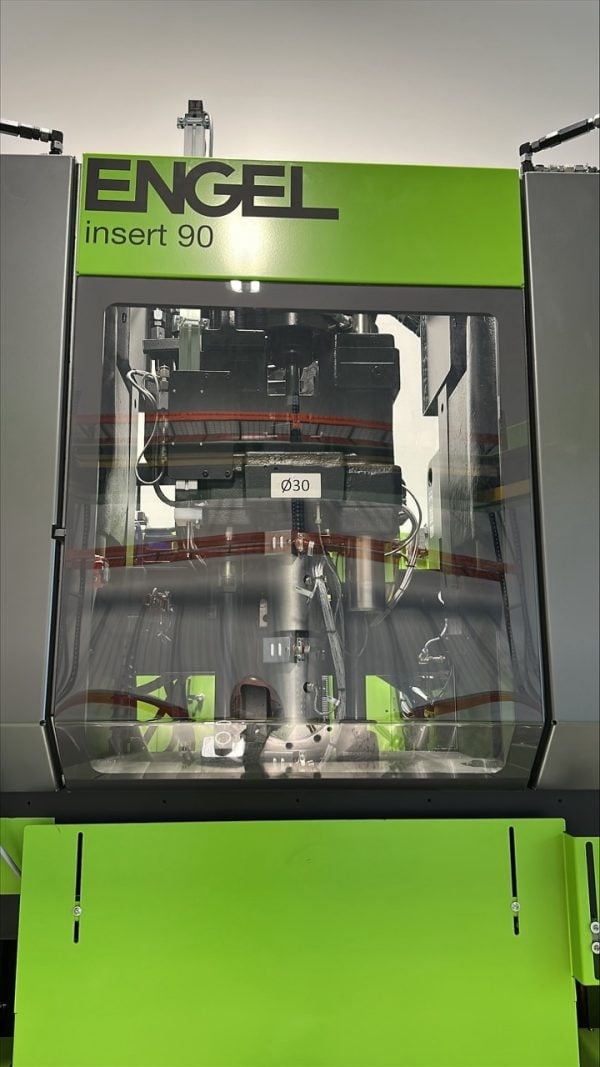

Engel 80 Ton Vertical Injection Press – 2019 – Insert Molding System with Rotary Table
$329,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Plasticizing 1
Screw diameter: 30 mm
Screw diameter options: 22 / 25 / 30 / 35 mm
Screw stroke: 150 mm
Maximum injection capacity: 106 cm³
Screw retraction time: 2.8 s
Screw torque: 250 Nm
Recovery rate (3-zone screw): 16.8 g/s
Injection 1
Injection rate: 149 cm³/s
Injection pressure (regenerative): 1450 bar
Injection pressure (max): 2210 bar
Nozzle 1
Nozzle stroke: 530 mm
Nozzle contact pressure: 28.0 kN
Material Cylinder 1
L/D ratio: 20.5
Heating zones incl. nozzle: 4
Heating wattage: 6.8 kW
Clamping Unit
Clamping force: 800 kN
Opening force + cylinder tolerance: 250 kN
Maximum distance between platen: 550 mm
Minimum mold height: 200 mm
Max. ejector stroke vertical: 300 mm
Max. weight moving platen: 500 kg
Max. mold weight fixed platen: 1000 kg
Max. mold weight total: 1500 kg
Dry cycle (stroke): 1.8 s
Dry cycle (opening): 2.0 s
Ejector
Ejector stroke: 160 mm
Ejector force: 20.1 kN
Drive Unit
Oil reservoir capacity – Injection unit: 198 l
Oil reservoir capacity – Clamping unit: 30 l
Oil Cooler
Maximum cooling power (25°C water inlet temp.): 7.40 kWcool
Flow rate: 1.4 m³/h
Machine Basics
Weight (without oil): 8.0 t
Weight total (without oil): 9.1 t
Weight injection unit (without oil): 3.4 t
Weight clamping unit (without oil): 5.7 t
Total power: 21.0 kW
