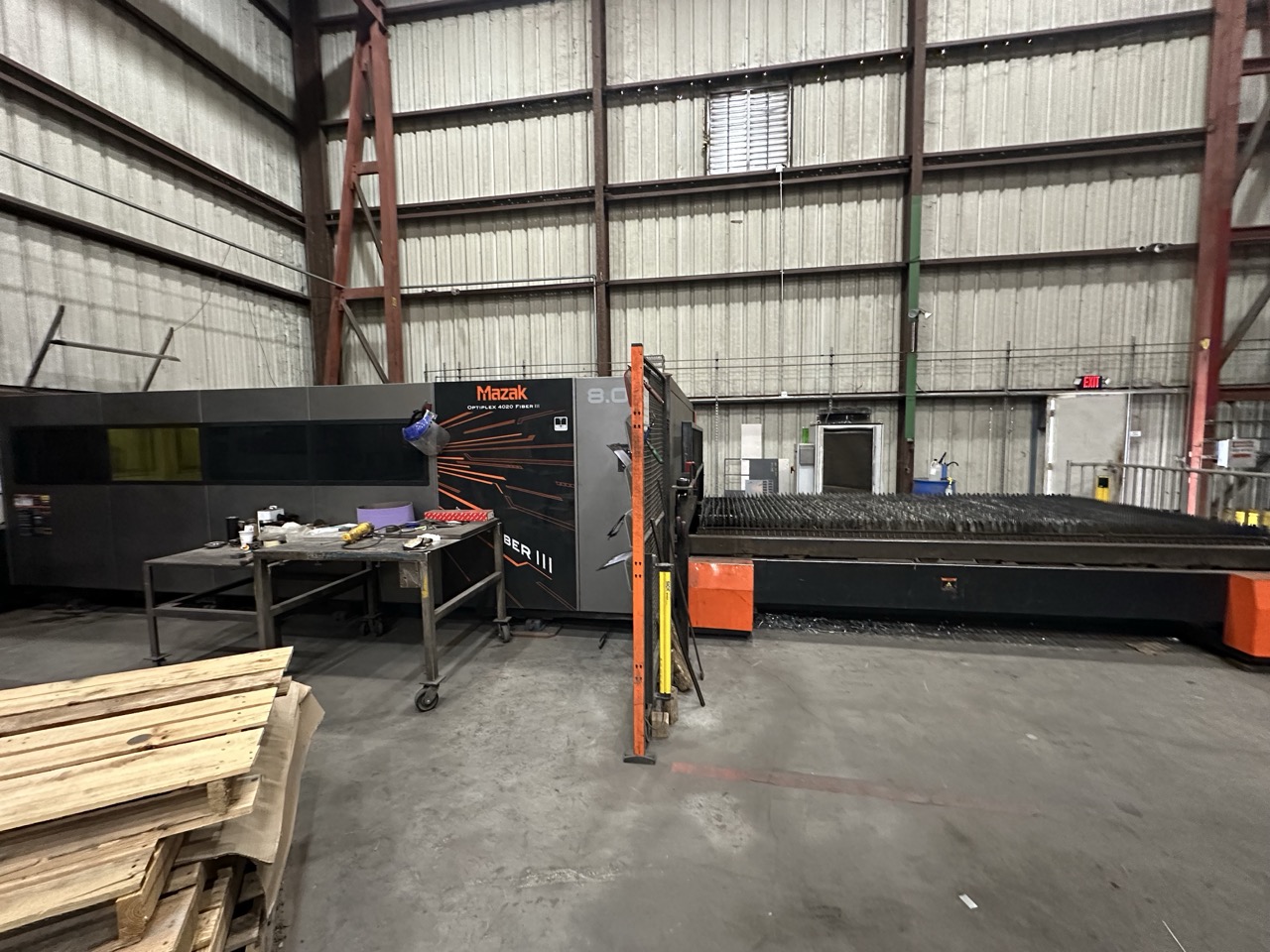

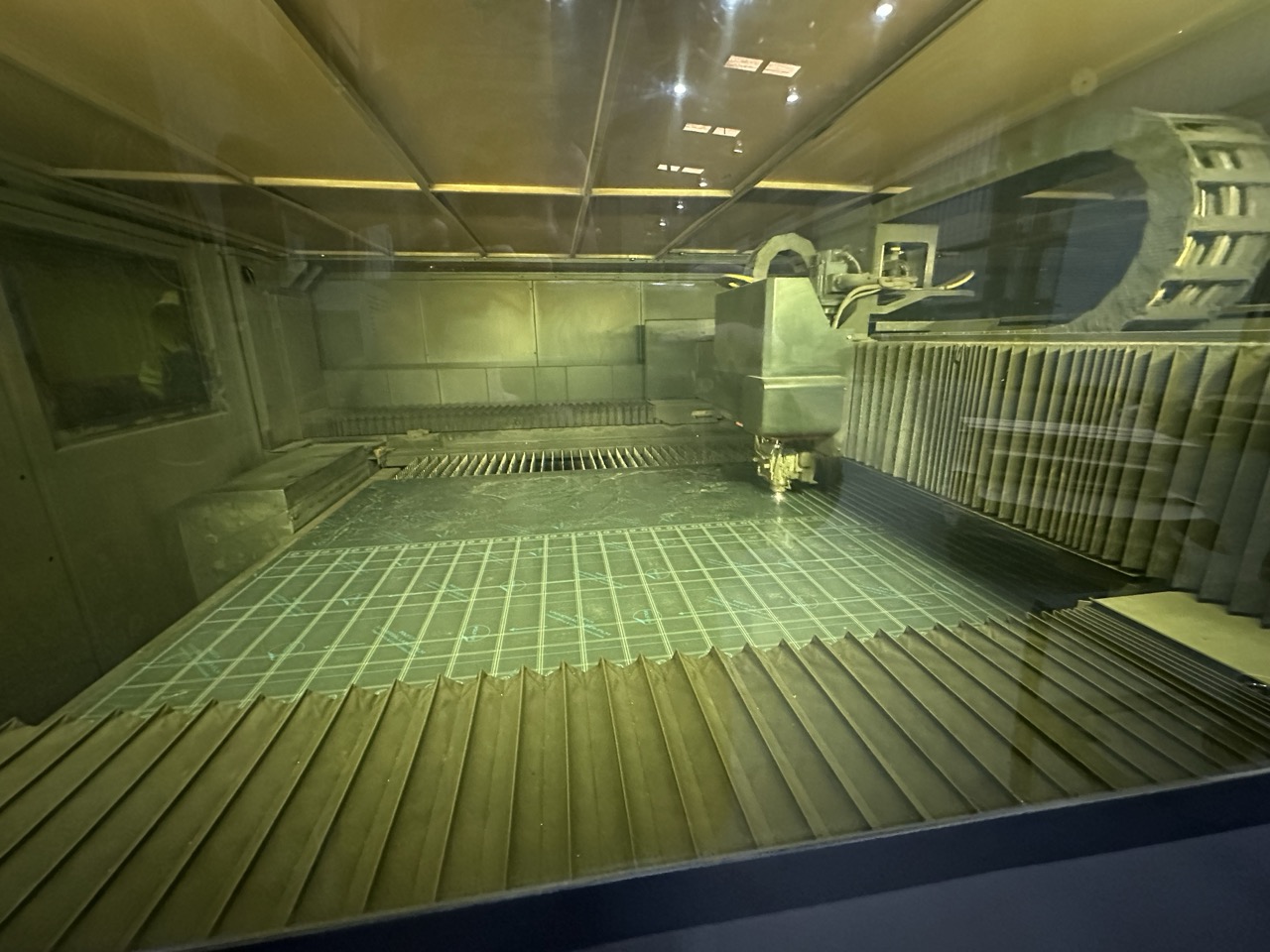

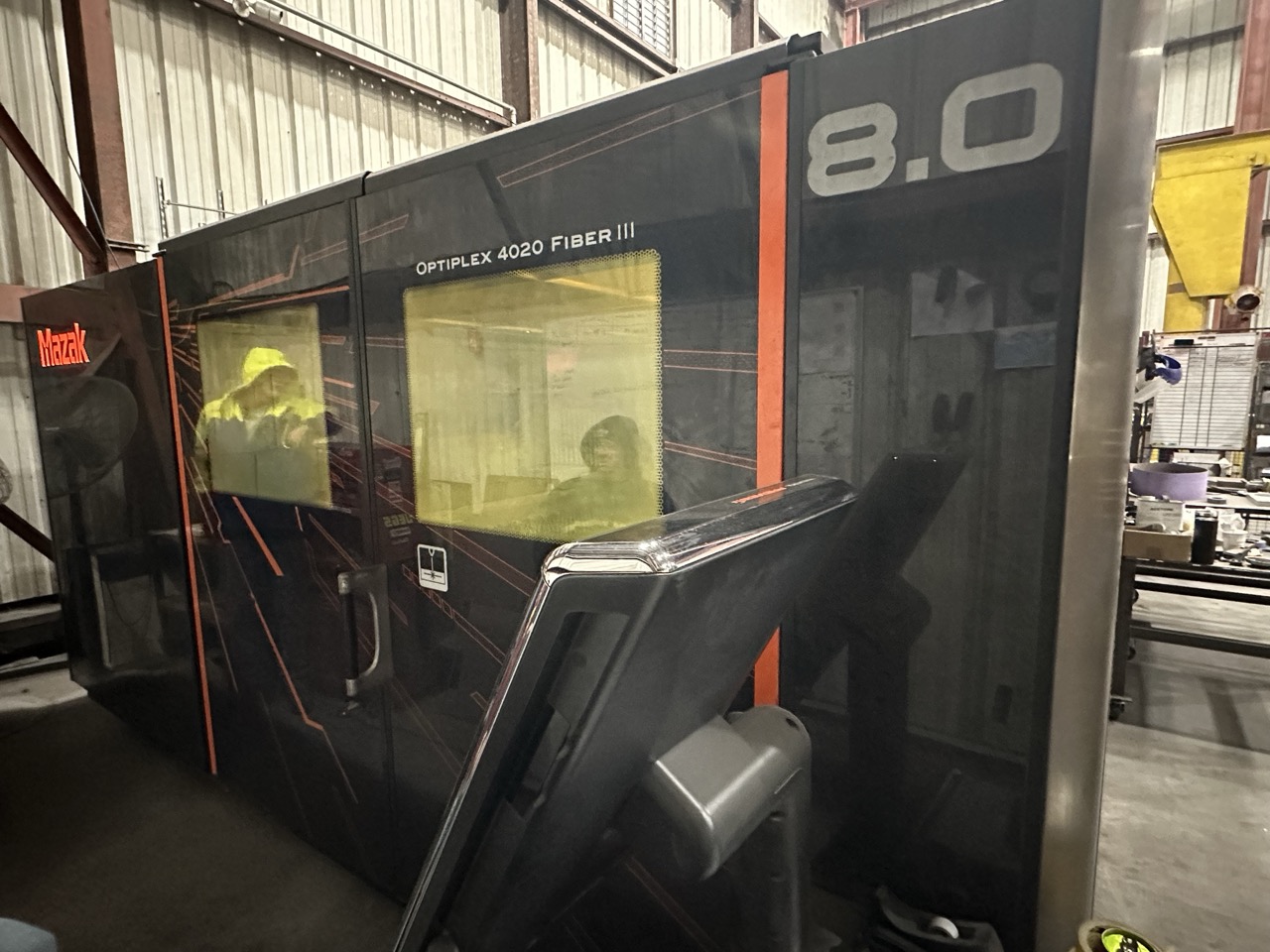

8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 2
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 3
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 4
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 5
BF
32310862765

8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 – 6.5′ x 13′ Table – Dust Collector, Shuttle Table, Scrap Conveyor

$449,900.00

8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 2
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 3
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 4
8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 - 6.5' x 13' Table - Dust Collector, Shuttle Table, Scrap Conveyor - Image 5

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fiber Lasers
Make: Mazak
Model: Optiplex
Year: 2019
Capacity: 8000 Watt
Machine Location: Upon Request
Stock #: 862765

Cutting Capacity:
Max Sheet Size: 80″ x 160″
Max Thickness Mild Steel: 1″
Max Thickness Stainless Steel: 1.25″
Max Thickness Aluminum: 1″
Positioning Accuracy: ยฑ0.0004″
Repeatability: ยฑ0.0002″

Travels:
X-Axis: 160″
Y-Axis: 80″
Z-Axis: 4-5″

Rapid Traverse Rate:
X/Y-Axis: ~4,725 ipm
Z-Axis: ~6,500 ipm

Max Sheet Weight: ~2,200 lbs per pallet
Table Load Capacity: ~180 lbs/sq ft

Equipped With:

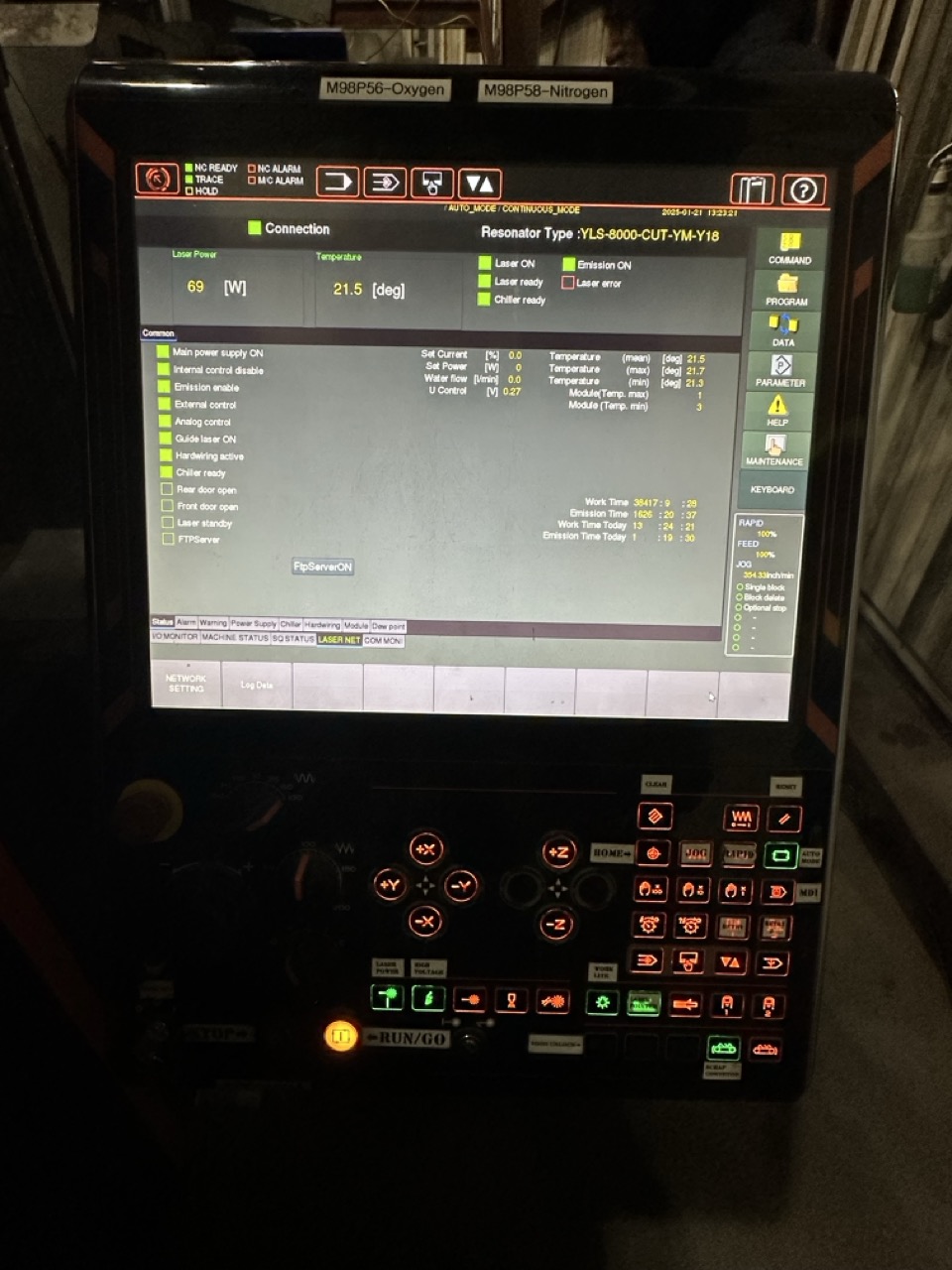

Mazatrol PreviewG Control
IPG Resonator

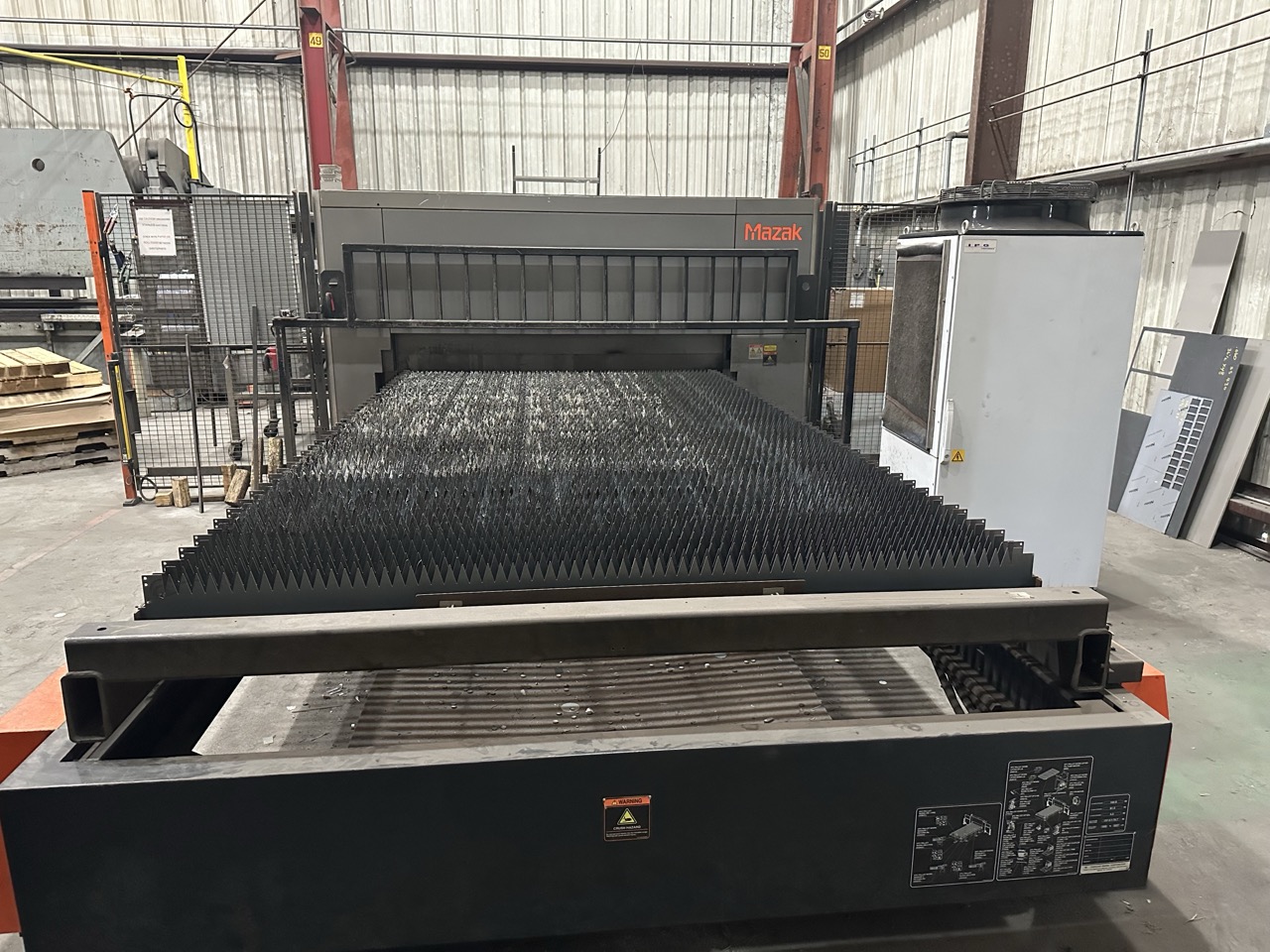

Shuttle Table (dual pallet changer)
Dust Collector
Scrap Conveyor
4th Assist Piping
Nozzle Centering Camera
High Accuracy Camera
Regulator Start-Up Kit II

Electrical Requirements: 480V/3Ph/60Hz
Dimensions: approx. 420″ x 120″ x 84″
Weight: approx 47,024 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
