MS
62950545776

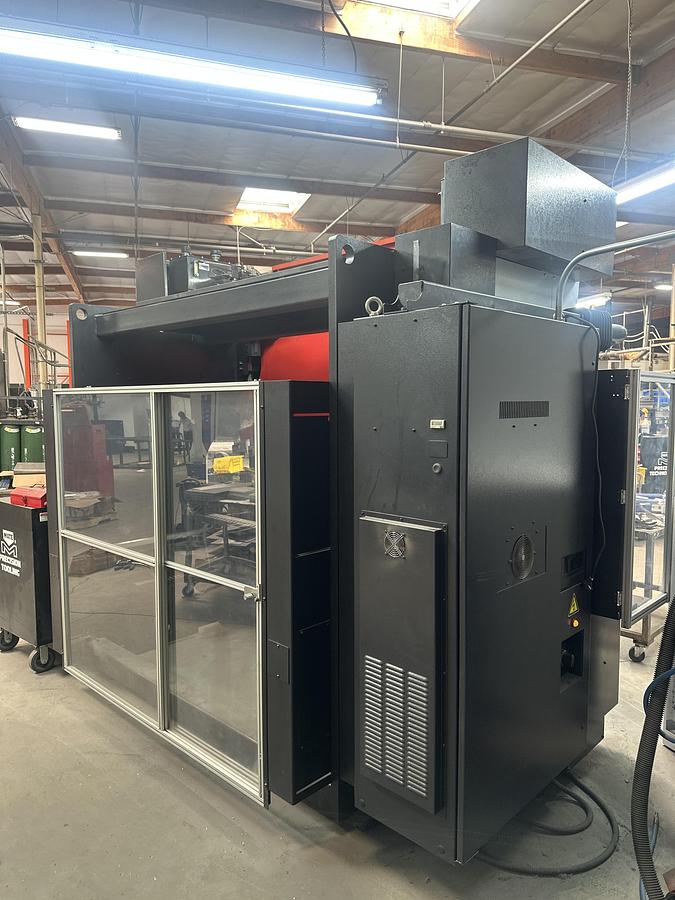

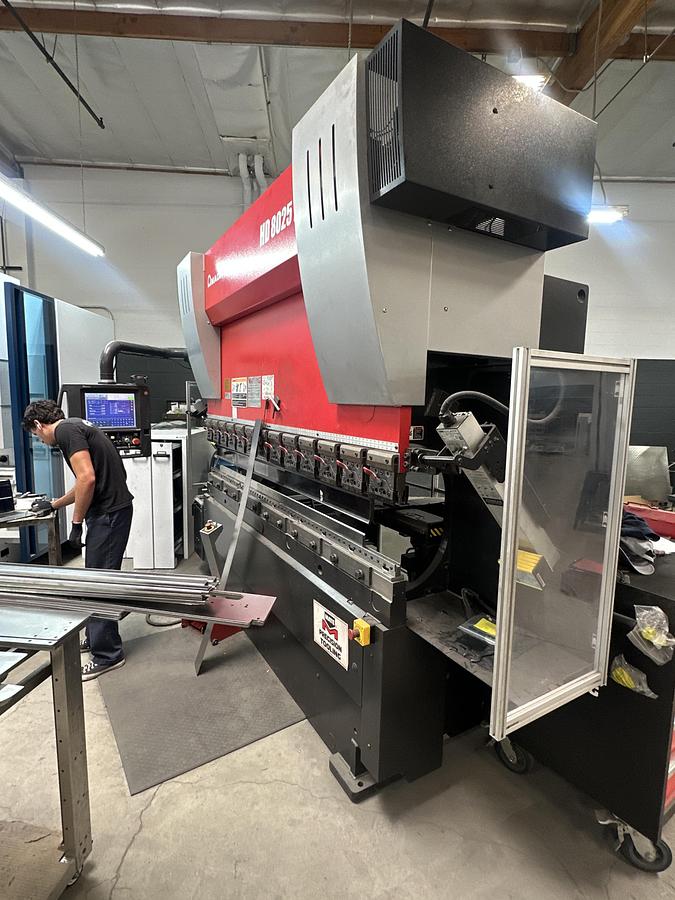

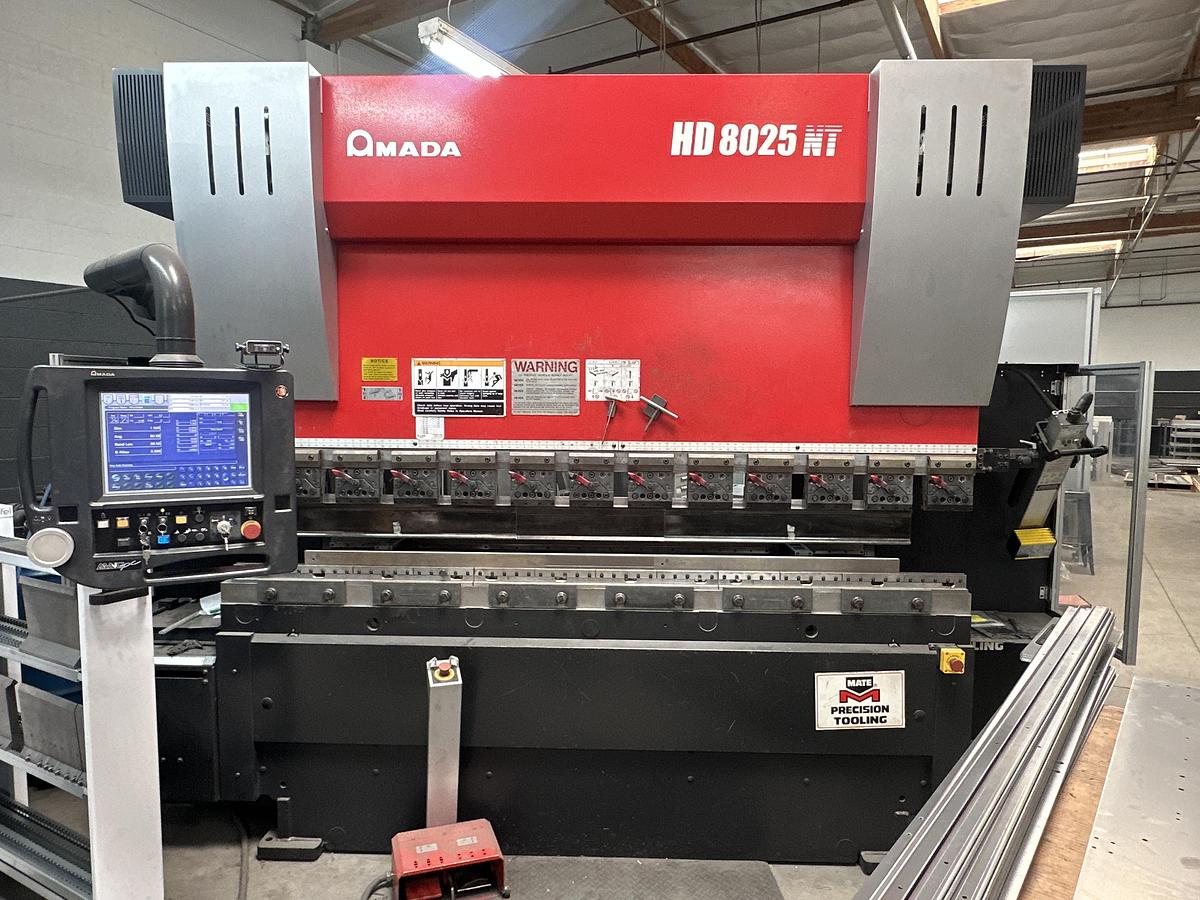

88 ton x 8′ Amada HDS 8025NT CNC Press Brake, 2016
$89,500.00
Machine Type: Hydraulic Press Brakes
Make: Amada
Model: HDS 8025NT
Year: 2016
Capacity: 88 Ton x 8‘
Machine Location: Upon Request
Stock #: 545776
Capacity 88 Tons
Overall Bending Length 101.2″
Distance Between End Frames 83.5″
Length of Stroke 7.9″
Open Height 18.5″
Throat Depth 16.5″
Overall Dimensions 163 x 99 x 106″H
Oil Tank Capacity 9 Gallons
Weight (approx.) 12,500 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
