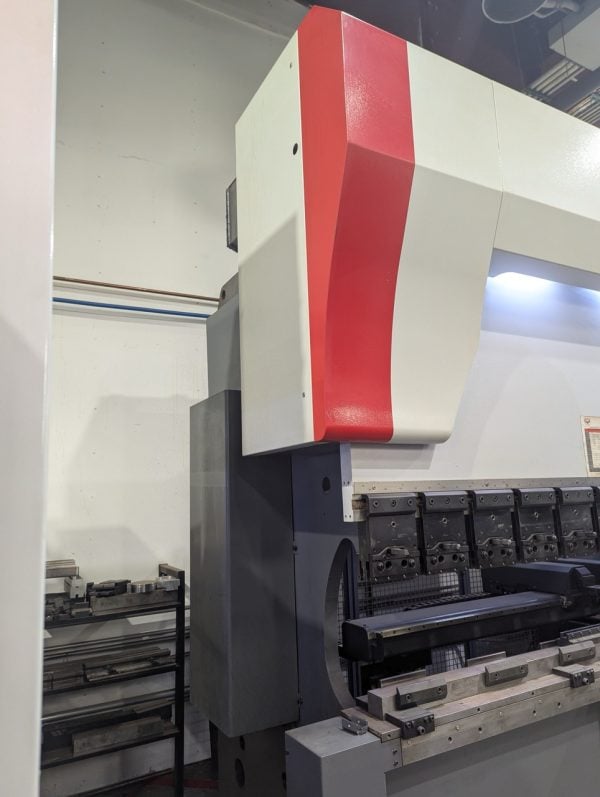

94 Ton x 8.5’ Mitsubishi Diamond BH8525 CNC Press Brake, 2018
$116,550.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 94 U.S Tons
Ram Repeatability: 0.00004”
Approach Speed Max.: 472 IPM
Ben Speed Max.: 24 IPM
Return Speed Max.: 472 IPM
Punch holder Height: 5.9”
Back Gauge X Distance: 33.5”
Back Gauge Repeat Accuracy: 0.0002”
R Axis Travel: 7.8”
Bending Length: 102”
Distance Between Frames: 86.6”
Ram Stroke: 9.84”
Daylight w/o punch holders: 20.8”
Daylight w/ standard holders: 14.9”
Daylight w/ Hyd clamping: See Style
Throat Depth: 15.7”
Table Height: 35.4”
Table Width: 6.7”
Weight: 15,400 lbs.
Oil Capacity: 12.6 Gallon
KVA: 9 KVA
Standard Voltage: 208 V
Equipped With:
Dual Drive Mechanism
Automatic Thickness Detection
Five Axis Backgauge (back gauge bar that moves up and down and carries two independent fingers along precision linear motion bearings between the uprights)
Punch Holders
Safety Electronics
Rear Safety Fence
