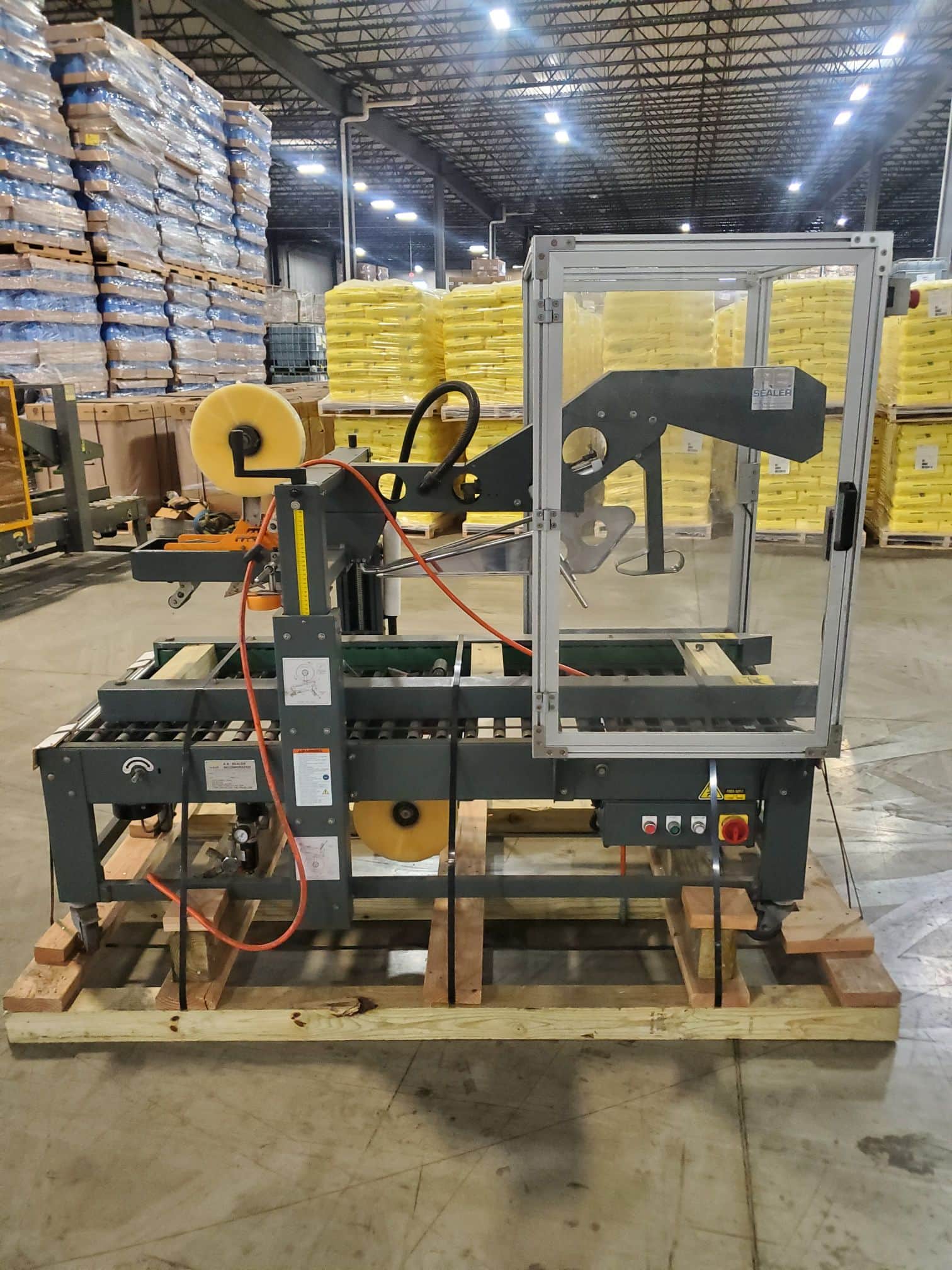

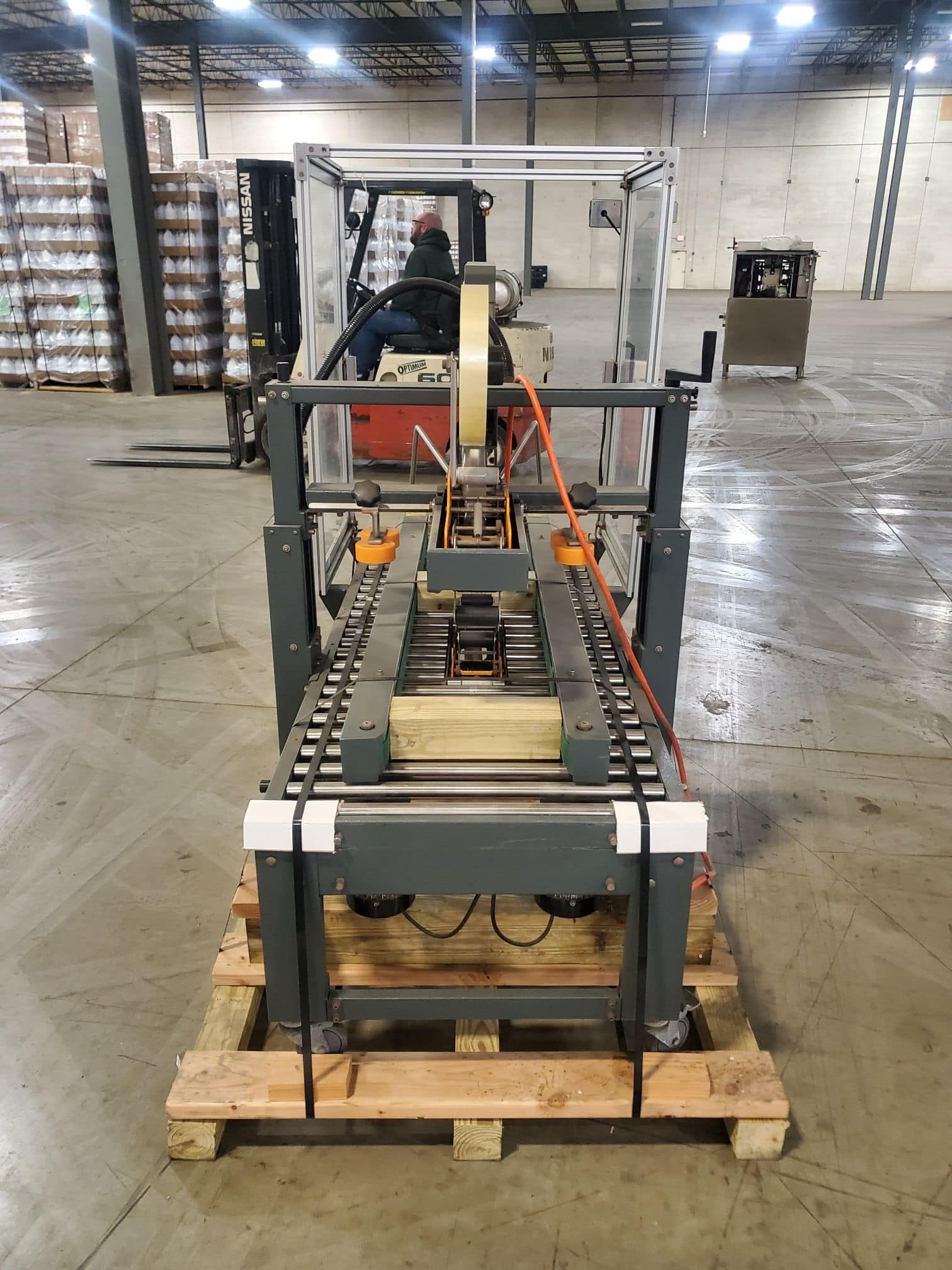

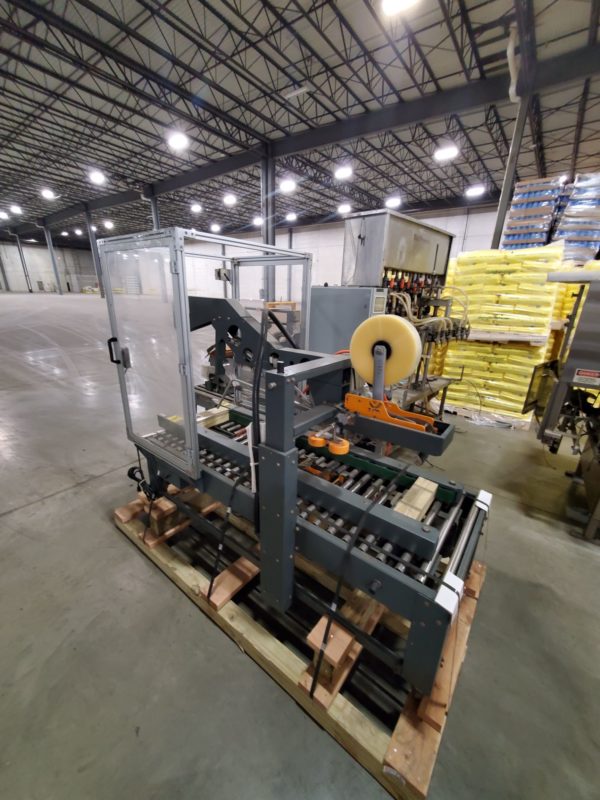

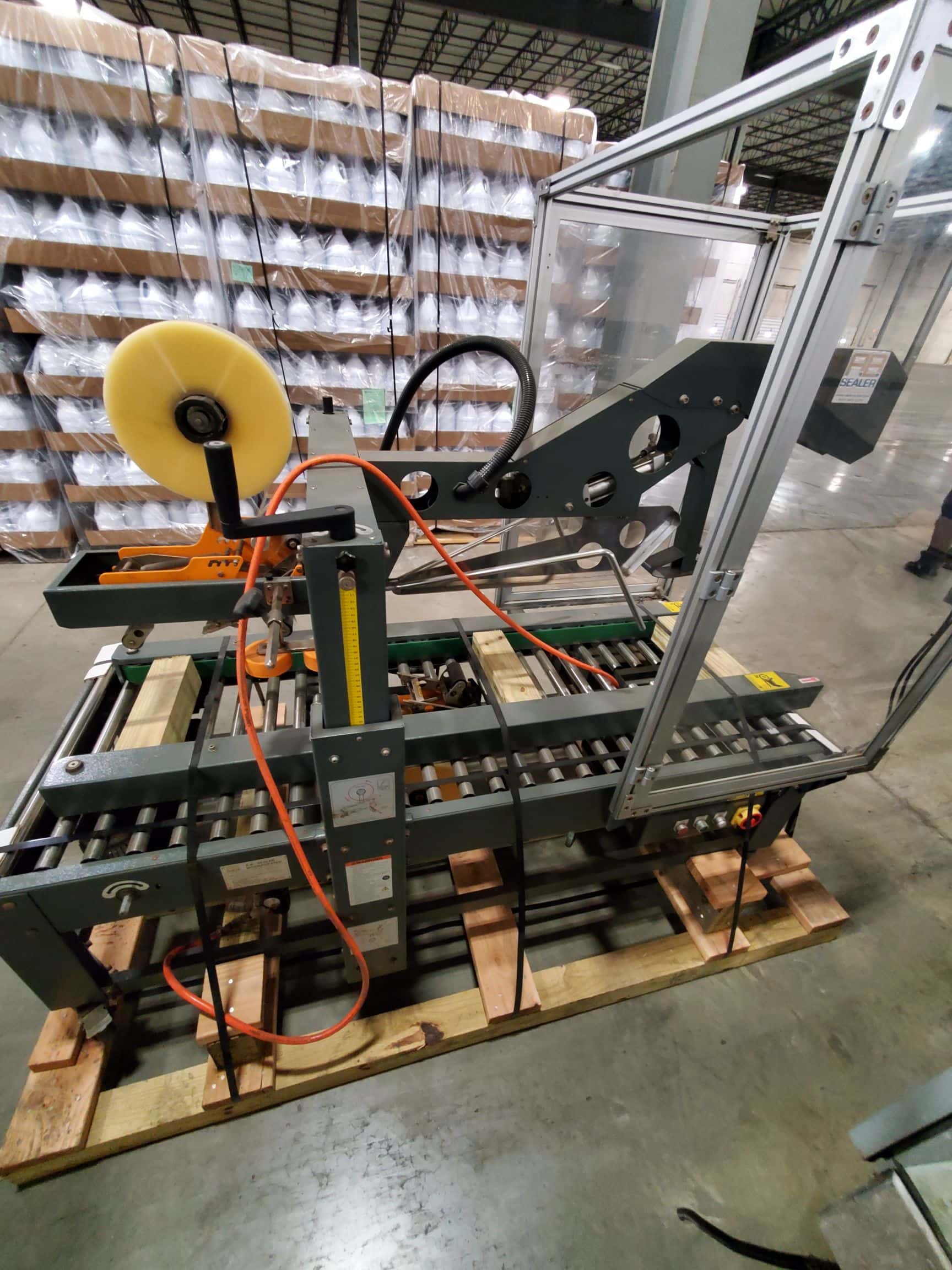

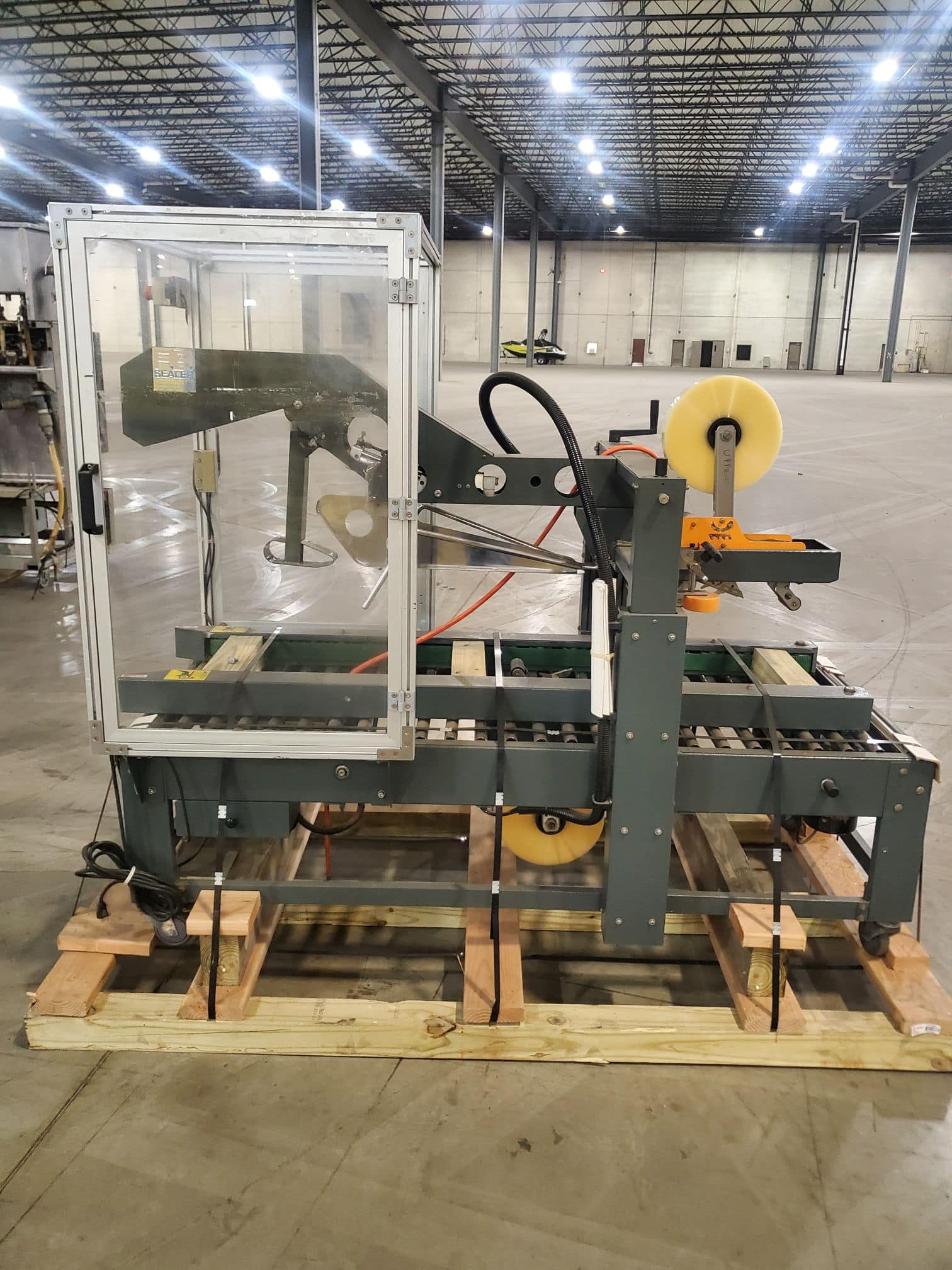

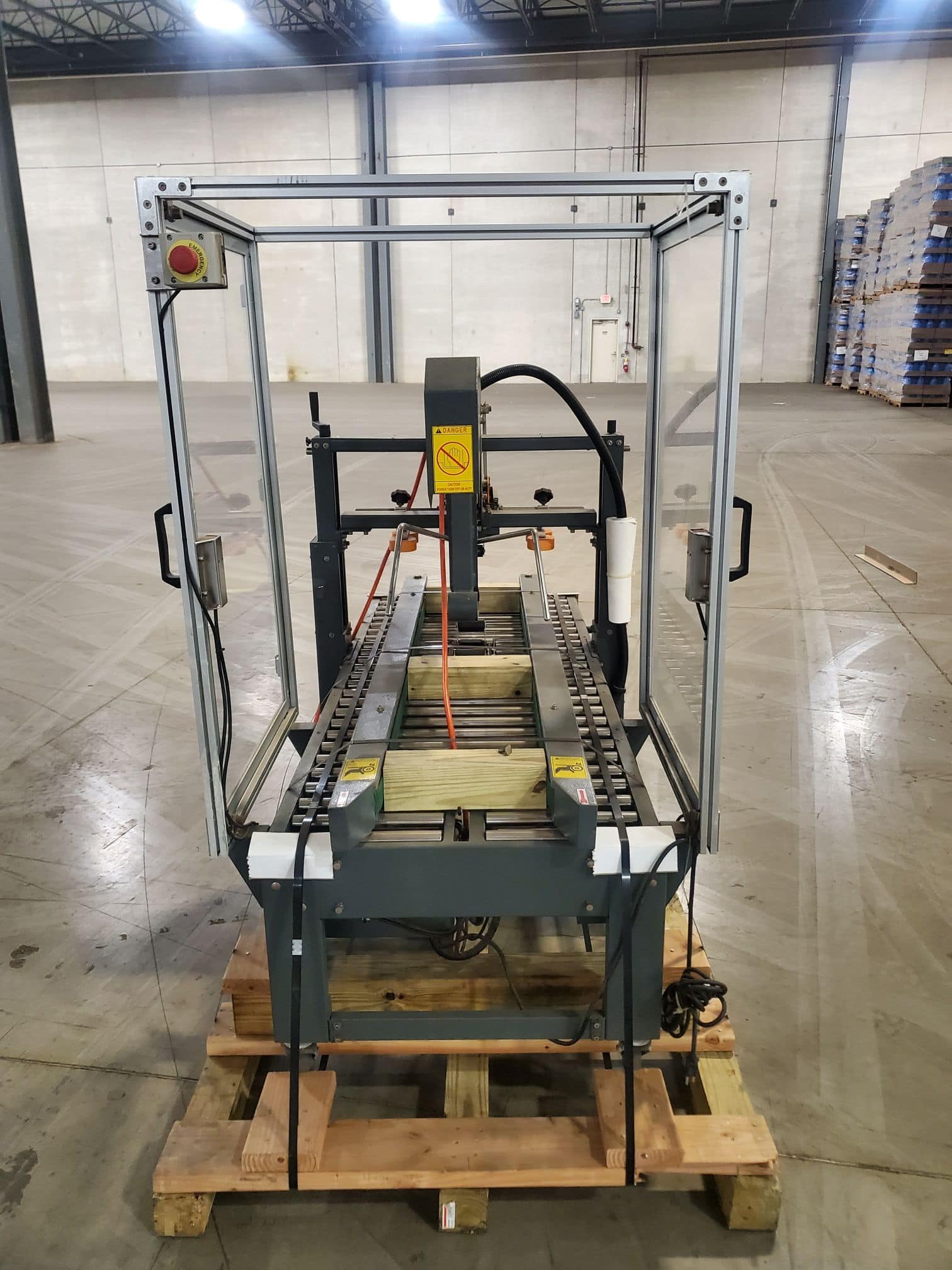

A.B. Sealer Inc. SD-657S Fully Automatic Top and Bottom Case Taper, 2018

For applications where previously erected cases are loaded with product and automated case closing and sealing is required. Features include:

• Plug-in Operation – No operator assistance needed
• Dual Masts with twin lead screws for stability
• Precise Top and Bottom sealing
• Front, Back and Side Flaps Automatically Folded
• Side Mounted Compression Rollers for tight seals
• Heavy Duty Side-Belt Drives ensure square cases
• Adjustable Leg Supports
• Easy case-size change-over – two crank handles
• Piranha Tape Heads for accurate and consistent sealing
• Side Safety Guarding

Speed: Up to 700 Cases/Hour (65 fpm belt speed)
Case Length: 6″ minimum – 30″ maximum
Case Width: 4.75″ minimum – 20″ maximum Case Height: 4.5″ minimum – 20″ maximum
Electrical: 110VAC–60Hz – 10
Amps Air: 1 SCFM @ 70 psi
