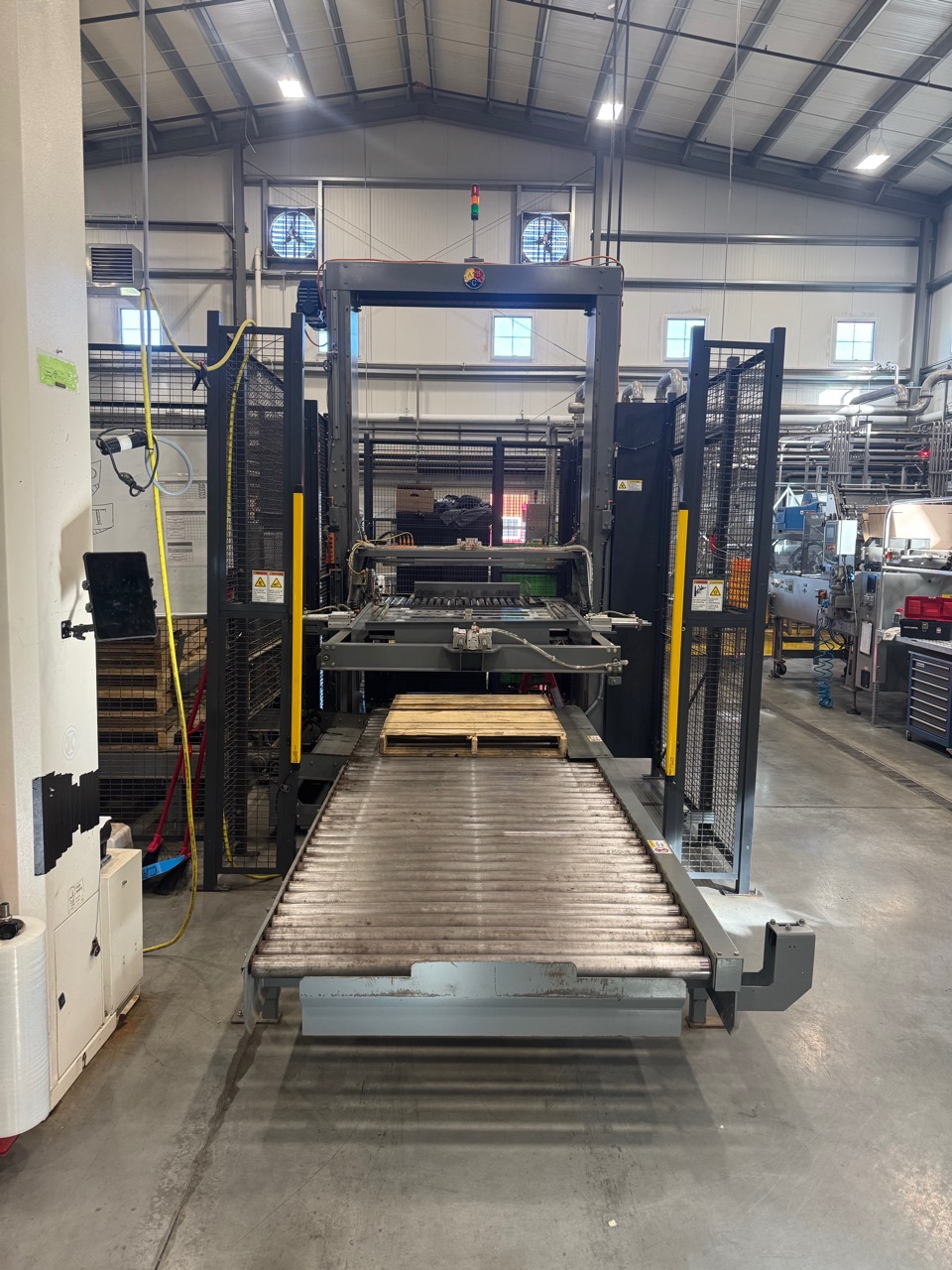

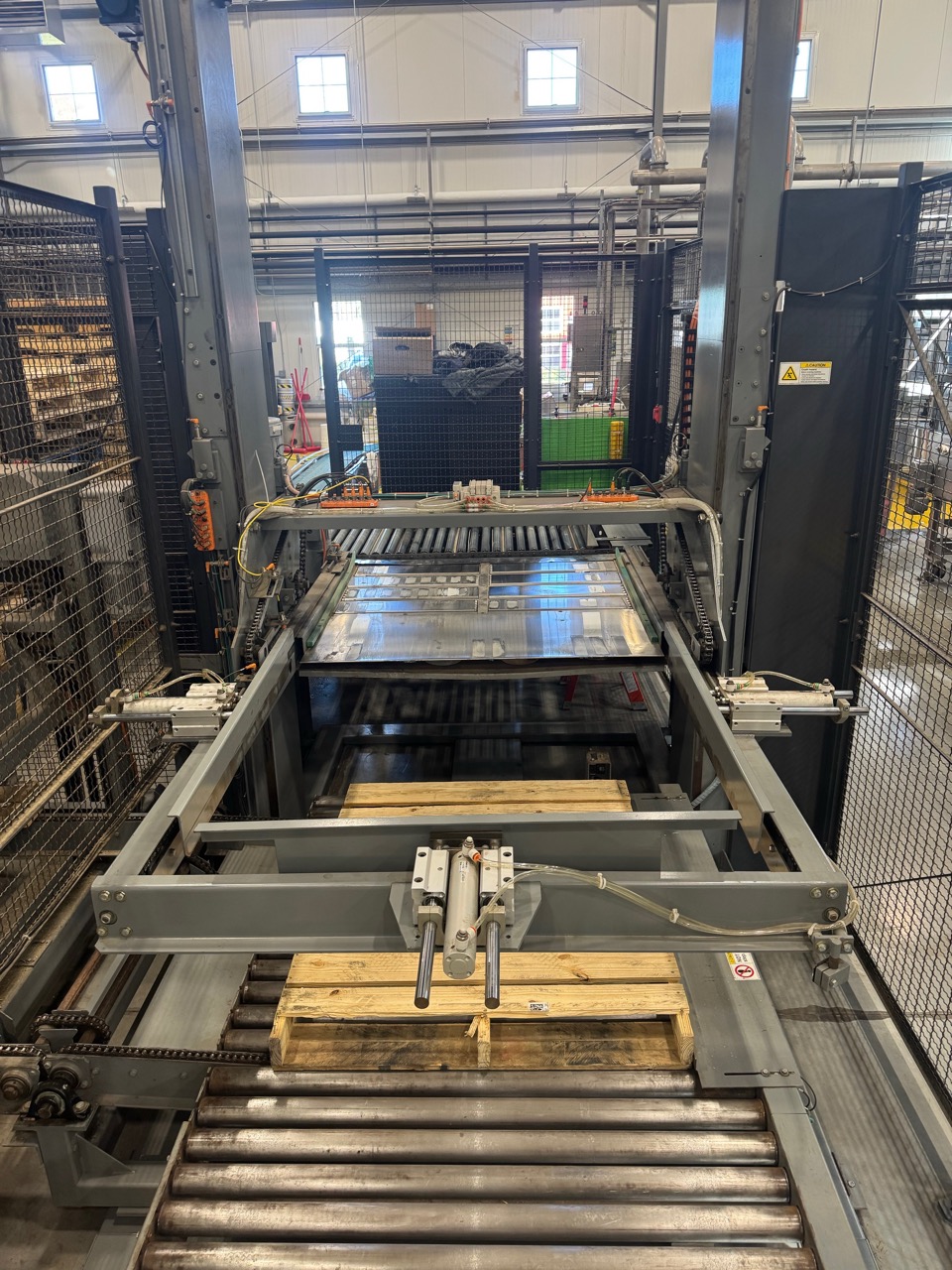

ABC 72A Low Level Palletizer – 2021

Palletizer Style: Automatic
Case Style: Tray
Cases Per Tier: 10
Tiers Per Pallet: 6
Pallet Size: 40″ X 48″
Speed: 12 Trays Per Minute
Layer Speed: Up To 3 Layers Per Minute
NEMA Rating: NEMA 12
Control Voltage: 24 VDC
Power: 480V, 60Hz, 3 Phase
Air Requirement: 80 PSI
Air Connection: 0.5 NPT
Air Consumption: 4 SCFM
Controls: Allen Bradley CompactLogix PLC
VFD: Allen Bradley PowerFlex 525 VFD
HMI: Allen Bradley PanelView Plus 7 1000 Standard Terminal
HMI Model: 2711P-T10C21D8S
Feed Conveyor Length: 43″
Roller Length: 25″
Roller Diameter: 1.9″
Pallet Dispenser Size: 40″ X 48″
Additional Feed Conveyor Length: 6′
Pallet Discharge Conveyor Length: 6′
Approx. Dimensions: 8’7″ L X 8’2″ W X 8’7″ H
Color: Gray Machinery Enamel

Equipped With:

High Speed Option
Powered Timing Belt Feed Conveyor
Row Forming Conveyor
Heavy Duty Row Pusher
Stainless Steel Tapered Layer Deposit Plate
Electrically Operated Automatically Adjustable Layer Retainer Bar
Adjustable Layer Side Guide Rails
Ethernet Communication
Dual Configurable Ethernet Ports
IO Link System
Remote Access Capability
Heavy Duty Gearmotors
Sealed Bearings
Effector Photo Eyes
Proximity Switches With Micro Quick Disconnect Cables
Elevated Tower Beacon Lights
Allen Bradley Emergency Stop Pushbuttons
Guarding Package
Safety Light Curtain At Full Pallet Discharge
Allen Bradley SensaGuard RFID Safety Door Switches
SMC Manual Air Shut Off Valve
SMC Air Regulator And Water Eliminator
SMC Automatic Air Dump Valve
Solid State Air Pressure Switch
SMC Solenoid Valves
EWON Internet Modem
Rotary Style Fused Main Machine Disconnect
90° Case Turning Device
Two Blade Stop For Layer Pattern Positioning
Low Friction Rollers On Transfer Table
Tower Extension
Lift And Set Style Pallet Dispenser
90° Two Chain Pallet Transfer Conveyor
Driven Roller Full Pallet Discharge Conveyor
Allen Bradley VFD Conveyor Controls
Operation And Maintenance Manuals
USB With PLC And HMI Programs
Electrical And Pneumatic Drawings
