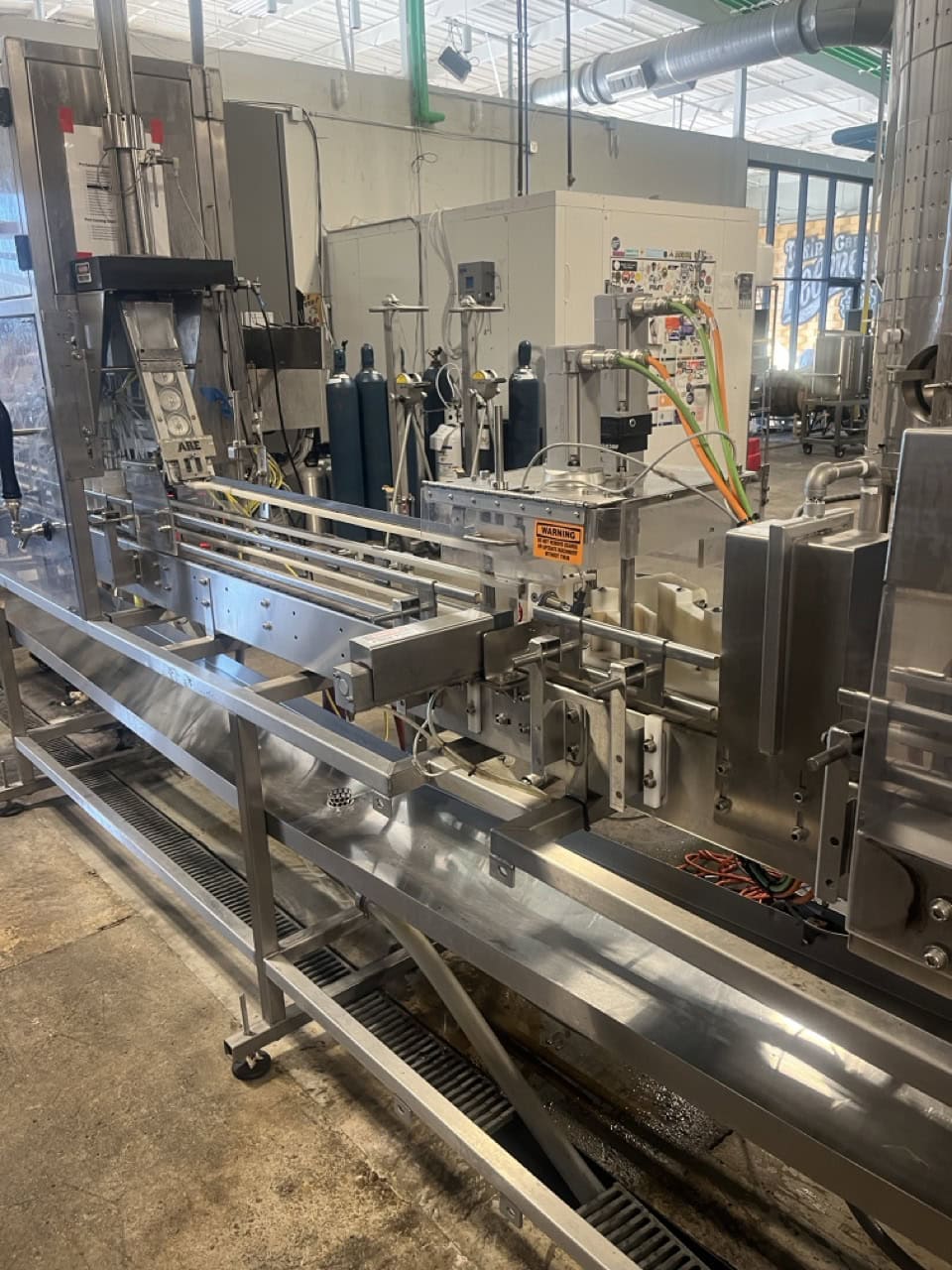

ABE LinCan35 Complete Servo Beverage Canning System, 2017

Used ABE LinCan35 Complete Servo Canning System:

This system currently has spacers to do both 12oz standard and 16oz standard cans beverage.

Spacers to do 19.2oz cans along with 12oz sleek available.

System Includes:
– 7 head In-Line CO2 purge station

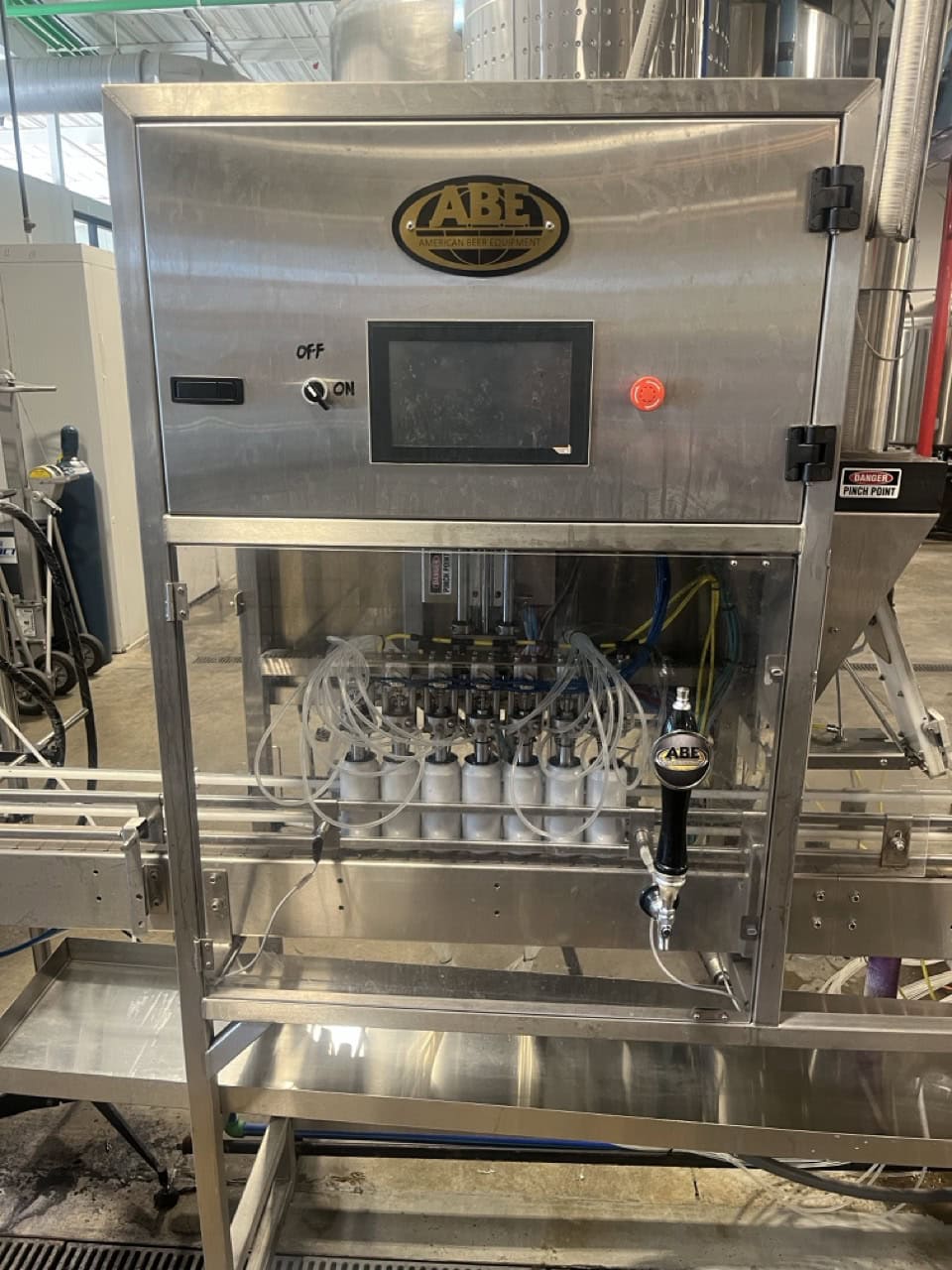

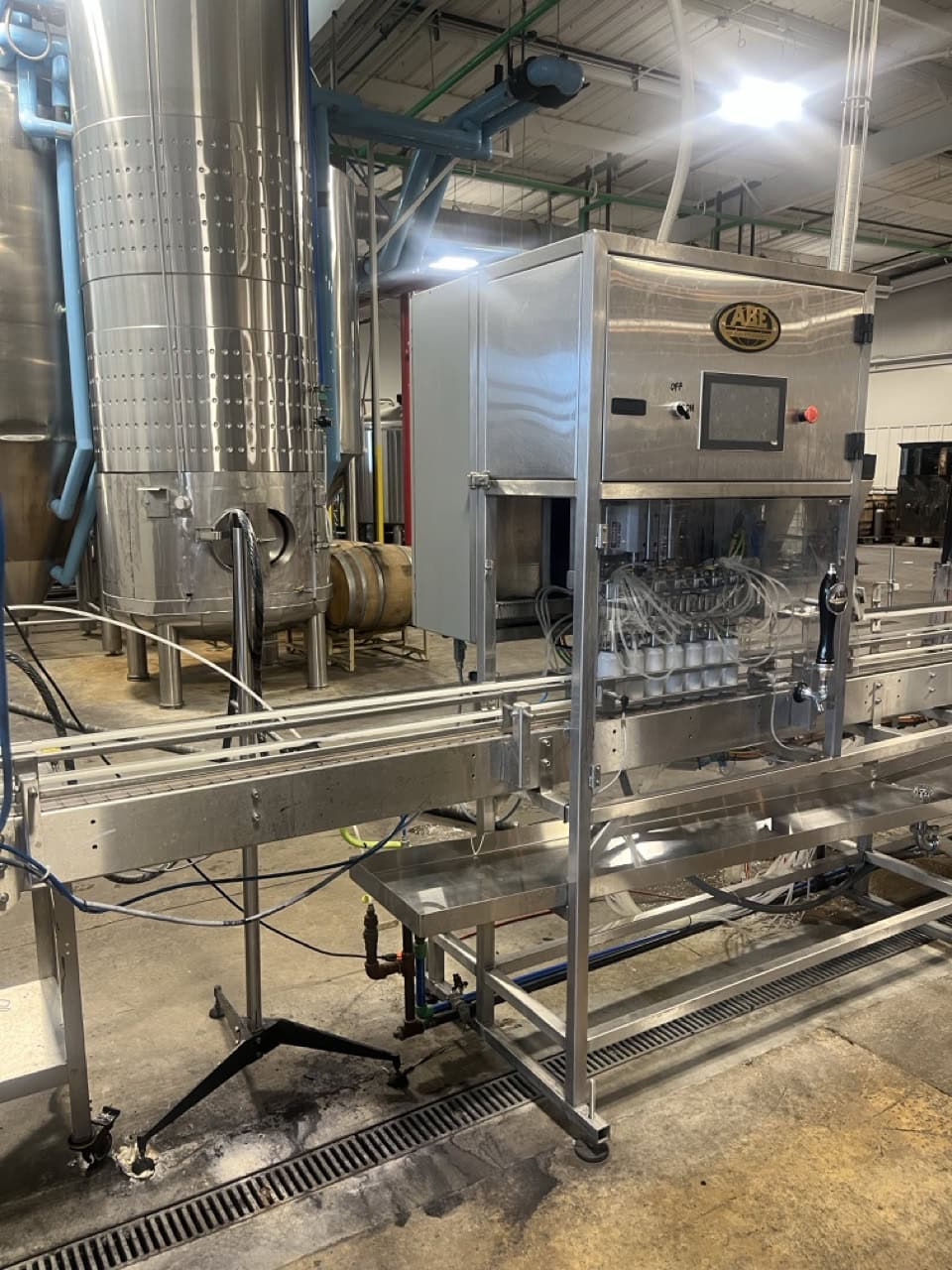

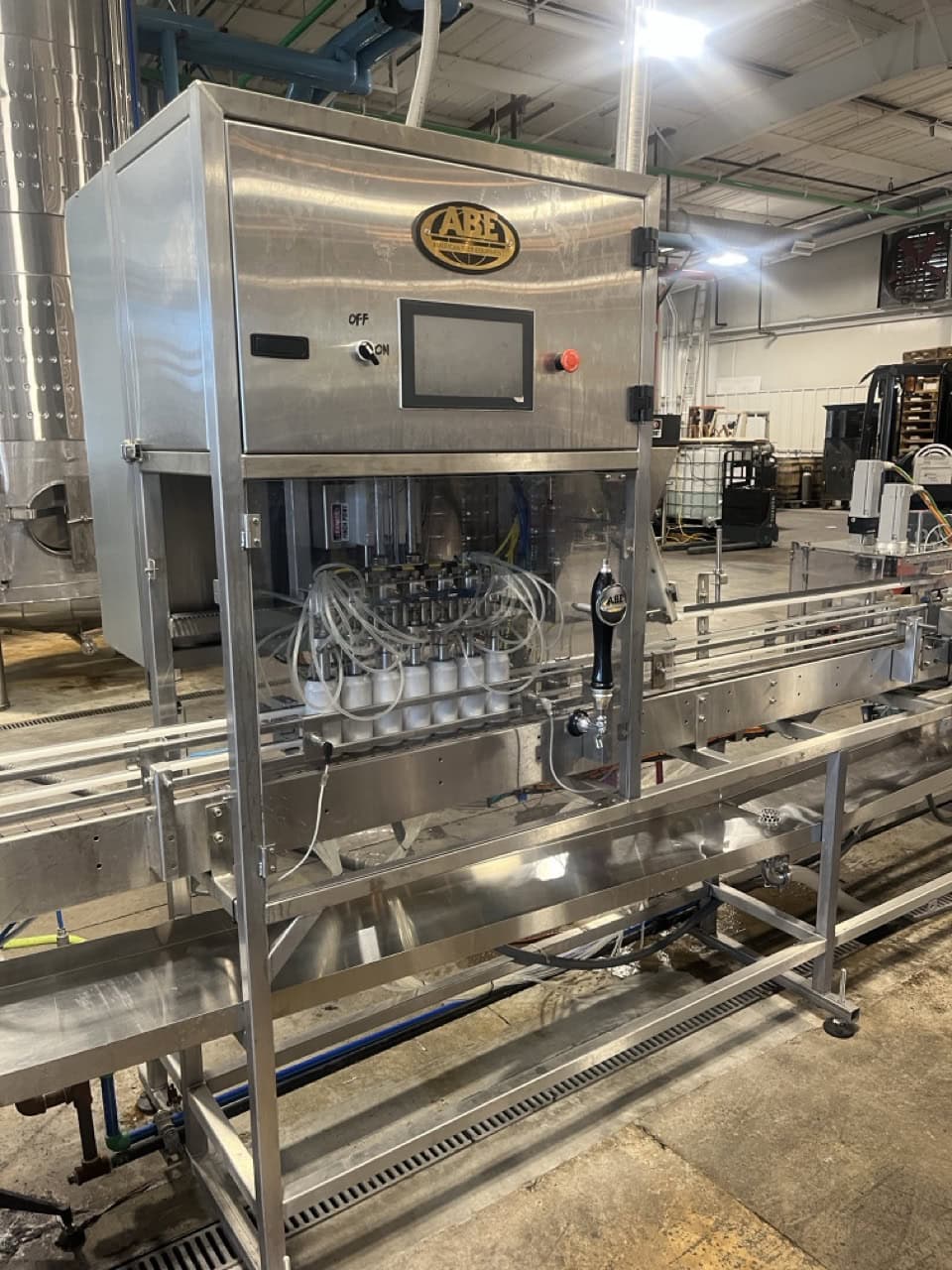

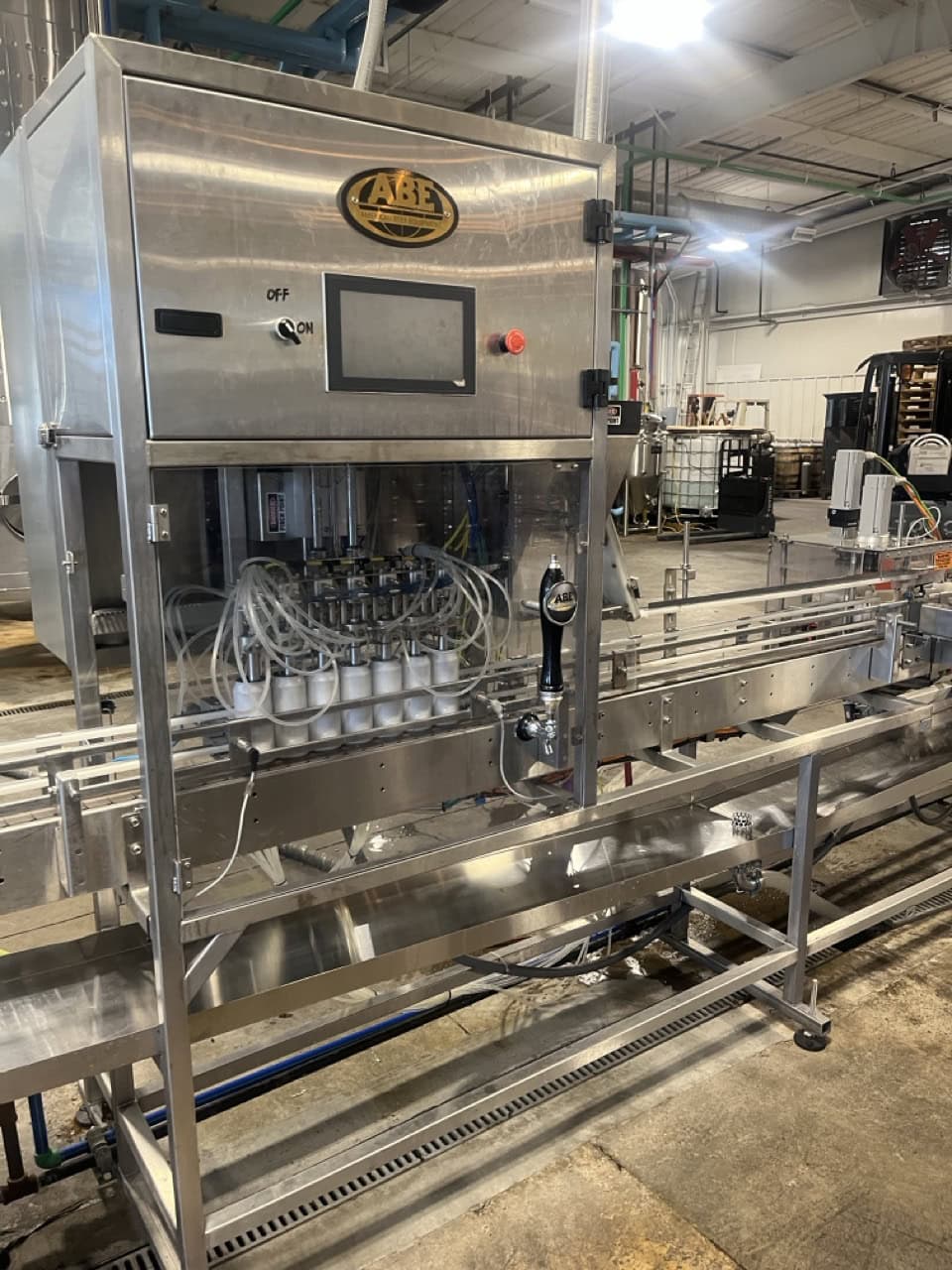

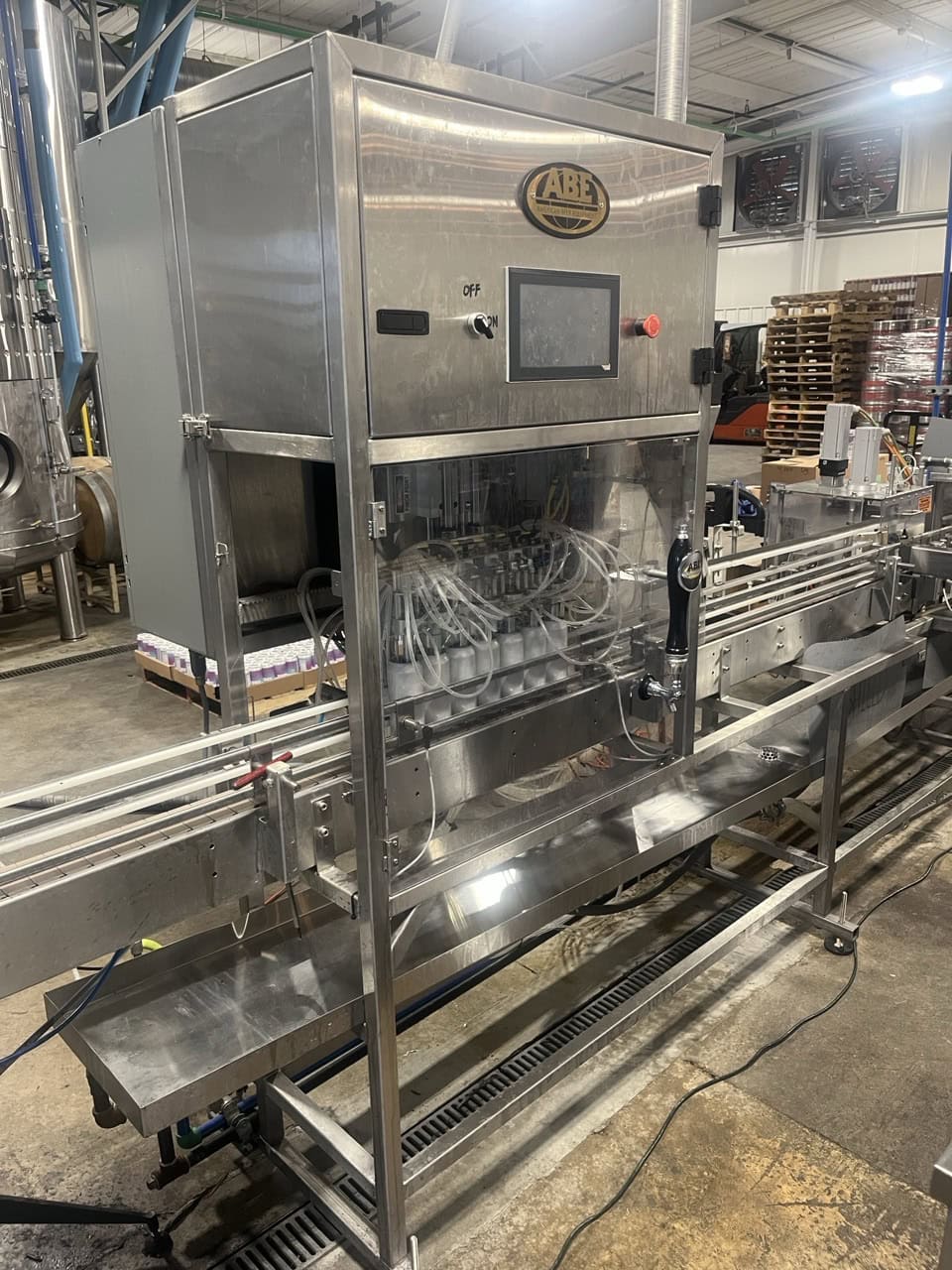

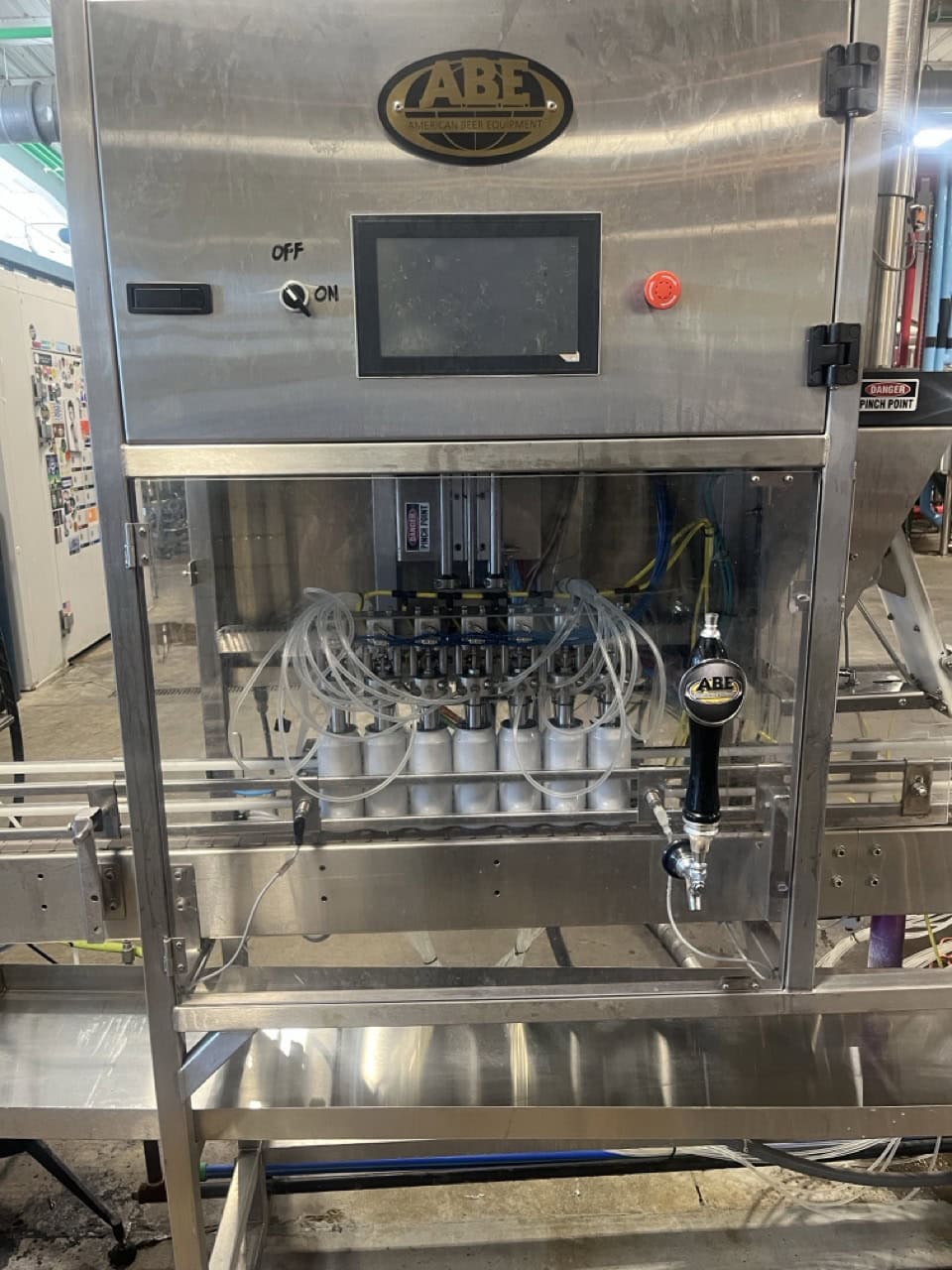

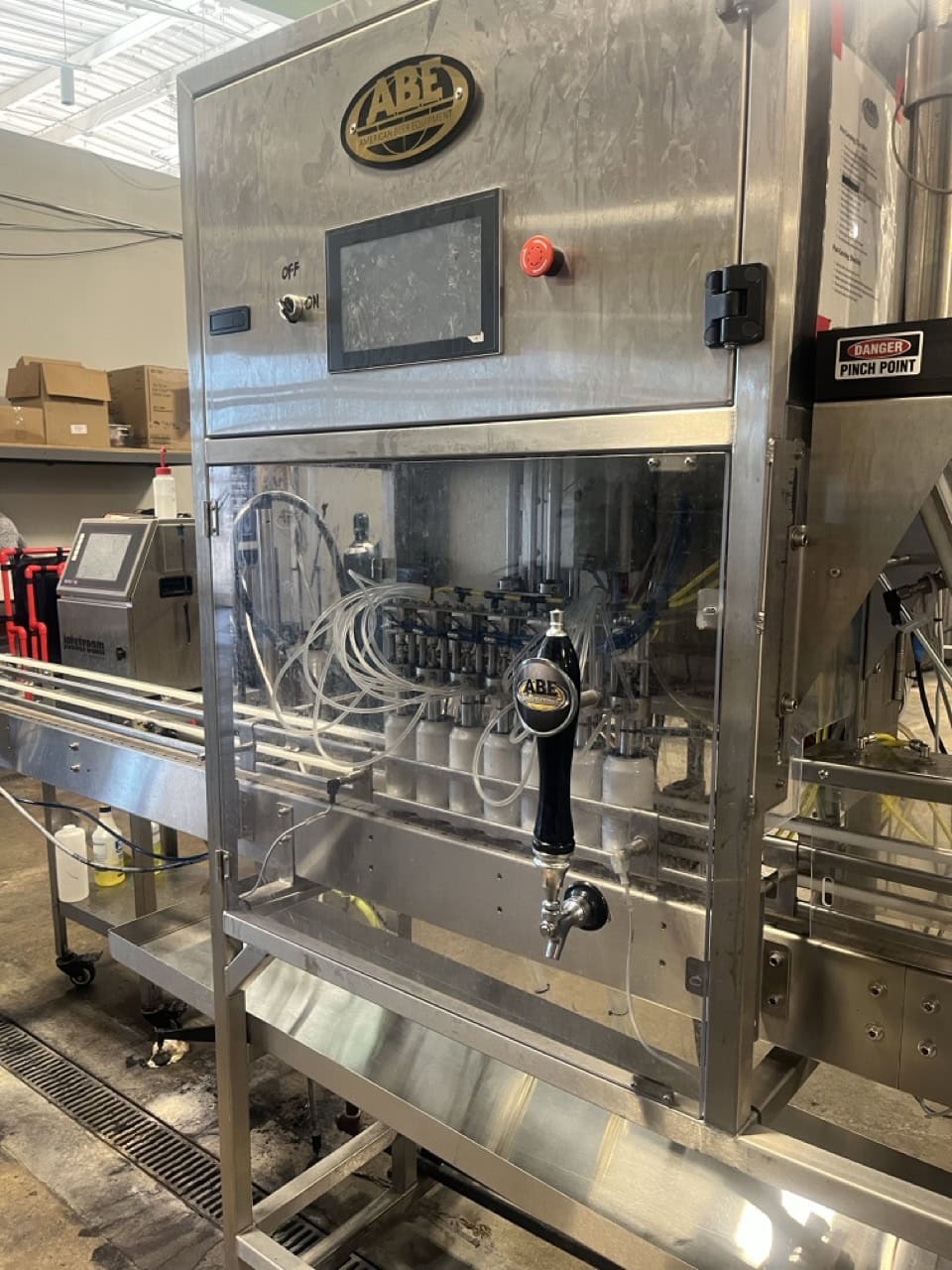

– 7 head automatic filler
– Lift-n-fill superior nozzle technology

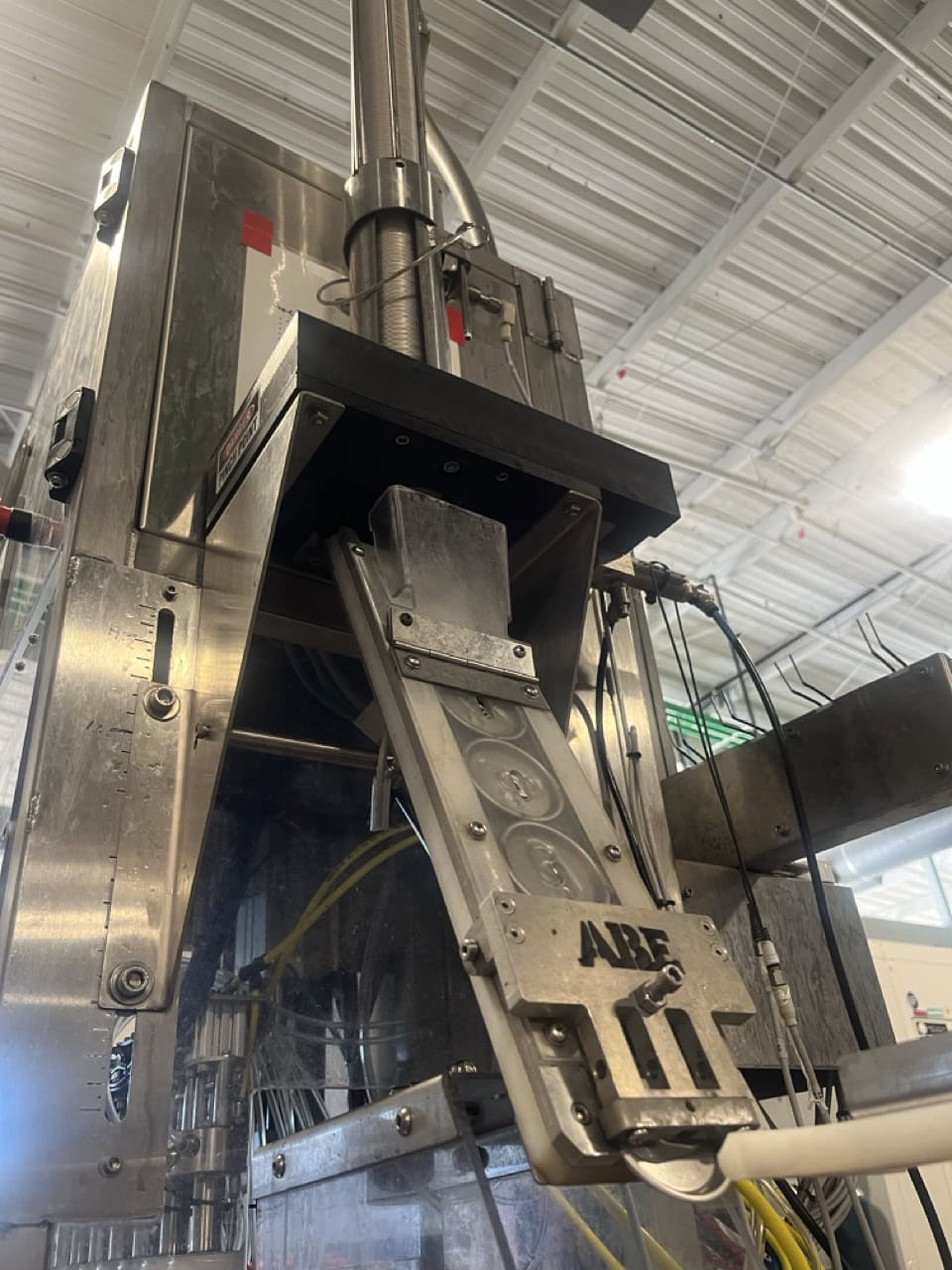

– Quick change lid magazine
– Lid pick-in-motion
– CO2 pressurized lid chute with integrated anti-jamming automation
– Lid Detection / Rejection system

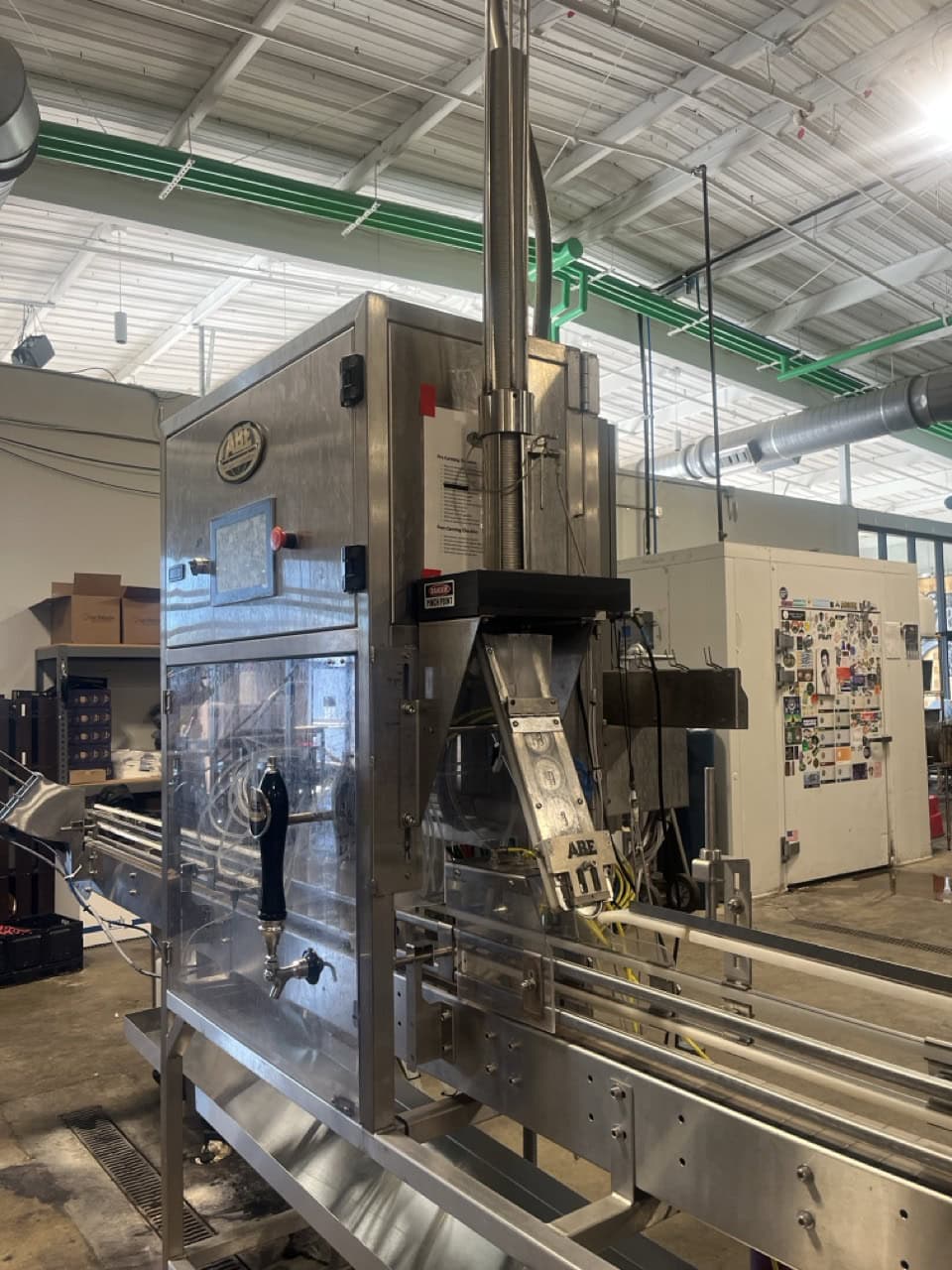

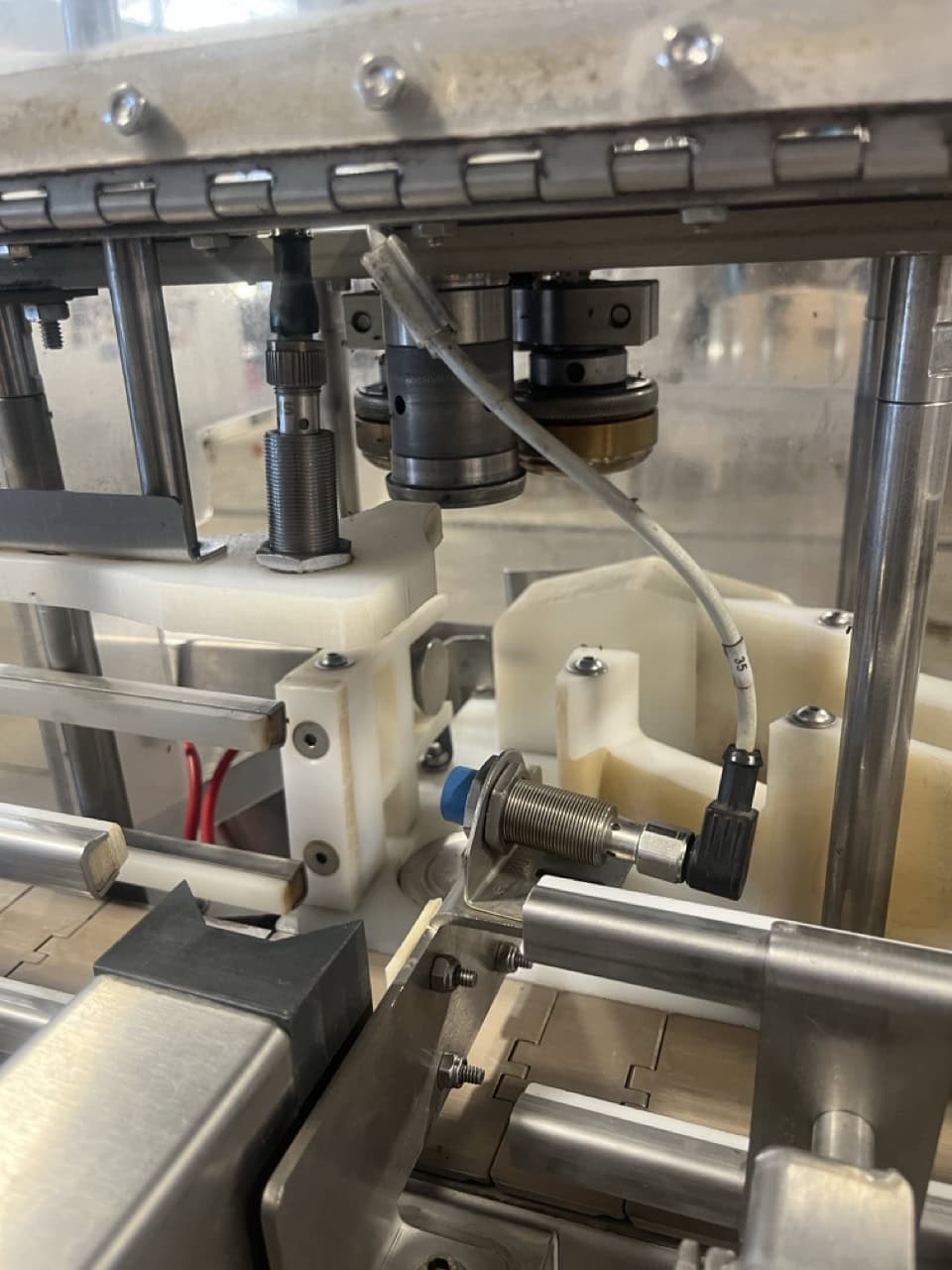

– Automated Servo seamer with wash down IP67 servo motors
– Automated can reject and real-time seam analysis system

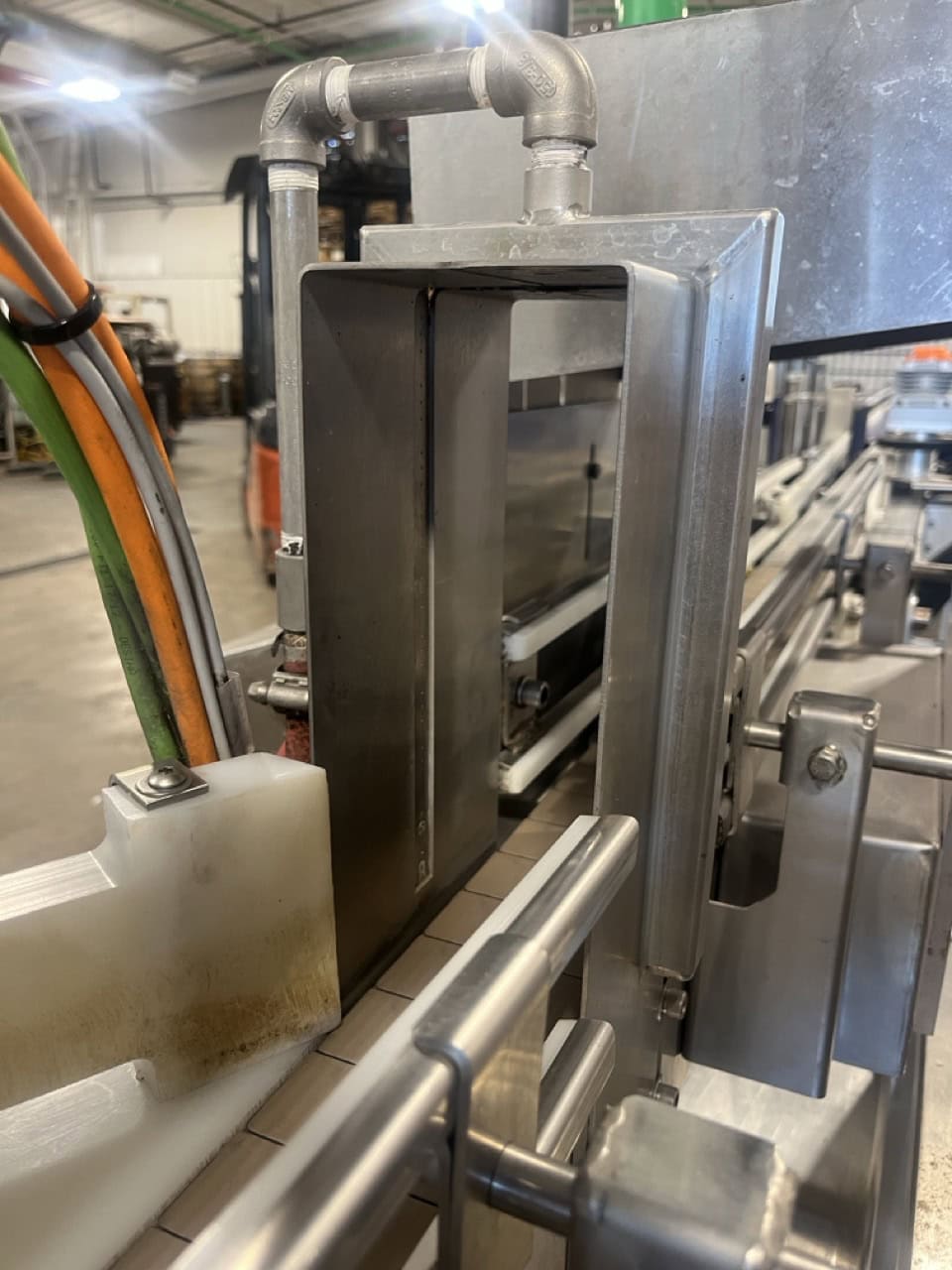

– External Can rinser
– Air-blow can dryer

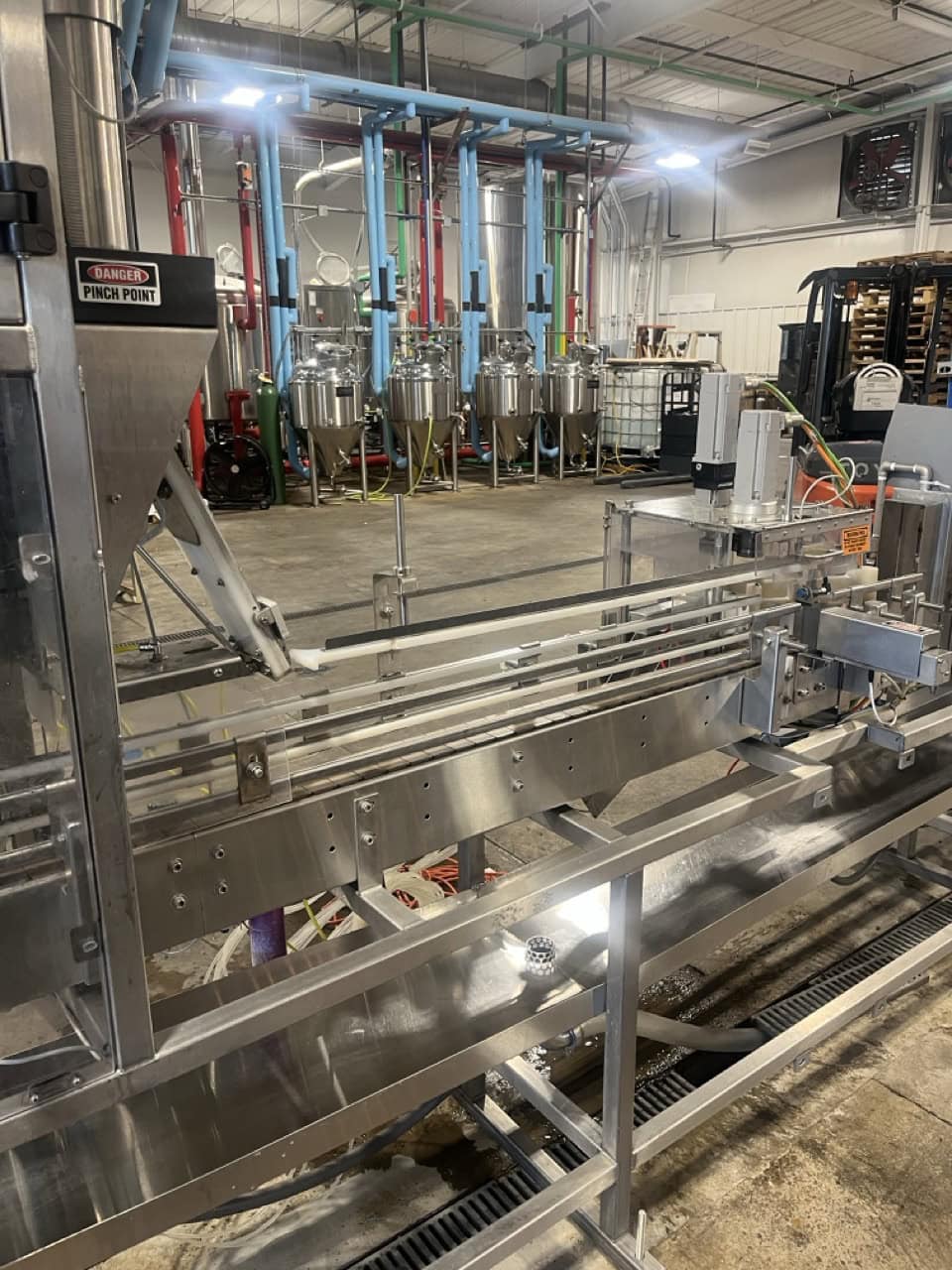

– Main conveyor system with wash down motor
– Complete stainless steel drip tray system with central drain
– Superior PLC controls w/ oversized touch screen display
– iPad and iPhone access for remote monitoring, diagnostics, and control Features / Advantages
– Up to 35 cans/minute capacity based on 12oz volume
– Modular design allows for doubling capacity up to 65 cans / minute
– 304 Stainless Steel construction

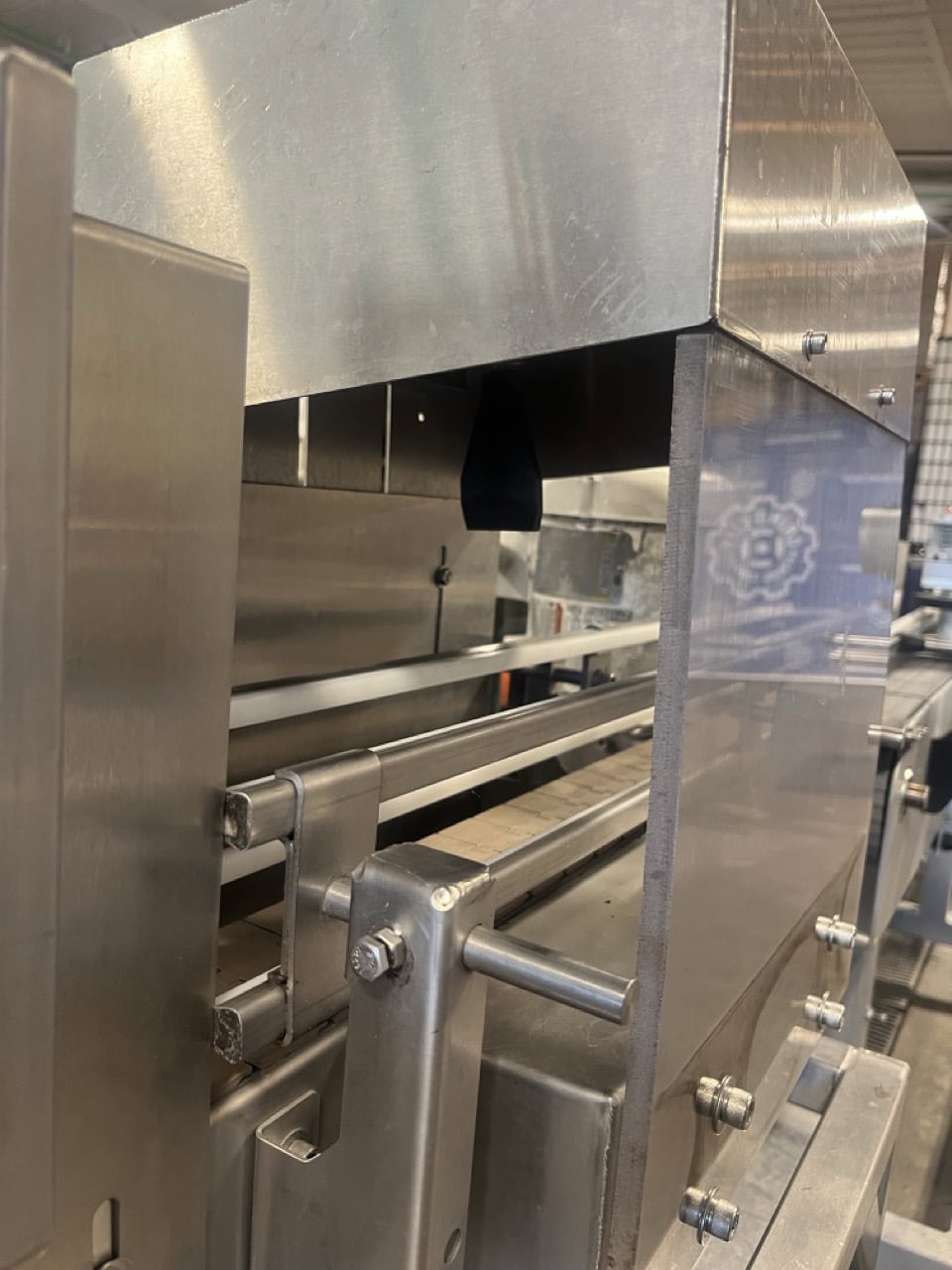

– Transparent enclosures around filler, seamer, rinser
– Operator friendly 33″ Conveyor height
* Air compressor not included

Patent-pending Torque Monitor instantly inspects and assesses seam accuracy on every can.
– Seams not meeting a pre-determined, measured specification are rejected,
ensuring maximum quality and shelf stability.
– Greatly reduces product loss, and shelf spoilage versus manual inspection.
– Minimizes the need for tedious, manual, tool adjustments as many modifications are made on touchscreen.
– Utilizing a state-of-the-art, 24 bit Encoder with Servo Positional Accuracy means, repeatable, precision seams within 0.15 degrees.
– Custom developed algorithm allows for precise seam analysis, never seen before in this class of equipment.
– Because of continuous data logging, maintenance can be done on a predictive
not a reactive basis.
– System diagnostics available for remote troubleshooting.
