AEC Systems USA Industrial Parts Washer, 2017 – 40,000 Load Capacity, Chip Drag Conveyor, Stainless Steel Nozzles and Screens

$199,999.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fabrication
Make: AEC Systems USA
Model: 812 K FTT
Year: 2017
Machine Location: Upon Request
Stock #: 810449

Dimensions: 160″ x 144″ x 136″
Turntable Diameter: 96″
Working Height: 72″
Working Load Limit: 40,000 lbs
Loading Height: 55″
Solution Capacity: 1,000 gal
Pump Motor Size: 75 HP
Pump Capacity: 300 gpm @ 200 psi
Nozzles Per Manifold: 40
Turntable Motor Size: 1.5 HP
Electric Tank Heater Elements: 6 @ 18 KW/each
Power Requirements: 480 V, 3PH/60C 225A
Fresh Water Inlet Size: 1 NPT
Main Tank Drain Size: 2 NPT
Approximate Shipping Weight: 30,000 lbs

Equipped With:
– Carbon Steel Structure/Framework
– Ferrous and Non-Ferrous Chip Drag Conveyor
– Vertical Chip Screen
– Insulated Cabinet

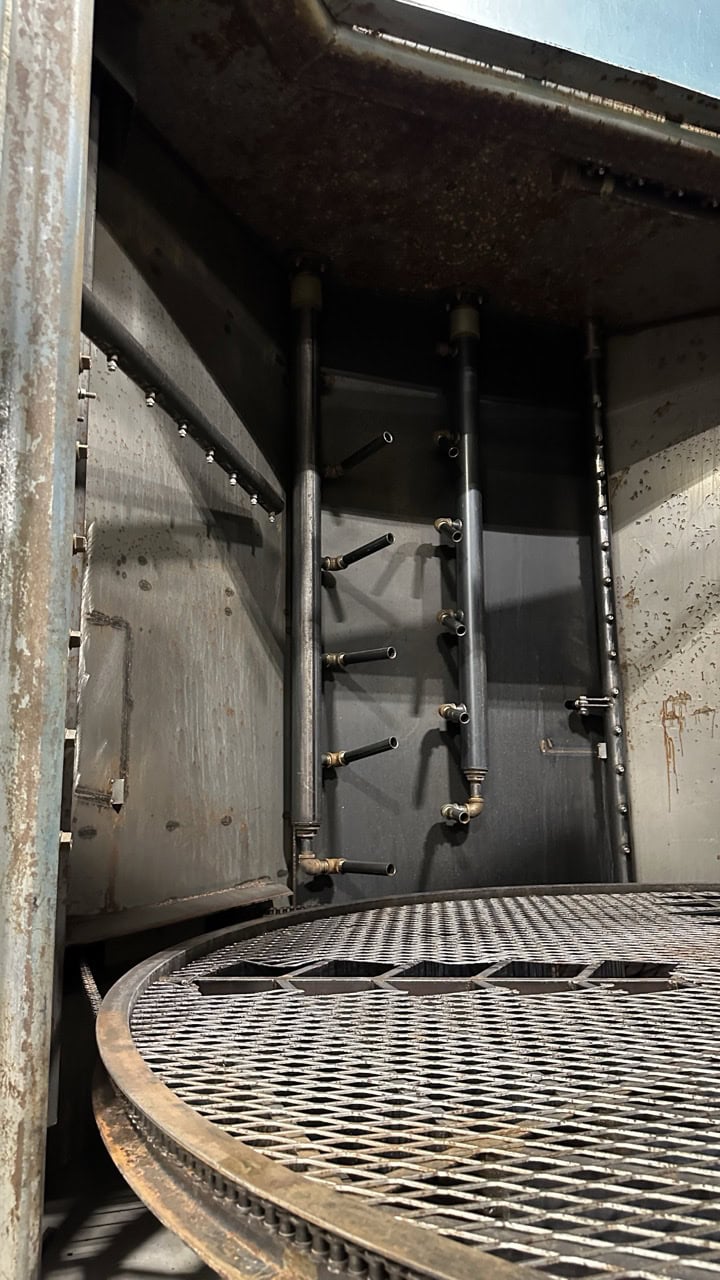

– Stainless Steel Wash Nozzles
– Stainless Steel Chip Screens

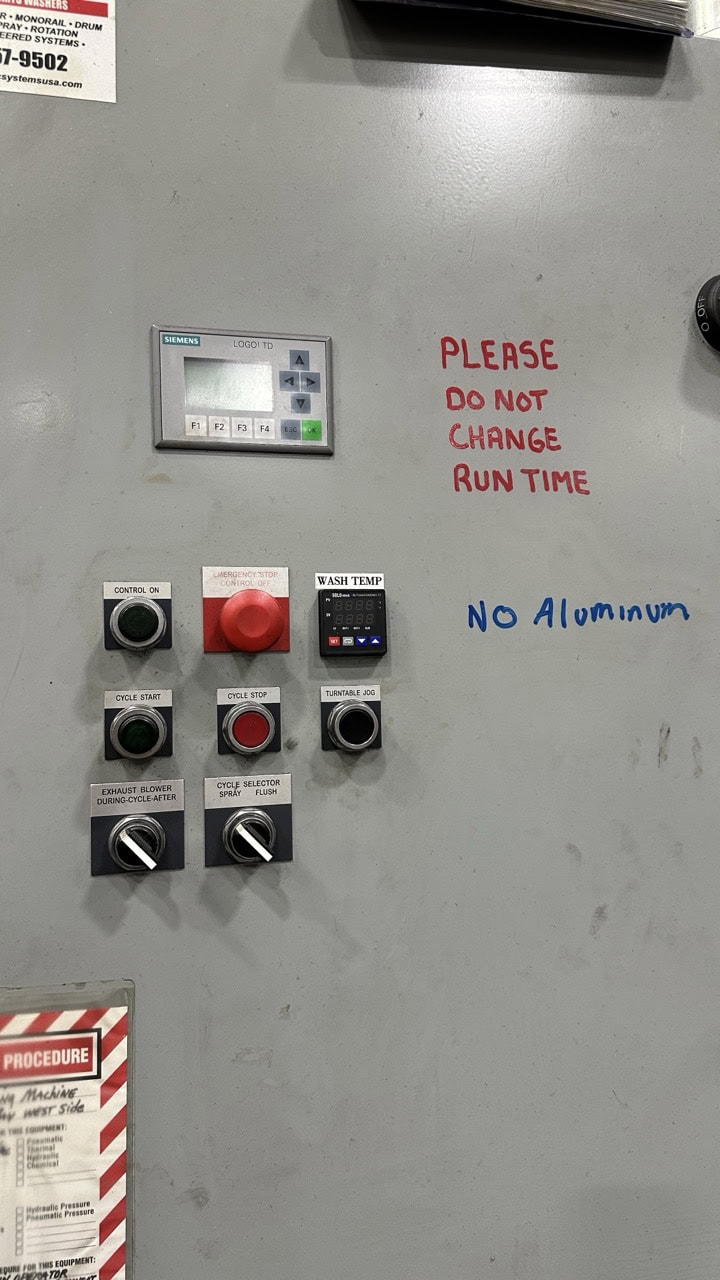

– Turntable Jog Control
– (2) Sweeping Wash Manifolds

Additional Specs Available Upon Request

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
