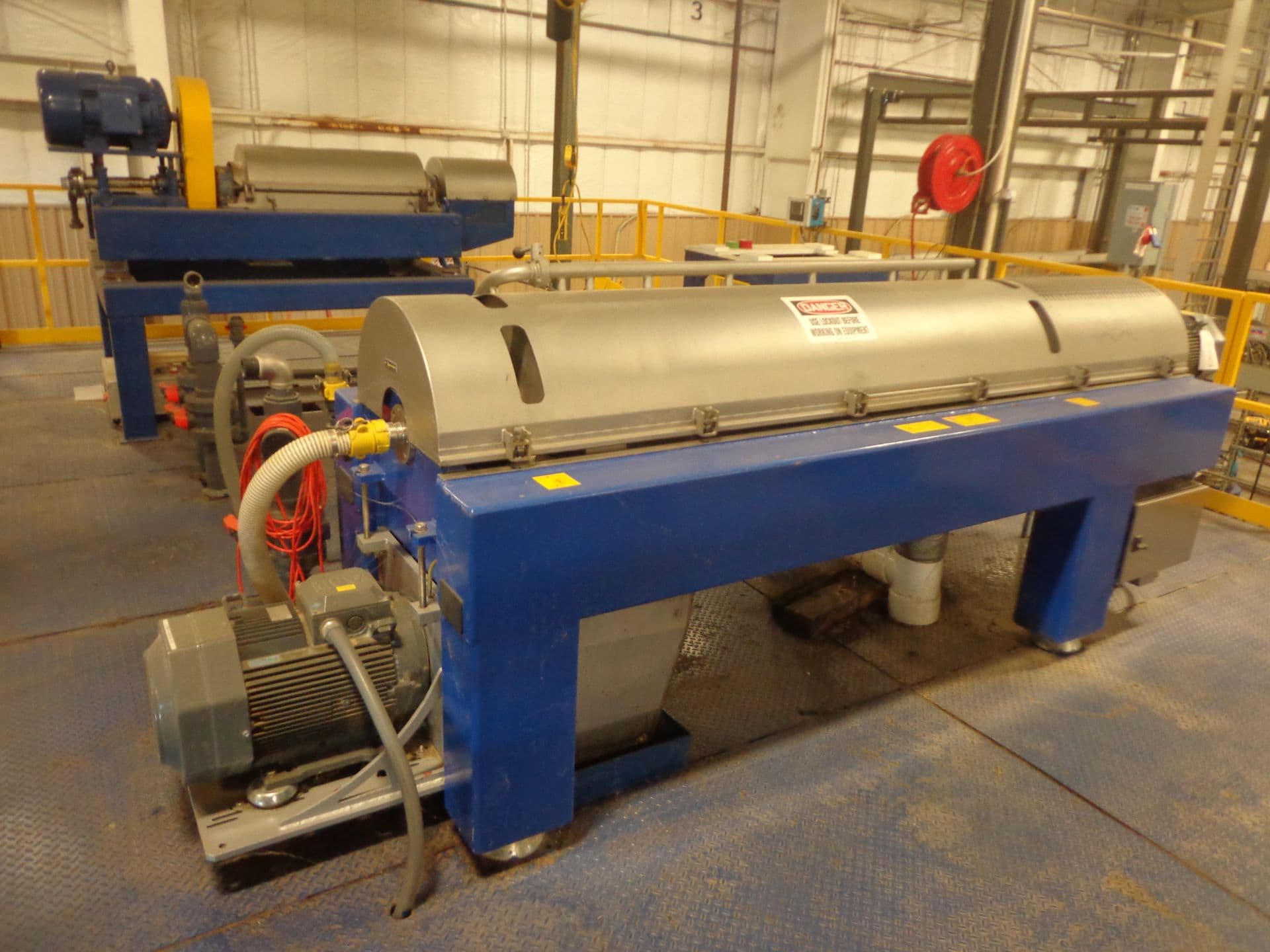

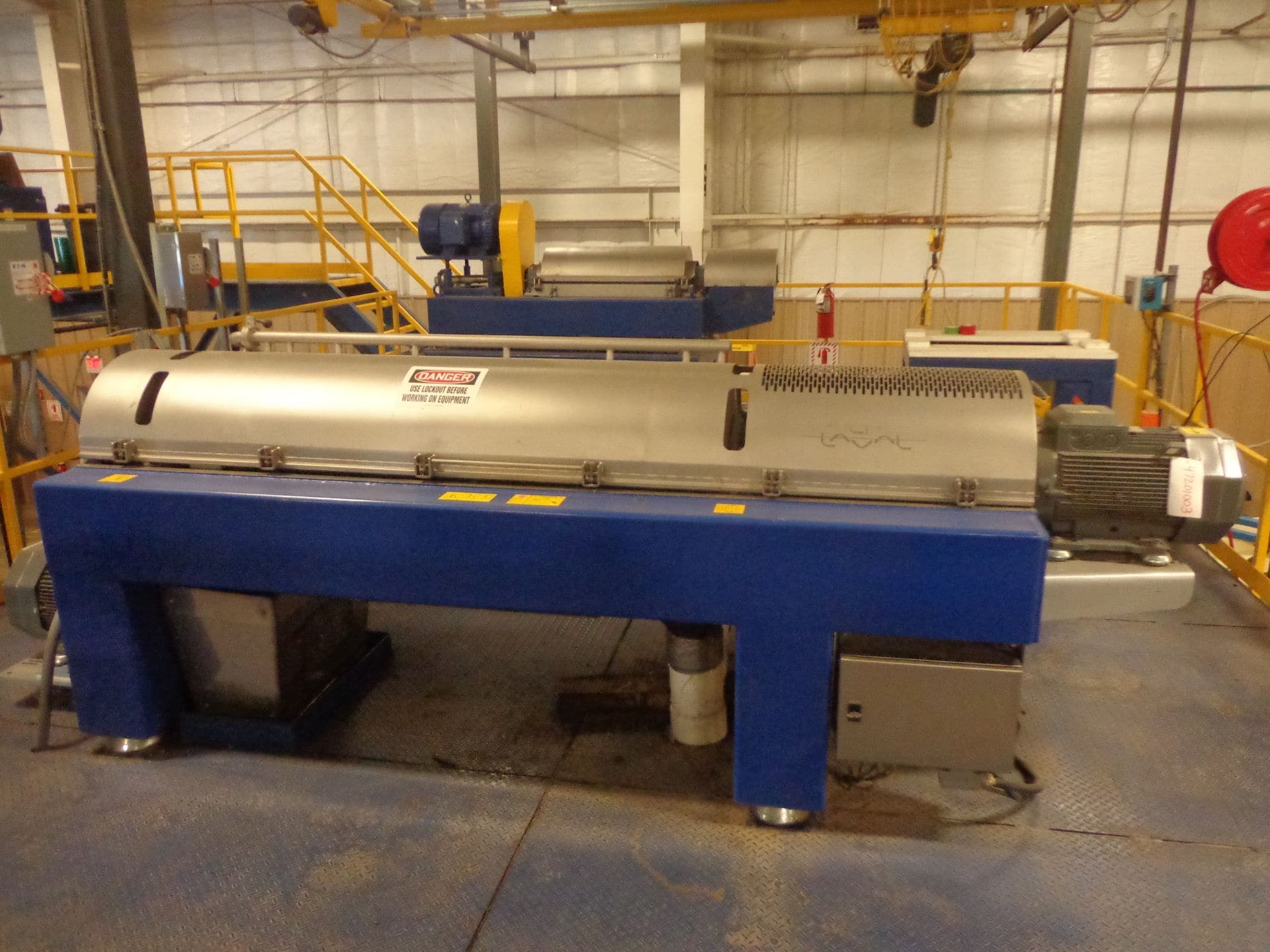

Alfa Laval NX3651B-31G Decanter Centrifuge – 2011 – Industrial Solid-Liquid Separator
$99,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Process liquid: Min. 0°C (32°F) – max. 100°C (212°F)
Max. density of compact wet cake at max. bowl speed: 2.8 kg/dm³
Bowl
Maximum main speed: 4200 rpm
Bowl length: 1512 mm
Bowl diameter: 360 mm
Beach angle: 10°
Solids discharge type: 360°-type with 6 wear liners
Solids discharge radius: 101 mm
Solids transportation aids, cylindrical section: Ribs
Solids transportation aids, taper section: Ribs
Material – hubs: AL 111 2377 (Duplex stainless steel)
Material – bowl shell: AL 111 2377 (Duplex stainless steel)
Material – bolts: Duplex
Material – seals:
Liquid outlet, type: 6
Liquid outlet, radius: Conveyor
105 mm (fitted from factory: 108 mm)
Material – flights: AL 111 2349 (AISI 316)
Material – hub: Wear Protection
AL 111 2327 (Lean duplex stainless steel)
Bowl solids discharge: Wear liner in tungsten carbide, 6 pieces Part No.
61242068-02
Bowl feed zone liner:
Conveyor flights: TM42 (flame sprayed tungsten carbide)
Conveyor feed zone: Tungsten Carbide wear liners
Frame / casing: Wear liner in upper casing
Frame and Casing
Material – casing / cover: Stainless steel (AISI 316)
Inside surface of casing: Stainless steel cladding throughout
