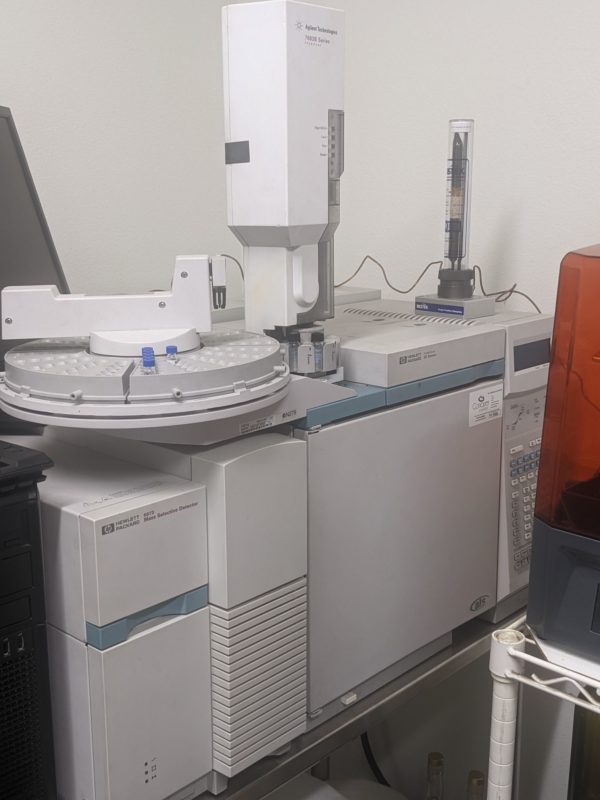

Agilent GCMS System


Request a Quote to Instantly See Pricing

Machine Type: Lab Equipment
Make: Agilent
Model: 5973
Year: 1900
Machine Location: California
Stock #: 560024

-Agilent 5973 Mass Spectrometer
Mode (standard):  EI
Ion source type:  5 – 241.5 eV
Ionization energy:  0 – 315 uA
Ionization current:  100 – 350 ‘C
Transfer line temperature:  150 – 300 ‘C
Quadrupole temperature:  150 – 200 ‘C
Mass Filter:  Monolithic hyperbolic quadrupole
Mass Filter Protection:  Entrance Lens
Mass Range:  1.6 – 800 amu
Mass Resolution:  Unit mass adjustable by tune
Mass Axis Stability:  Beter than 0.10 amu/ 48 h
Detector:  EM
Dynamic Range:  10000000
Scan Rate:  10,000 amu/s
Write to disk:  8,000 amu/s
SIM:  30 ions x 50 groups
Pumping System:  Turbomolecular pump
Total Flow:  2 mL/min (standard turbo) 4 mL/min (performance turbo)
Instrument Control:  Data system and local user interface
Maintenance Access:  Source, filaments, lenses, mass filter, and detector on removable plate
Maintenance Scheduling:  Early maintenance feedback

-Agilent 6890 Gas Chromatograph
Ambielnt Operating Temp:  15°C-35°C
Ambient Operating Humidity:  5-95%
Storage Extremes:  -40°C-65°C
Dimensions:  27″ x 22″ x 20″
Weight:  108 lbs

-Agilent 7683 Autosampler
Syringe Sizes: 0.5, 1, 5, 10, 25, 50 or 100 µL
Number of sample vials: up to 8 without and 100 with tray
Dimensions:  18″ x 15″ x 7.5″
Weight:  9lbs

-Data System
Simultaneous MS and GC:  Four signals (up to 2 MS) detector data acquisitions
Ionization mode autotunes:  EI, PCI, NCI
Application autotunes:  BFB, DFTPP
Quantitation Setup:  Automated
Application Reports:  Environmental, drugs of abuse, aromatics in gasoline
File Import/Export:  Sequence file/quant and custom report
Security:  Password and audit trail


-HPIB communications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
