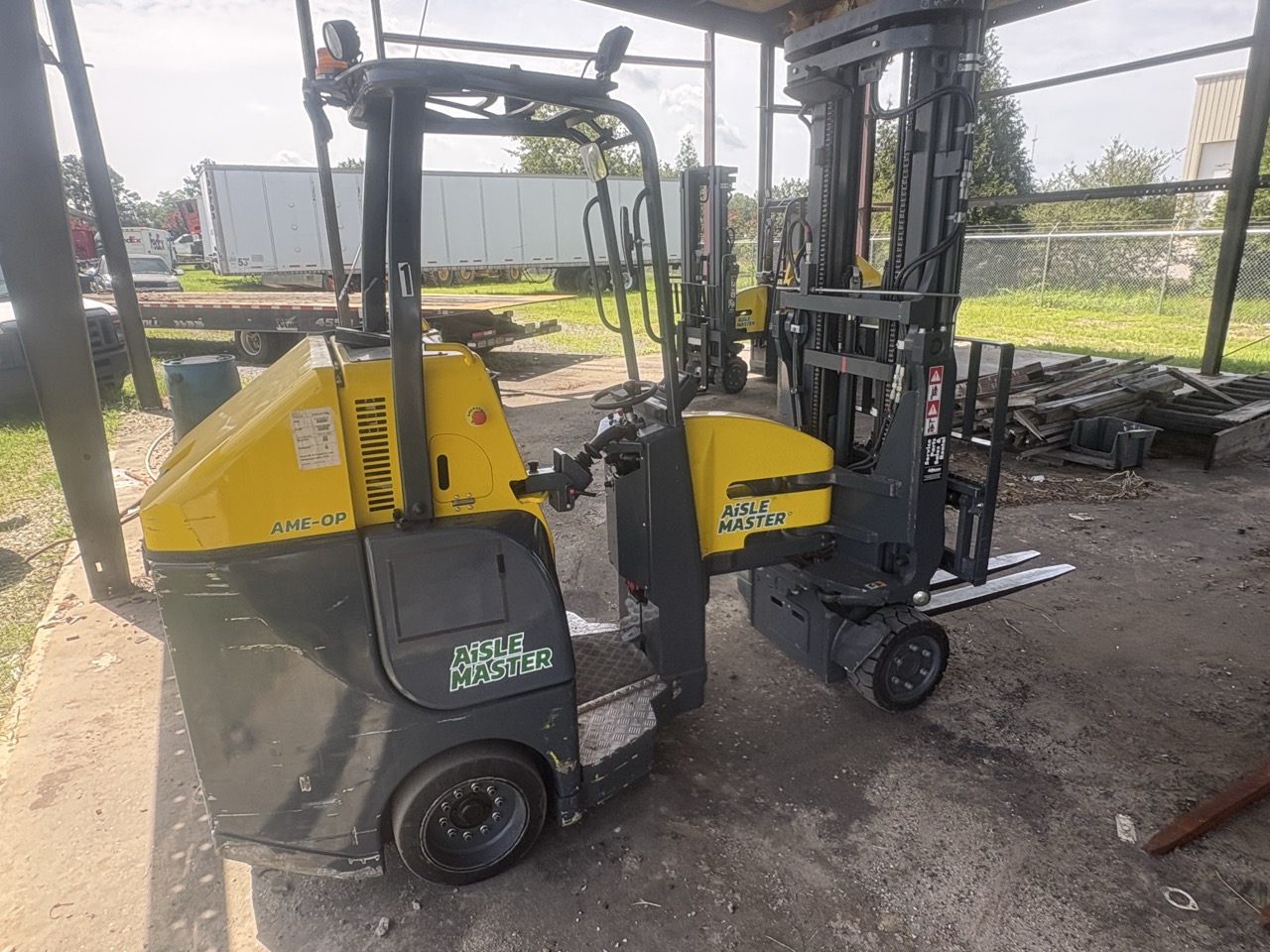

Aisle-Master 44SE 4,400 lb Electric Very Narrow Aisle Articulating Forklift, 2023 – 48V – Side Shift (2)

The Aisle-Master 44SE is an articulated electric forklift designed for high-density warehouse applications and narrow-aisle operation. The 44SE offers a 4,400-lb. lifting capacity, 48V AC electric power, side-shift capability, and articulated steering for maneuverability in confined spaces.

SPECIFICATIONS
Manufacturer: Aisle-Master
Model: 44SE
Year: 2023
Type: Electric Articulated Narrow-Aisle Forklift
Rated Capacity: 4,400 LBS.
Load Center: 24″
Power: AC Electric
Battery Voltage: 48 V
Battery Capacity: 620–930 AH
Mast Type: Triplex / 3-Stage
Maximum Lift Height: Up to 219″*
Lowered Mast Height: Approx. 105″*
Free Lift: Approx. 61″
Overall Length: Approx. 141″
Overall Width: Approx. 42″
Overall Height: Approx. 91″**
Wheelbase: Approx. 74″
Ground Clearance: Approx. 4.3″
Travel Speed: Up to 10 MPH
Lift Speed – Laden: 78.75 FT/MIN
Lift Speed – Unladen: 98.5 FT/MIN
Gradeability – Laden: 12%
Gradeability – Unladen: 15%
Front Tires: 16.25″ x 7″
Rear Tires: 18″ x 7″ / 9″
Steering: Articulated / Multi-Directional
Side Shift: Yes
Controls: Joystick
Operator Type: Stand-On
Brakes: Hydraulic
Load Backrest: Standard
Overhead Guard: Standard
Estimated Weight: 16,000 LBS
