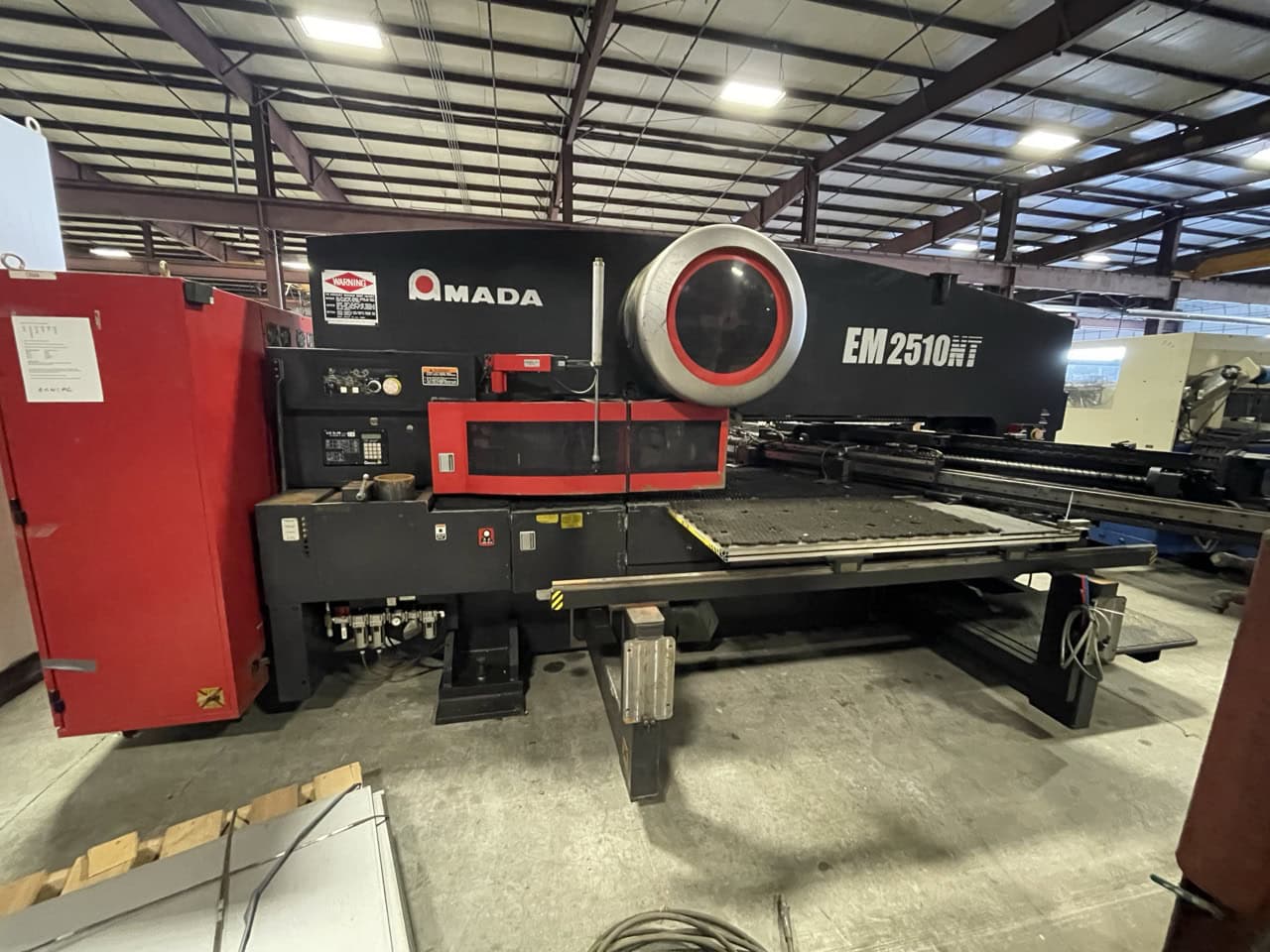

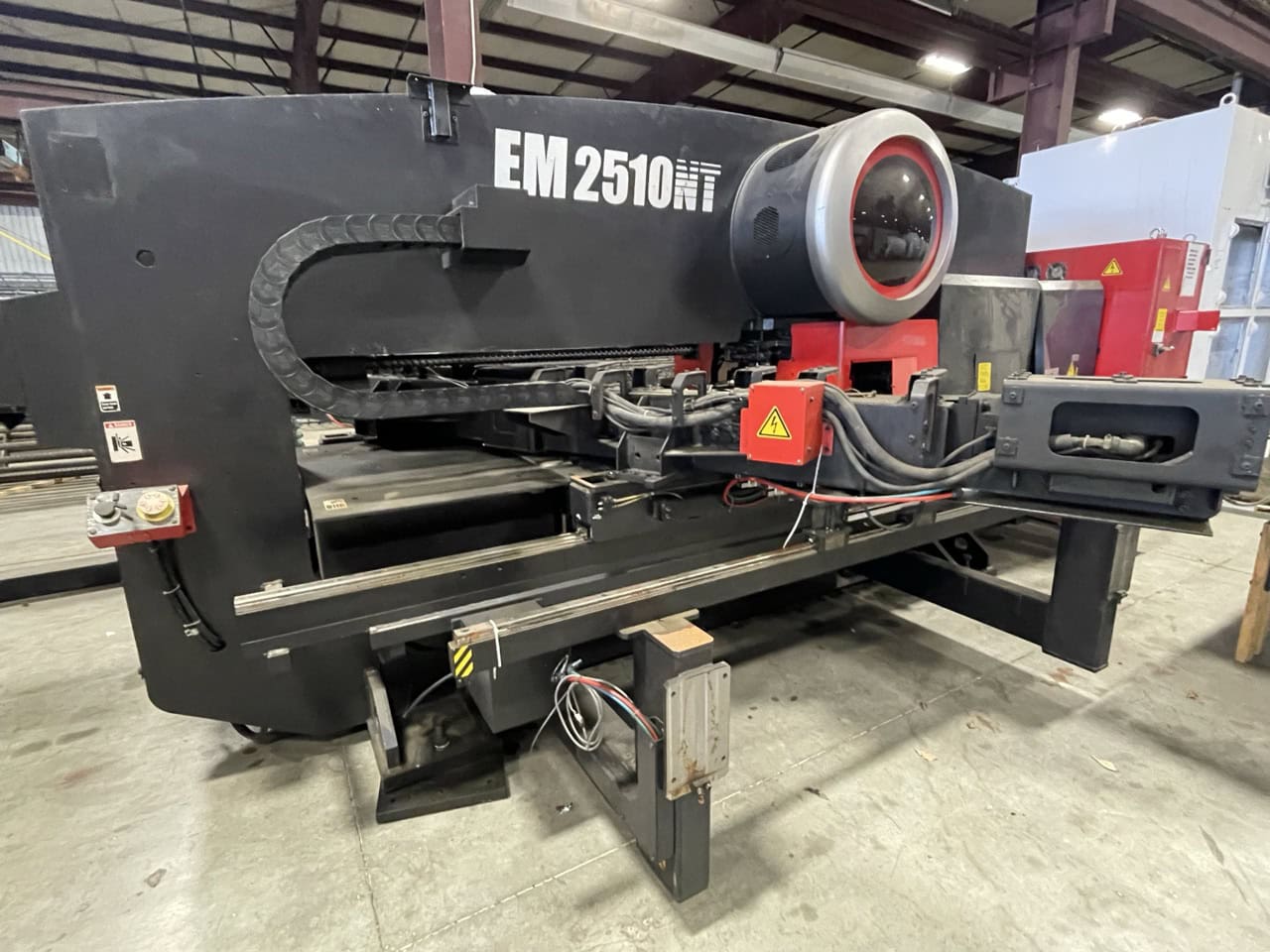

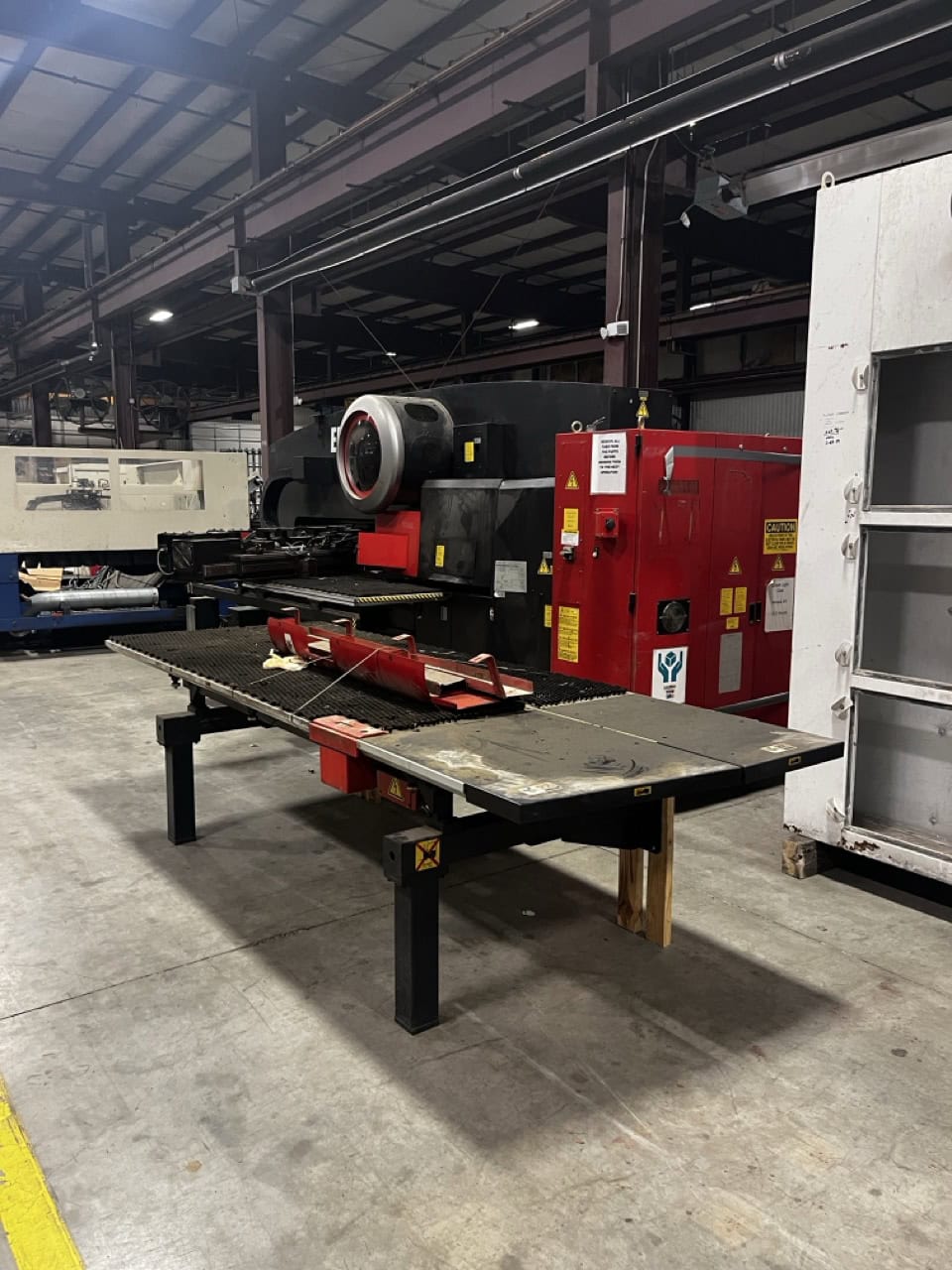

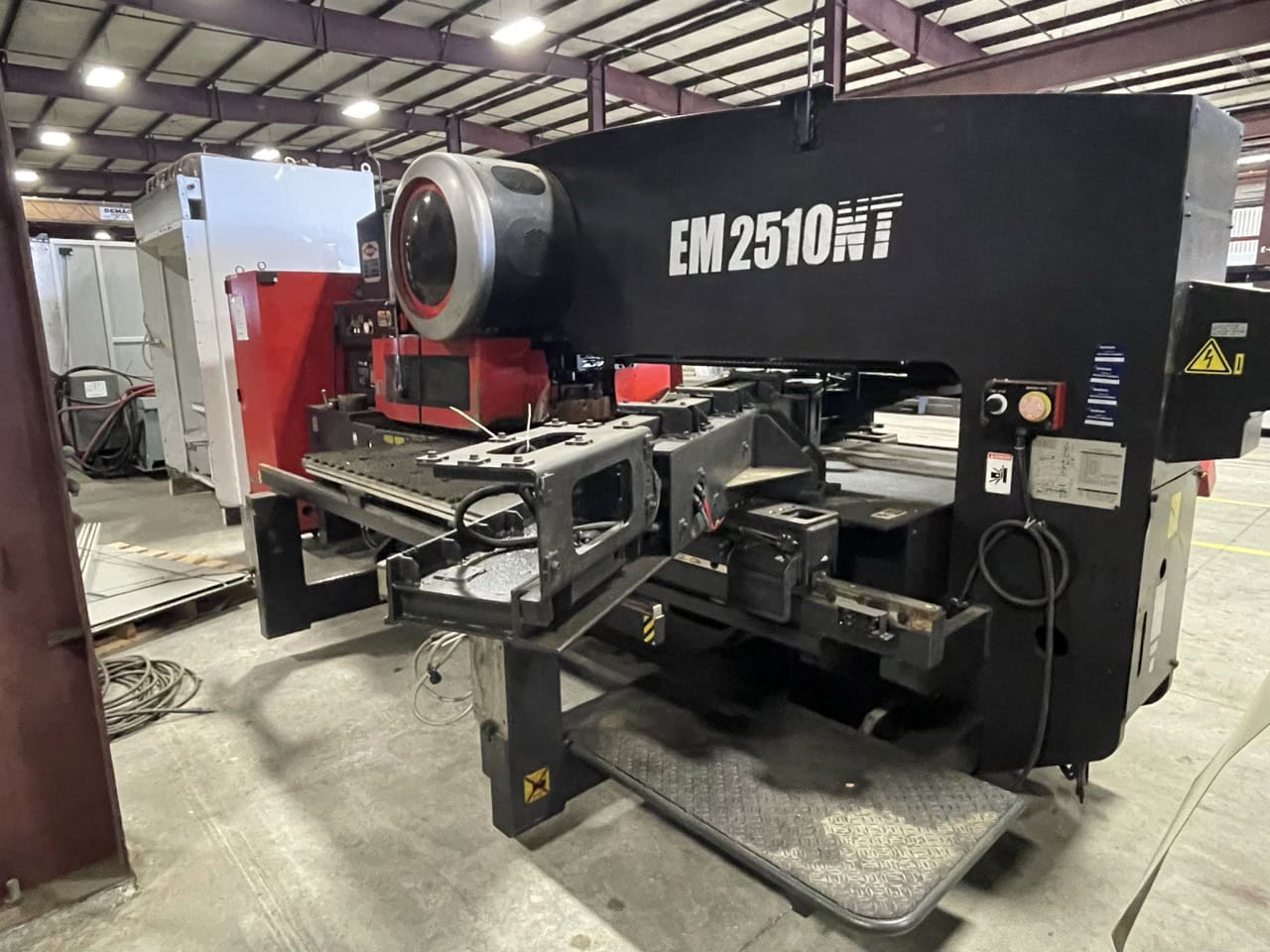

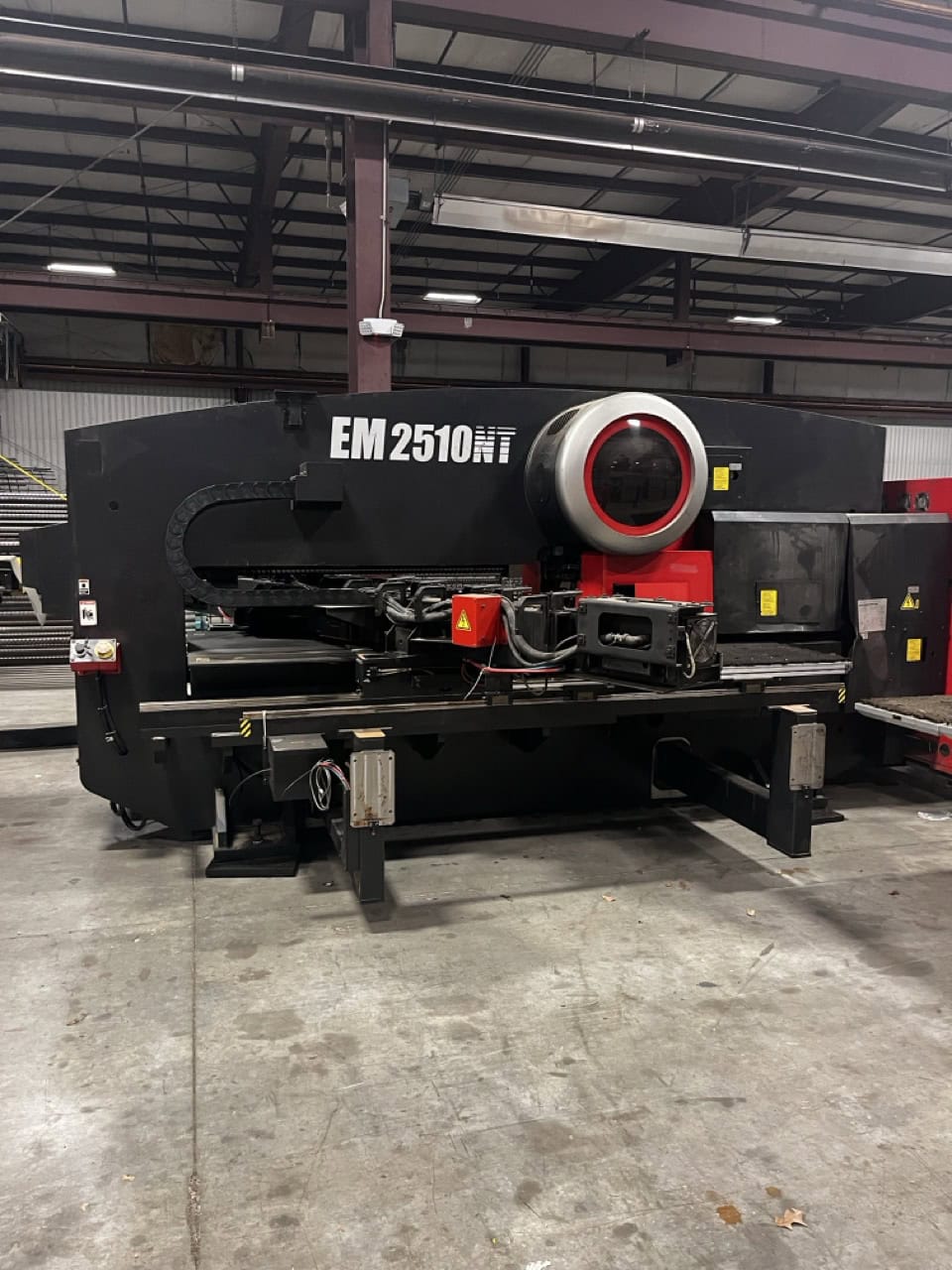

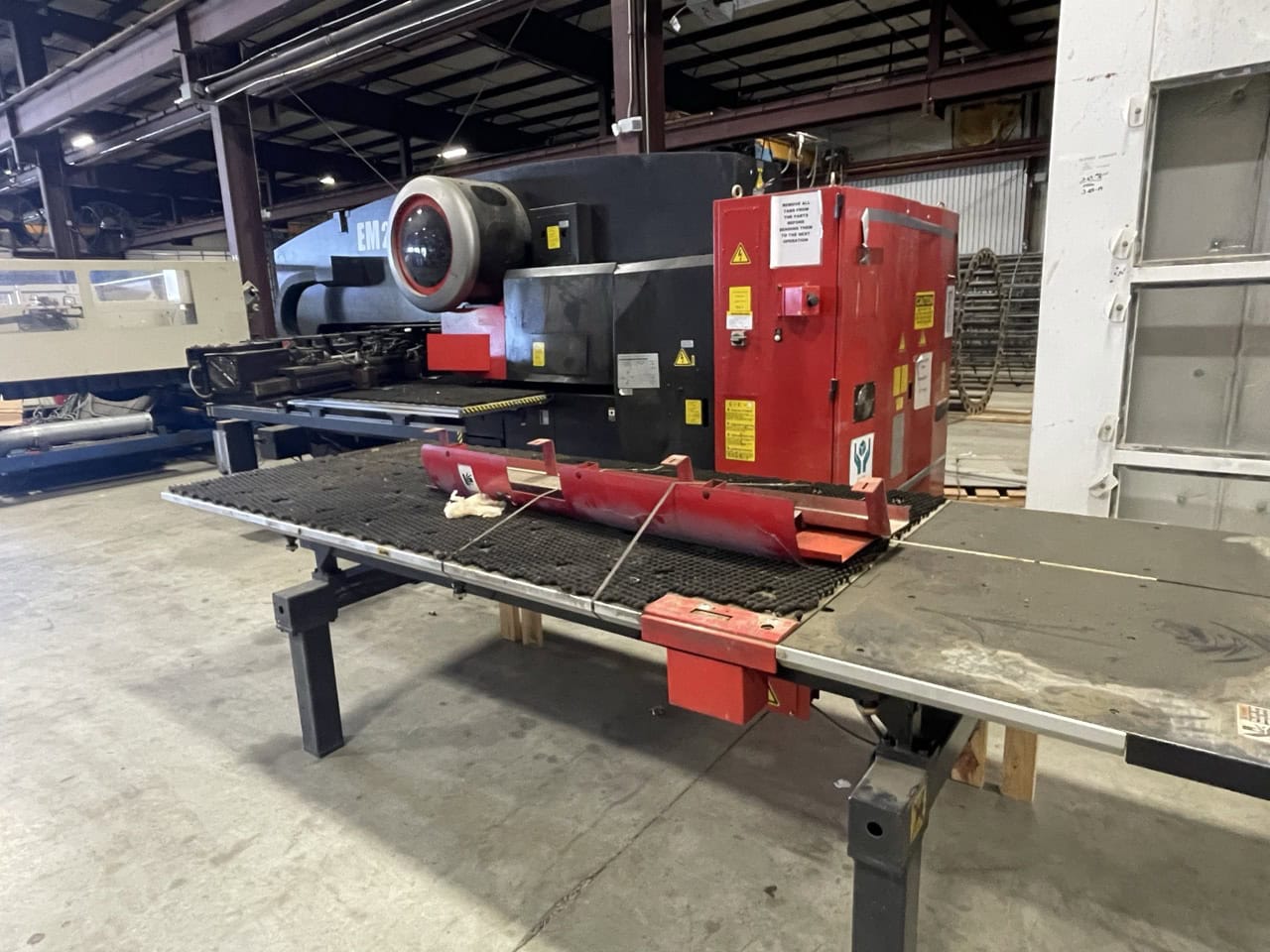

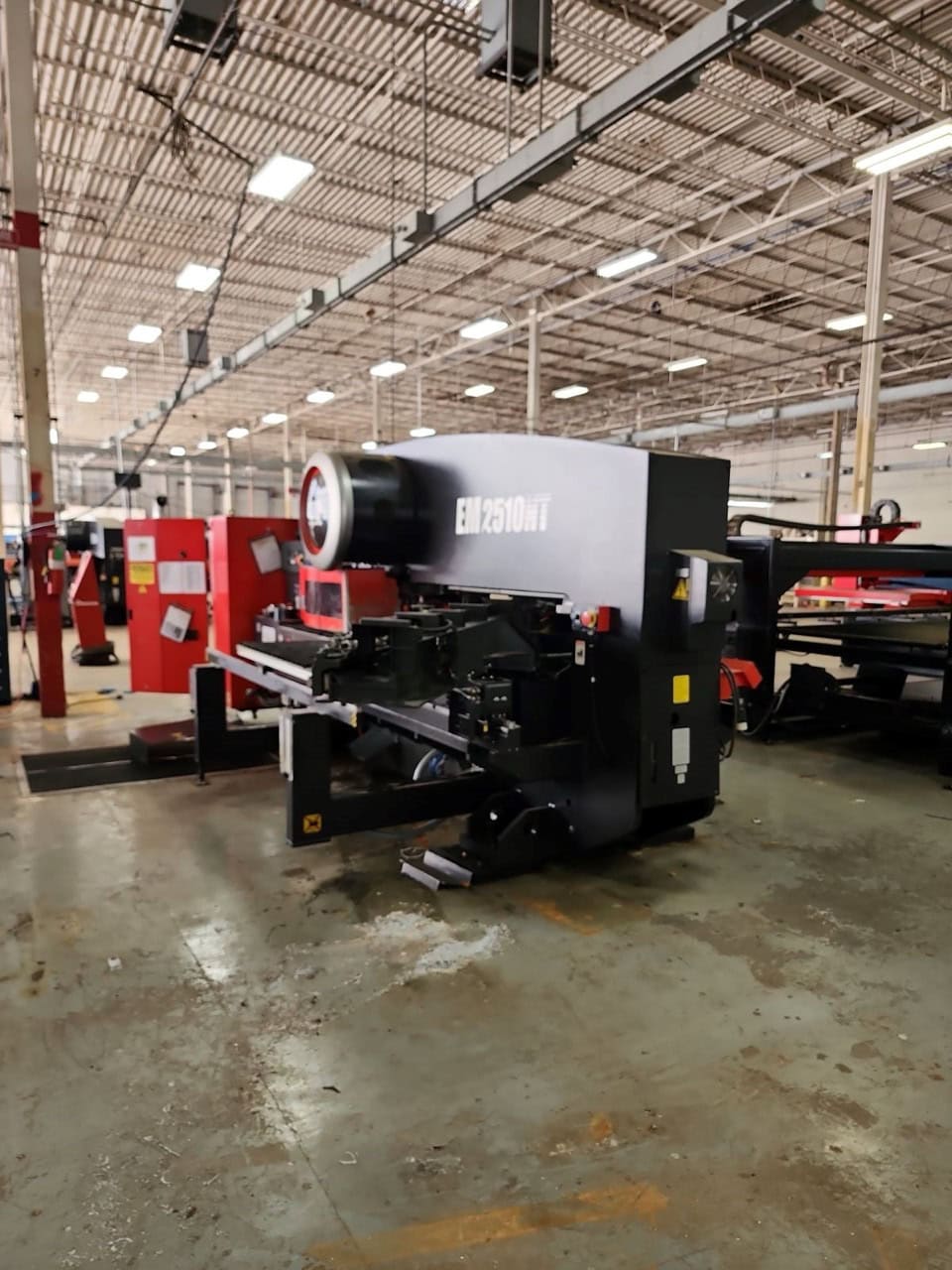

Amada EM2510NT CNC Turret Punch Press, 2004
$129,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 22 Ton
Sheet Width: 50″
Sheet Length: 100″

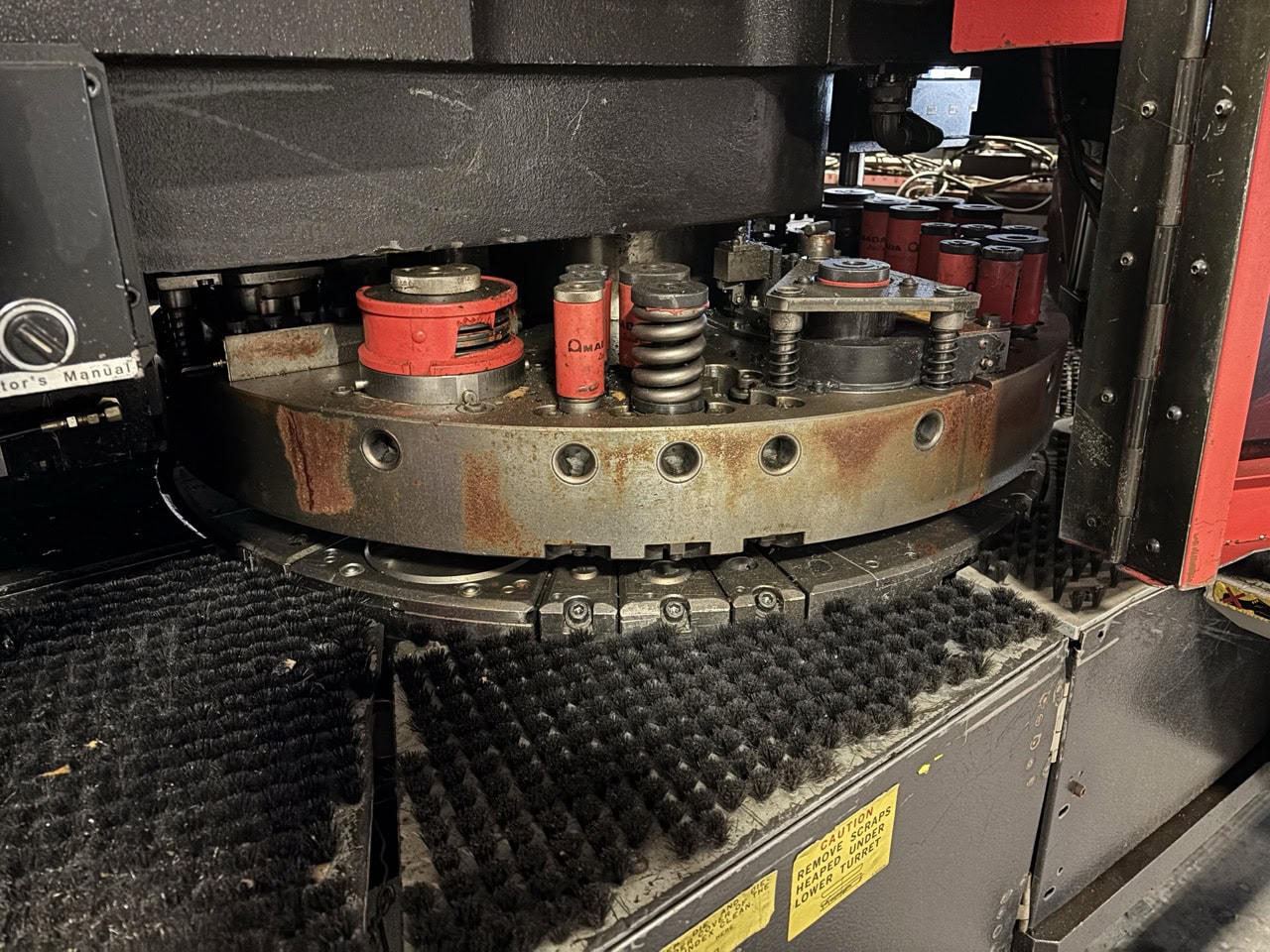

Turret Stations: 45 Stations with 2 Auto Indexers
Throat Depth: 50″
Tooling Style: Thick
Puch/Form/Scribe Drive Type: AC Servo
Max Punch Stroke: 1.65″
Max Travel w/o Reposition: 50″ x 98.4″ (50″ x 196.8″ with 1 reposition)
Max Feed Rate X-Axis: 3,150 ipm
Max Feed Rate Y-Axis: 2,362 ipm
Max Material Weight: 331 lbs
Max Hit Rate: 900 hpm (at 0.019″ pitch and 0.055″ stroke for marking), X-Axis 350 hpm, Y-Axis 280 hpm (on 1″ pitch @ 0.118″ stroke)

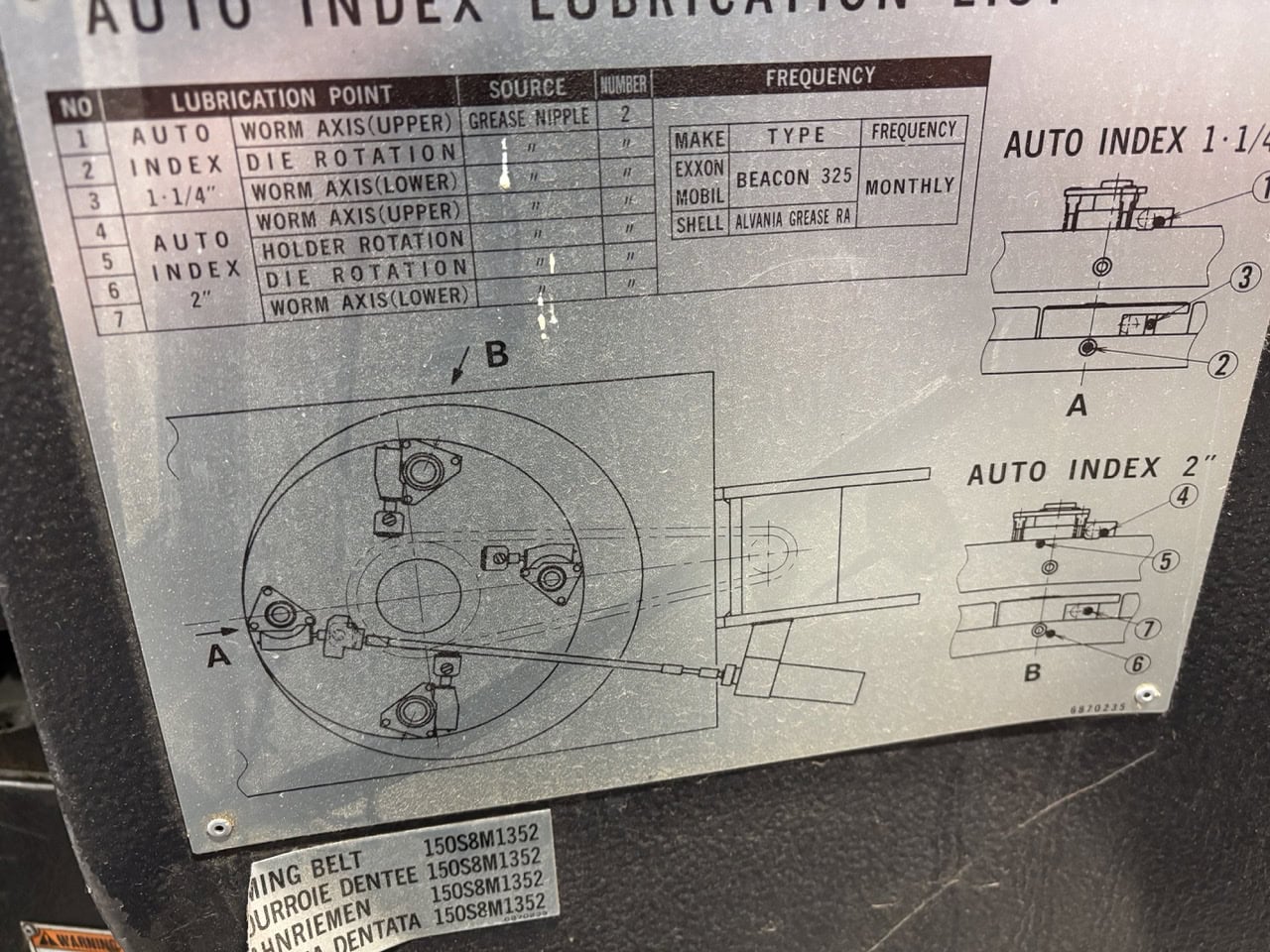

Number of Auto-Indexer Stations: 2
Turret Rotational Speed: 30 rpm
Auto-Index Rotational Speed: 60 rpm
Table Type: Brush
Clamping Type: Pneumatic
