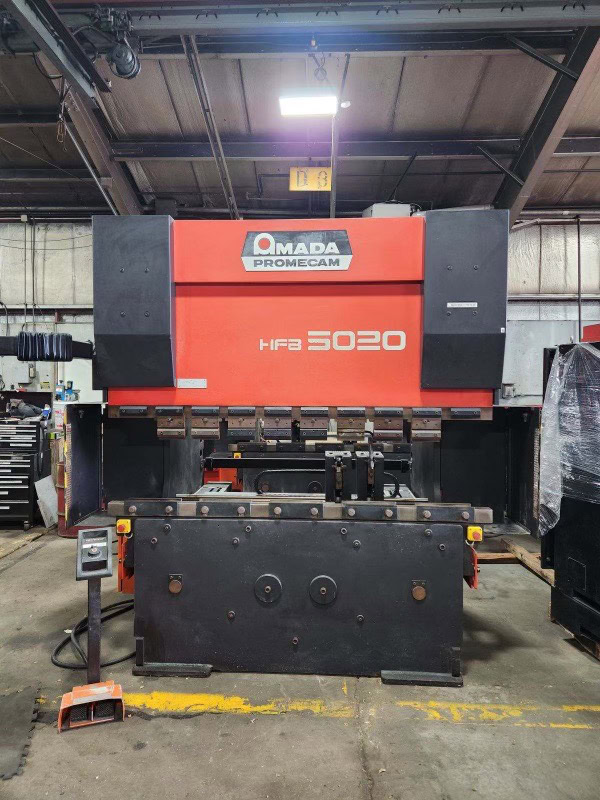

Amada HFB 5020 Press Brake, 1996 – Refurbished
$32,000.00
Machine Type: Hydraulic Press Brakes
Make: Amada
Model: HFB 5020
Year: 1996
Capacity: 50 Ton x 8.5‘
Machine Location: Illinois
Stock #: 247717
Tonnage: 50
Working Height: 910mm
Max. Distance Between Side Frames: 1660mm
Height: 2540mm
Length: 2640mm
Weight: 4700kg
Motor Power: 6 kW
Return Speed: 1-80 mm/sec
Approx. Speed: 100 mm/sec
Stroke: 200mm

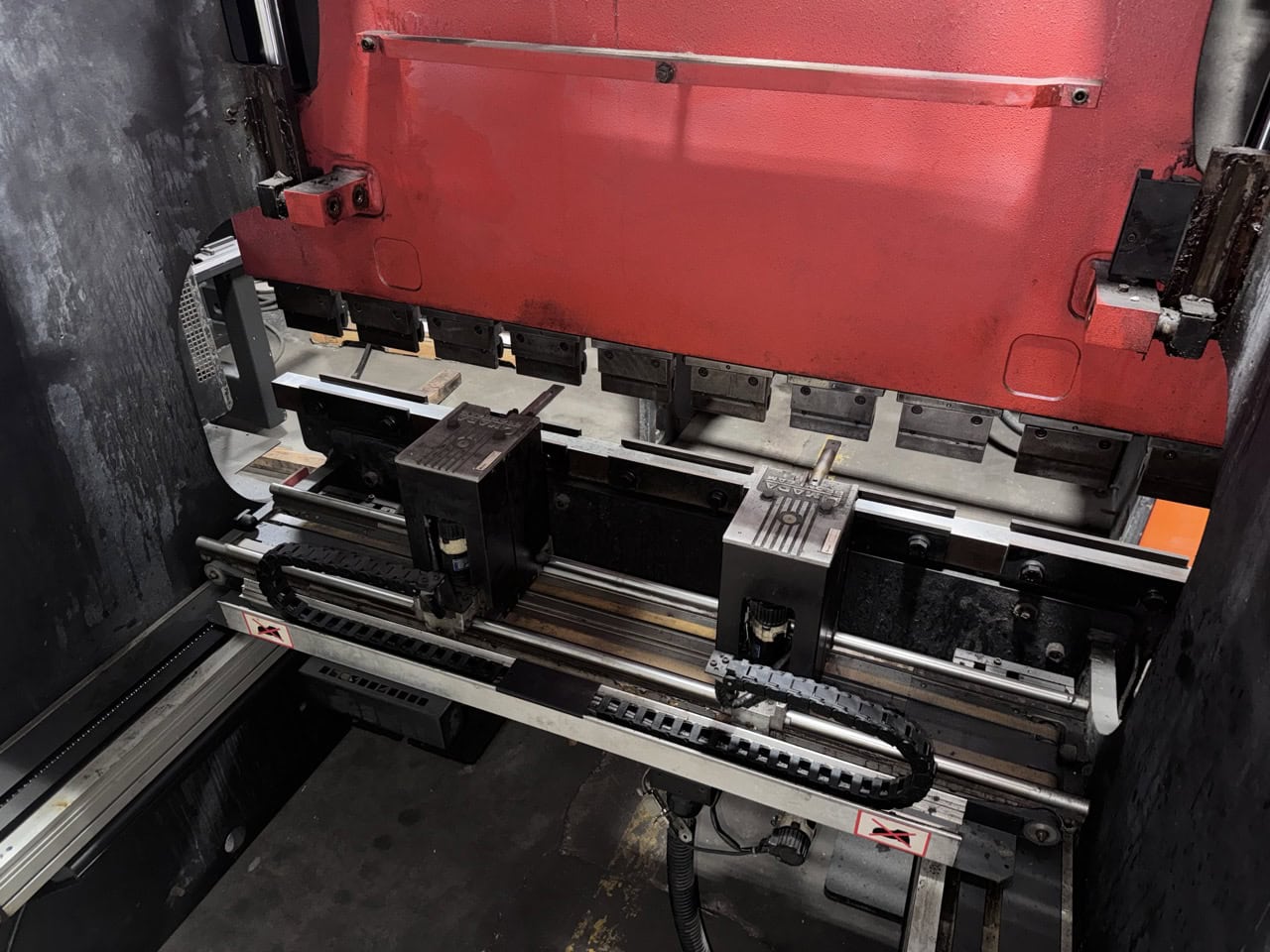

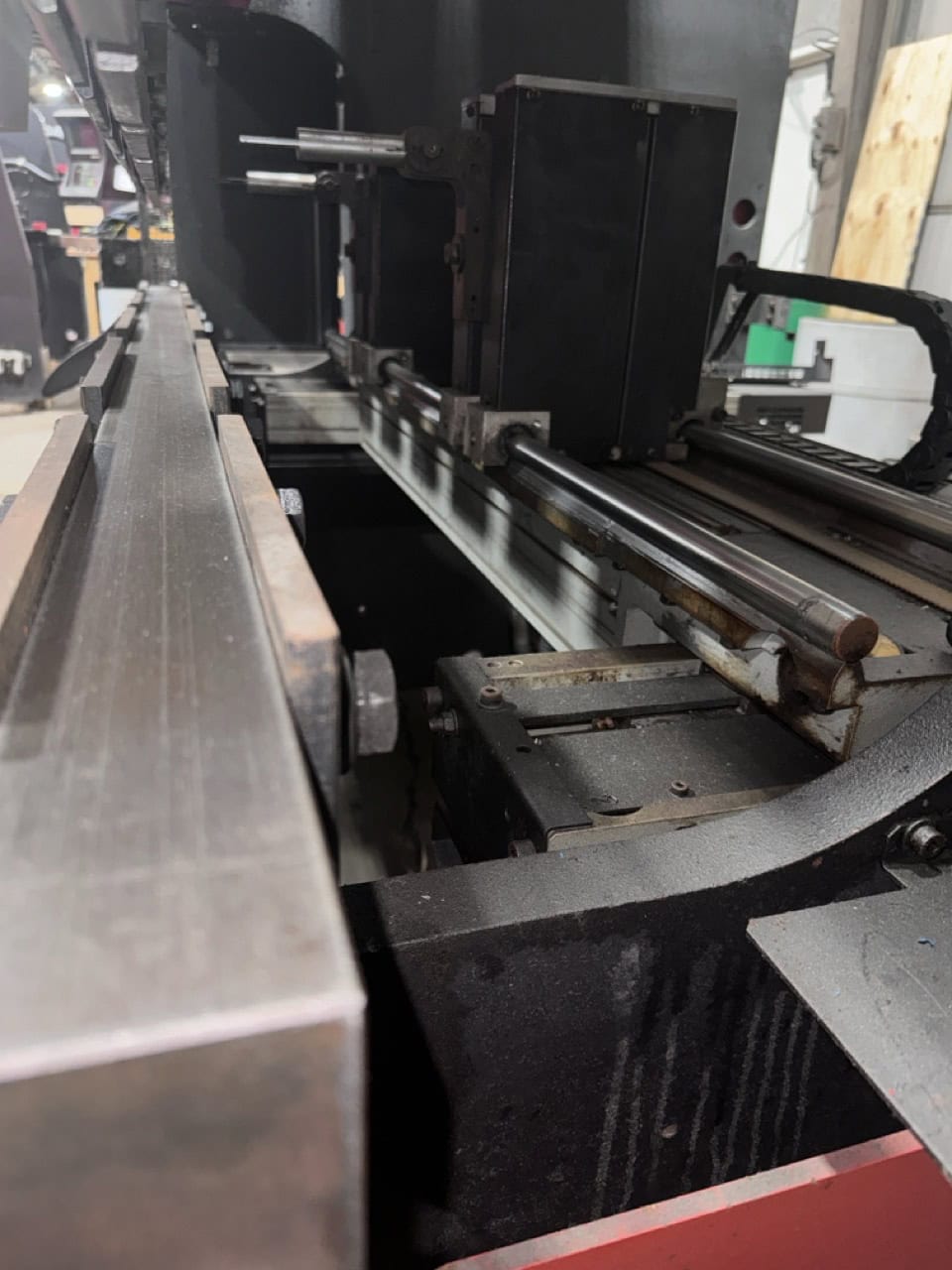

Back Gauge: X, R, Z1, Z2
Folding Length: 2085mm

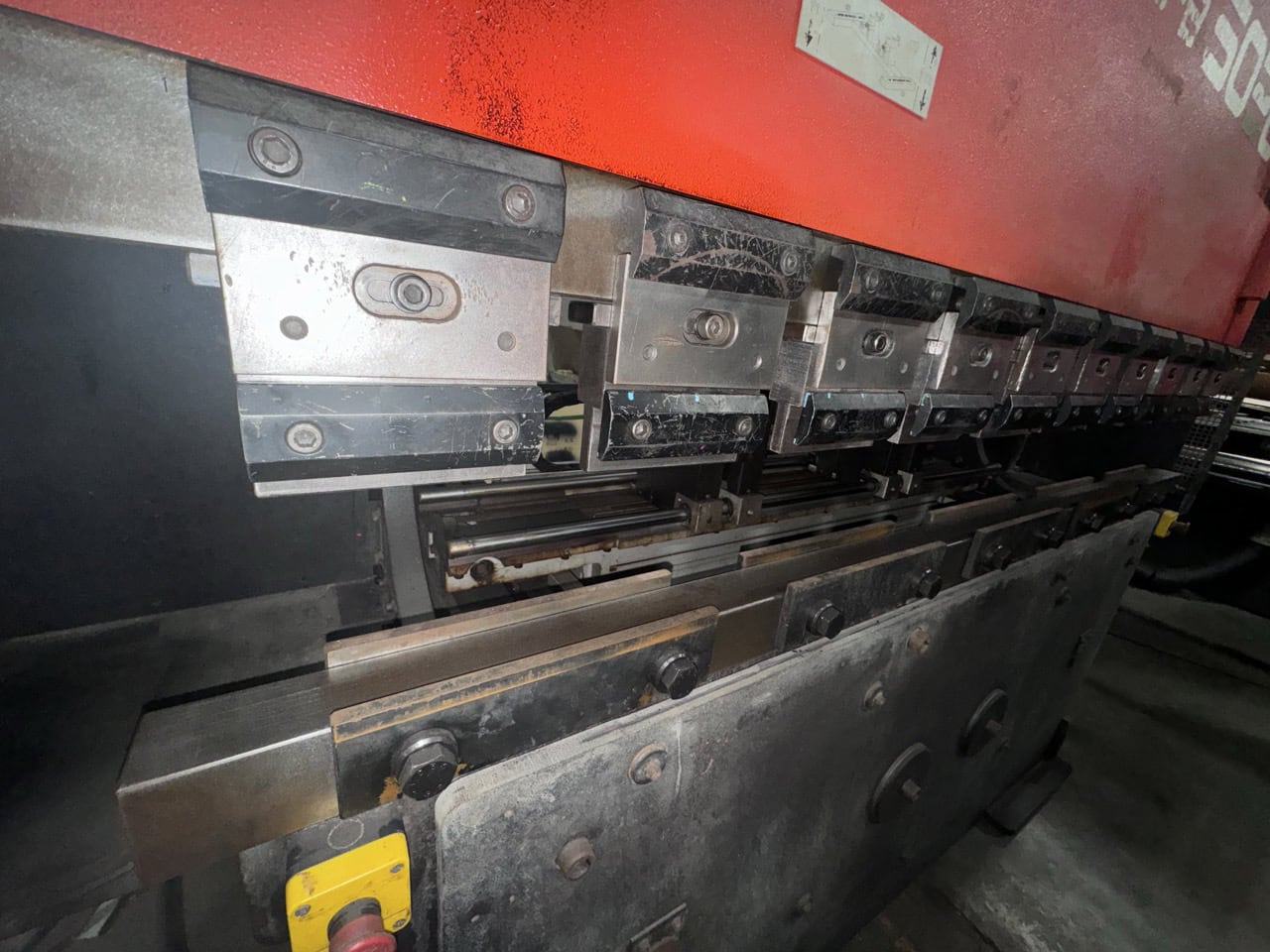

Tool Clamping System: Modufix (Mech.)
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
