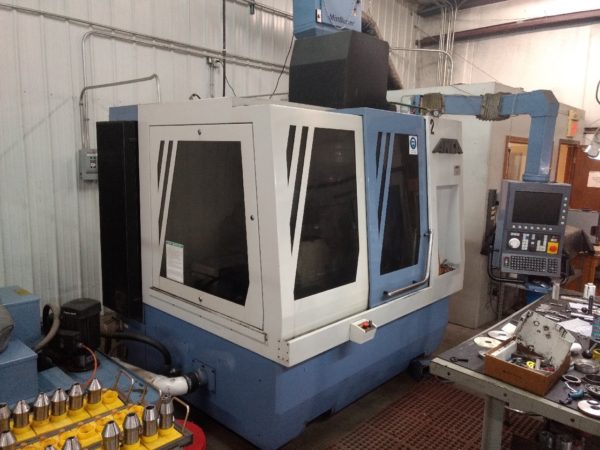

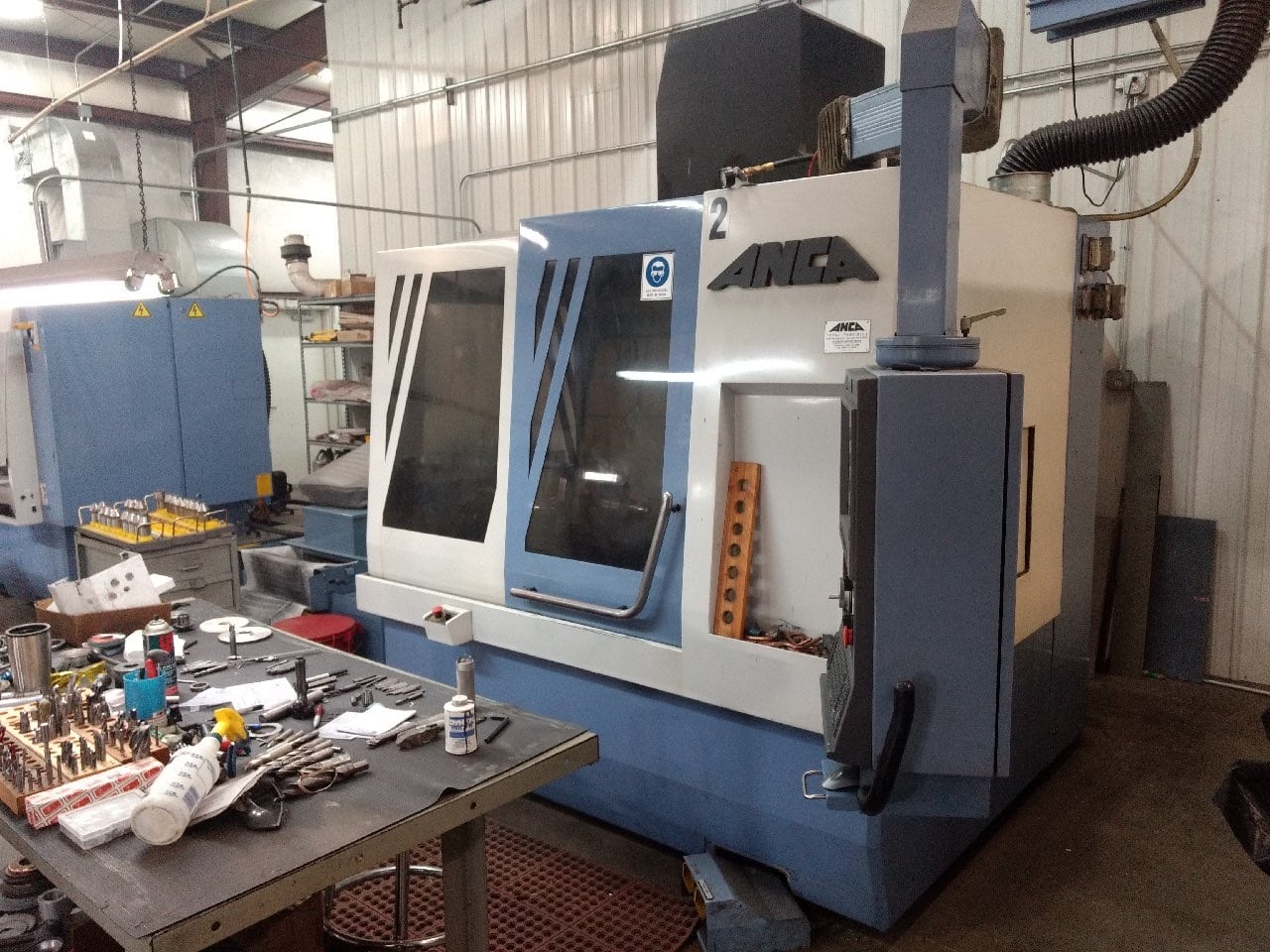

ANCA TGX Tool and Cutter Grinder, 1998- OEM Rebuild, Tooling Included
$49,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Grinding Length: 30″
OD Grinding Diameter: 0.079″ to 13.780″
Grinding Wheel: Diameter: 7.874″
Grinding Wheel Bore: 1.250″
Wheel Head: Motor: 24 HP
Speed: 8,000 RPM
Angle Adjustment: 270 Degrees
Accuracy: Resolution: 0.000020″
Longitudinal: Travel: 30″
Max. Feed Rate: 709 IPM
Rapid Feed Rate: 709 IPM
Cross: Travel: 18.110″
Max. Feed Rate: 709 IPM
Rapid Feed Rate: 709 IPM
Cross: Travel: 14″
Max. Feed Rate: 228 IPM
Rapid Feed Rate: 228 IPM
Machine:
Length: 87″
Width: 83″
Height: 106″
Weight: 20,900 lbs.
Equipped With:
E-Grind Software – Color Display and Does Generate the 3D Geomentry on the
Screen
Re-Commissioning Software – Used to Keep All Axis Aligned
