Apex Plus 2516 Digital Flatbed Cutter CNC, 2021 – Dual Cutting Heads, Auto Tool Calibration

The Apex Plus 2516 Digital Flatbed Cutter is a versatile solution for professionals in packaging, signs, and textiles. Features dual cutting heads, auto tool calibration, and a precision aluminum table with adaptable vacuum zones for various materials.

Cutting Area: 63″ x 98″
Table Construction: Aerospace Aluminum Precision Table
Vacuum Table: Multi-Zone Adjustable Vacuum Hold-Down
Max Cutting Speed: 59 in/sec
Max Cutting Thickness: 1.96″
Cutting Accuracy: ±0.004″
Repeatability: ±0.004″
Drive System: Digital Servo Motor System
Control System: CNC Digital Control Interface
Auto Tool Height Calibration: Optical
Router Spindle: 1.8 kW (2.4 HP) Liquid-Cooled, 6mm Collet, Pneumatic Chuck
Tool Compatibility: Supports Drag Knife, Oscillating Knife, Creasing Wheel, V-Cut, Kiss-Cut, Perforation Tools
Electrical Requirement: 220V, 3-Phase

Equipped With:

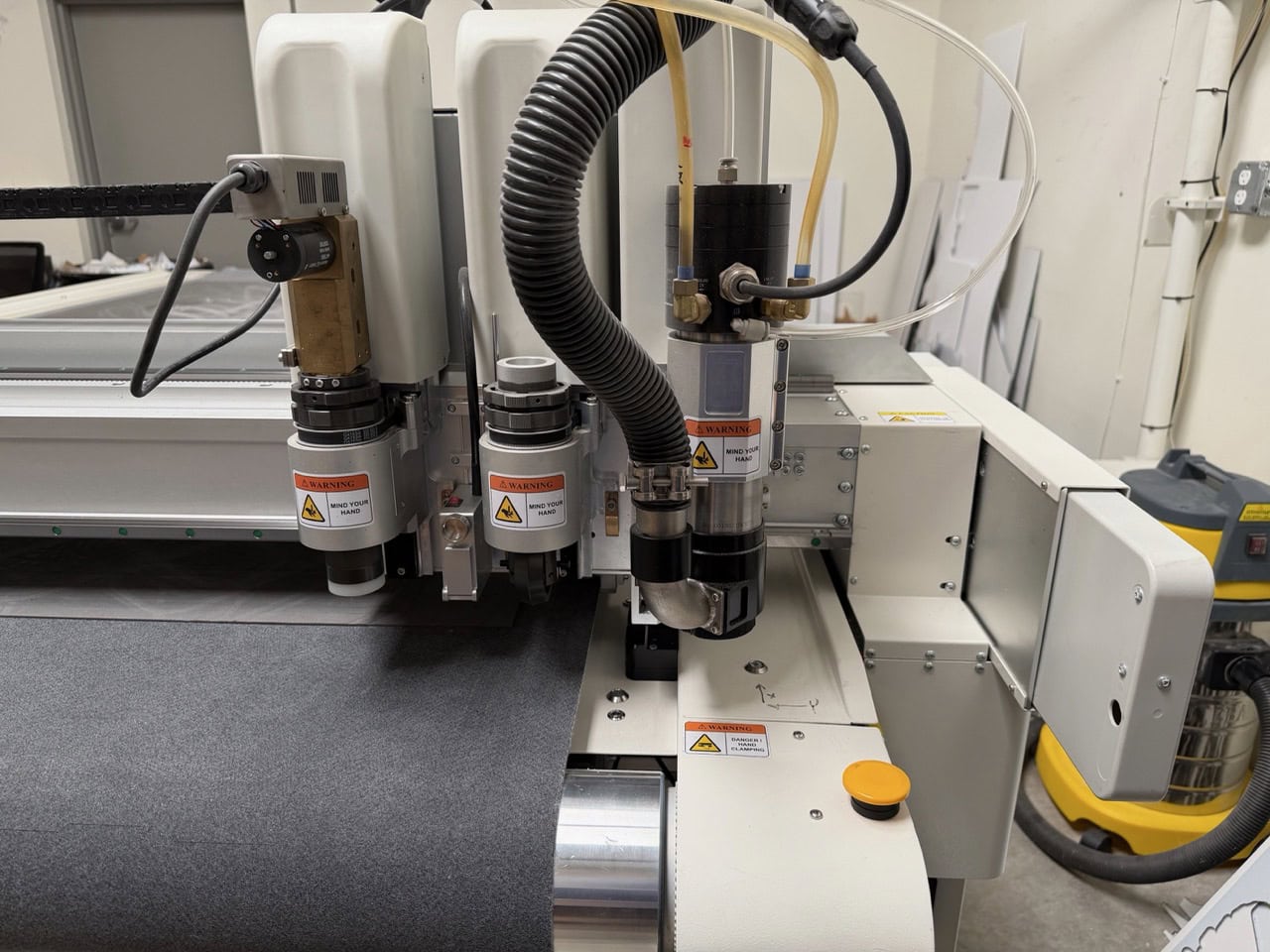

Dual Interchangeable Cutting Head Positions
Independently Controlled Tool Head Modules
Optical Auto Tool Height Calibration
1.8 kW (2.4 HP) Router Module with 6mm Collet and Pneumatic Chuck
Multi-Zone Vacuum Table
All Available Manuals
