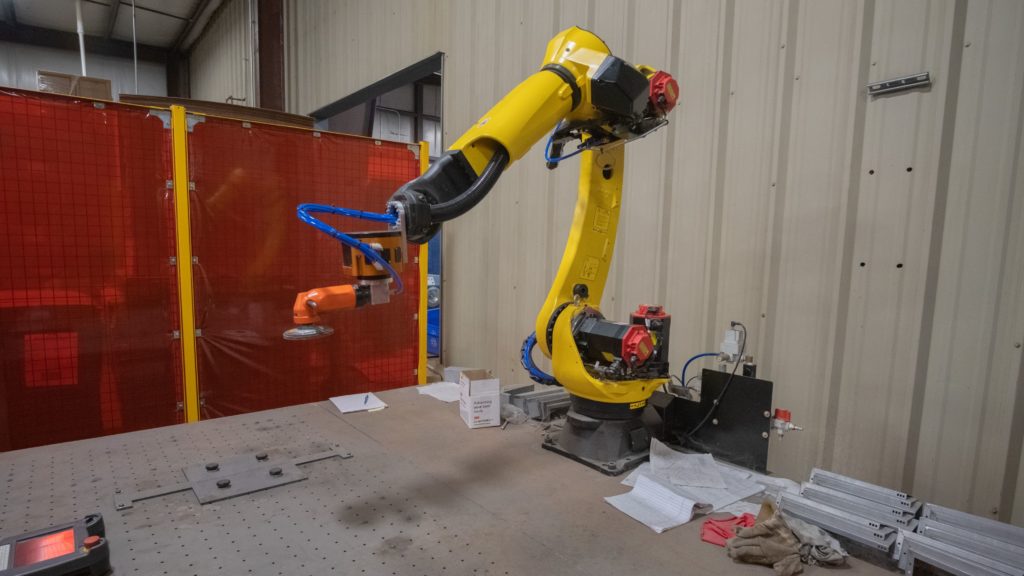

Arc Specialties Material Removal Robot System, 2022 – Low Use, Fanuc Robot, Saftey Fencing, Fixture Table

$79,900.00

Request a Quote to Instantly See Pricing

Machine Type: Robots
Make: Arc Specialties
Model: Robot Material Removal
Year: 2022
Machine Location: Upon Request
Stock #: 458107

6 Axes FANUC Robot
Model: M-20iD/25
Max Load Capacity at Wrist: 25 KG
Reach: 1831 mm
High performance in a small footprint, compact arm and wrist, high axis speeds with a large working envelop. Positional repeatability of ± 0.02 mm.

FANUC Control Cabinet
Model: R-30iB Plus
Includes teach pendant.
Ultra compact, stackable, energy efficient controller cabinet style, and provides advanced features for high performance motion, intelligent applications, and learning.

ATI Passive Compliant Force Control
Weight: 8 LBS
Compliance Travel: 0.47″
Compliance Force (pneumatically variable): 2 LB/F – 59 LB/F
Robust, stand-alone, passive compliance device to be used with an end-effector. Remotely adjusted air pressure controls and maintains constant axial force. Allows tool to compensate for deviations in part profile along robot path.

Safety Fence
U-shaped safety fence ,10 ft by 15 ft and 7 ft tall.
Flat pack style safety switch and rigid actuator ensures that fence is closed during operation.
Equipped with E-stop to quickly halt operation from outside cell if necessary.

Fixture Table
7 ft by 8 ft and 3 ft tall, welded steel table.
2 in x 2 in grid of 5/16-18 holes for attaching fixtures.
Robot mounting point sized for FANUC M-20iD/25 mounting holes.

Electrical Requirements: 480V, 3P, 60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
