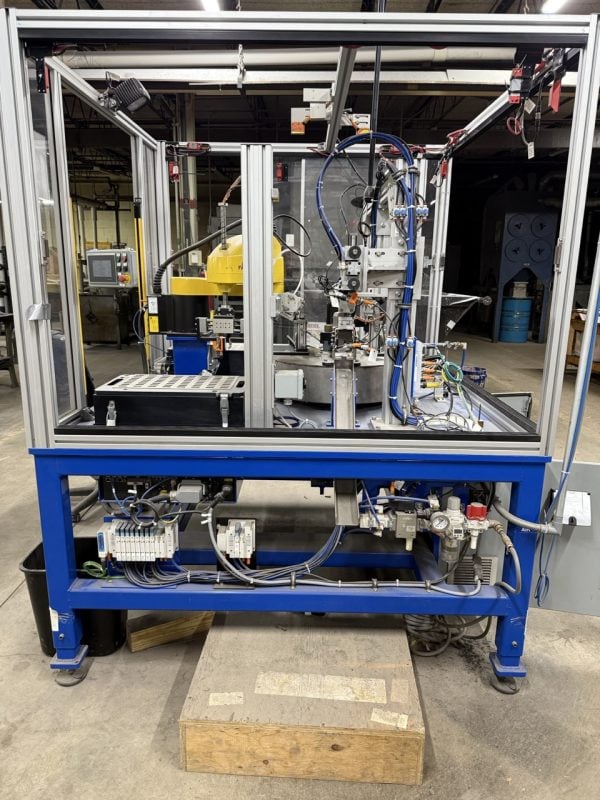

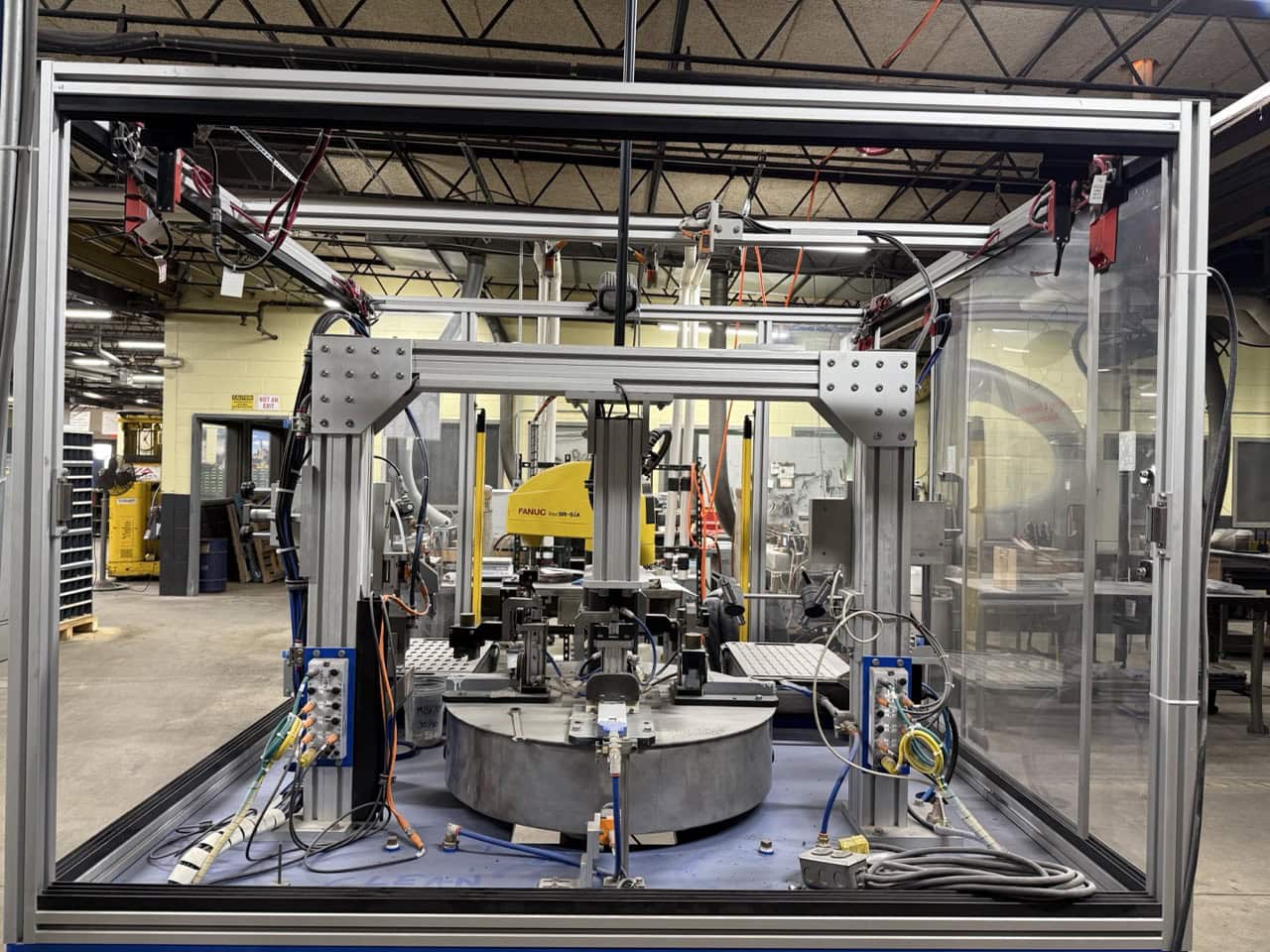

Automatic Brazing Machine, 2019
Automatic Brazing Machine, 2019 - Image 2
Automatic Brazing Machine, 2019 - Image 3
Automatic Brazing Machine, 2019 - Image 4
Automatic Brazing Machine, 2019 - Image 5
Automatic Brazing Machine, 2019 - Image 6
Automatic Brazing Machine, 2019 - Image 7
Automatic Brazing Machine, 2019 - Image 8
AM
39549024613

Automatic Brazing Machine, 2019

$49,900.00

Automatic Brazing Machine, 2019
Automatic Brazing Machine, 2019 - Image 2
Automatic Brazing Machine, 2019 - Image 3
Automatic Brazing Machine, 2019 - Image 4
Automatic Brazing Machine, 2019 - Image 5
Automatic Brazing Machine, 2019 - Image 6
Automatic Brazing Machine, 2019 - Image 7
Automatic Brazing Machine, 2019 - Image 8

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Welding
Make: Braizing and Soldering
Model: Automatic Brazing Machine
Year: 2019
Machine Location: Indiana
Stock #: 024613

Production Rate: 70 PPH

Machine Color: Fusion Blue

Electrical: 240V 3PH 60HZ

CEIA Induction Unit: 220 1PH 60HZ

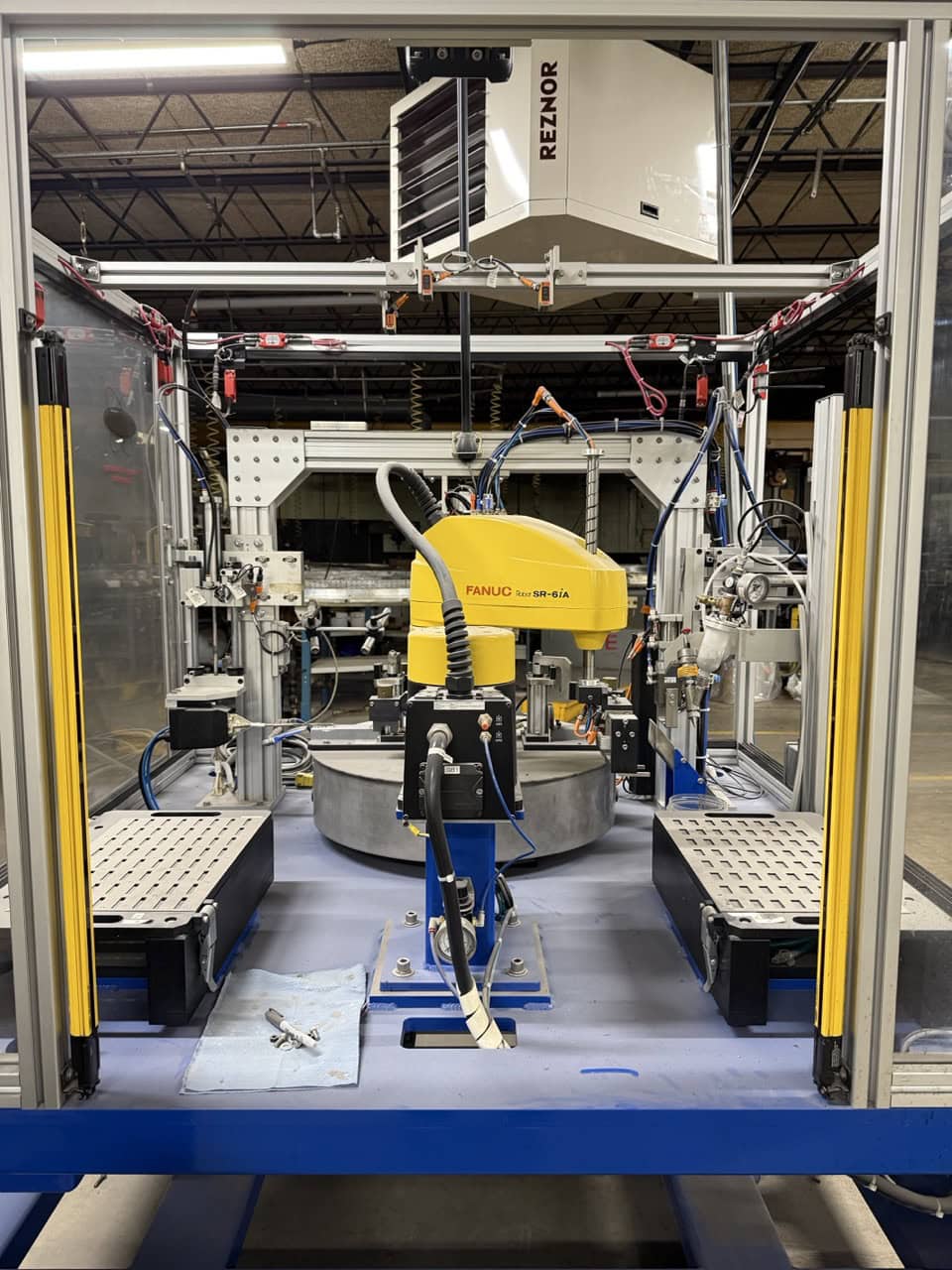

FANUC SCARA Robot: 220 1PH 60HZ

Control Voltage: 24VDC

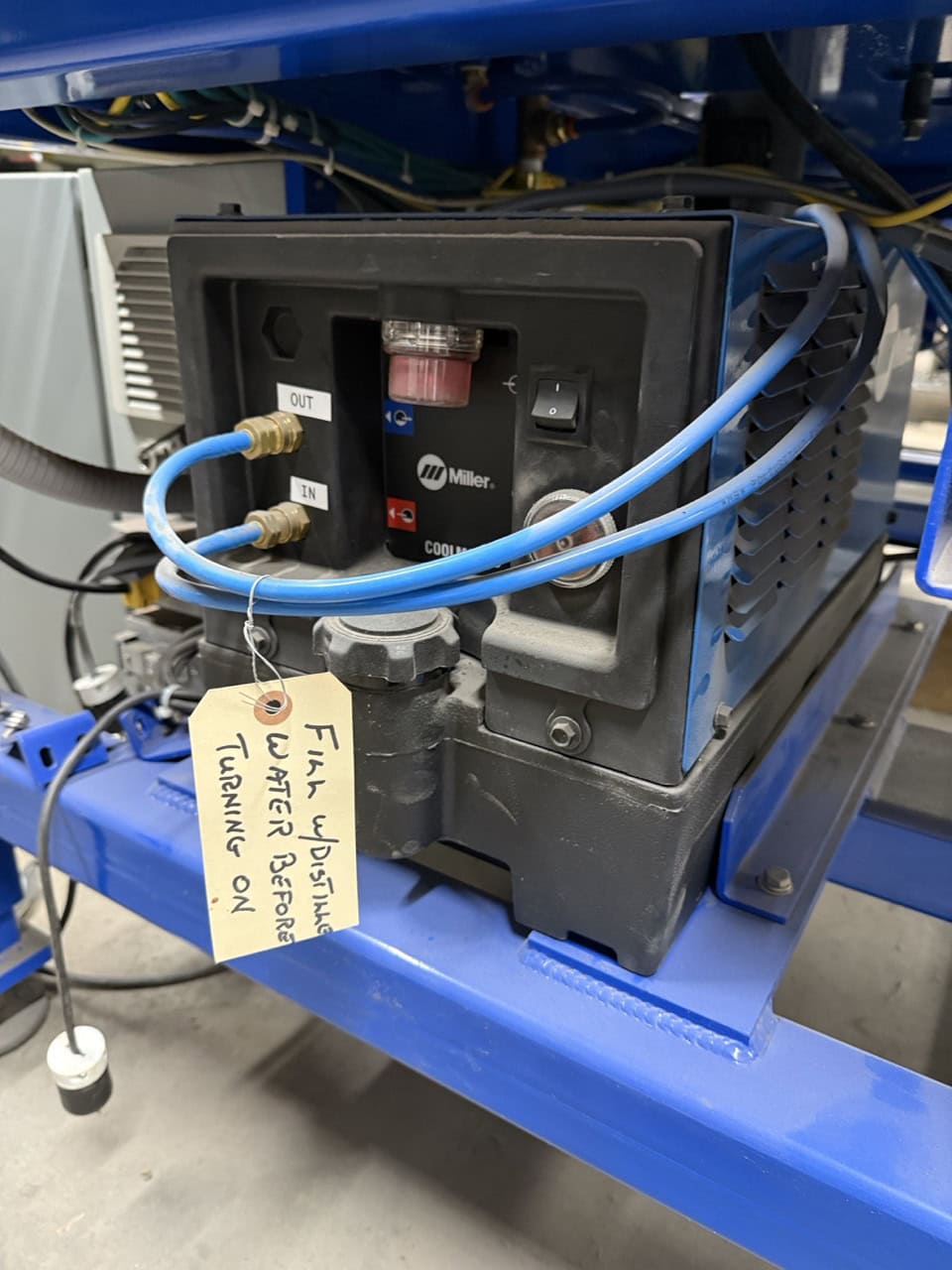

Miller Chiller: 110 VAC

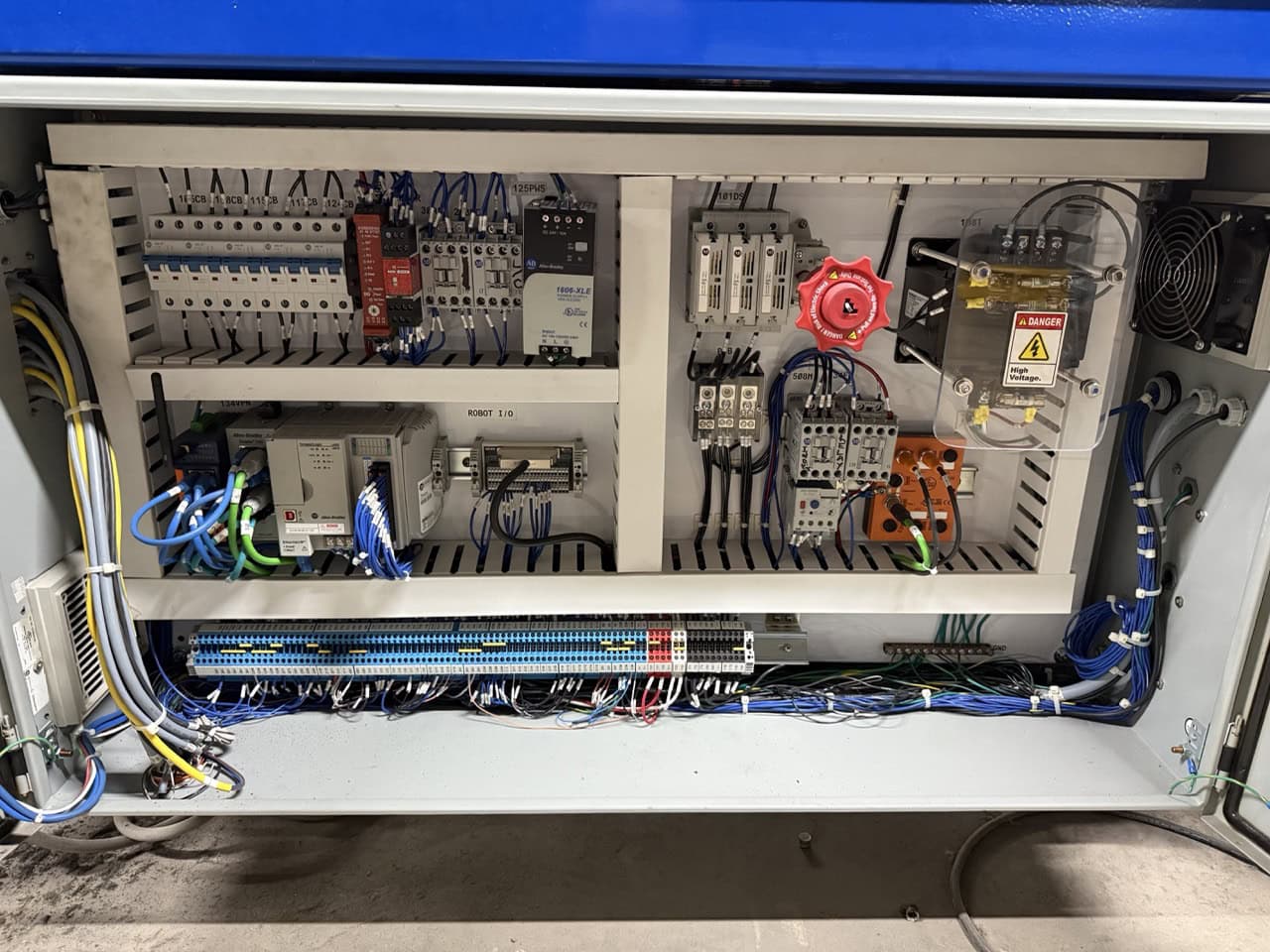

PLC Type: Compact Logix L24ER

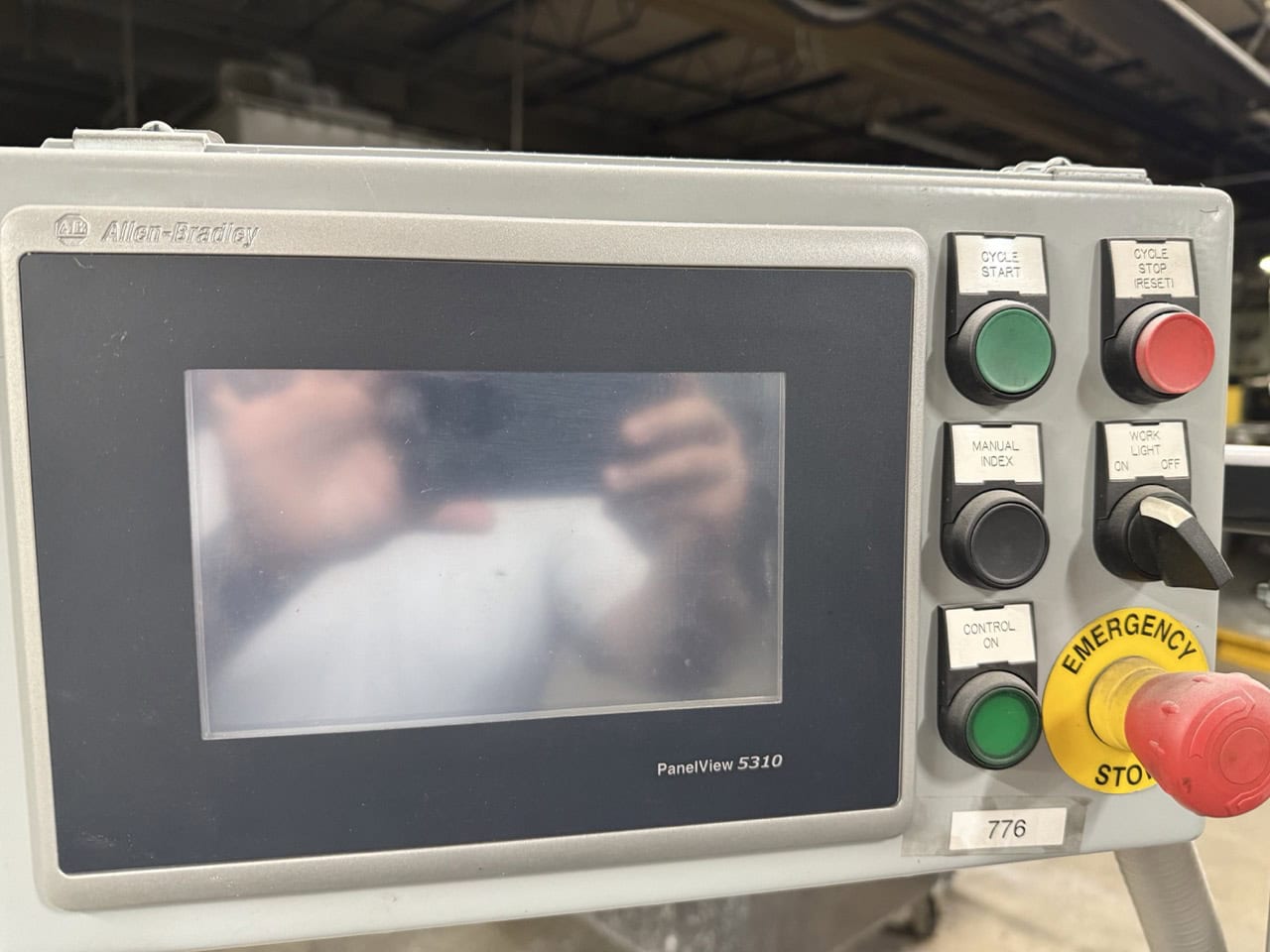

Operator Interface: Panel View Plus 600

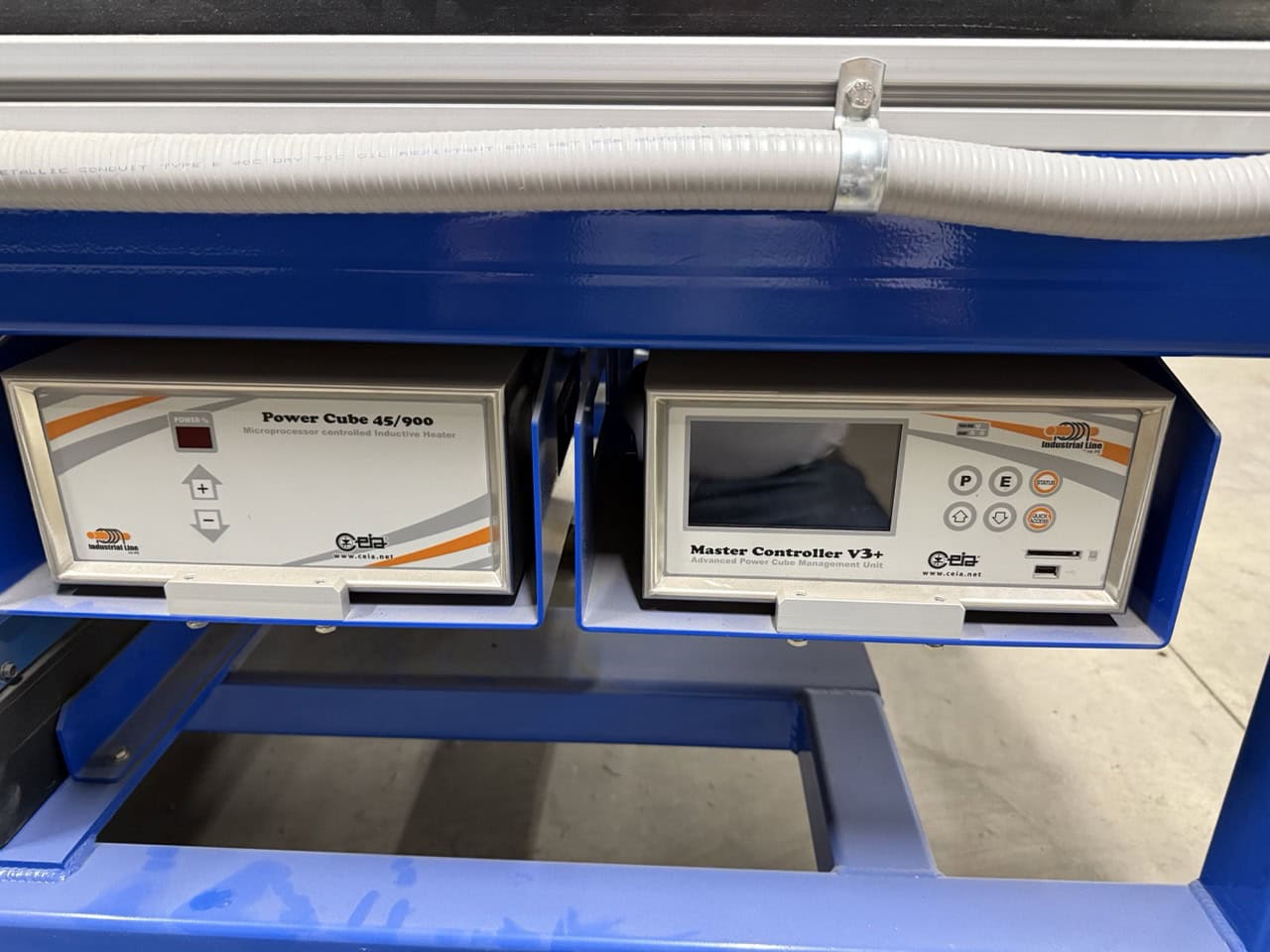

Heat System: CEIA 45/900 Power Cube/V3+ Master Controller

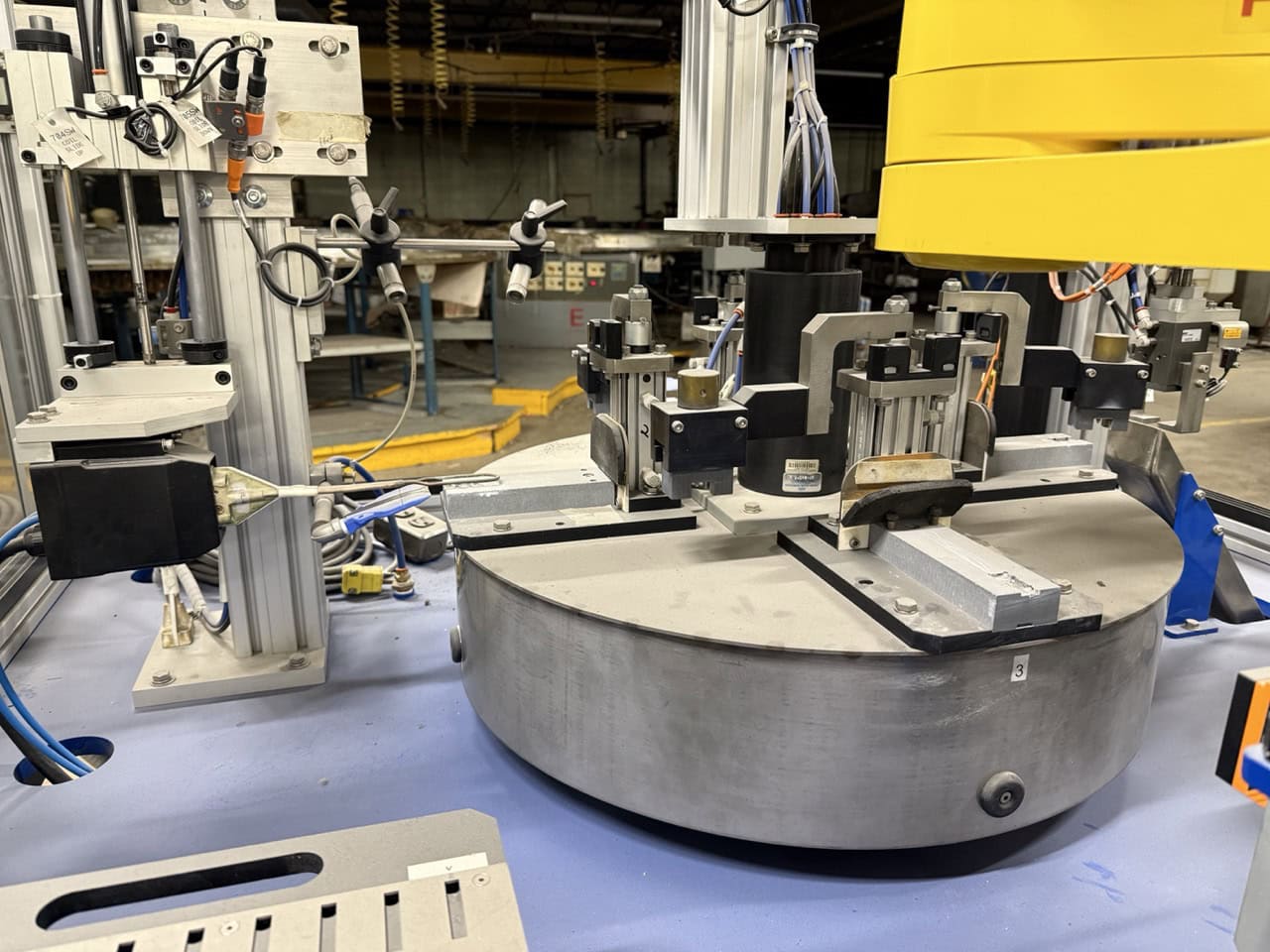

Index Unit: Stelron RD1, 4 Stop, 1/2 hp 230/460 VAC, 31557-A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
