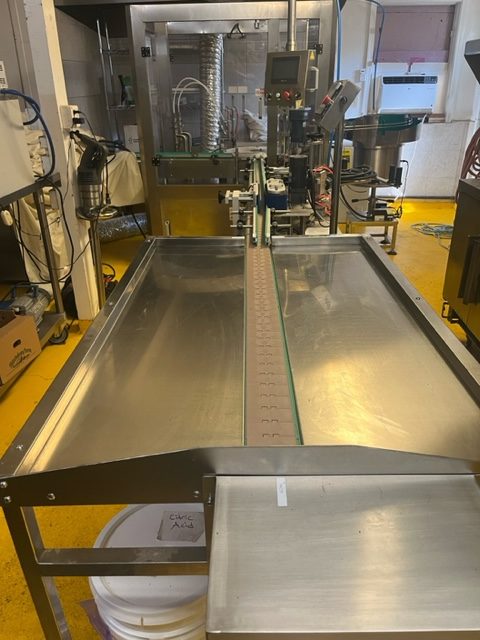

Automatic Coconut Oil Liquid Tincture Bottling Line 15-30mL, PX-BFC80/PX-BL120/ PX-BFC100, 2018

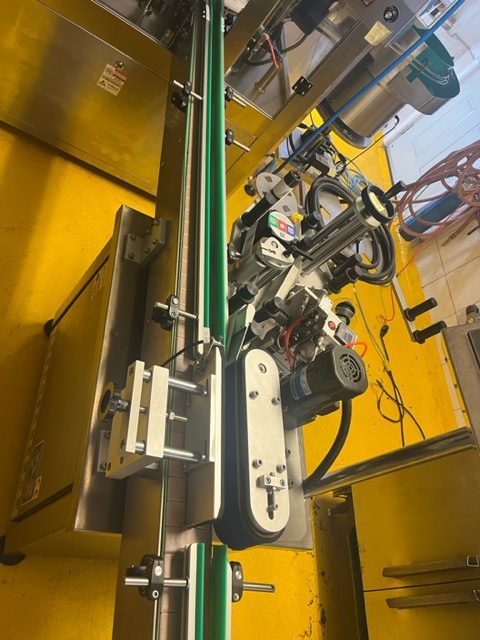

Machine Specification Parameters
– Dimensions: 2000(L)x1200(W)x1350(H)mm
– Voltage: Single phase AC220V 50/60Hz
– Power consumption: <1.5KW
– Labeling Speed: MAX 30pcs/min (Φ25mm)
– Precision: ±1mm
– Applicable scope of labels: Height15-180mm,Length 20-300mm
– Maximum Scope of Supply : Diameter 350mm, inside diameter of paper scroll 76mm

PX-BFC80 Capping Machine
– Voltage: 220V 50HZ 1phase
– Power: 2.5 KW
– Working pressure: 0.45-0.70Mpa
– Maximum air consumption: 0.002m3 /min
– Working area : 3400mmX4400mm

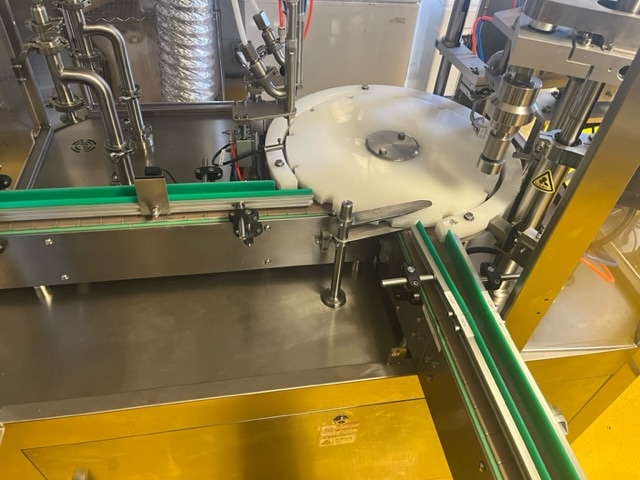

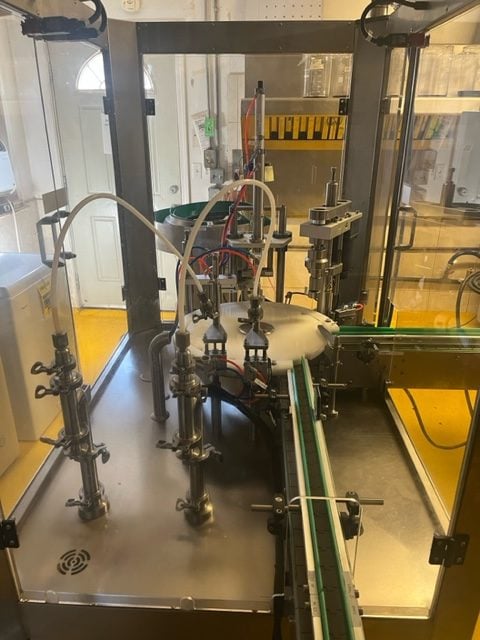

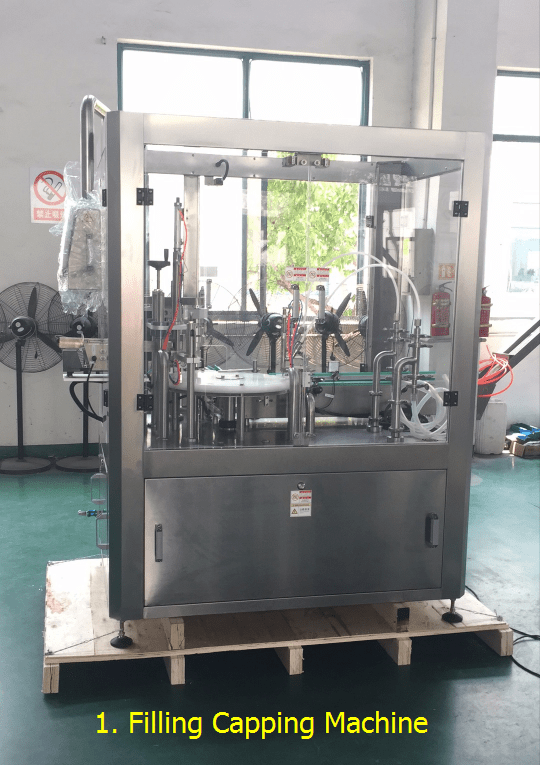

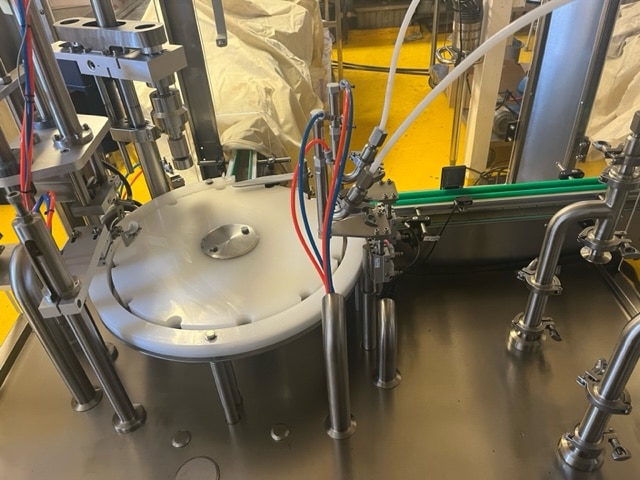

PX-BFC100 Oil Filling & Capping Machine
– Filling Volume: 15-30 ml ( adjustable )
– Filling Capacity: 1500-2000 BPH ( adjustable )
– Filling Nozzle: 2 nozzles
– Cap Putting Head: 1 heads
– Cap Screwing Head: 1 heads

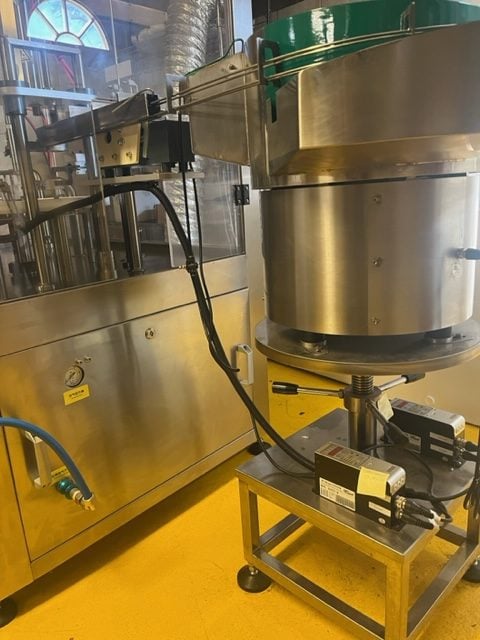

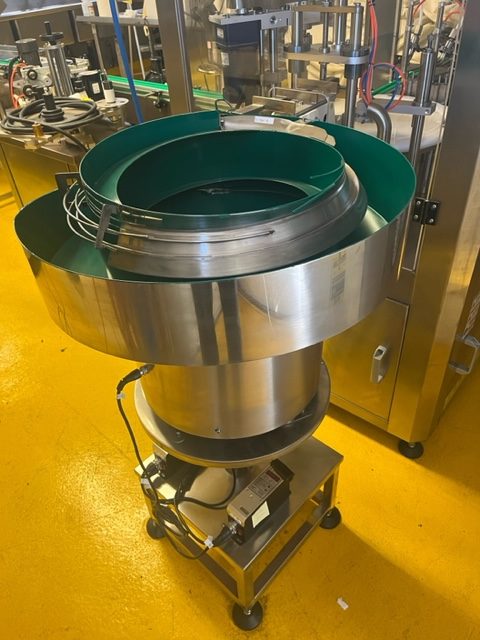

– Cap Sorter: 2 sets ( customized for your 2 size of caps, easy to change )

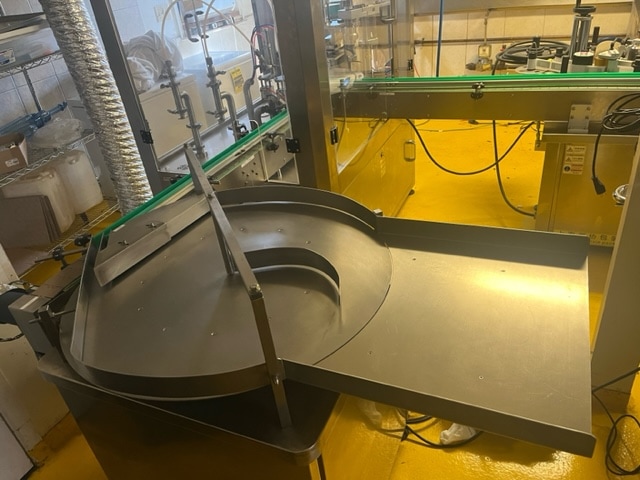

– White Turntable: 2 sets ( customized for your 2 size bottles, easy to change )
– Measuring Type: Piston pump
– Control System: PLC system, servo control
– PLC system language: English, Chinese. (can customize your language)
– Filling Precision: ≧99 %
– Sealing Rate: ≧99 %
