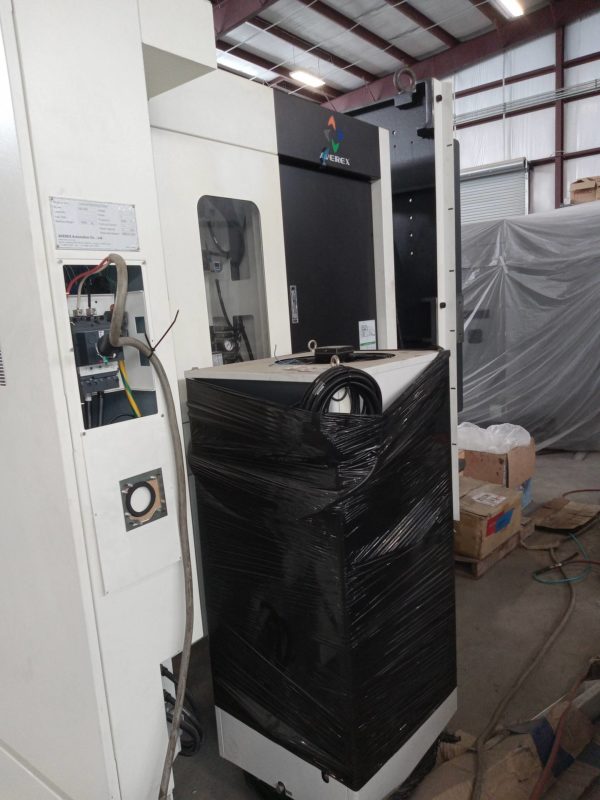

Averex HS550K, Dual Pallet HMC, 2018 Showroom Machine, Never Cut A Chip, Factory Warranty and Install Apply.

$249,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Horizontal Machining Centers
Make: Averex
Model: HS550K
Year: 2018
Machine Location: Upon Request
Stock #:

Fanuc 0iMF
10.000 RPM
40HP Main Spindle Motor
CT-50
(2) 500mm Pallet APC with Full 4th Rotary Table (Parkson Wu)
60 ATC
435 psi Coolant Through Spindle
Chip Conveyor-Scraper Type (W/ 810L Coolant Tank)
Large 31.5 Inch X, Y and Z Axis Travels, With 31.5 x 40” Part Capacities
Thermal Controlled System with Temperature Controlled Spindle Cartridge and Spindle Motor Separator Housing.
Programmable Spindle Tool Load Monitoring
2,362 IPM Rapids, 787 IPM Feed Rates with 1.25G+ ACC and DEC rates
33.3 RPM Full Fourth Axis Contouring Table with 4 Axis Simultaneous
Pressurized Oil and Air Lubrication for the Spindle, Roller Ways and Ball Screws
4-Kosmek Ball Lock Mechanical Pallet Clamping System
7 Day Timer for Machine Auto Power Start Up and Shut Down
Thru-Spindle Air Cutting (M-code)

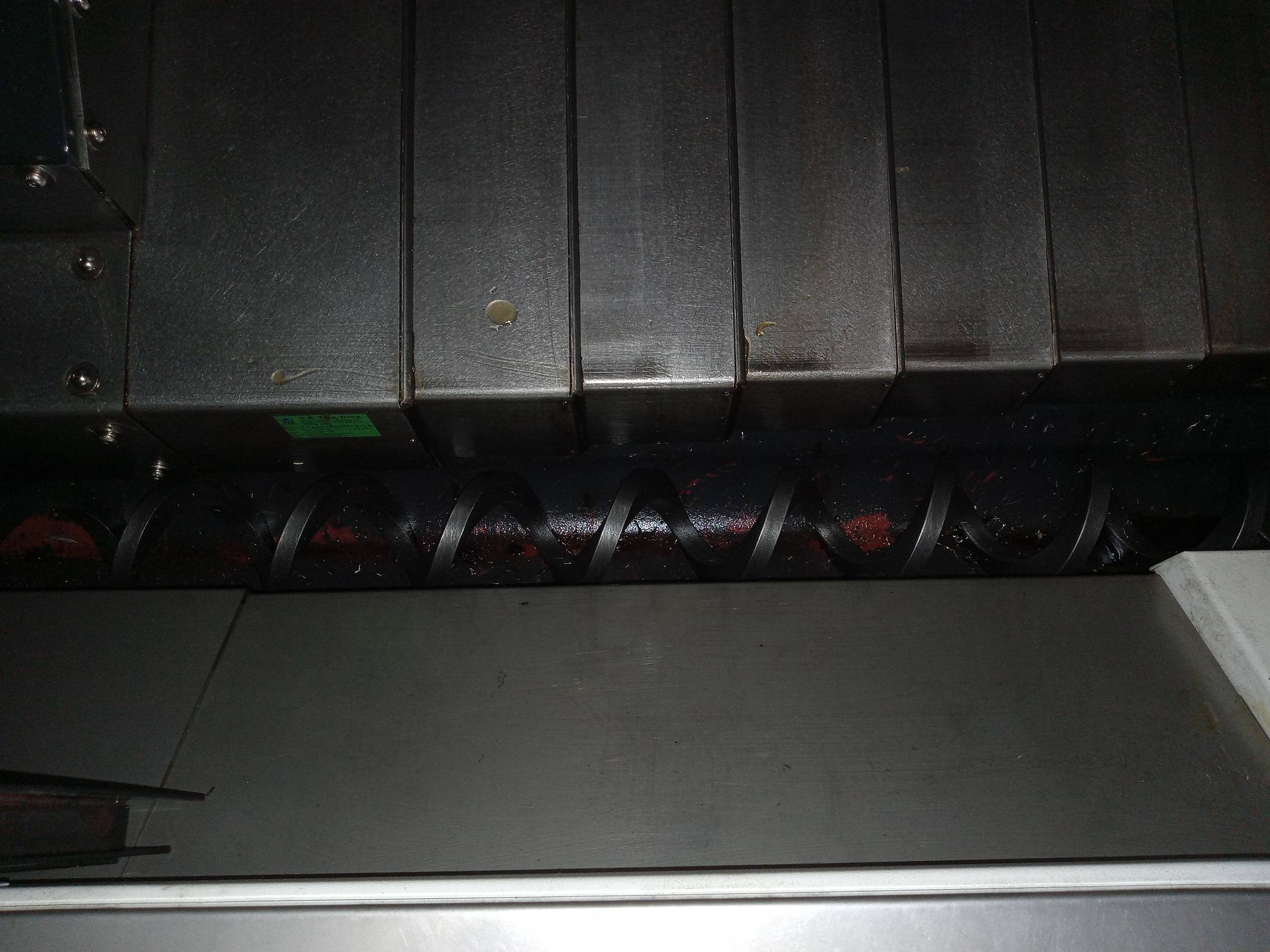

14 Nozzle Over Head Pallet Wash, Dual Chip Augers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
