Balemaster 372‑A Horizontal Baler System with Twin City Trim Waste Fan Integration, Manual Tie, and Full Ducting Package

Equipment Overview
This Balemaster 372‑A horizontal baler system is a complete, high-throughput closed-end baler integrated with dual centrifugal fans and overhead ducting for pneumatic trim waste extraction. Built for rugged use in print, paper, or packaging environments, this unit includes a manual tie configuration, LPR sensor activation, and selector-based baling cycle controls.

System includes:
– Balemaster 372‑A baler
– Twin City Fan & Blower PBW-1906 units
– Custom-fabricated duct system with overhead drop
– Lockout-compliant electrical panel

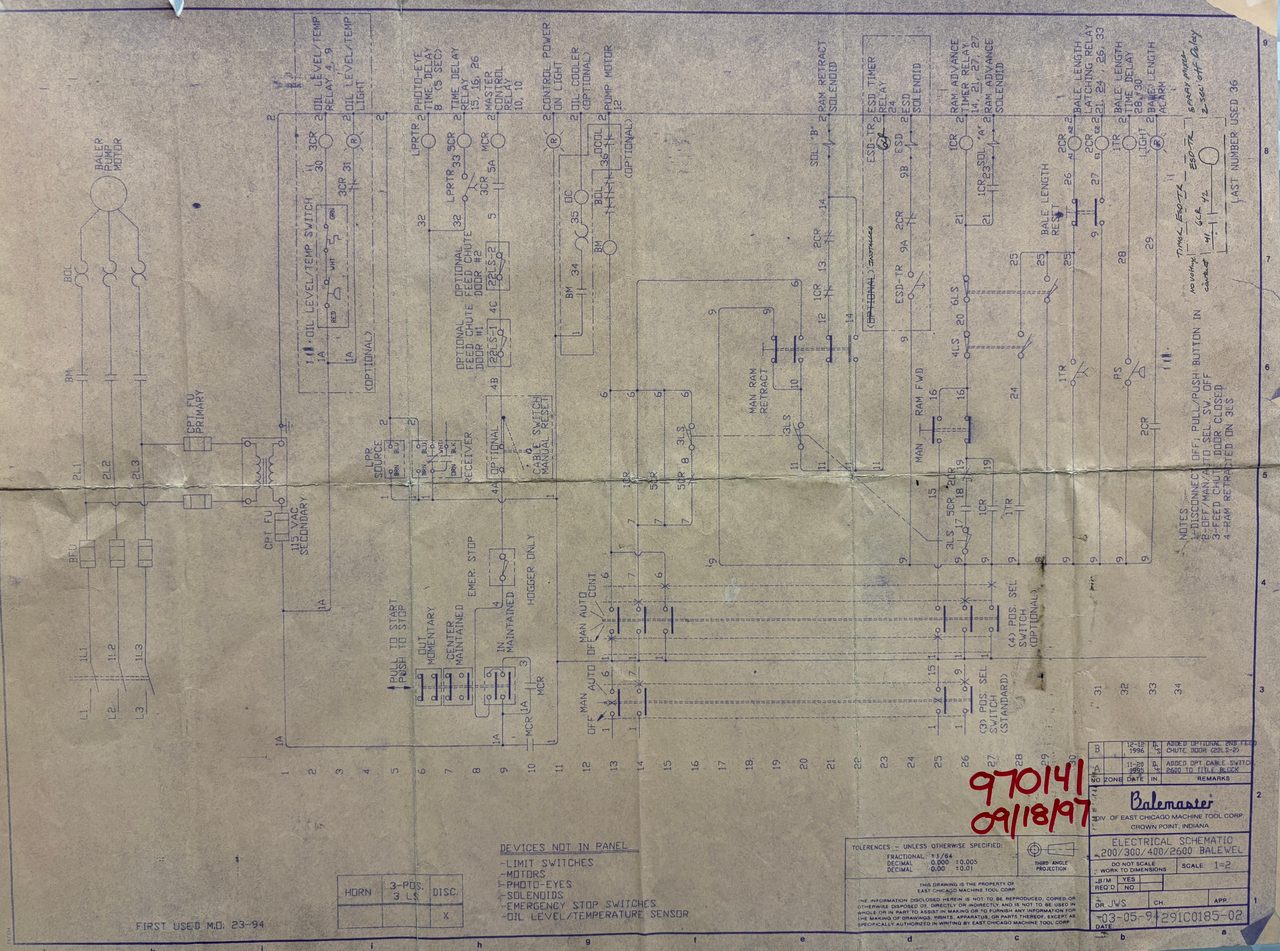

– REC-verified schematics and PM history

Key Features & Specifications
– Horizontal closed-end baler system with integrated trim waste fan array
– OEM: Balemaster (East Chicago Machine Tool Corp.)
– Model: 372‑A Balewel
– Bale size: 30″ W × 42″ H × 72″ L
– Feed opening: 28″ W × 32″ H
– Hydraulic cylinder bore: 6″
– Main hydraulic pressure: 1500 PSI
– Relief valve pressure: 1800 PSI

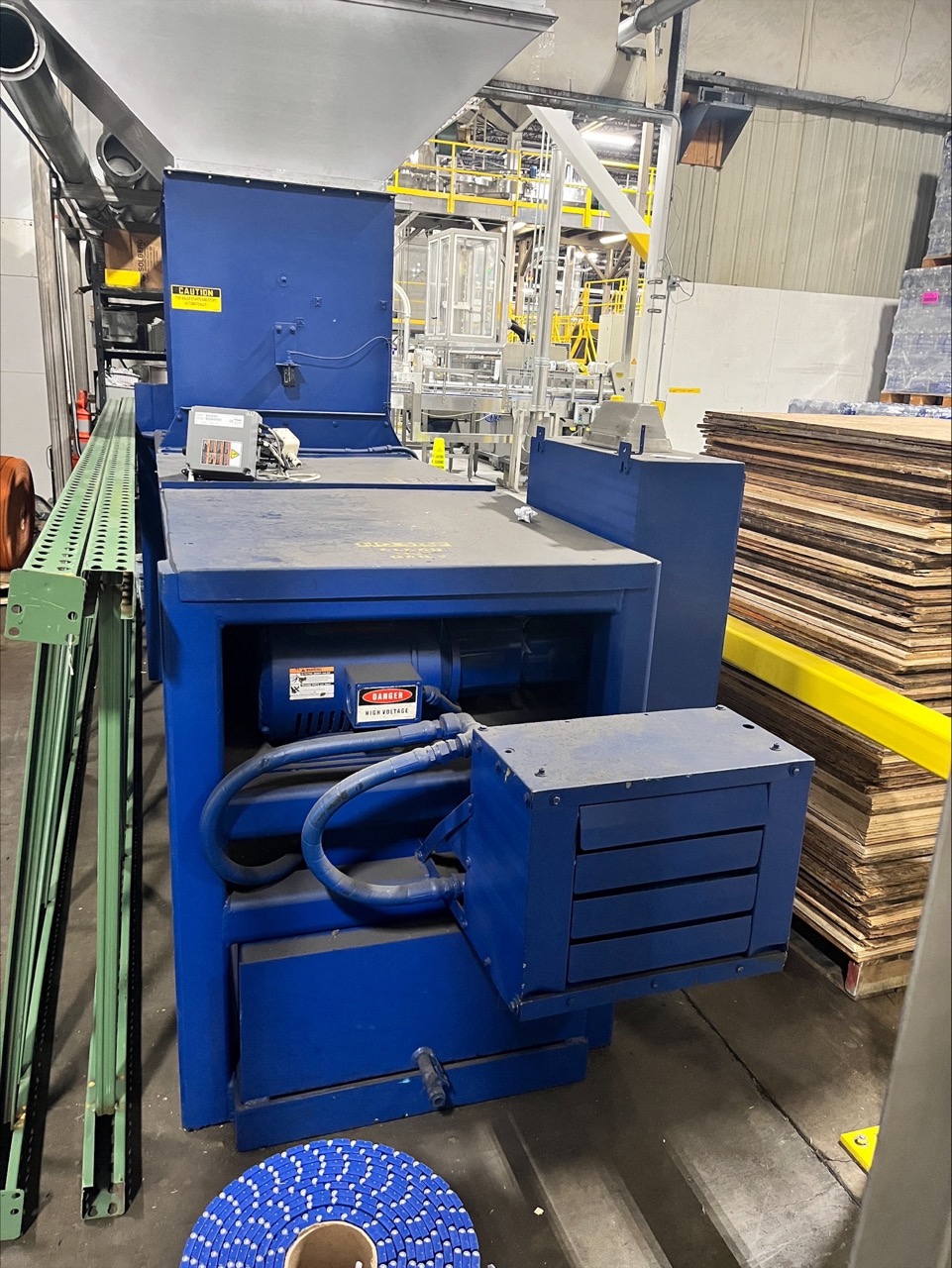

– Hydraulic pump motor: 15 HP, 3-phase, 230/460 V (est.)
– Oil reservoir capacity: ~100 gallons (estimated)
– Manual wire tie system with dual horizontal tie slots
– Control modes: Manual / Automatic / Continuous
– LPR photo-eye sensor for automatic cycle start
– Limit switches: Ram retract, Ram advance, Bale limit, Door closed

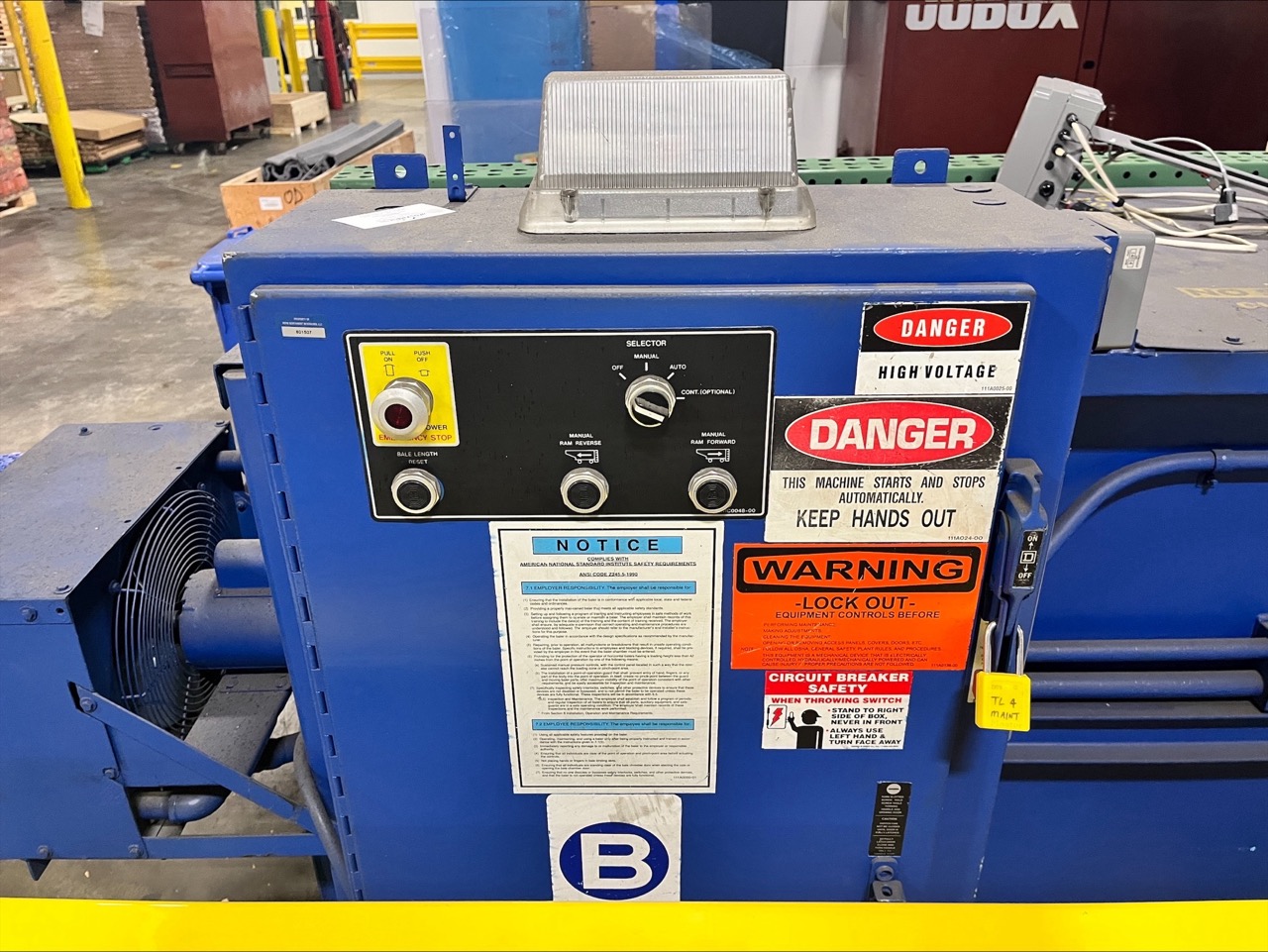

– Emergency stop: Keyed, lockout-compliant mushroom-style button
– Cycle control: Push-button forward/reverse and selector-based logic
– Control panel power: 110 V via step-down transformer
– Electrical panel includes magnetic starter, transformer, relay logic
– Machine frame: Welded steel construction, closed-end configuration
– Dimensions (baler only): 168″ L × 55″ W × 92″ H
– Full system footprint: 192″ L × 90″ W × 140″ H
– Electrical panel dimensions: 48″ W × 20″ D × 60″ H
– Estimated weight (baler only): 11,000 – 12,500 lbs
– Estimated total system weight: 15,000 – 17,000 lbs
– Integrated pneumatic trim waste system (dual fans)

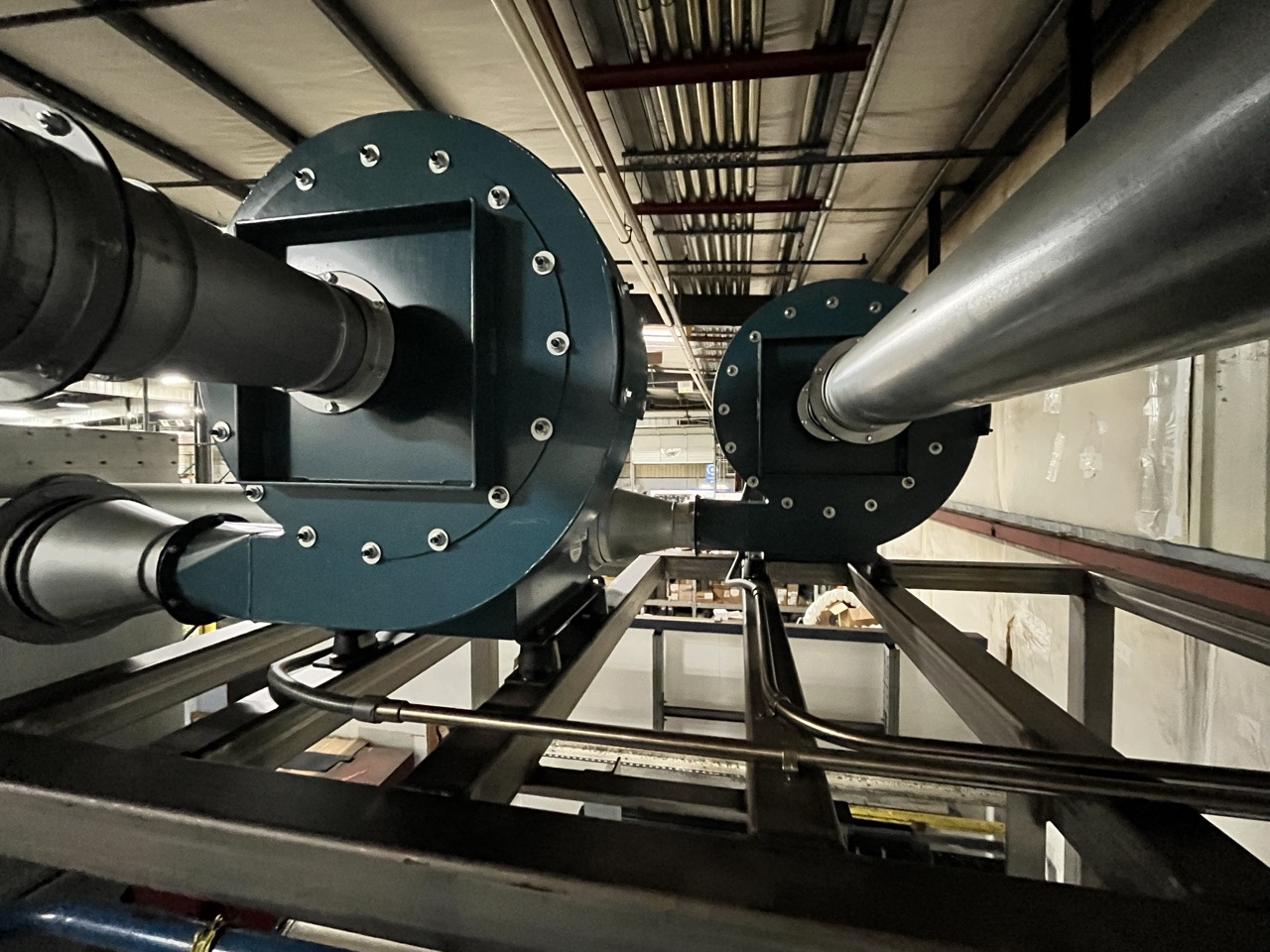

– Fan type: Twin City Fan & Blower, Model PBW-1906 (Qty: 2)
– Fan motors: Estimated 5–10 HP each, belt-driven, 3-phase

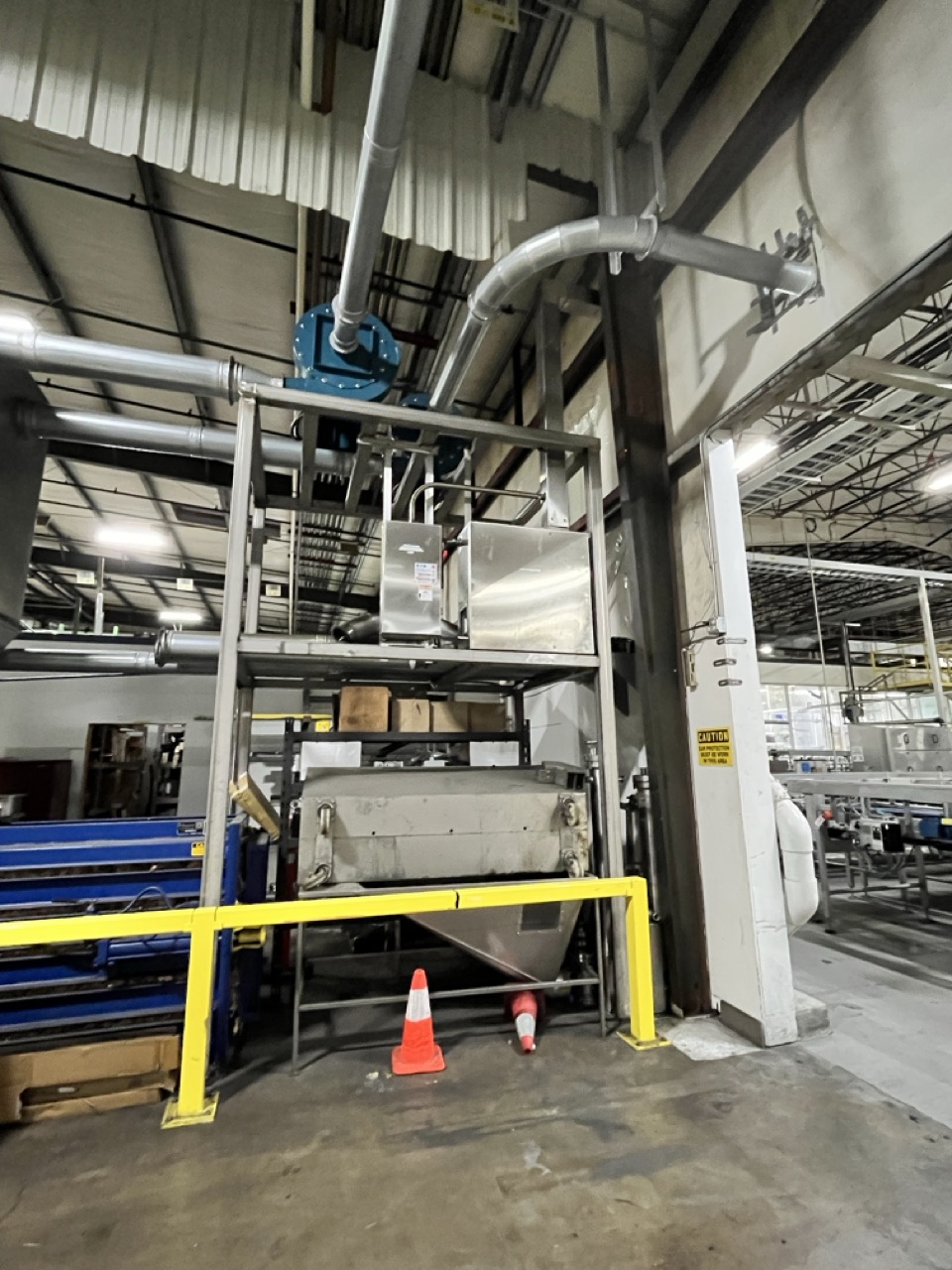

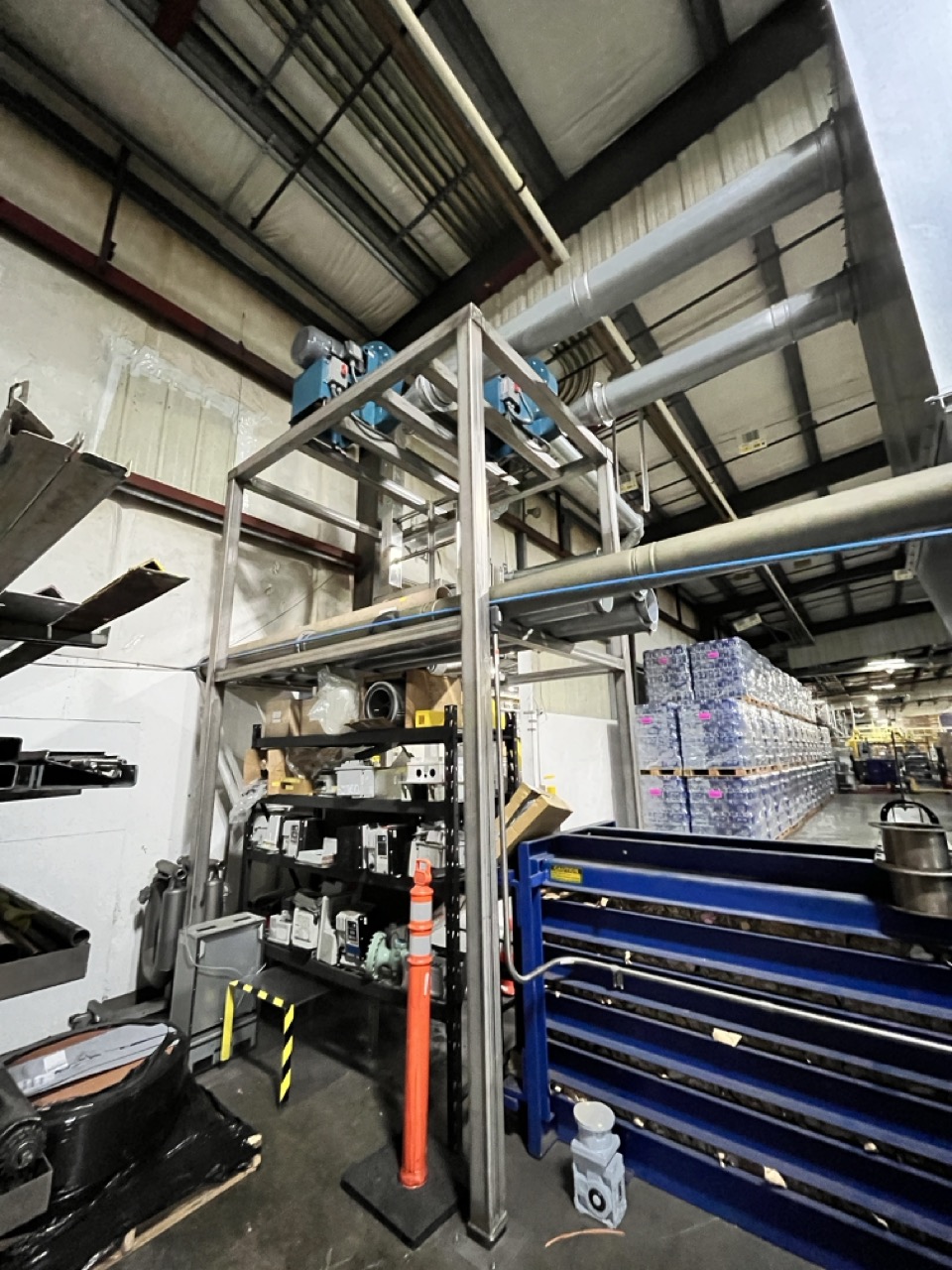

– Fan mezzanine height: ~10′ platform, ~140″ overall height with duct

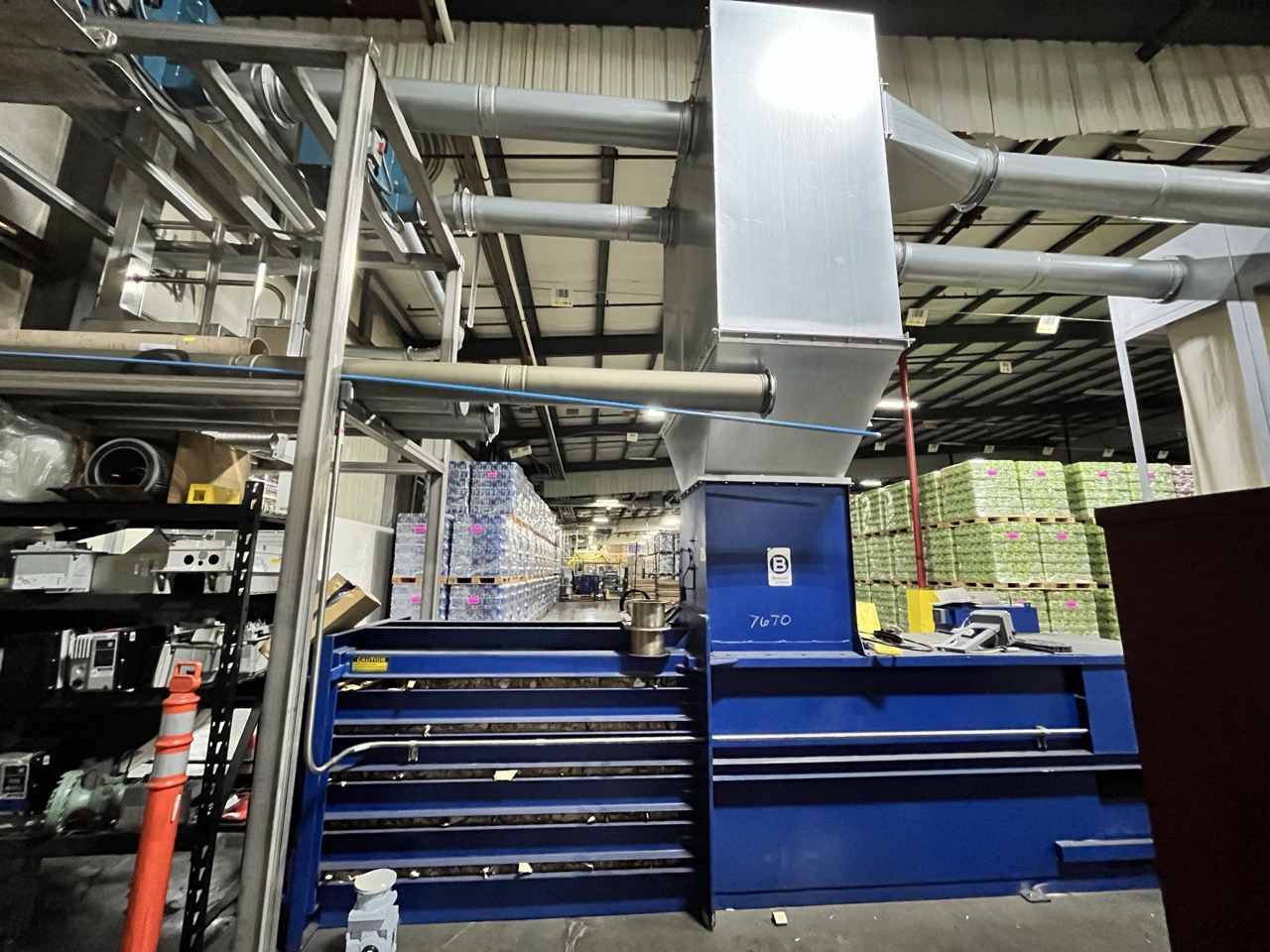

– Ducting system: Galvanized steel, multi-inlet, cyclone drop into hopper
– Function: Continuous pneumatic waste feed into baler via cyclone
– Accessories included: Full duct system, mezzanine fan support, control panel, trim feed chamber
