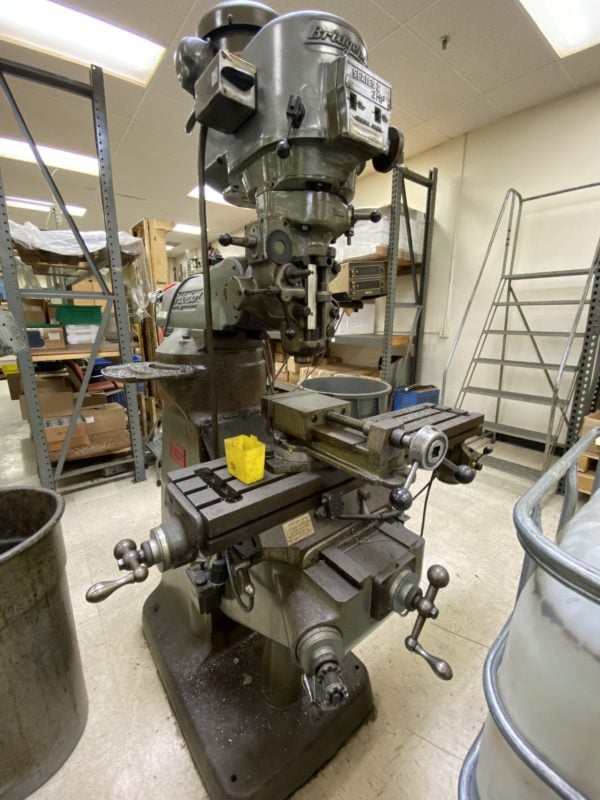

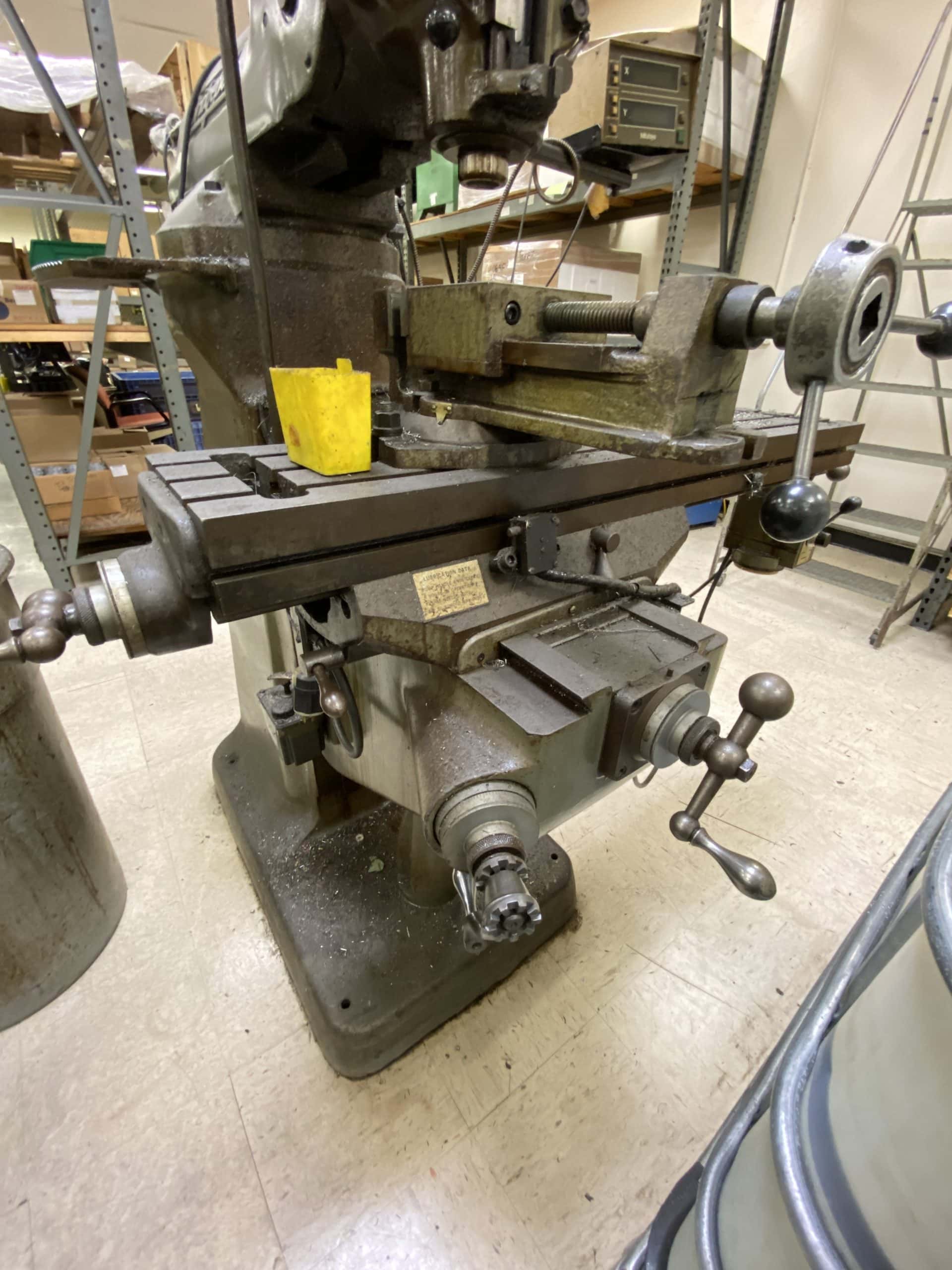

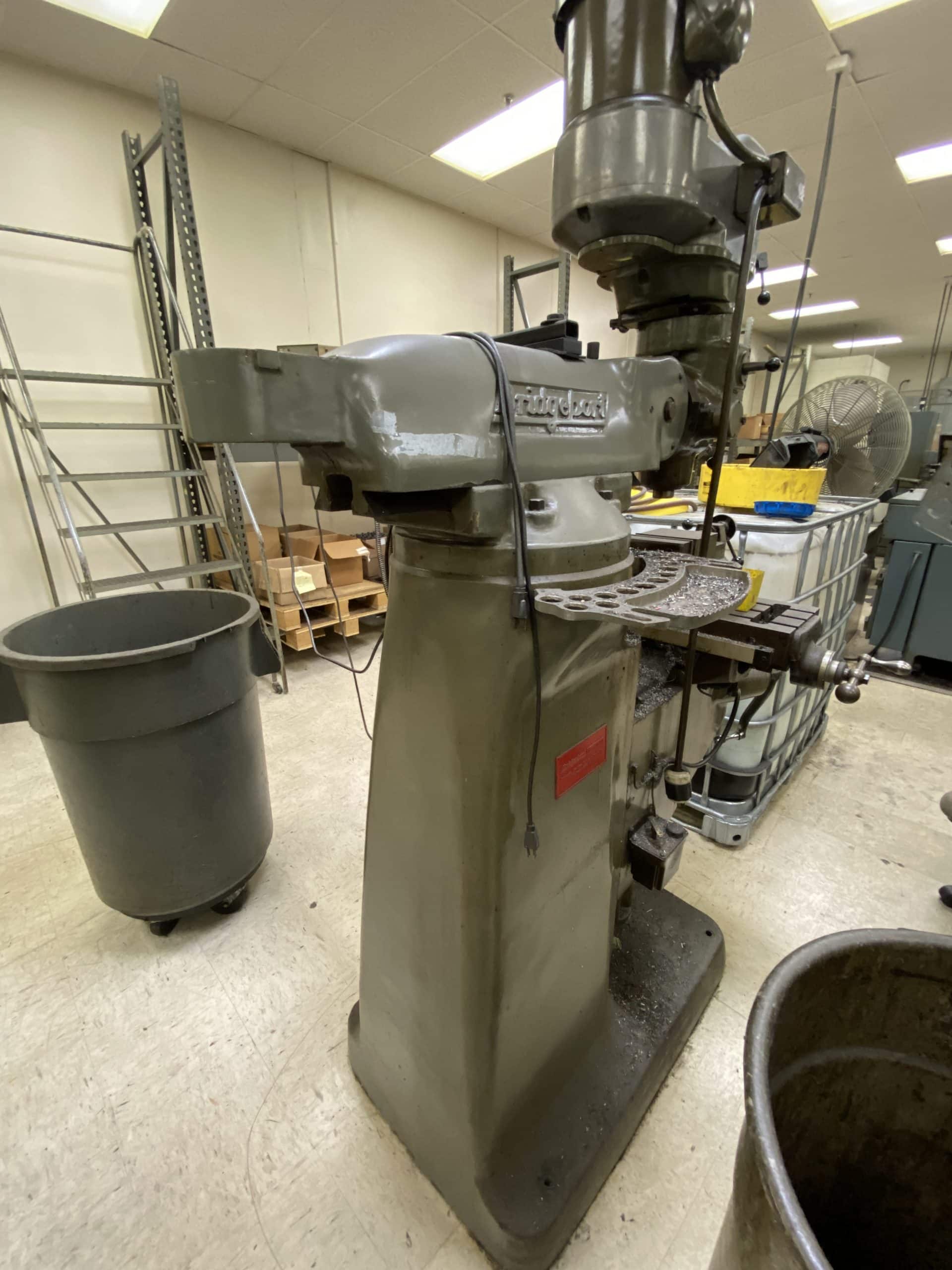

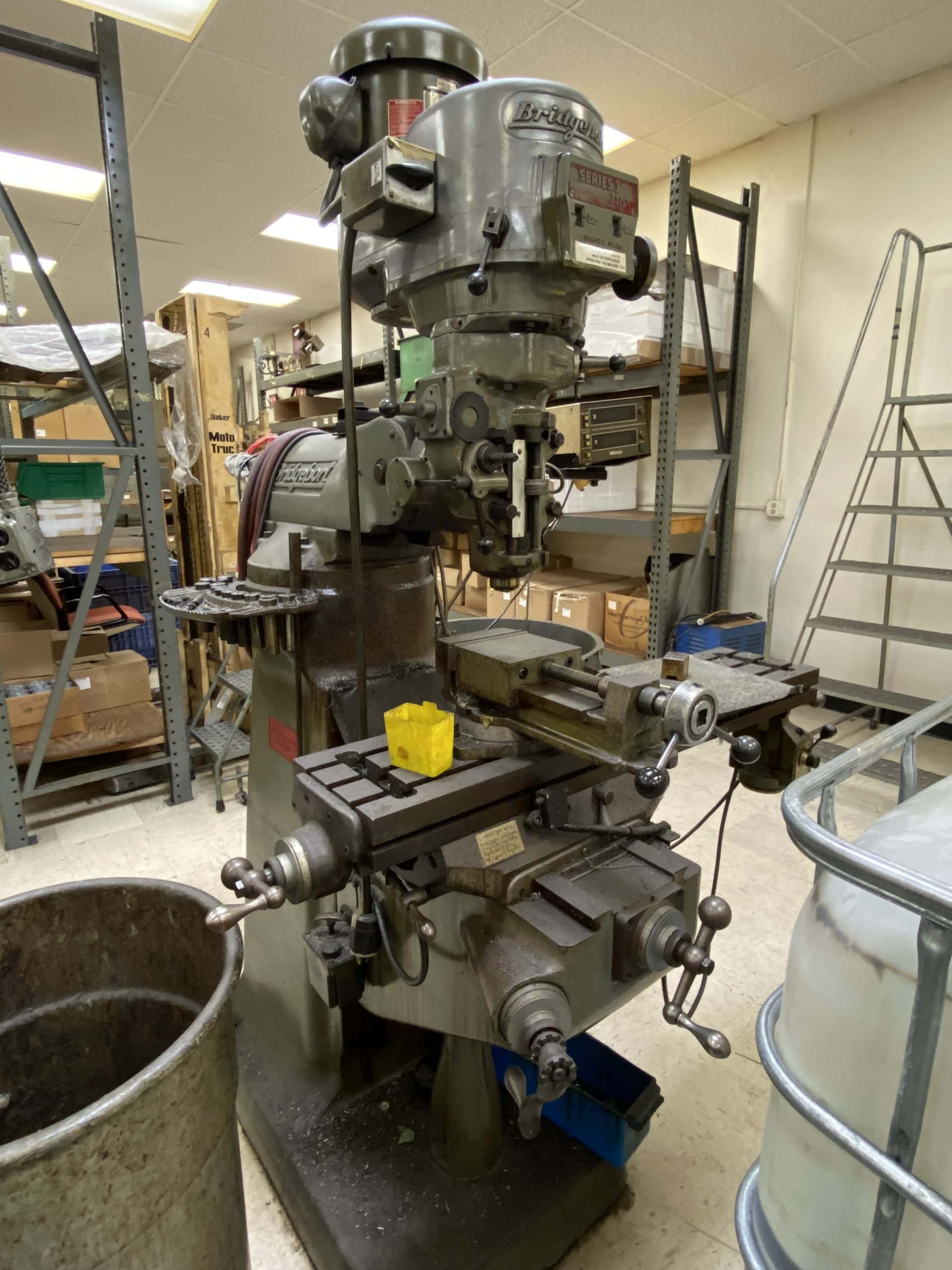

Bridgeport Series 1 Knee Mill – 2 HP, Mitutoyo DRO
$4,114.50
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size: 9โณ x 42โณ
Longitudinal Table Travel: 30โณ
Saddle Cross Travel: 12โณ
Knee Vertical Travel: 16โณ
Spindle Quill Travel: 5โณ
Ram Travel: 12โณ
Throat Distance Range: 6.75โณ โ 18.75โณ
Table To Spindle Nose Distance Range: 2.5โณ โ 18.25
Spindle Speeds, Variable: 60 โ 4,200 RPM
Maximum Uniform Table Load: 300 lbs.
Power Table Feed Rate: .75โณ โ 35โณ/min
Approx Overall Machine Dimensions: 70โณ x 60โณ x 82H
Approx Machine Weight: 2,200 lbs.
Power: 230V/3-Ph/60Hz
EQUIPPED WITH:

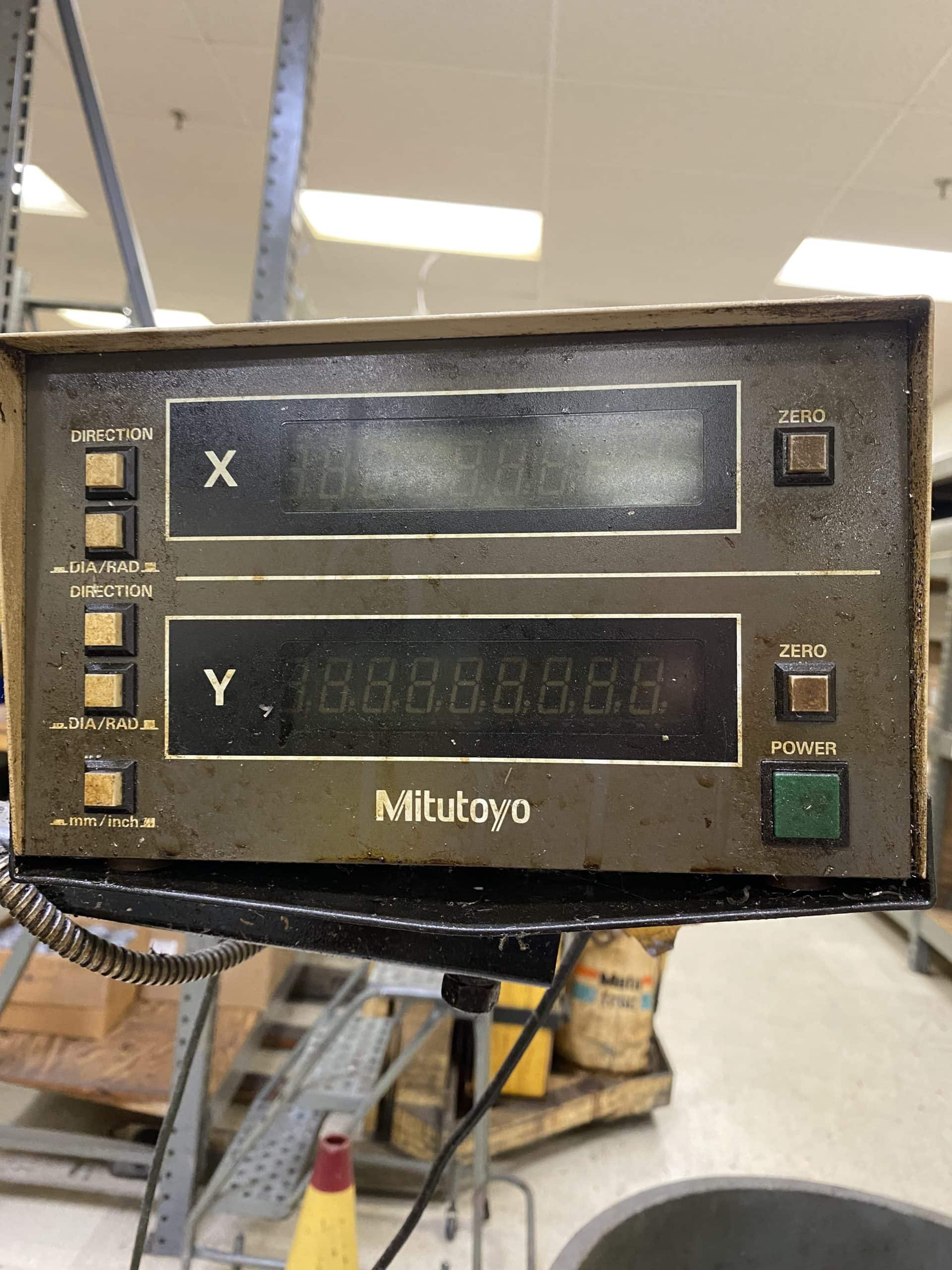

Mitutoyo Digital Readout
