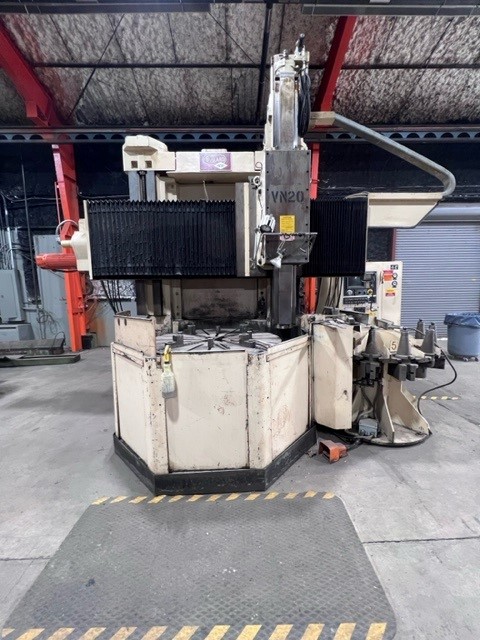

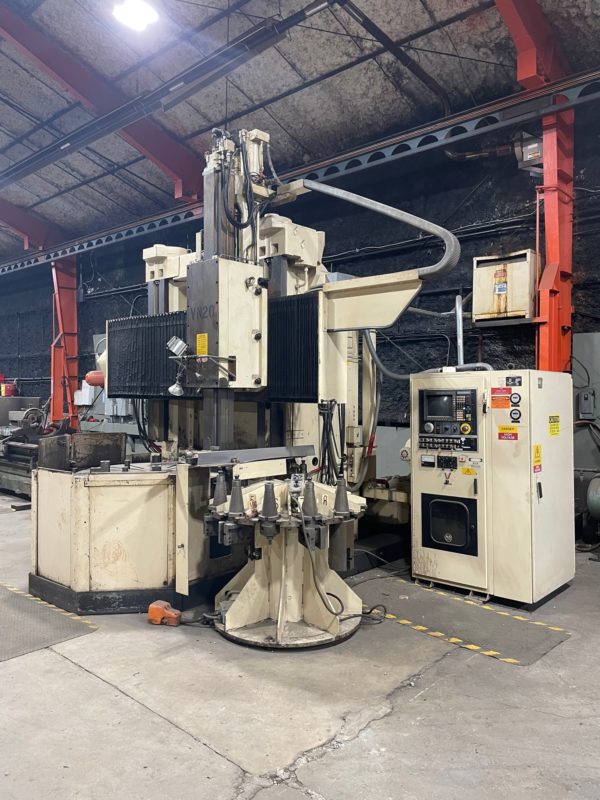

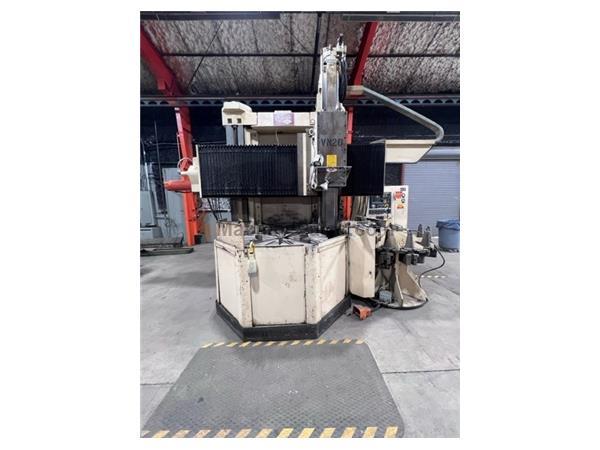

Bullard Dynatrol 56″ VTL Vertical Turret Lathe, 1963

Name: Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963
SKU: 12166056777

$19,900.00

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 2

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 3

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 4

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 5

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 6

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 7

Bullard Dynatrol 56" VTL Vertical Turret Lathe, 1963 - Image 8

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Chuck Size: 56″
Table Diameter: 56″
Swing: 60″
Work HT-U/R: 60″
Power: 40HP
RPM: 200RPM
Maximum Height under Cross Rail: 60″
Max Height under Turret Face: 71-3/4″
Speed Range: 5.0 – 200RPM
Feed Range: Infinity Variable .001″ to .250″/rev
Vertical Travel of Turret Head: 30-3/4”
Vertical Travel: 11”
Heavy Duty Ram Head: 60”
Toolpost Holes 2-3/4″

Voltage: 460V
3Phase

Dimensions
Approx. Height: 200″
Approx. Diameter: 131″
Approx. Weight: 74,000lb
