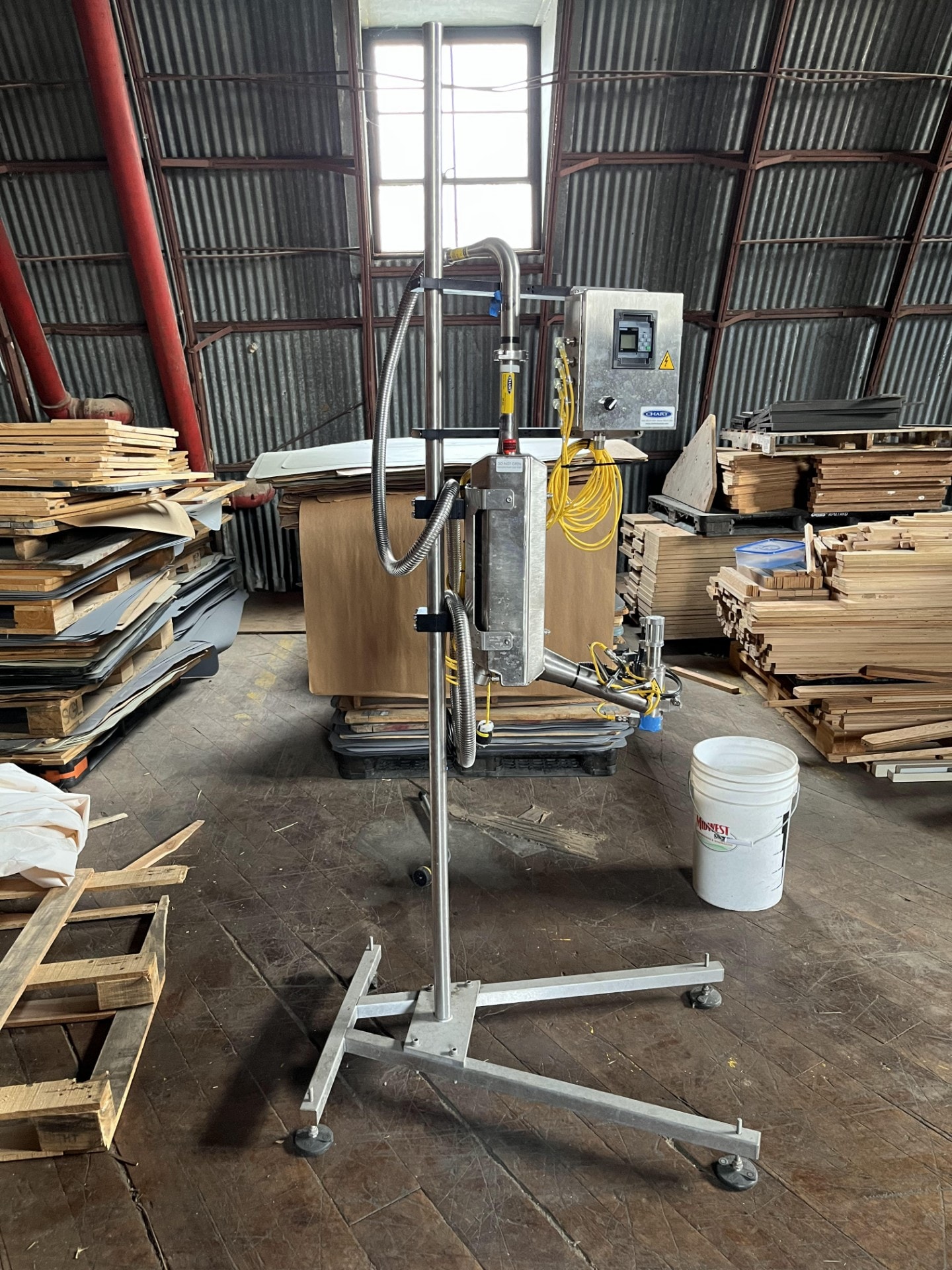

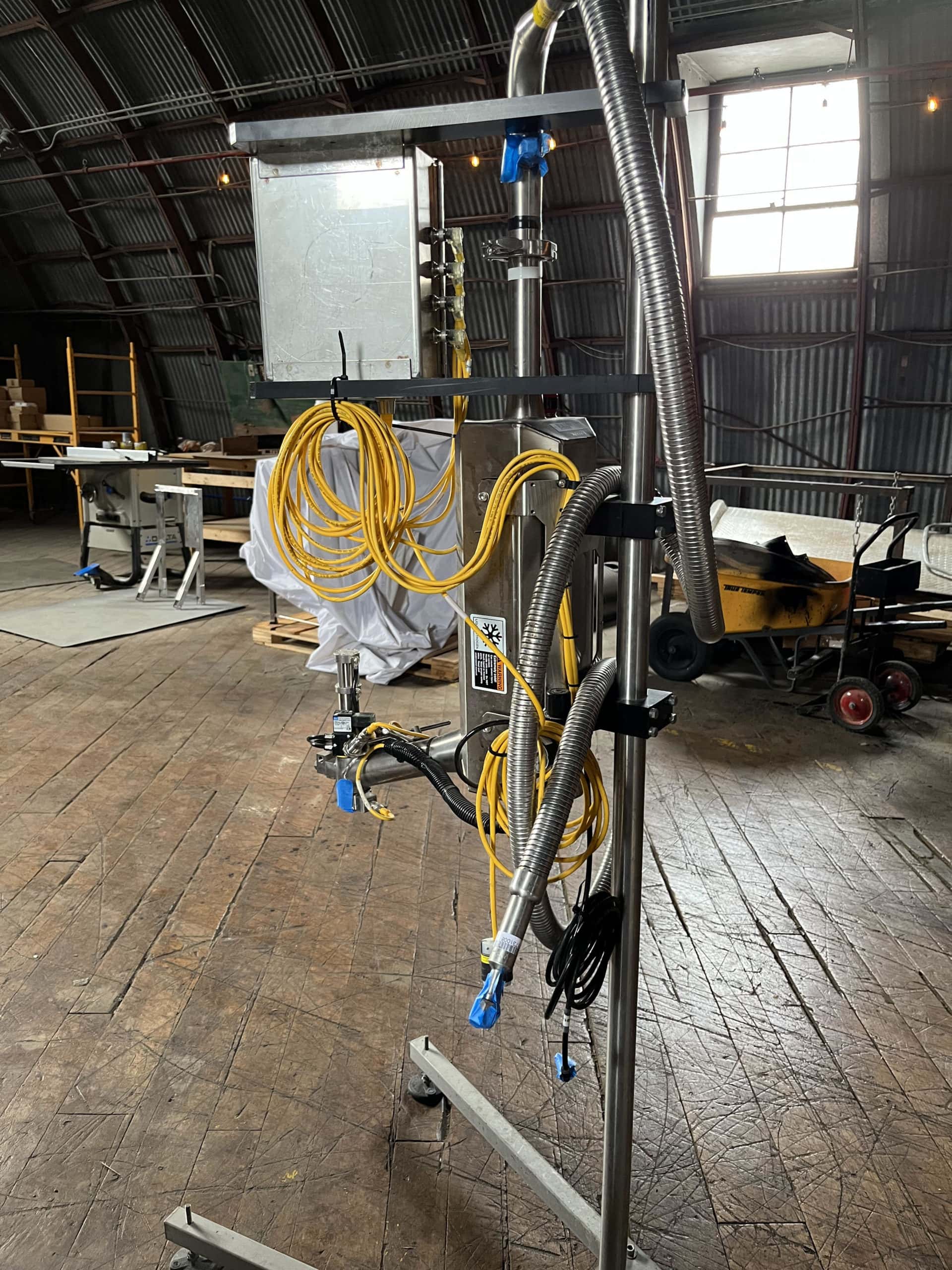

Chart ABE Doser100 Non-Widget Nitrogen Infuser, 2018


Request a Quote to Instantly See Pricing

Machine Type: Process Equipment
Make: Chart
Model: ABE Doser100
Year: 2018
Machine Location: Tennessee
Stock #: 534663

Lincan Nitro-Line for Non-Widget, Nitrogen Injection. The Abe Doser100 Injects / Doses Containers at Line Speeds of up to 100 Containers per Minute. Includes all Parts Required to Add oo Standard Lincan18 and Lincan35 Lines. Based on the Physical Characteristics of Nitrogen, one Part of Liquid Nitrogen Warms and Expends into 700 Parts of Gaseous Nitrogen to Pressurize or Flush Containers of Oxygen.

How it Works: Liquid Nitrogen is Supplied to the Doser by a Vacuum Insulated Hose and Flows into the Dosing Head. A Sensor Detects the Speed of the Line, and a Second Sensor Detects The Presence of a Container. When the Container is Detected, The Dosing Head Actuated-Valve Opens and Dispenses the Exact Amount of Pure Nitrogen. A Plc (Programmable Logic Controller) Integrates the Sensor, Controls and Human Interface Via a Touchscreen Display.

Package Rigidity
Reduces Packaging Paneling
Improve Labeling Contact Surface
Oxygen Reduction
Introduces Microbubbles To Various Products

Nitrogen Injector
Conveyor Mounting Brackets
Stainless Steel Injector-Head Stand

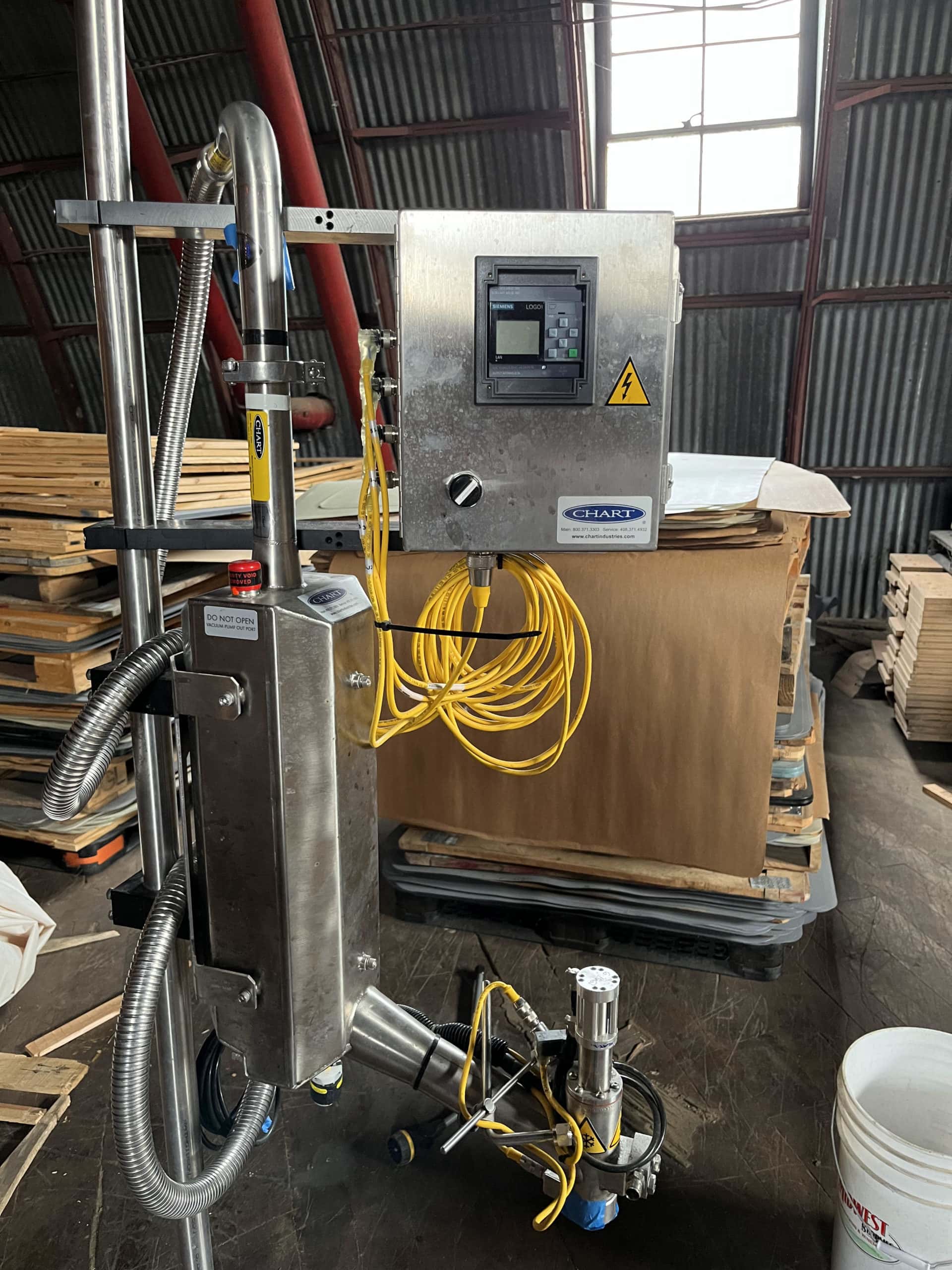

Bolt-On Electrical Box
Standard 110 Volt X 4 Amp Connection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
