Chie Mei PM-800C Automatic Overwrapping Machine, 2016 – CE-Certified, Excellent Condition

Equipment Overview
This 2016 Chie Mei PM‑800C is a CE-certified automatic overwrapping machine, structurally and functionally equivalent to the PM‑808C. It features a quick-change forming assembly and high-speed cam-driven wrap system designed for BOPP/cellophane packaging of rectangular items. Suitable for cosmetic boxes, pharmaceuticals, or bundled cartons.

Key Features and Specifications

Certifications: CE, ISO 9001

Power: 220V, 1 Phase, 50/60 Hz, 10A

Heater: 1.2 kW

Motor: ¼ HP + 90W

Speed: 20–40 packs per minute

Package Size Range: Length 55–160 mm, Width 30–80 mm, Depth 50–200 mm

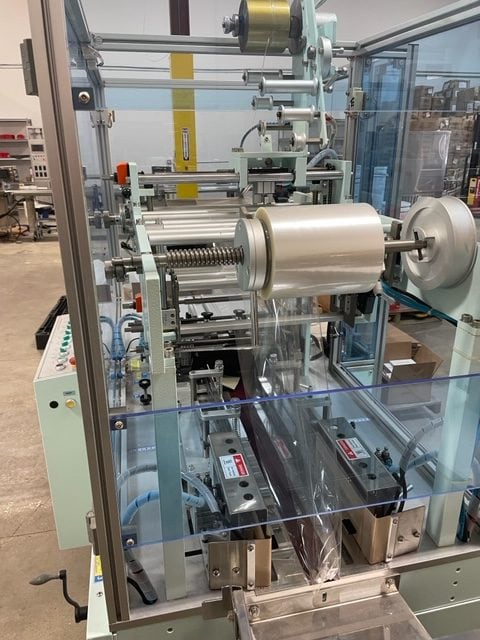

Film Types: Cellophane, BOPP, KOP, heat-sealable films

Machine Size: 1630 × 2640 × 1880 mm (L×W×H)

Changeover Time: Approx. 15 minutes (tool-less design)

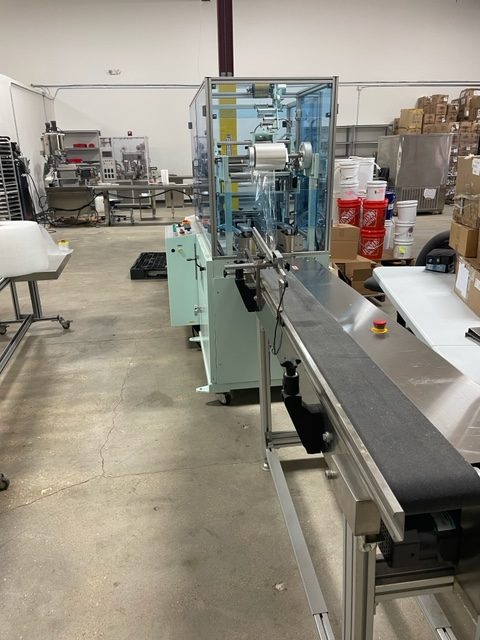

Conveyor Exit: Yes, integrated linear belt

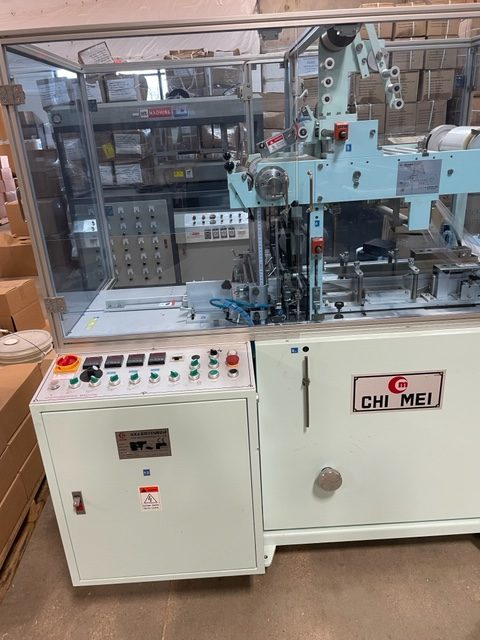

Controls: Push-button and rotary switch panel

Guarding: Clear polycarbonate panels, interlock-protected

Sealing System: Rotary & reciprocating sealing jaws
