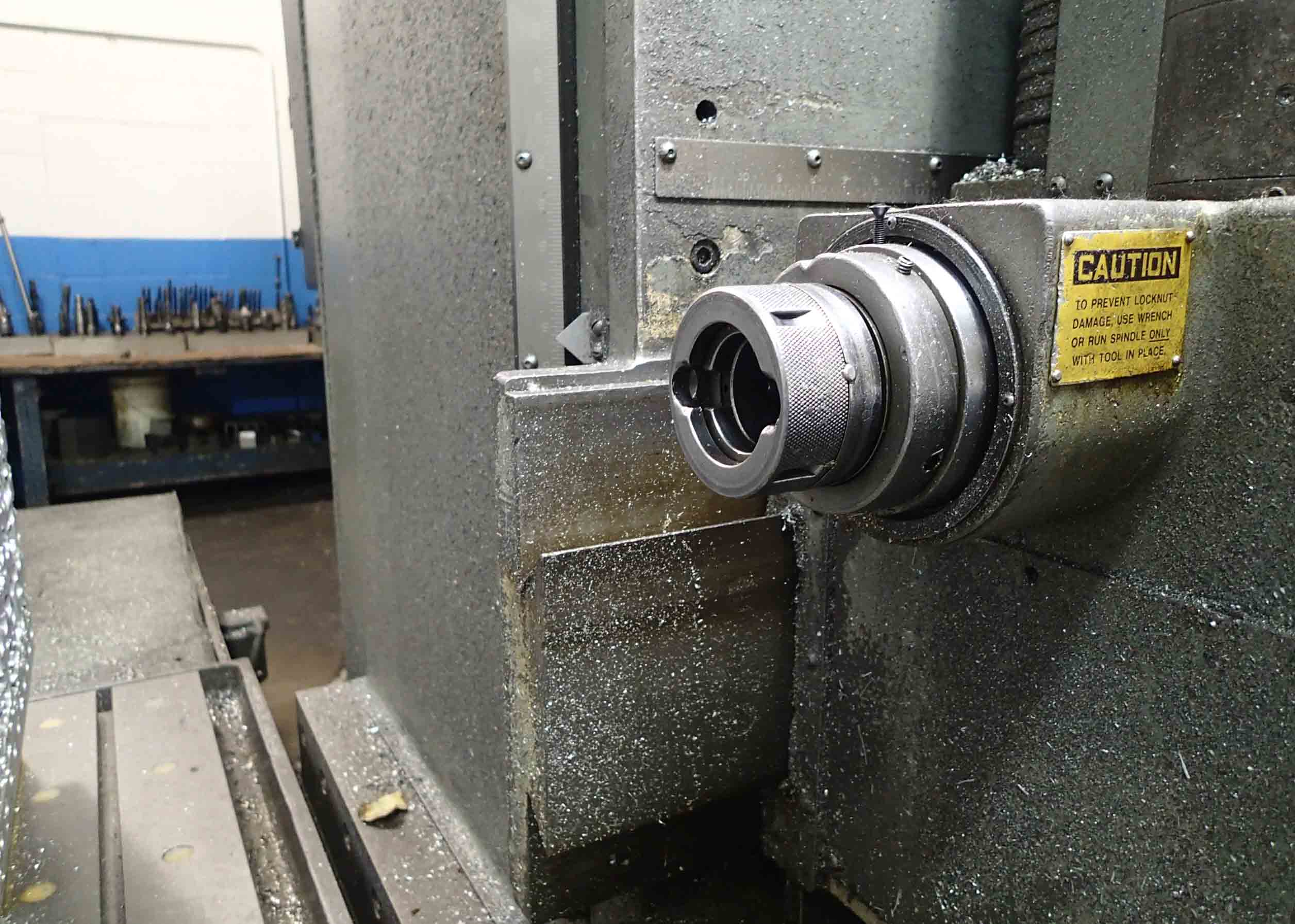

Cincinnati Milacron 2H-100 Horizontal Boring Mill- 6″ Spindle, 40″ x 100″ Table, 20″ Rotary, Acramatic 5 CNC
$10,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 100″
Y-Axis Travel: 40″
Z-Axis Travel: 12″
Table Size: 31″ x 102″
Spindle Size: 6″
Spindle Speed: 3,800 RPM
Spindle Taper: Kwick Switch 300 Tooling
Power: 7 HP
Approx. Dimensions (l x w x h): 220โ x 108โ x 103โ
Approx. Weight: 26,000 LB
EQUIPPED WITH:
Acramatic 5 Control
CNC Controlled X & Y Axes (Z-Axis is non-contouring)
20″ 4th AxisRotary Table- every 5 degrees
