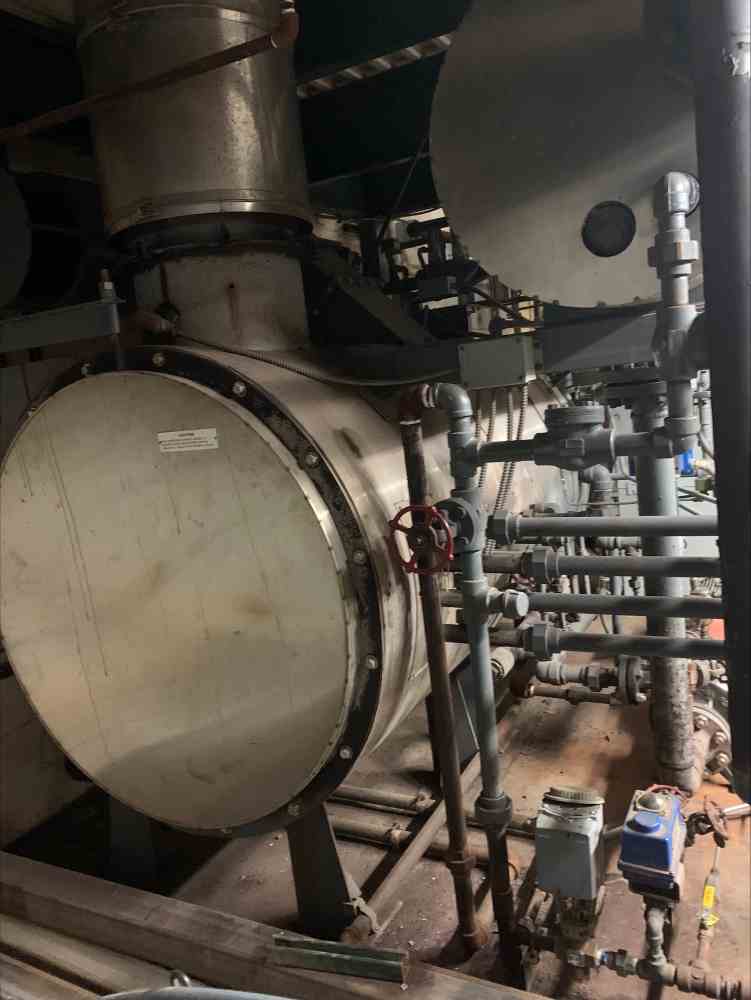

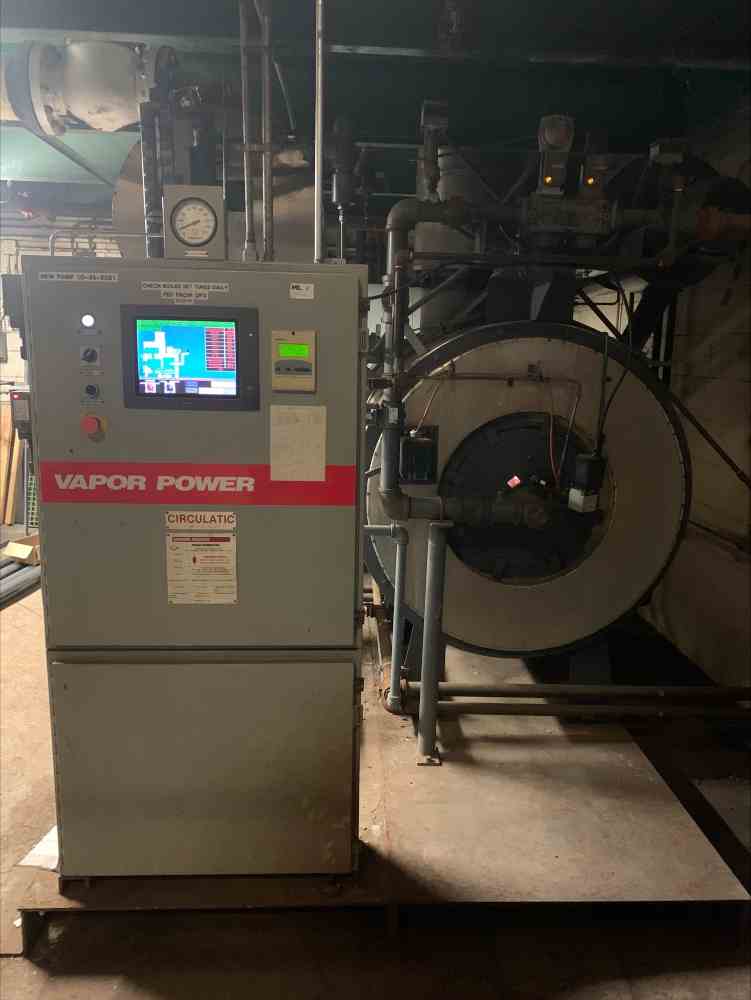

Circulatic Vapor Power Steam Generator With 517 Gallon Stainless Steel Tank, 2017

$64,900.00

This product is no longer available. For additional information, please fill out the form below.

-B.H.P: 200
-Max. Working Press: 150 PSI.
-Main Power Supply: 480/3/60
-Control Power Supply: 120/1/60
-Type Of Fuel: Natural Gas
-Heating Surface: 322 SQ. FT.
-Min. Circuit Ampacity: 31 FLA
-Pilot Manif. Gas Press: 4 In. WC

Main Manif. Gas Press.
-Min: 1 In. WC
-Max: 11 In. WC

Input Rates
-Minimum Gas/Oil: 1047 SCFH
-Maximum Gas/Oil: 8375 SCFH

– Equivalent Evaporation PPH From & at 212F: 6,900
– Thermal Capacity BTU’s/hour x 1000: 6,700
– Design Pressure psig: 15-530

Approximate Fuel Consumption
– Oil GPH: 58.7
– IMP Gal.: 48.9
– Gas CFH: 8,375

Included:

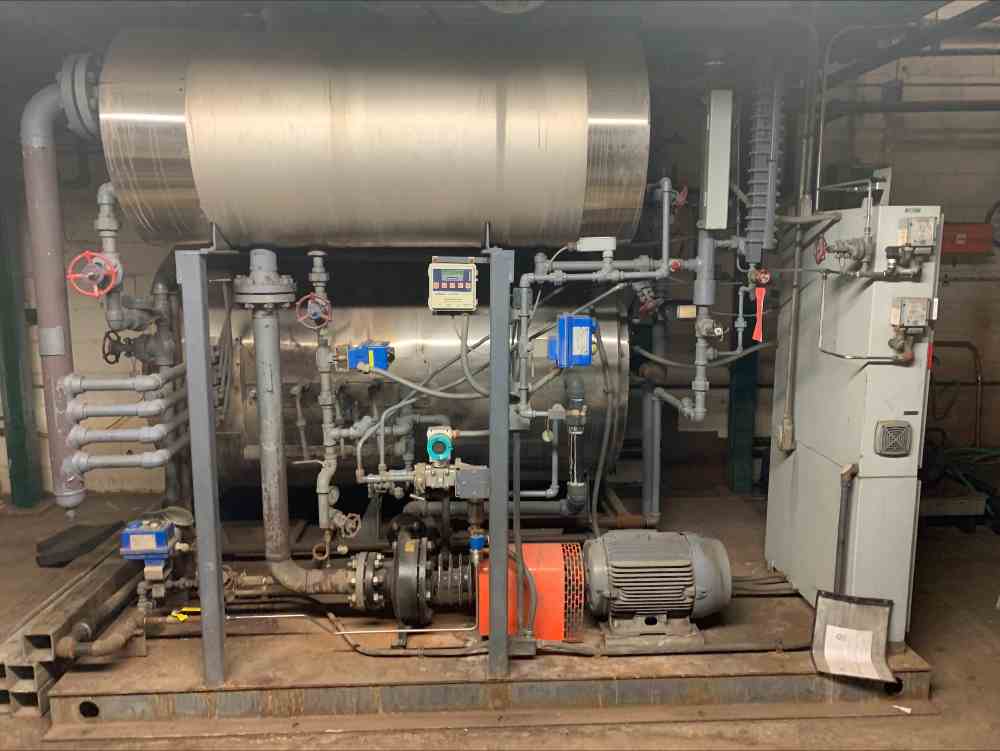

-517 Gallon Stainless Steel Horizontal Tank
-46″ Diameter x 72″ High
-Constructed PF: 3/16″ 304 Stainless
