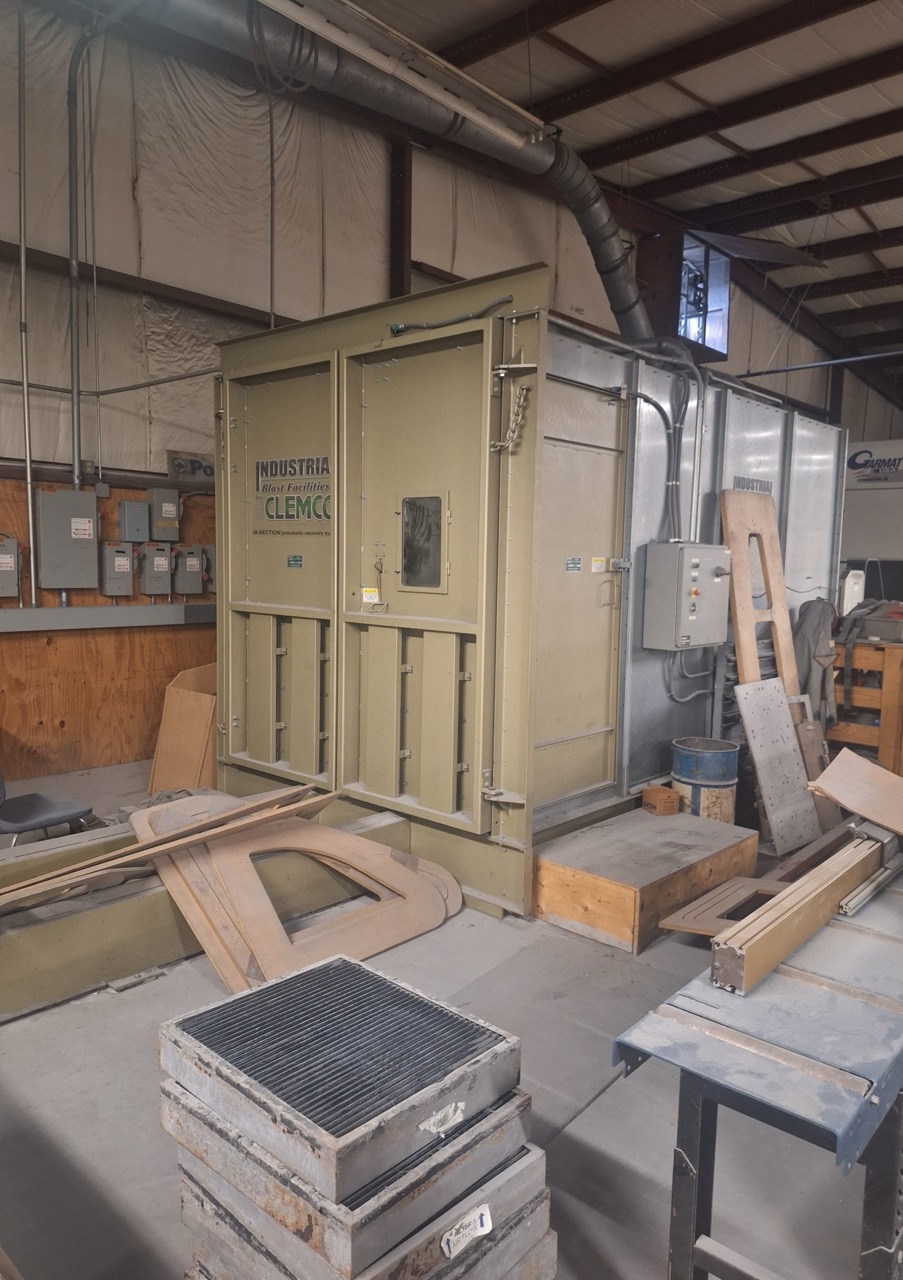

Clemco 7’W x 8’H x 14’L Abrasive Blast Room w/ Media Recovery & Dust Collector, 2015

Manufacturer: Clemco Industries Corp.
Type: Enclosed abrasive blast room system
Blast Room Size: Approx. 7′ W × 8′ H × 14′ L
Track Extension: 10′
Work Doors: Double work doors with viewing window
Turntable: 500 lb capacity, 48″ diameter
Media Recovery: M-section floor recovery system with rubber-lined bottom and tracks
Reclaim System: 1,200 CFM
Storage Hopper: 6 cu. ft.
Blast Machine: 6 cu. ft.

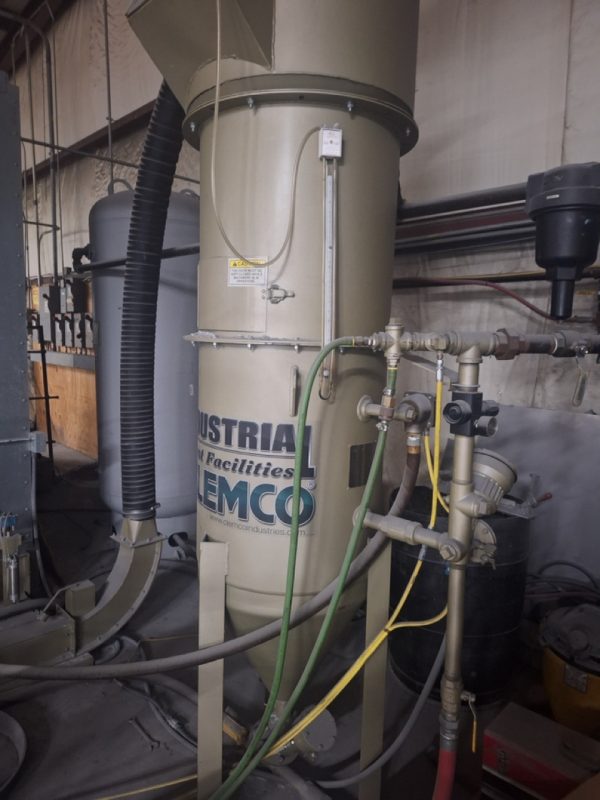

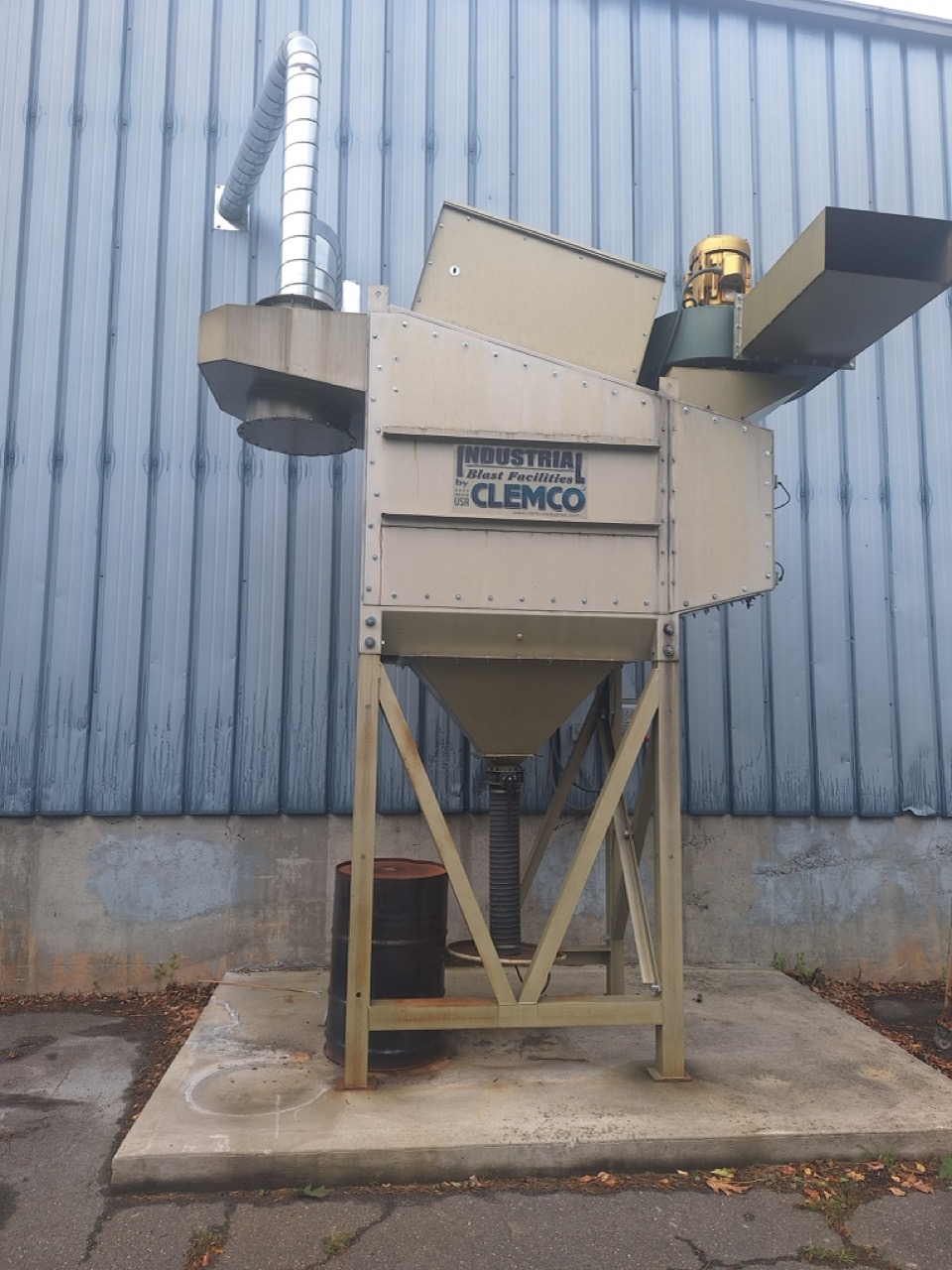

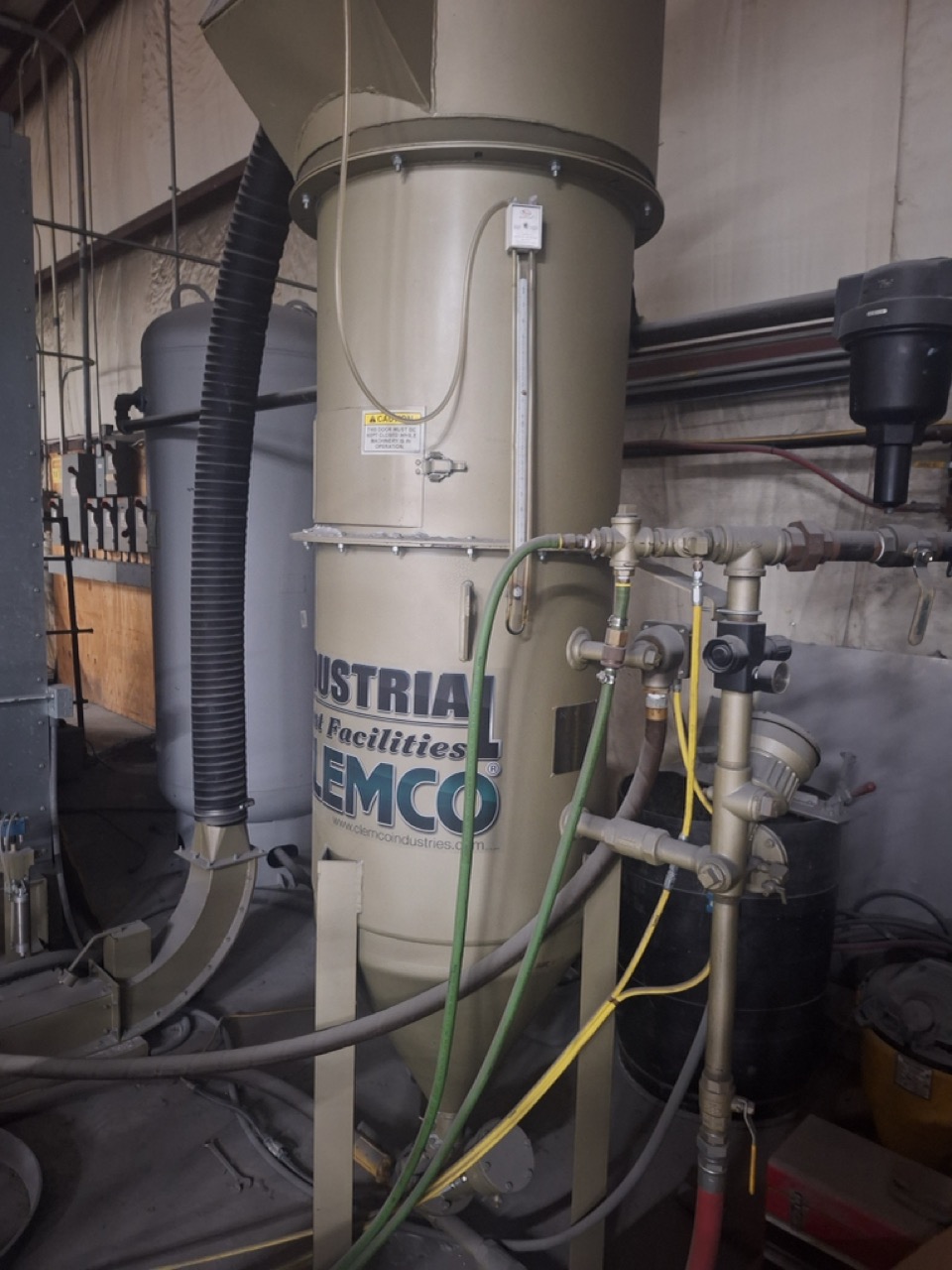

Dust Collector: Clemco CDF-4
Dust Collector Exhaust Motor: 15 HP
System Air Volume: 4,560 CFM
Ventilation: 60 FPM
Electrical: 460V / 3-Phase / 60 Hz
Full Load Amps: 55 FLA
Static Pressure: 12″ W.G.
Control Panel: Main control panel with transition control panel
Additional Features: Air inlet filters, reclaim access door, abrasive inlet, recovery transition, explosion venting, rigid ducting and dampers
