Complete Beverage Canning line with Ska Fab Depalletizer, Palmer Canner 12-1, 2015 – Equipped with Axon Sleever and Shrink Tunnel, Eastey Sleeve Wrapper and Shrink Tunnel, Dakota Water RO System, 3,000 Gallon Poly Tank, Pro-Refrigeration Glycol Chilling Unit, 30 BBL Tank, 40 BBL Tank, 60 BBL Tank

Used Complete Beverage Canning line with Ska Fab Depalletizer, Palmer Canner 12-1, 2015 – Equipped with Axon Sleever and Shrink Tunnel, Eastey Sleeve Wrapper and Shrink Tunnel, Dakota Water RO System, 3,000 Gallon Poly Tank, Pro-Refrigeration Glycol Chilling Unit, 30 BBL Tank, 40 BBL Tank, 60 BBL Tank:

Foot print of the line is currently 30’ x 60’ with 18’ ceilings (including 4-tanks).

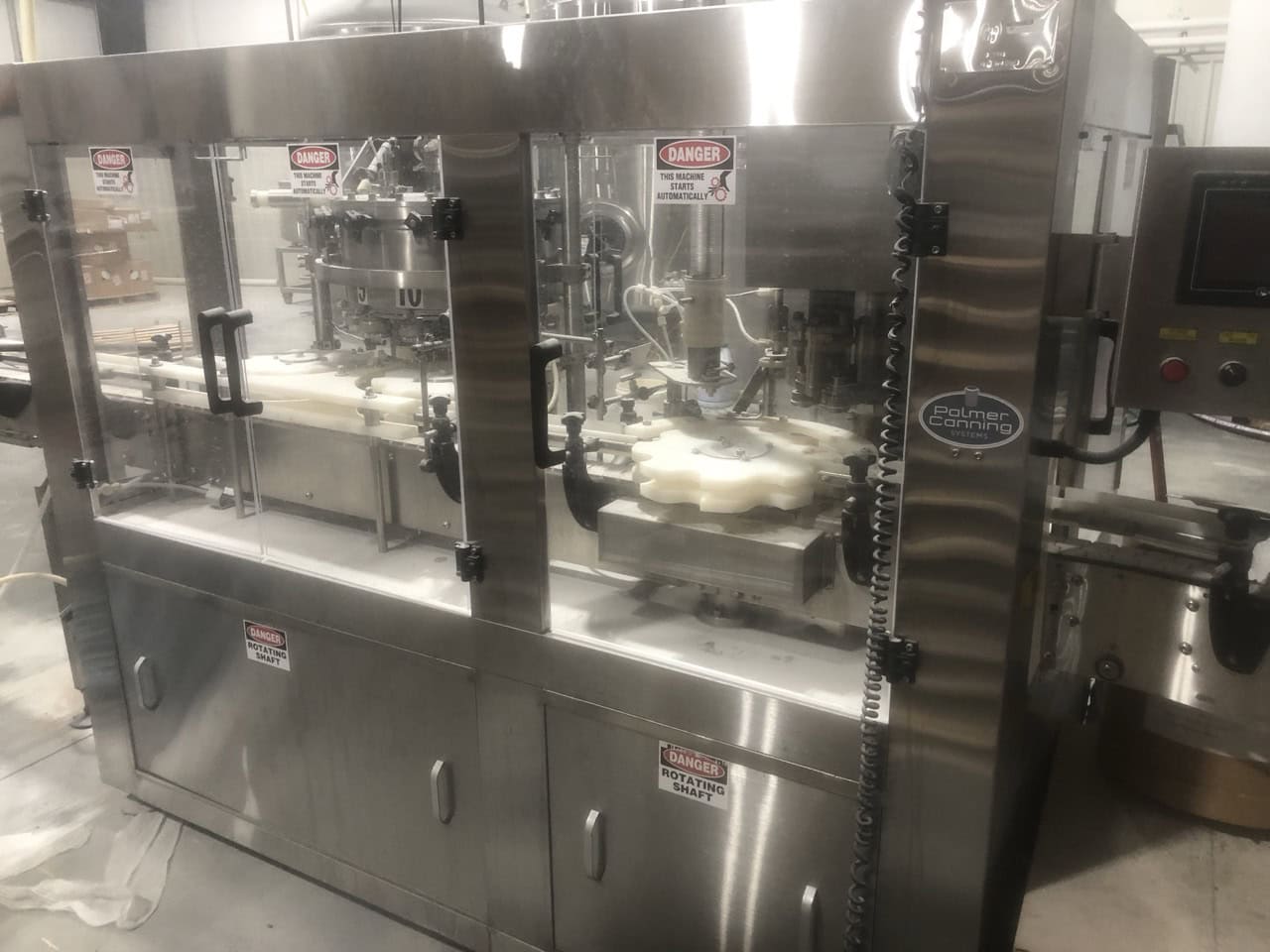

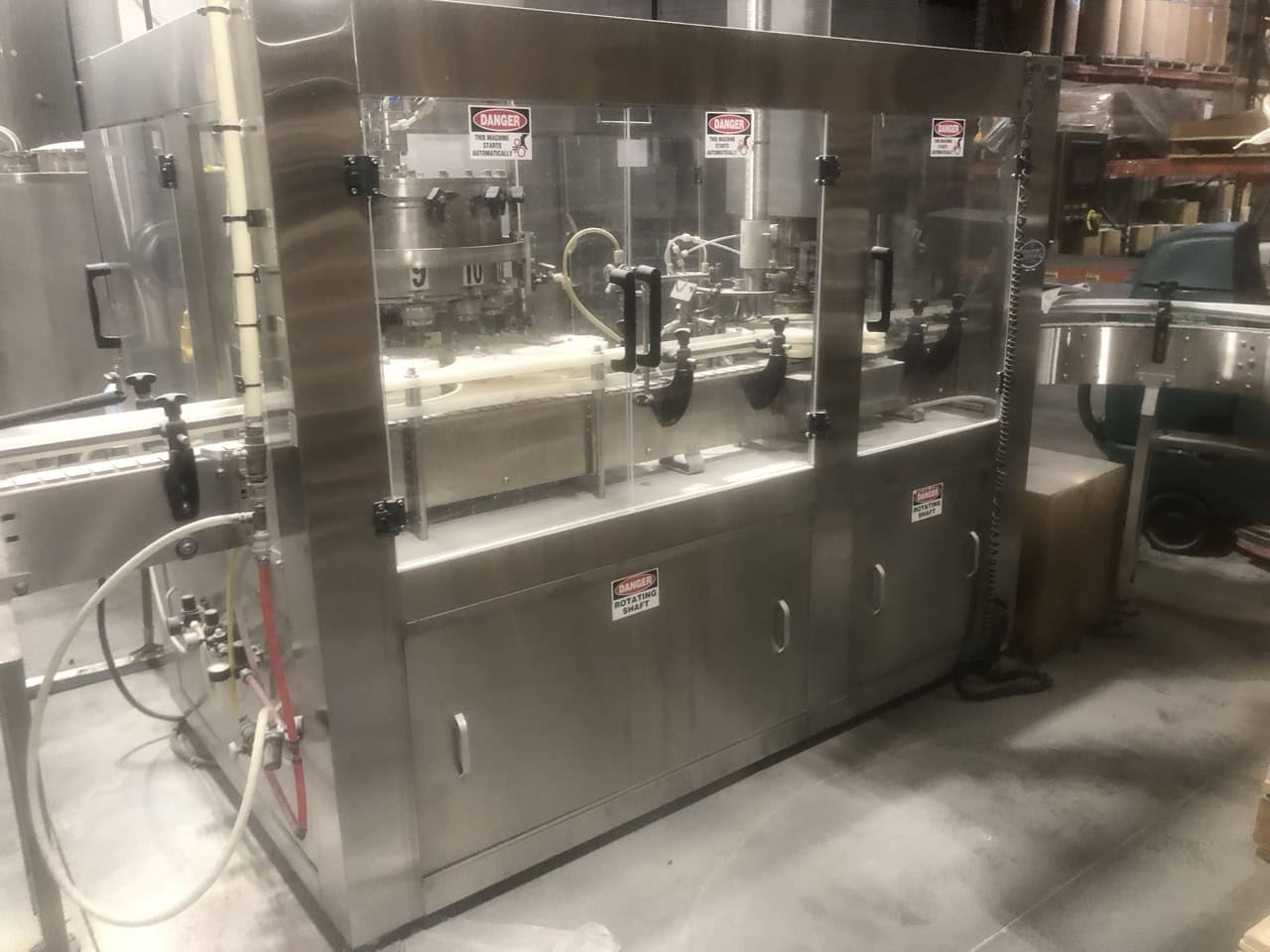

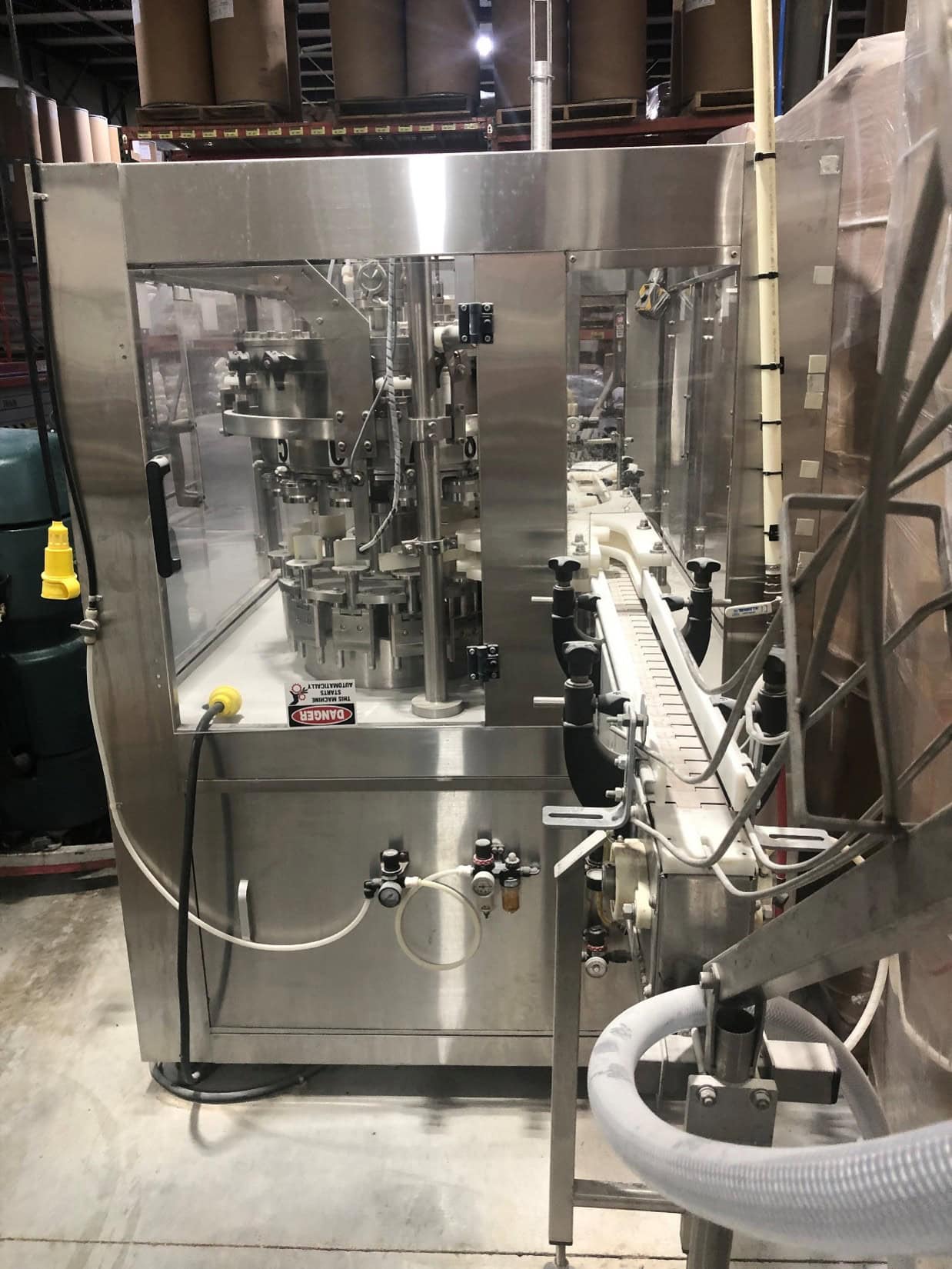

Palmer Gen1 12-1 Canning Line, previously running a RTD carbonated nutritional supplement.

– System Type: Continuous Canning Fill & Seal Line
– Output Capacity: 55 cans per minute
– Optimized for 16 oz standard cans; 12 oz standard and 12 oz sleek compatibility (comes with change over parts)

Line Configuration:
– Filler: Palmer Gen1 12-1 Canning Line
– Seamer: Built in post-fill seamer
– Lid Delivery: Gravity index feeder sensor driven

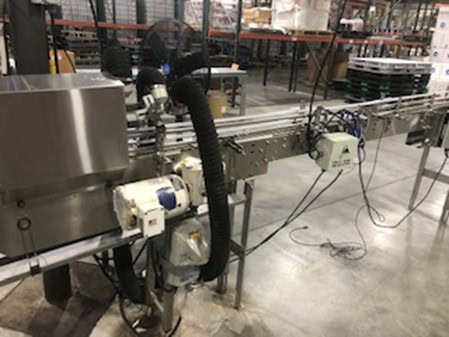

– Rinse Station: Burst rinse with air dry (post-seamer)
– Material Flow: Linear feed with sensor-triggered indexing

Automation:
-PLC-controlled via integrated HMI touchscreen
-Manual override and e-stop integrated
-Photo-eye and sensor logic used throughout line

Construction:
-304 Stainless Steel frame
-Lexan safety guards and splash panels
-Modular expansion-ready structure

Utility Requirements:
-Power: 208V 3-phase, 60Hz, 20A
-Air: 6 SCFM @ 80 PSI
-CO₂: 2.5 SCFM @ 20 PSI
-Water: < 1 GPM

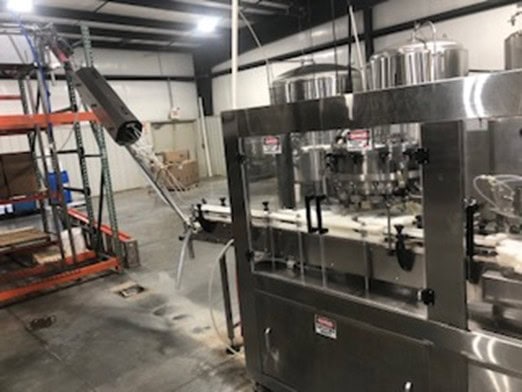

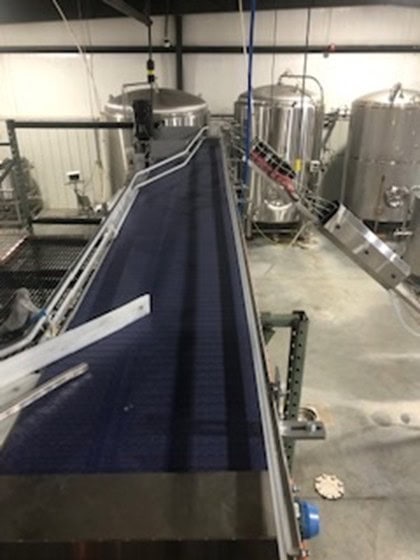

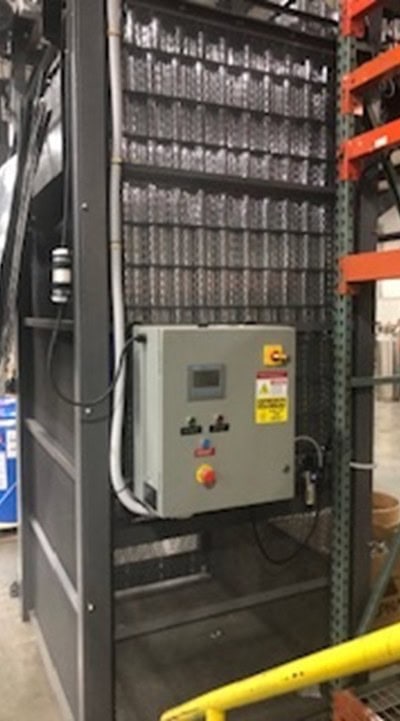

Ska Fab Can-i-bus Depalletizer with gravity fed twist & rinse to Palmer canner

Depalletizer Features:
– Automatic lift & sweep system
– Accepts 44×56" pallets (full height)
– Slip-sheet removal: Automatic by layer
– Speed: Up to 80 CPM (line rate match)
– Discharge Conveyor: 6"

Rinser Elevator Features:
– Internal twist rinse chute with spray manifold
– S-curve drop design for clean entry to conveyor
– Stainless steel housing, vertical structure
– Purpose: Feeds cans from pallet to Axon Sleever automatically while rinsing interiors pre-fill

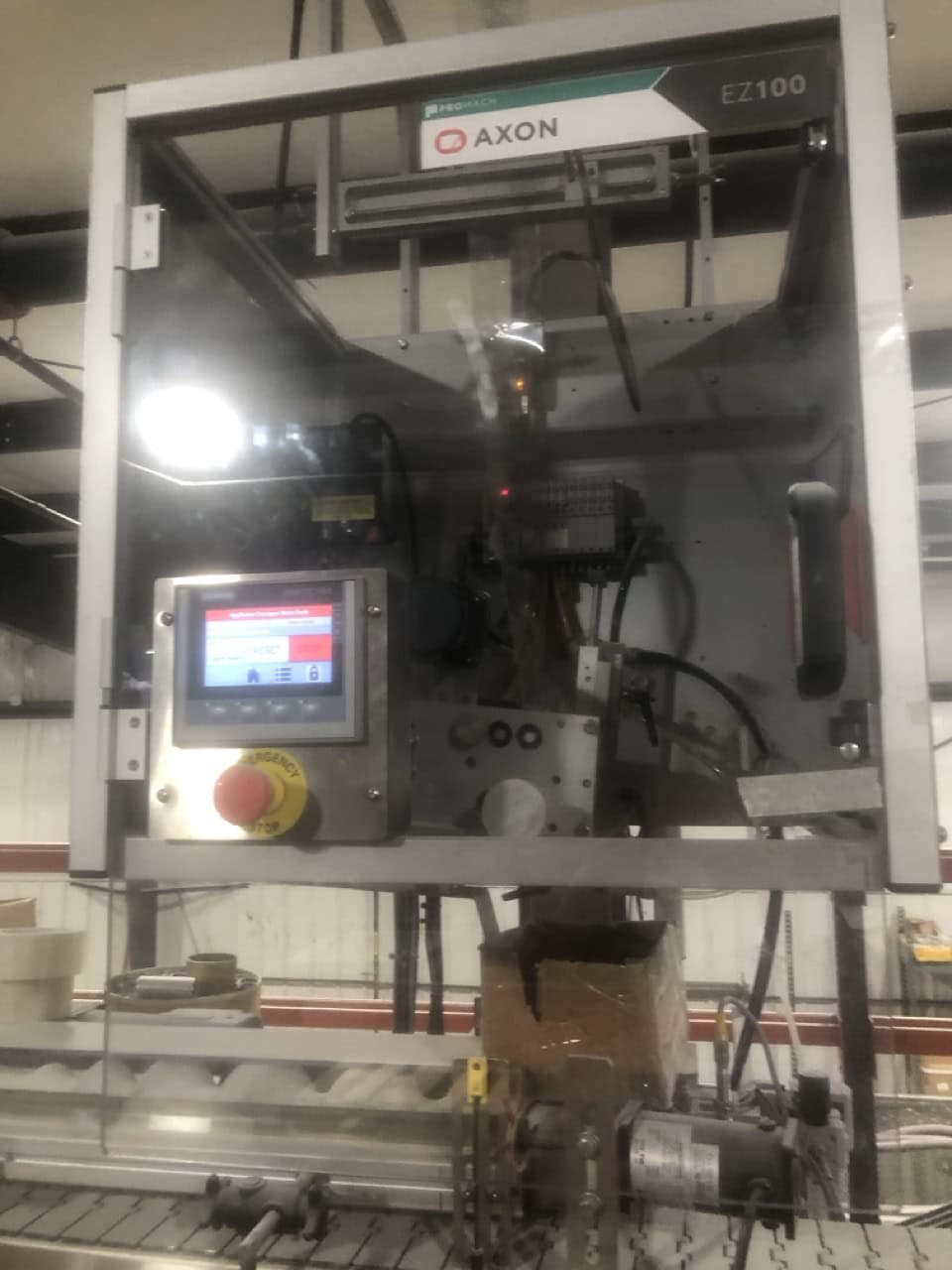

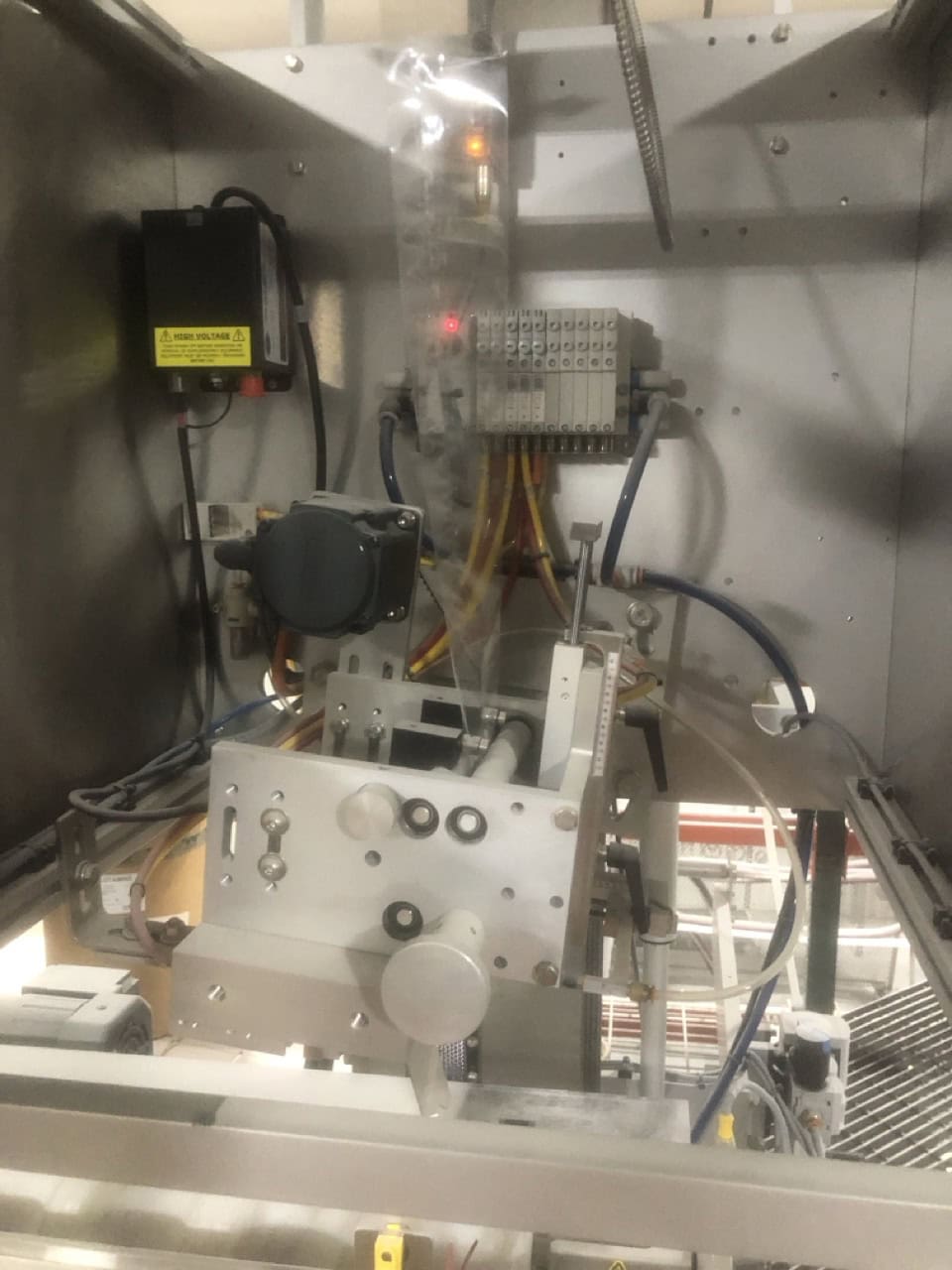

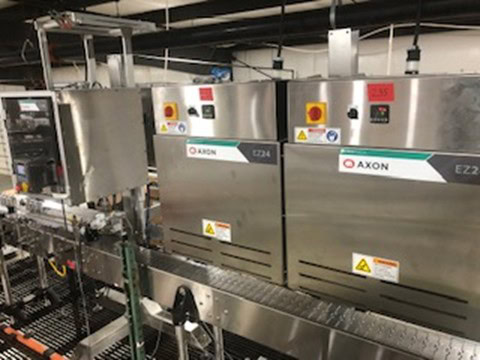

Axon Sleever EZ-100 Siemens Sleeve Applicator with 2 EZ-48-SRB Shrink Tunnels

Speed:
– Dispensing: Up to 60 cans/min
– Electrical: 220V
– Heater 1 & Heater 2 both 480V 3-Ph

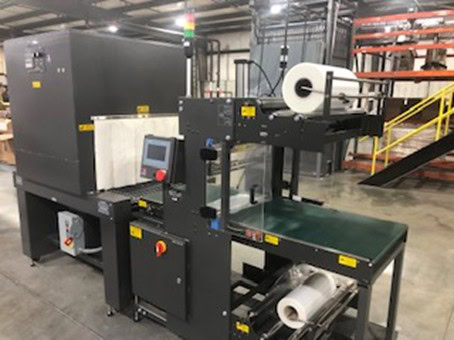

Eastey Wrapper (EB25-AV1) – post canning to wrap cardboard trays (12-packs)
– Electrical: 20A 250V
– Heater 30A 480 3-Ph

Pro-Refrigeration Glycol Chilling Unit – PM112F3R4100-A-VAC
Electrical: 75A 120V

Dakota Water RO System

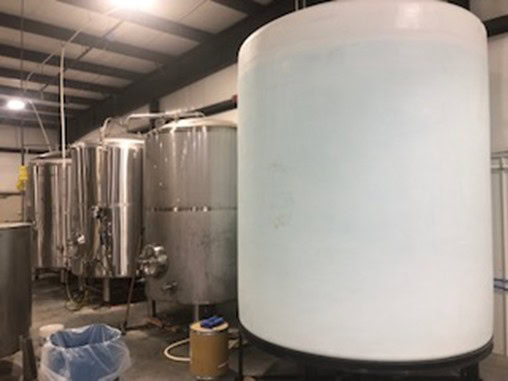

Includes (4) tanks:
3,000 Gallon Poly Tank

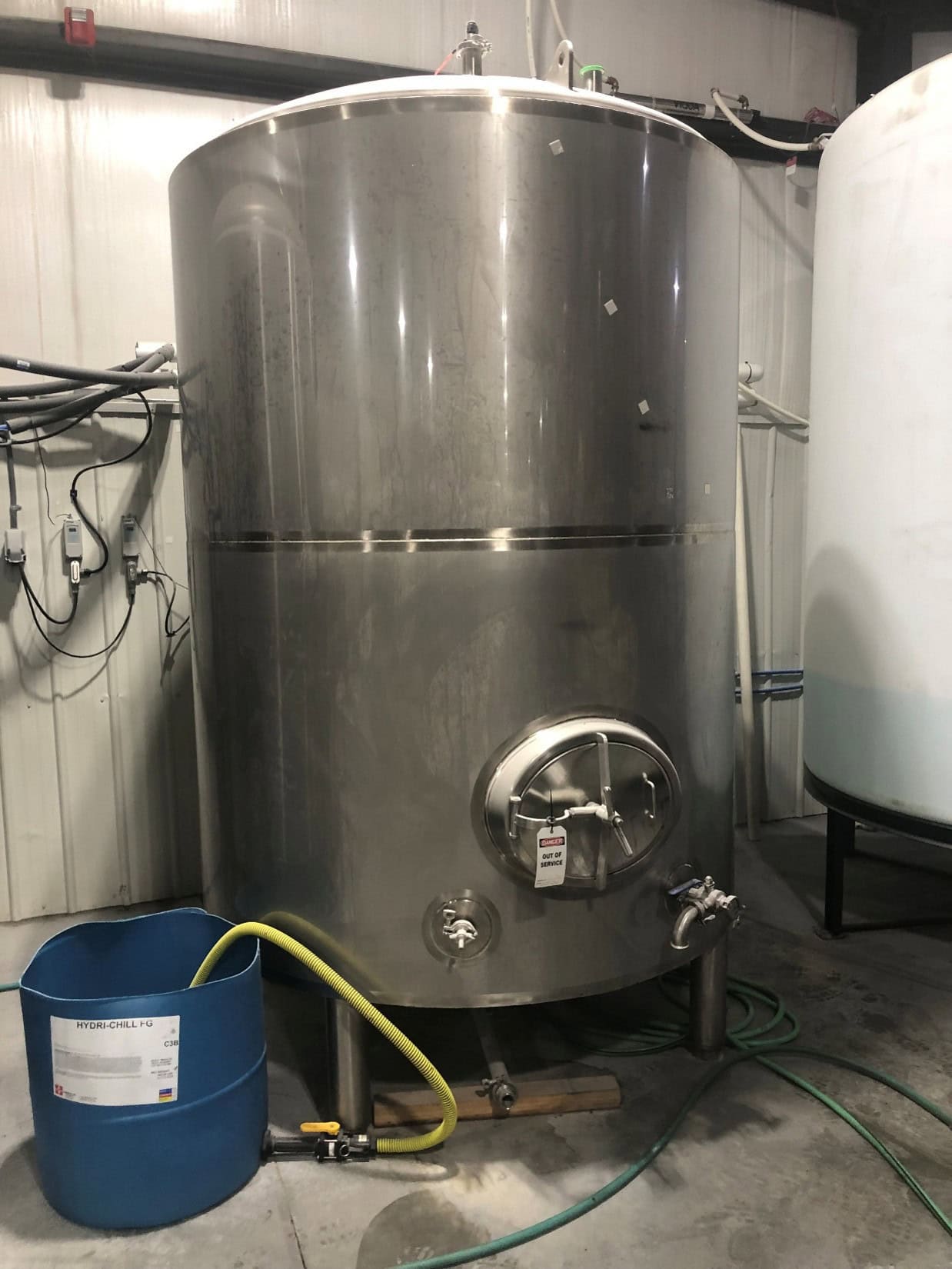

30 BBL Tank
40 BBL Tank

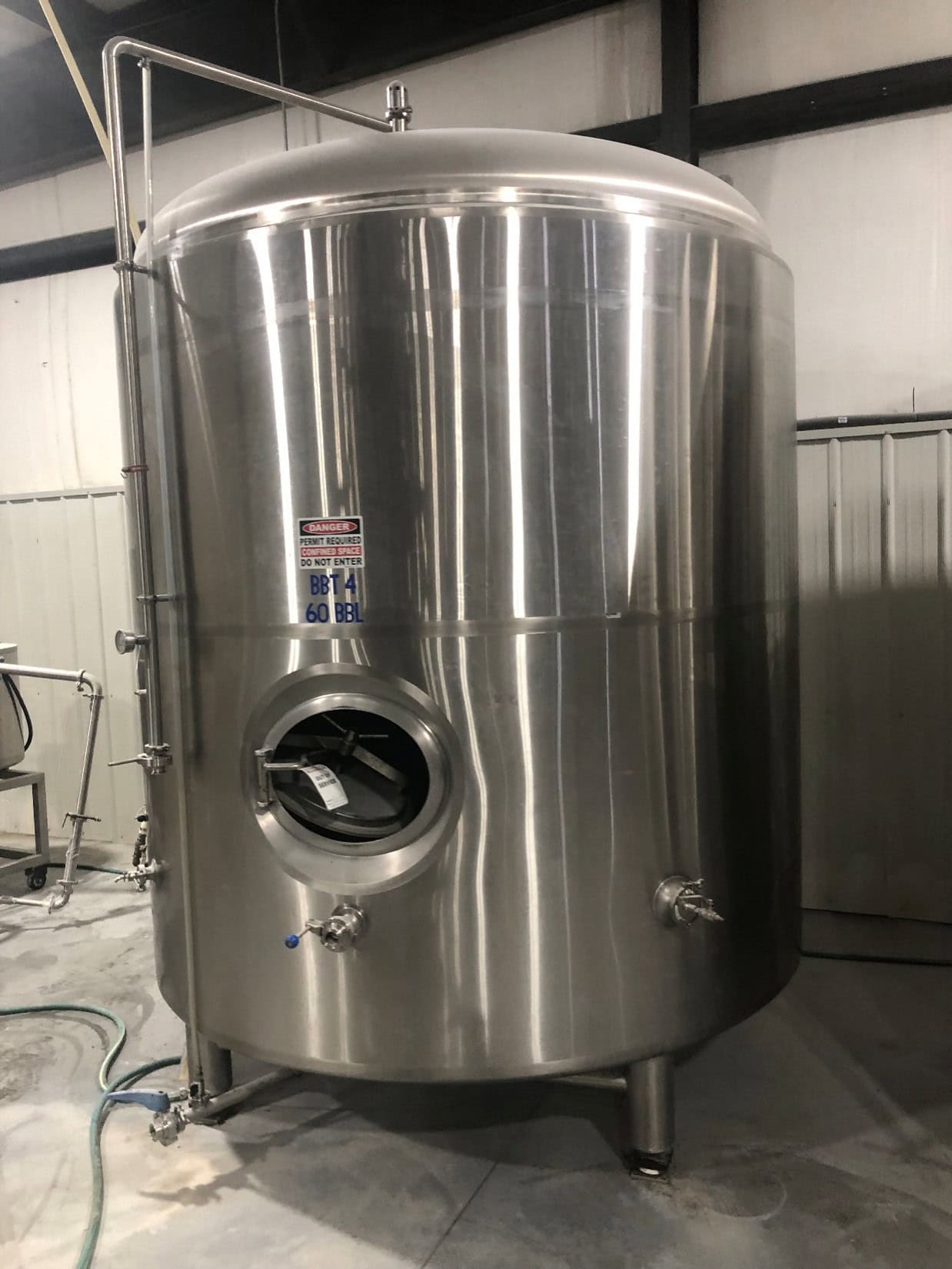

60 BBL Tank
