Complete Cannabis/Hemp Extraction Lab- Cup 15, Apeks Short Path, Rotovap, Chiller, Oven, and Pump


Request a Quote to Instantly See Pricing

Machine Type:
Lab Equipment
Complete Cannabis/Hemp Extraction Lab Cup 15, Apeks Short Path, Rotovap, Chiller, Oven, and Pump
Apeks Supercritical, Across International, Welch, Delta

Across International E44 Elite Vacuum Oven, 4.4 Cu Ft.
Electrical Requirements: 208-240VAC // 60Hz
Phase: Single // 2500 Watts
Chamber Dimensions: 22 x 16 x 22″ (WxDxH)
Unit Dimensions: 30 x 26 x 34″ (WxDxH)
Temp Range: Ambient Temp to 570°F
Temp Uniformity: +/- 2°F
Temp Controller Precision: 0.1°F
Timer Range: 1 to 9999 minutes
Racks Included: 2
Maximum Rack Capacity: 9 (Height Between Racks is 2 Inches)
Exhaust Outlet Diameter: 2 Inches (One Outlet in the Back)

Welch CRVPro Rotary Vane Vacuum Pump UL
Voltage: 115V
Ultimate Pressure: Torr (mbar) 3×10^-4 (2×10^-4)
KF 25 Connection Flange
Oil Capacity: 2400mL
Free Air Displacement: @ 50Hz, m^3/hr (L/min) – 18.3 (305)

Across International SE130 RotoVap, 2018
Material: High Borosilicate Glass 3.3
Electrical: 220V 50/60Hz
Phase: Single, 17.3A
Motor: 3800watts (Rotation Motor: 300 Watts)
Evaporating Flask
Capacity: 2.6 Gallon (0.35 cu. ft.)
Max Load: Not To Exceed 60% Of Flask’s Capacity
Sealing Flange: 4.9″ diameter
Rotation Speed: 10 to 130rpm
Evaporating Speed: 0.75 gallon/hour (Water) // 1.5 Gallon/Hour (Alcohol)
Glassware: Main + Auxiliary Triple-Circulating Cold Traps, Vertical Chilling Fluid Connection: 3/8″ hose barb x 4 (2 on main + 2 on auxiliary)
Condensing Surface
Main Condenser: 3,900cm^3 or 4.2 sq. ft.
Water Bath
Temp Range: Ambient to 210°F
Temp Controller: Digital
Dimensions: 12.5″ Diameter x 8.7″ Depth x 11″ Height
Material: Stainless Steel
Media: Distilled Water Only
Max Water Level: Not To Exceed 1″ From The Top Rim Of Bath
Number of Heaters: 2
Drain Point: 1
Exterior Liner: Rubber
Lifting: Motorized
Max Lifting Distance: 4 inches
Ultimate Vacuum Level: < 3 torrs
Vacuum Sealing: PTFE + Viton Gaskets
Vacuum Connection: 3/8" Hose Barn x 1 On Main Condenser
Swivel Caster: 4, Built-In with Locks

Apeks Supercritical Short Path
Processing Capacity: 18L
Four Final Vessels
Vacuum Controls for Temp & PSI
Cold Trap Included
Agitation Stir Bar Included
PolyScience 7L Refrigerated Circulator (-20C, Standard Digital, 120V)
Power: 120V/60Hz/1Ph/12 Amps
Working Temp: -4°F to 338°F
Reservoir Size: 7L

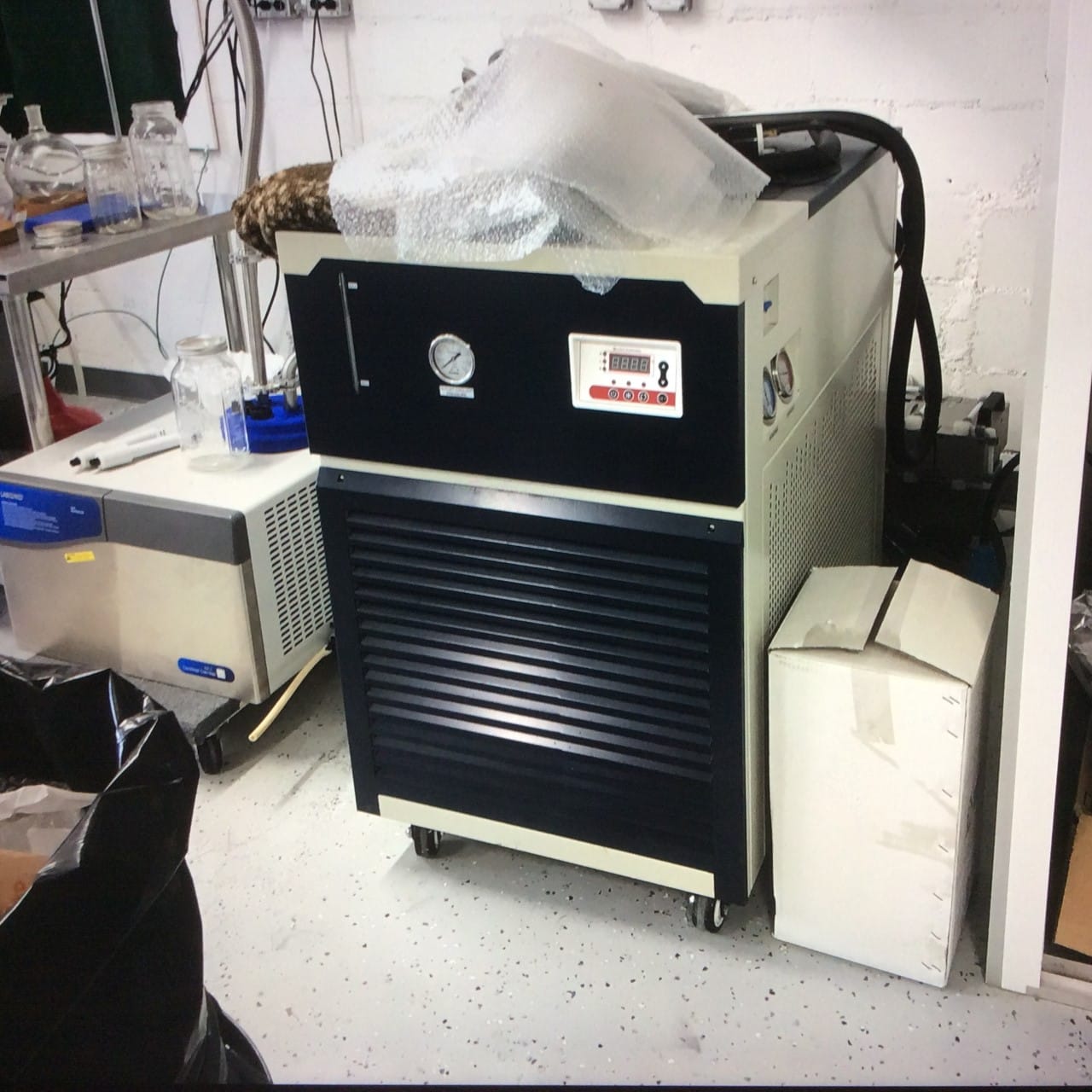

Recirculating Chiller, C30-40
Power: 220V, 60Hz, Ph 1, 18Amps, 3960 Watts
Temp Range: Ambient to 23°F
Capacity: 40 Liters
Pumping Speed: 30L/Min or 8 Gallons/Min
Reservoir: 23 x 15 x 7" (WxDxH)
Temp Controller: Digital Microprocessor PID Controlled
Temp Sensor Type: Pt100
Temp Accuracy: +/-2°C
Cooling Capacity: 32F 5000W // 14F 3000W // 4F 1800W // -22F 1000W
Built-In Swivel Caster: Yes
Unit Dimensions: 42 x 25 x 42" (DxWxH)
Suggested Rotary Evaporator: Ai Solvent Vap 50L

Delta Cup 15 w/ Fan & Ethanol Alarm System
Max Speed: 1200rpm
Basket Capacity: 8lbs. to 10lbs. (Depending on Mill Size)
Max Temp: 140°F
Min Temp: -40°F
Max Pressure: 5psi (Not Recommended)
Vacuum: (Not Recommended)
Control System: Siemens Programmable Logic Control
Speed Set Range: 50-1200rpm
Speed Set Step: 10rpm
Timer Set Range: 1-99 Minutes and Hold Position
Timer Set Step: 1 Minute
Motor: 2HP Exp. Baldor Motor Hazloc C1D2 Certified
Supply Values: 230V // 60Hz – NEMA L6-30R Plug
Power Consumption: 2500W
Plant Material Per Batch: 10-15 Lbs.
Average Run Time: 10-15 mins (Full Spectrum Oil)
Alcohol Requirement Per Run: 13-15 Gallons (Wash Tincture can be Used Twice)

Lab Society 20L Professional Package Contains:
[LS-SPK-20FB-D] G2 Executive Short Path Distillation Kit (20L Full Bore Dual)
[HU-KISS-6] Huber KISS Circulator
Temp Range: -25 to 200C
Heating Capacity: 1.5 kW
Pressure Pump Max: 14 L/m
Power Supply: 110V // 1Ph // 50/60Hz // 18.2A
Dimensions: 8.27" x 17.75" x 21.5"
[LS-PMK-S] Vacuum Pump Manifold Kit
[CS-MAX-105] MAXTRAP Vacuum Col Trap (-105C)
[KF25-INAV-WB] KF(NW) Inline Manual Valve (KF25 (NW))
[KF25-FN10] Stainless Steel Straight Vacuum Tube (10 in., KF25 (NW25))
[KF25-FN20] Stainless Steel Straight Vacuum Tube (20in., KF25 (NW25))
[DY-KF25FX-250] Stainless Steel Flexible Hose Bellow, 25cm (0.8ft)
[DY-KF25FX-500] Stainless Steel Flexible Hose Bellow, 50cm (1.6ft.)
[DY-KF25E-90A] Stainless Steel Vacuum Elbow, 90 Degrees (KF25 (NW25))
[SIS-KF25-100CW] Aluminum Wing Nut Vacuum Clamp (KF25 (NW))
5 x Aluminum Vacuum Clamp, Size KF25
[SIS-KF25-100SRV] KF(NW) Stainless Steel Centering Ring With Viton ORing (KF25 (NW))
Pair With Wing-Nut Clamp (SIS-KF25-100CW)
[3161-01] Welch CRVpro Rotary Vane Vacuum Pump (Pro 16, 115V)
[LS-PEF-25] Premium Exhaust Filter
KF 25 Flange Connection, Can Handle Up To 40 cfm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
