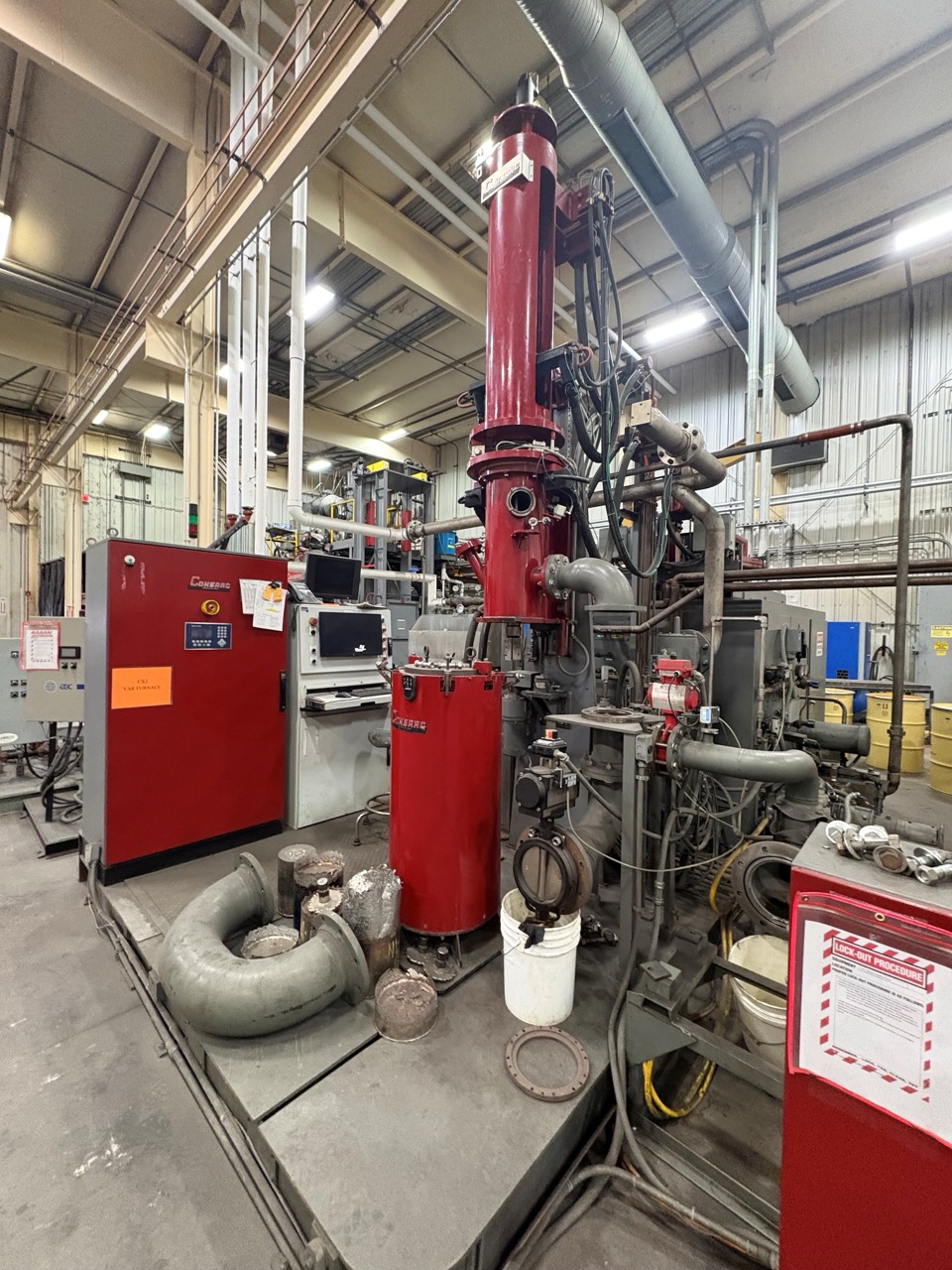

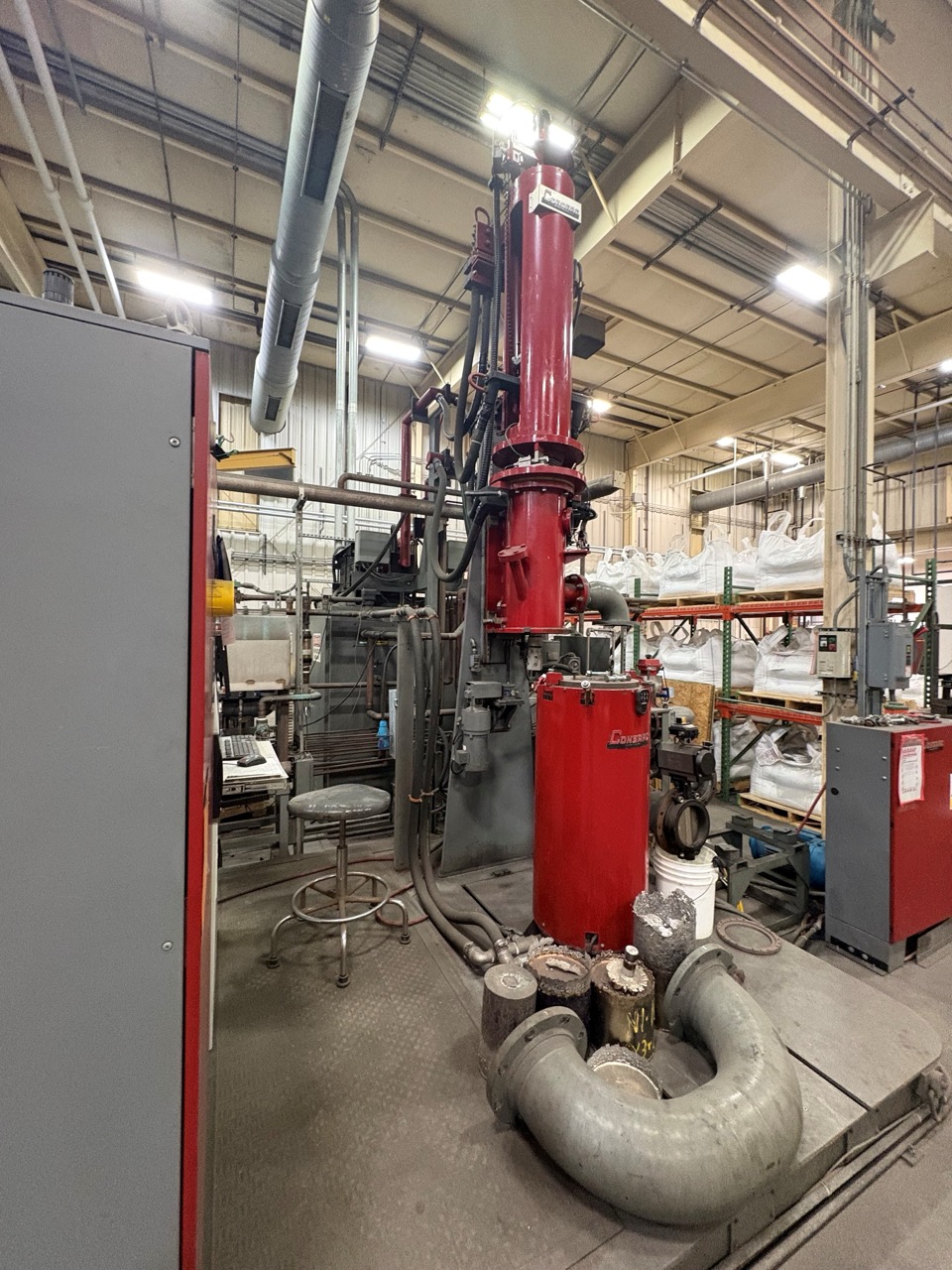

Consarc 450 Lb. ESR/VAR Vacuum Remelt Ingot Furnace, 2010 – 8″ Max Ingot Diameter, 450 Lb. Capacity, 480V

Minimum Ingot Diameter: 2.75″
Maximum Ingot Diameter: 8″
Maximum Ingot Length: 29″
Maximum Ingot Weight: 450 Lbs.
Ingot Density: 0.22 Lbs./Cu. In.
Maximum Crucible Depth: 29.5″
Minimum Stub Length: 3″
Maximum Electrode Length: 50″
Maximum Electrode Diameter: 6″
Maximum Electrode Plus Stub Length: 52″
Maximum Ram Travel: 34.75″
Ram Low Speed: 4 IPM
Ram High Speed: 20 IPM
Incoming Power: 480V AC
VAR Output: 70V DC, 6,000 Amps
ESR Output: 51V Open Circuit, 5,000 Amps

Equipped With:

Vacuum Arc Remelting Capability
Electroslag Remelting Capability
Servo Motor Ram Drive
Ball Screw Ram Drive
Water-Cooled Electrode Suspension Ram

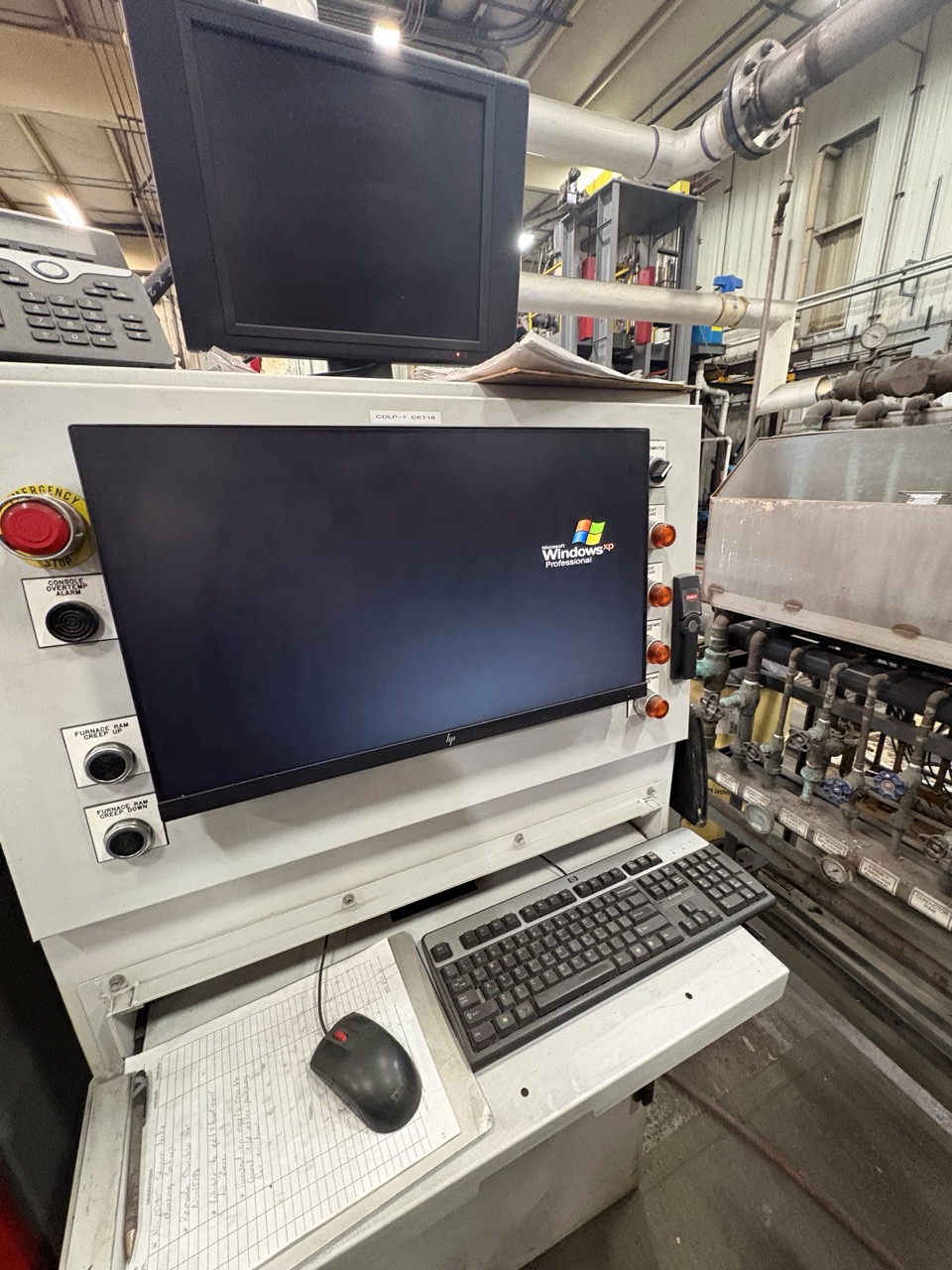

Camera Monitoring System
Load Beam System
Water-Cooled Power Leads
Closed-Loop DI Water Cooling System

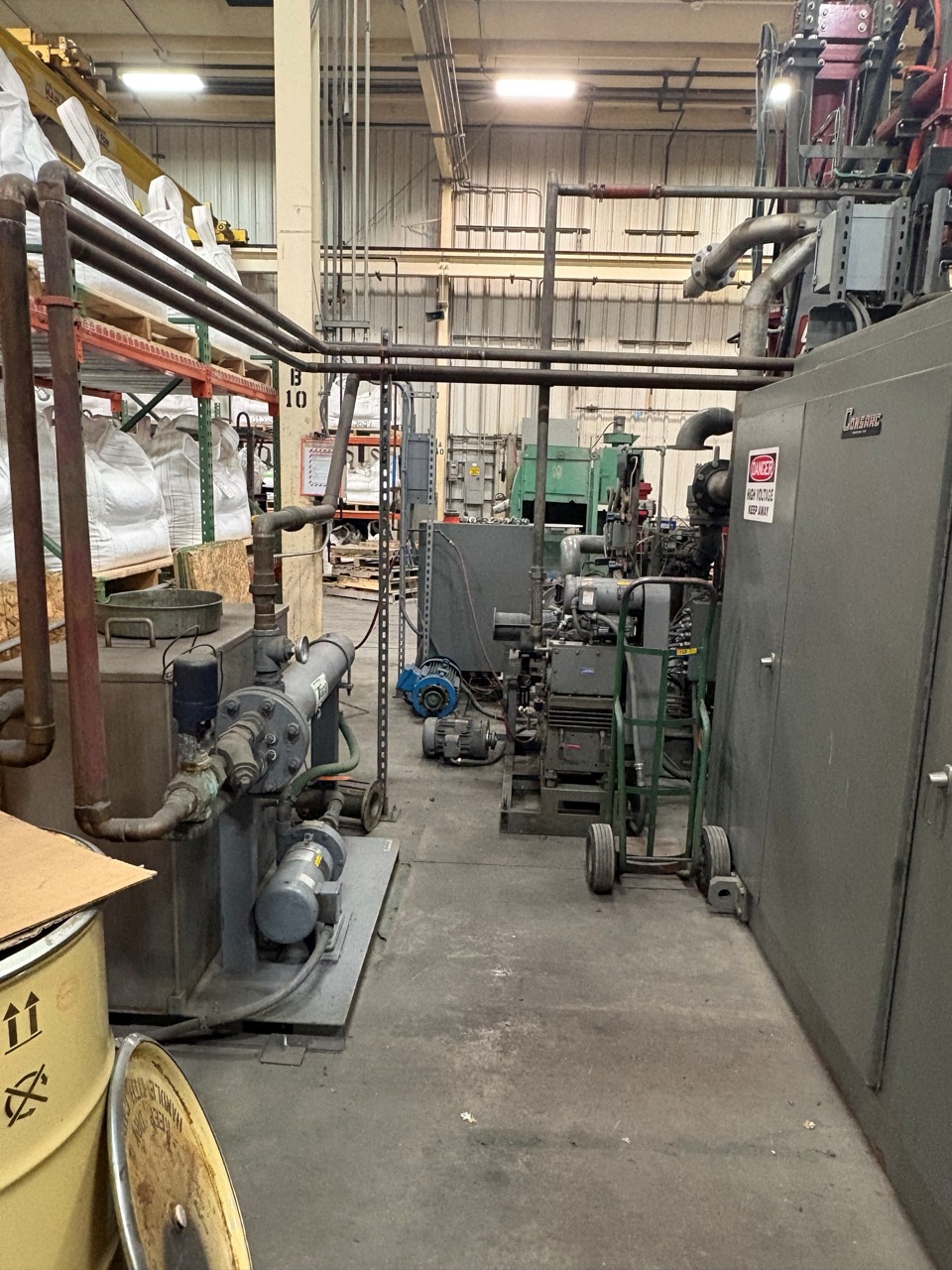

Auxiliary Cooling Water System
Water-Cooled Crucible Jacket
