CTM 360a Series Wrap Labeling System – Allen-Bradley Controls, Fully Operational, Ready to Run

Machine Overview

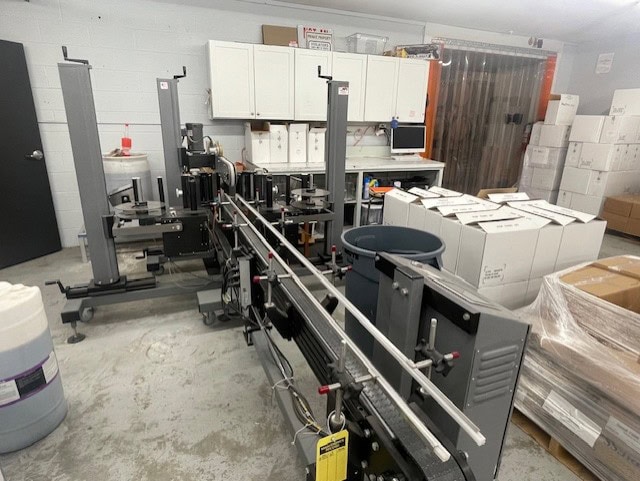

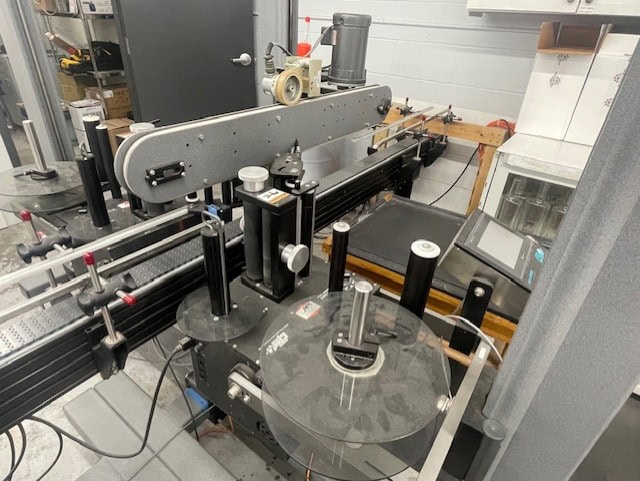

This is a fully integrated CTM 360a Series print-and-apply labeling system, equipped with a tamp or tamp-blow applicator, synchronized conveyor, and Allen-Bradley interface controls. The system is designed for inline labeling of cartons, bottles, or flat-sided containers at moderate to high speeds with accurate label placement. Unit is powered by a 115V single-phase input and features dual control zones via Weintek touchscreen and AB safety console.

Specifications & Features
-Label Application Mode: Tamp-Apply or Tamp-Blow (configurable)

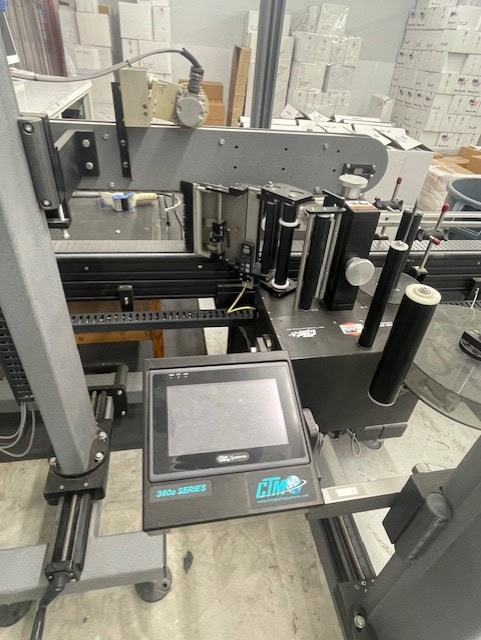

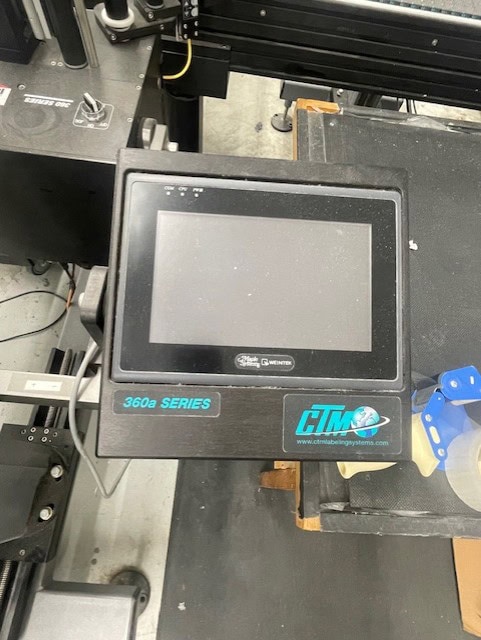

-Controller: Allen-Bradley HMI + Weintek touchscreen
-Label Roll Capacity: 12″ OD rolls (est.), 3″ core
-Web Width Capacity: Up to 6.5″ (standard for 360a)
-Placement Accuracy: ±1/32″ with sensor-driven indexing
-Throughput Capacity: 30–60 products/min (application dependent)
-Power Requirements: 115V, 5A, 50–60Hz

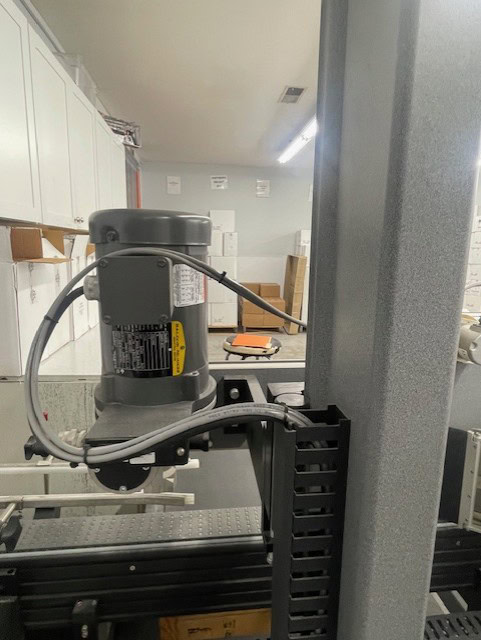

-Drive Configuration: Motorized conveyor with integrated label feed roll
-Construction Stainless + powder-coated steel frames
-Frame/Stand Info: R.L. Craig RLC4100-3-14 (adjustable mounting system)
-Safety Features: Emergency stop, guarded motion zones, lockout-capable
-Footprint (Est.): ~10 ft total line length including conveyors
