Daewoo Puma 12L-B CNC Lathe, 1997 – Tailstock, Chip Conveyor
$19,900.00
This product is no longer available. For additional information, please fill out the form below.

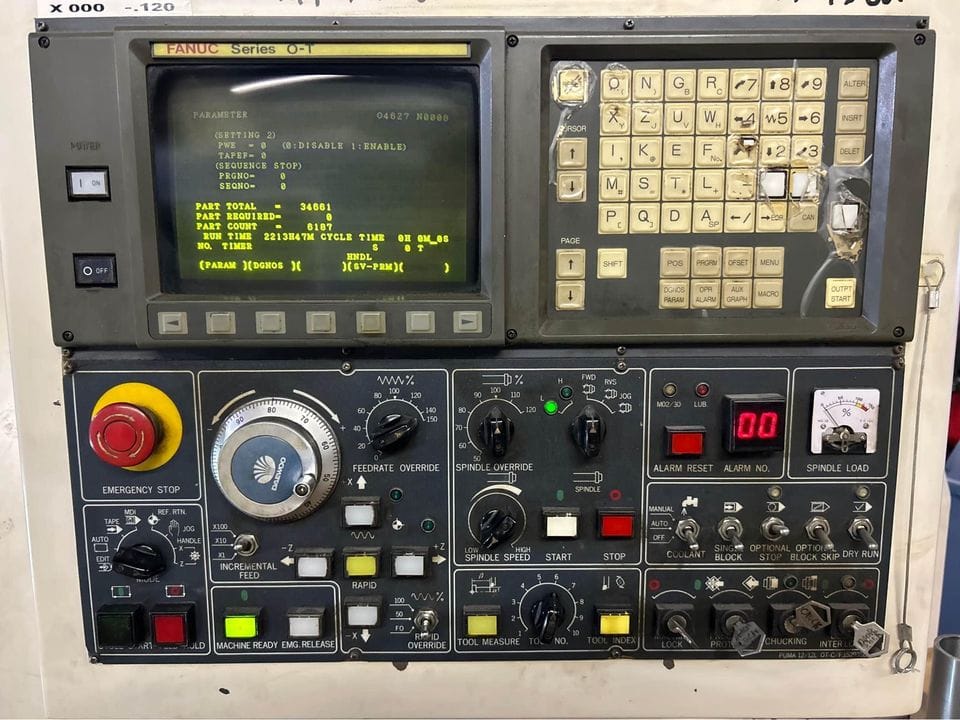

Type of CNC Control Fanuc OT
Chuck Size: 12 inches
Swing: 22.4 inches
Turning Diameter: 18.89 inches
Center Distance: 42.0 inches
Bar Capacity: 3.54 inches
Spindle Bore: 4.13 inches
X Axis Travel: 10.2 inches
Z Axis Travel: 41.3 inches
Rapid Traverse: (X/Z) 480 IPM/630 IPM
Spindle Speed (RPM): 2500
Main Motor: 30 HP
Turret Capacity: 12
Dimensions: 125″ X 82″ X 79″
Weight: 15500 pounds
Electrical: 220V 3 Phase 60HZ
Equipped With:
Tailstock
Chip Conveyor
