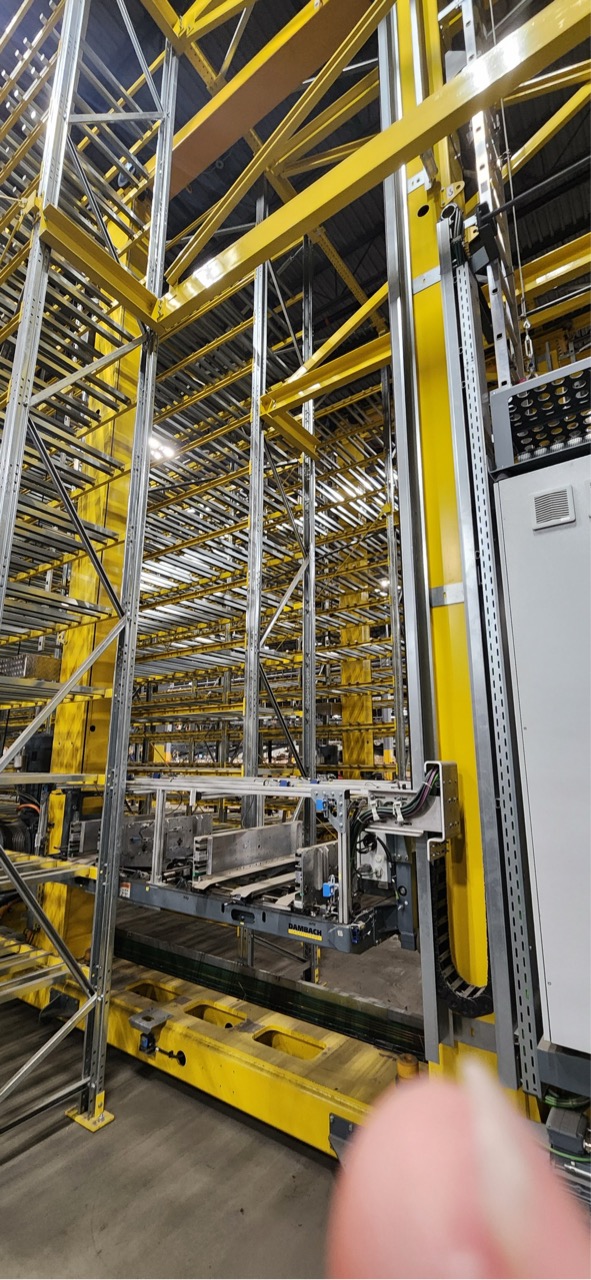

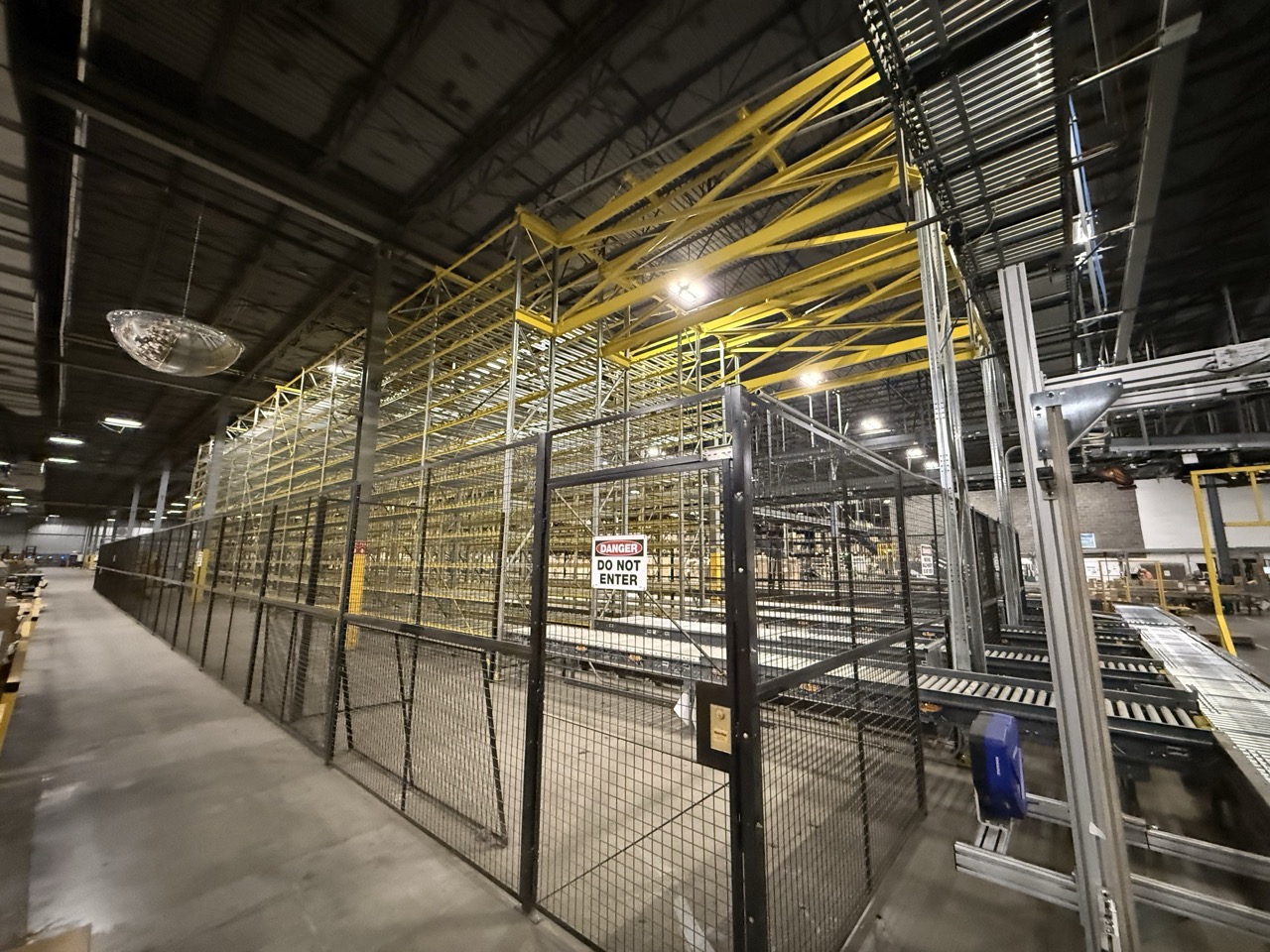

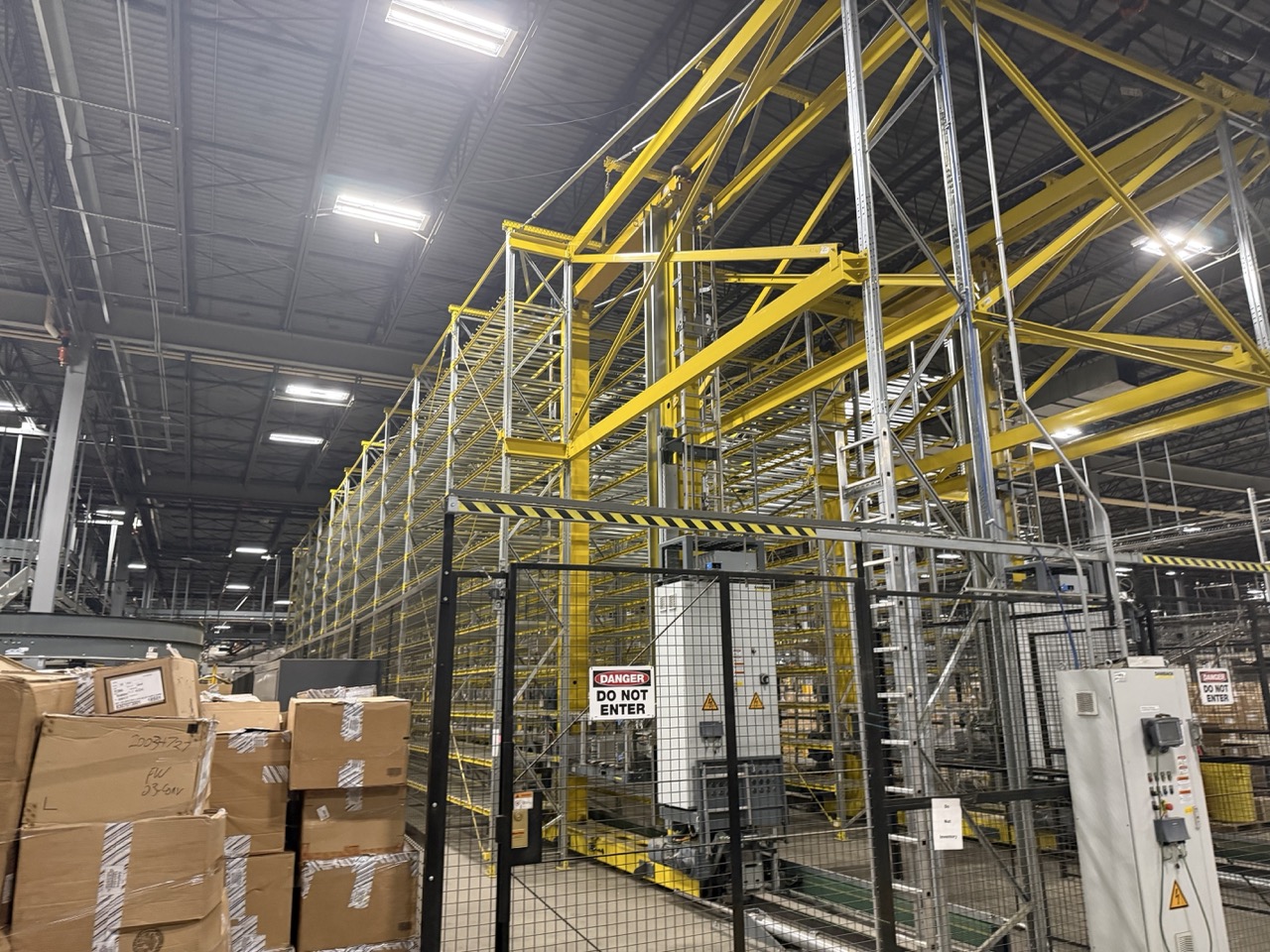

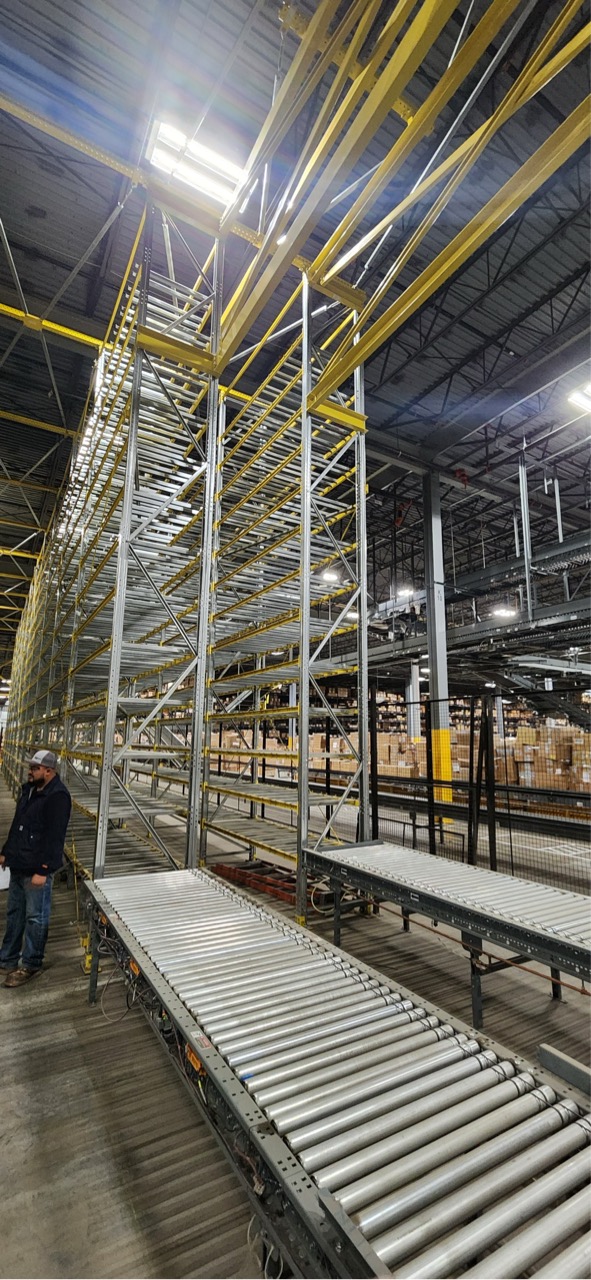

Dambach MINI-LOAD ZSA 20-20/8 Automated Storage & Retrieval Machine (ASRS) – 40 lb Capacity

Type: Automated Storage & Retrieval Machine (ASRS)

Configuration: Twin Mast Miniload Crane

Maximum Load Capacity: 40 lbs (18 kg)

Minimum Container Size:
10″ x 10″ x 4″
With Bulge: 11.5″ x 11.5″ x 4.75″
324 x 292 x 140 mm

Maximum Container Size:
30.5″ x 21″ x 15.25″
With Bulge: 32″ x 22.5″ x 16″
813 x 572 x 406 mm

Travel Speed: 210 m/min (689 ft/min)

Lift Speed: 120 m/min (394 ft/min)

Fork Speed: 90 / 60 m/min (295 / 197 ft/min)

Travel Drive:
(2) 15 kW AC Motors

Lift Drive:
29 kW AC Motor

Fork Drive:
AC Motor

Travel Acceleration: 1 m/s²

Lift Acceleration: 2 / 1 m/s²

Fork Acceleration: 3 / 1 m/s²

Clear Aisle Height: 7,790 mm (306.7″)

Clear Aisle Width: 900 mm (35.5″)

Load Handling Device:
Telescopic Extraction Fork
Maximum Fork Stroke: 1,080 mm (42.5″)

Approach Dimensions:
Top Approach Dimension: 900 mm (35.5″)
Bottom Approach Dimension: 650 mm (25.5″)
Front Approach Dimension: 3,683 mm (145″)
Rear Approach Dimension: 3,835 mm (151″)

Features:
Twin Mast Design
Rail Guided Operation
Laser Distance Measurement System

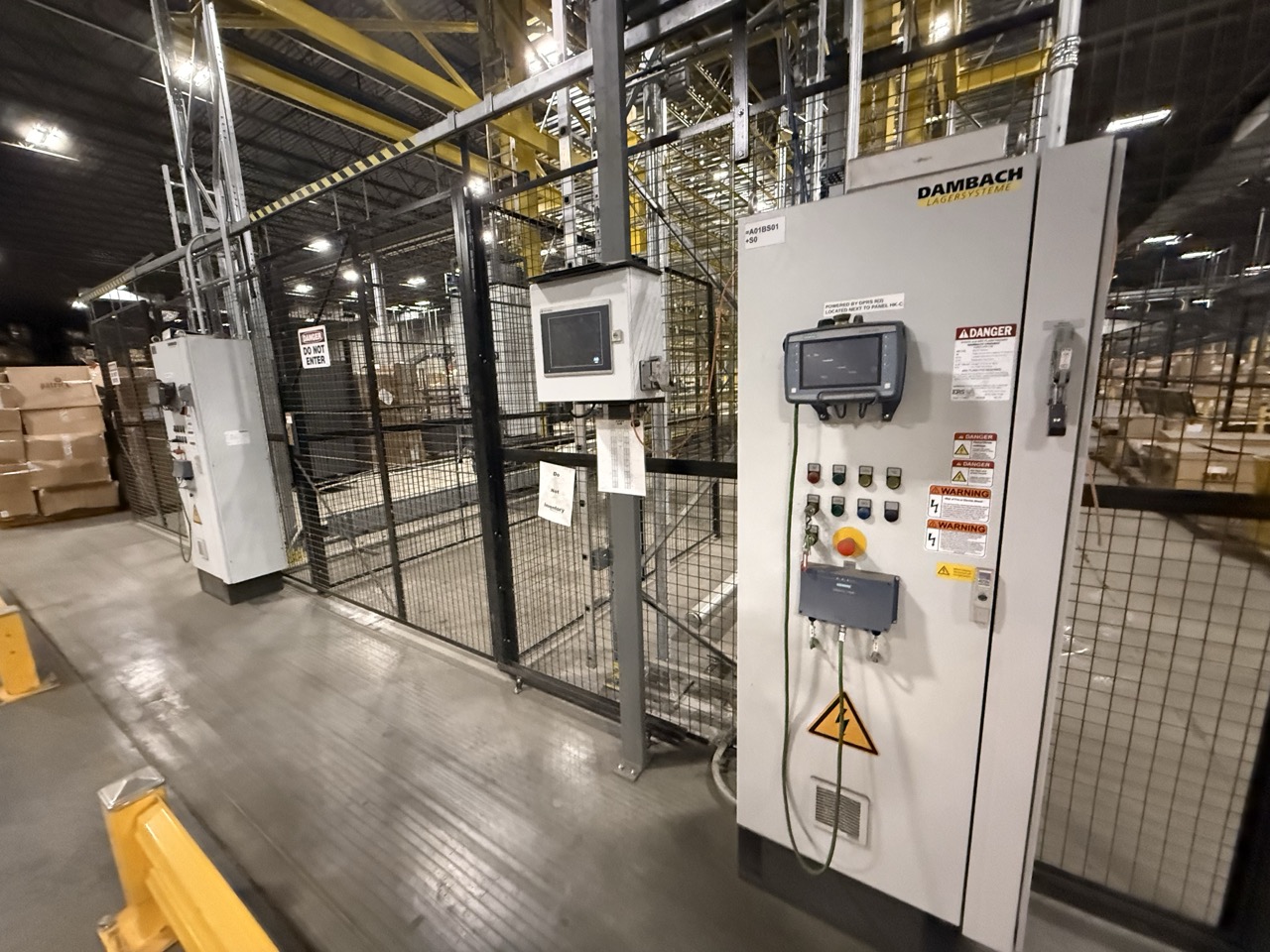

Automated Positioning Controls
High-Speed Carton and Tote Handling
Telescopic Load Handling Device
AC Drive System
