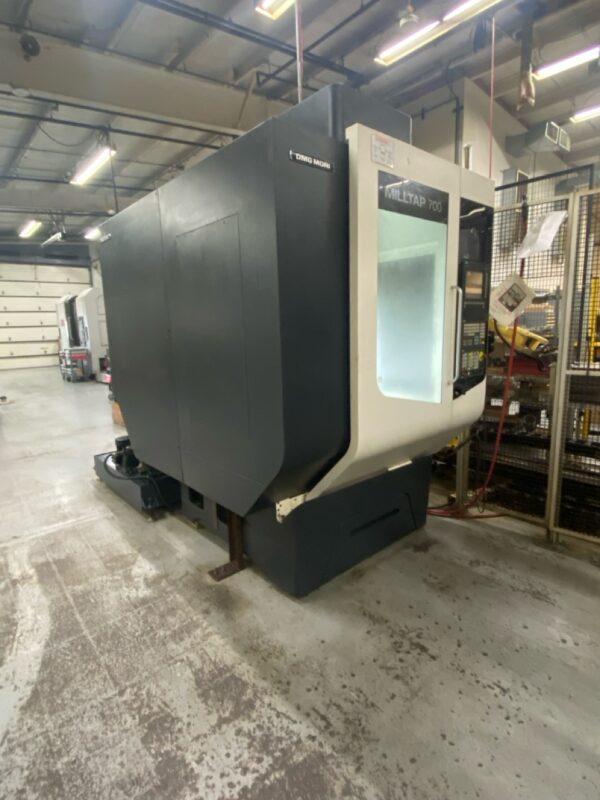

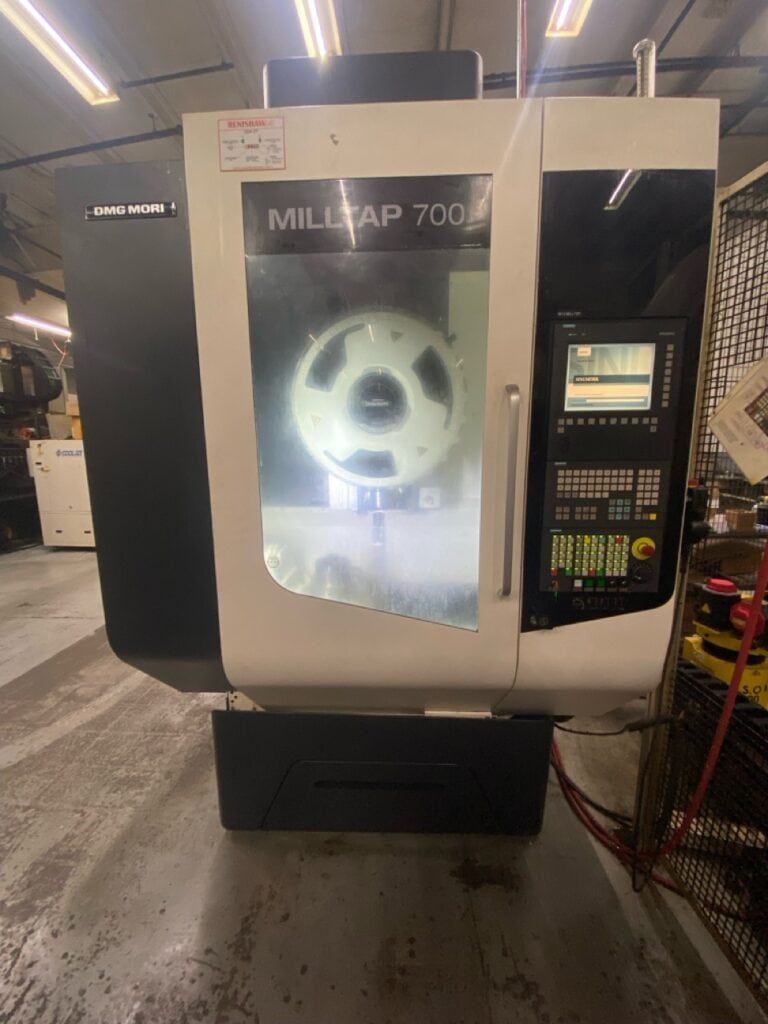

DMG Mori MillTap 700, 2017
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 27.6″
Y-Axis Travel: 16.5″
Z-Axis Travel: 15.0″
Max Tool Diameter: 3.15″
Max Tool Length: 9.8″
Max Tool Weight: 6.6 lbs.
Scale Feedback on X, Y & Z-Axes
Spindle Motor: 33.3 / 26.7 HP
Spindle Nose to Table Top: 7.9″ – 22.9″
Spindle Speed: 24000 RPM
Spindle Taper: Big Plus BT 30
Tool Change Time (T – T / C – C): 0.9 / 1.5 Seconds
Tools: 25
Approx. Dimensions: 65″ x 92″ x 101″
Approx. Weight: 7495 lbs
Equipped With:
Siemens 840D Solution Line CNC Control
10.4″ Color TFT

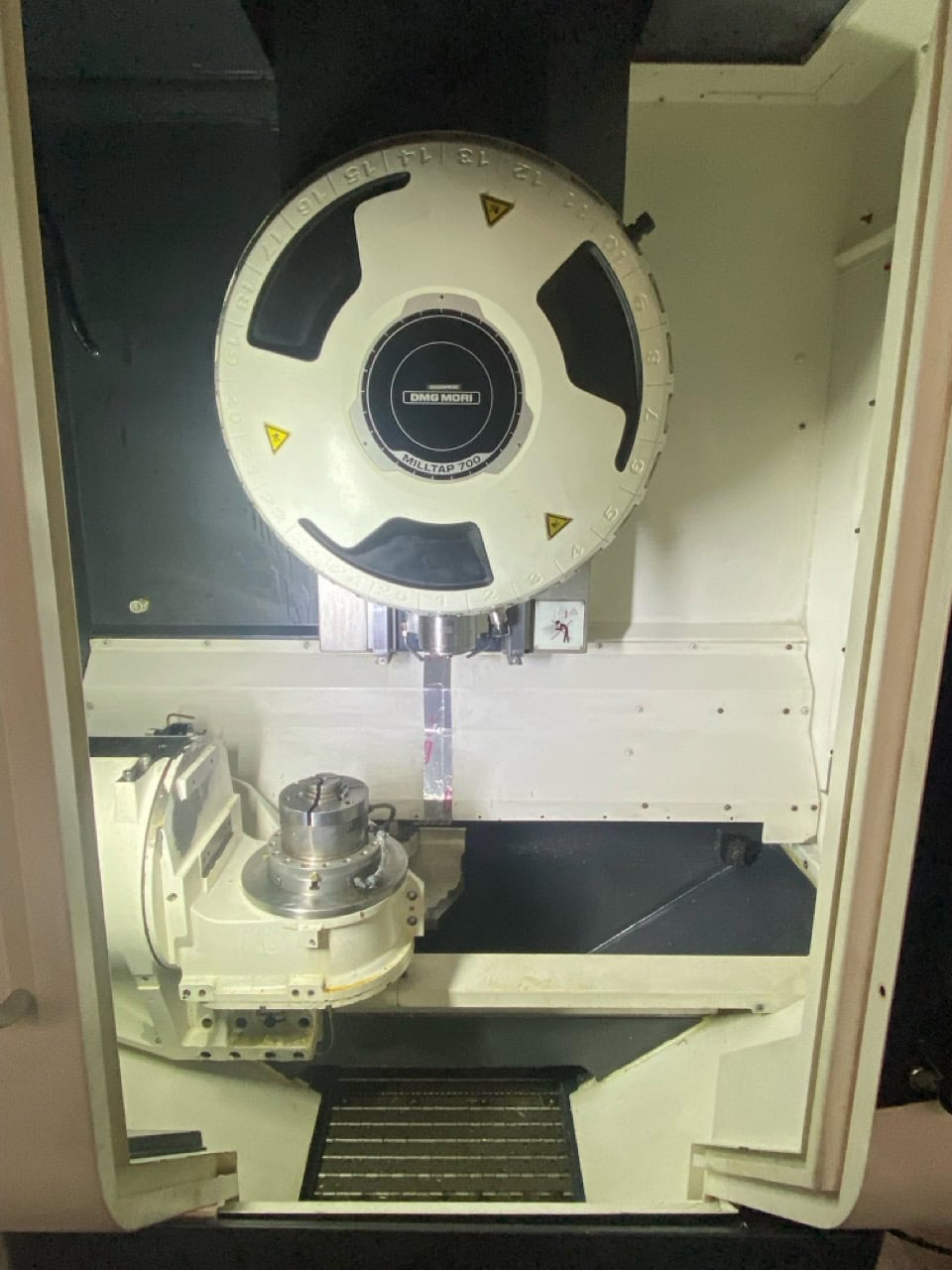

Integrated Swivel Rotary Table Simultaneous
Through Spindle Coolant (1000 psi)
Clamp Pneumatic 1-Circuit Integrated Swivel Rotary Table
Signal Lamp 4 Color
Automation Interface Door Right
Chip Trolley MillTap Design
Electronic Handwheel
Renishaw OMP400 Touch Probe
Automation Package With DP/DP Coupler With Profibus Connection
Tool Breakage Sensor Renishaw OTS
Upgraded LNS Higher Filtration Chip Conveyor
Push Button for Clamping/Unclamping
Internal Mist Collector
